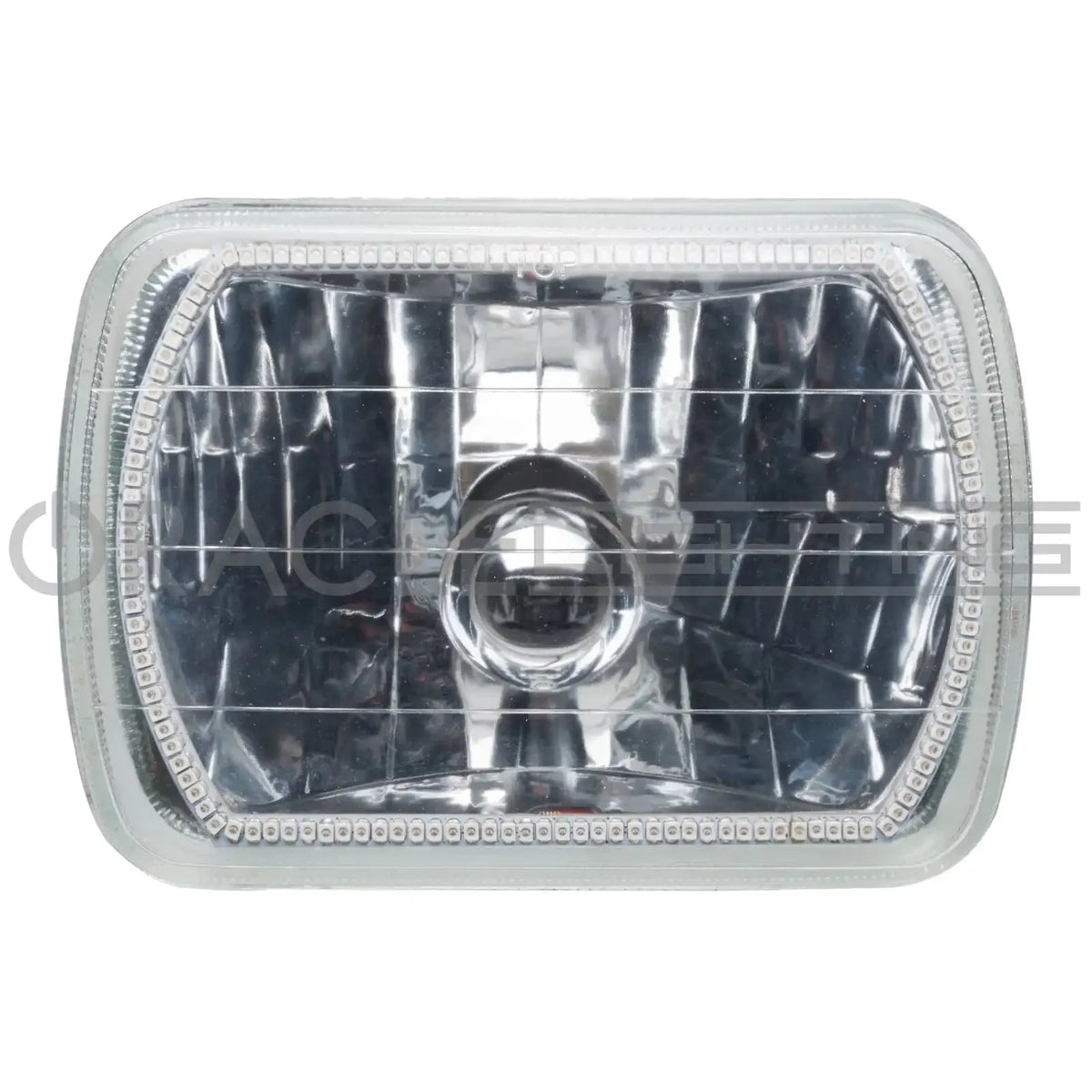

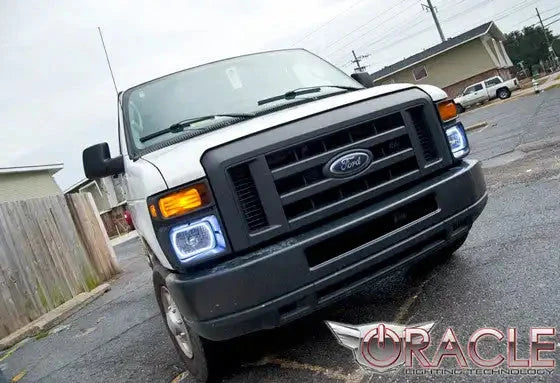

ORACLE Sealed Beam 7x6 H6054 Headlight with Pre-Installed SMD Halo

The original sealed beam halo headlight - 7x6" H6054 replacement with a pre-installed ORACLE SMD halo ring. Available in 7 colors including ColorSHIFT. Drop-in fitment for classic cars, trucks, and motorcycles. Sold individually.

    ✓ Pre-Installed SMD Halo
    ✓ 7 Color Options
    ✓ Glass Lens
    ✓ H4 Compatible
    ✓ Composite Reflector
    ✓ Wire to 12V Direct
    ✓ 1-Year Warranty


ORACLE Part #: 6908-001 thru 6908-333 - Multiple Colors Available

Product Overview▼

ORACLE Lighting invented the sealed beam halo headlight - and this 7x6" H6054 version is the definitive way to give any classic vehicle a modern, head-turning look without cutting into the bodywork or rewiring the entire front end. The SMD halo ring comes pre-installed at the factory, so you pull it out of the box and it is ready to wire straight in.

The housing uses a quality glass lens over a composite reflector for clean, consistent light output. The H4 bulb socket accepts any standard H4 replacement bulb (sold separately), which means you can run halogen now and step up to an LED conversion bulb like ORACLE Part #S5231 whenever you are ready to maximize night-time visibility. The halo itself wires directly to any 12V source - no controller required on most colors.

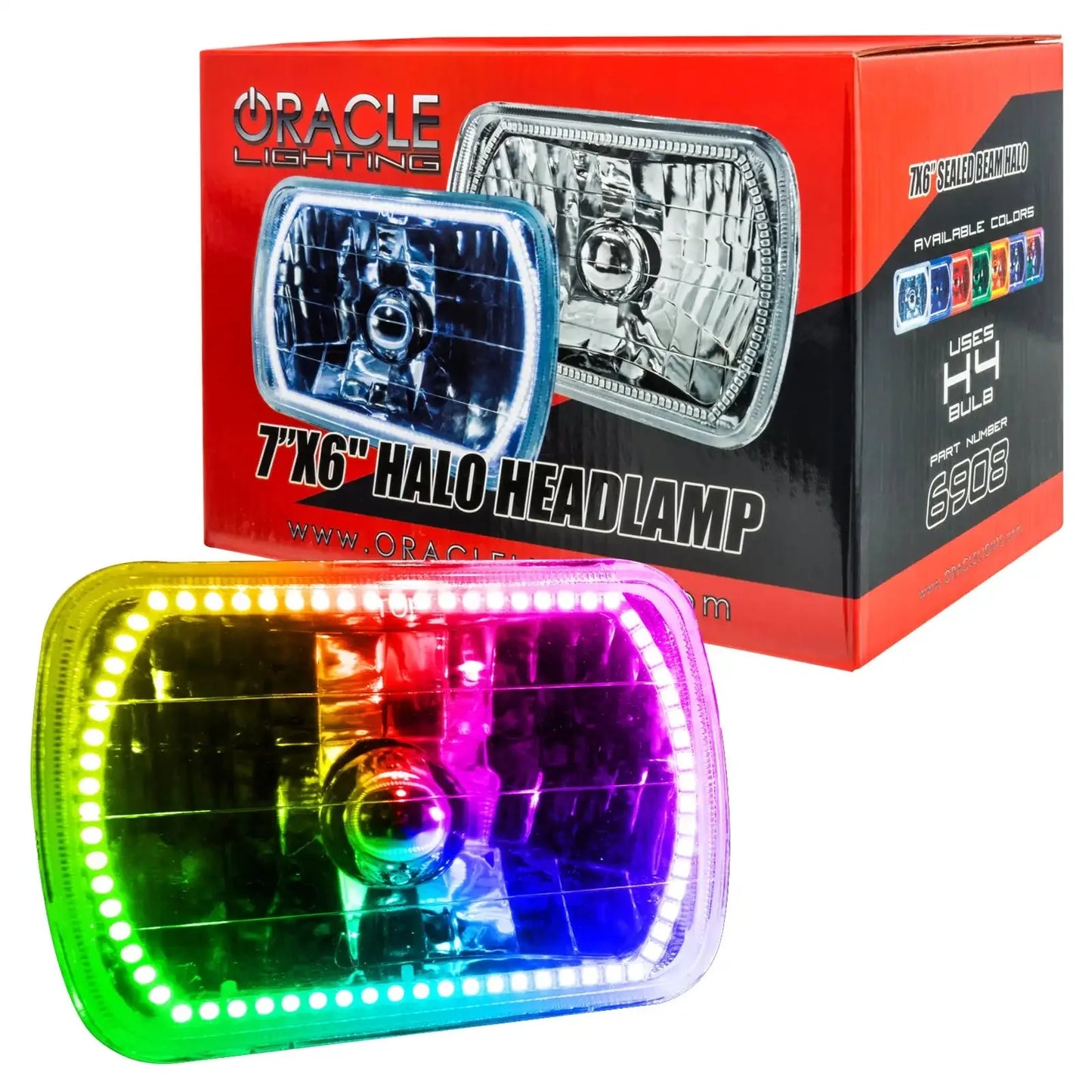

Seven halo color options cover everything from clean White and turn-signal-legal Amber to show-only Blue, Red, Green, and UV/Purple, plus the full-spectrum ColorSHIFT option for those who want every color in one lamp. ColorSHIFT requires a compatible ORACLE ColorSHIFT controller (sold separately).

Sold individually - one light per package. Order two for vehicles with dual 7x6" headlight openings. Some vehicles may require lamp bucket modification to accept the 7x6" format (also known as 5"x7").

Key Features▼

Pre-installed ORACLE SMD halo ring - factory-installed, ready to wire out of the box
More LEDs than any other sealed beam halo on the market - ORACLE is the original
Quality glass lens with composite reflector housing for sharp, reliable output
H4 bulb socket accepts standard H4 bulbs (sold separately); compatible with LED conversion bulbs

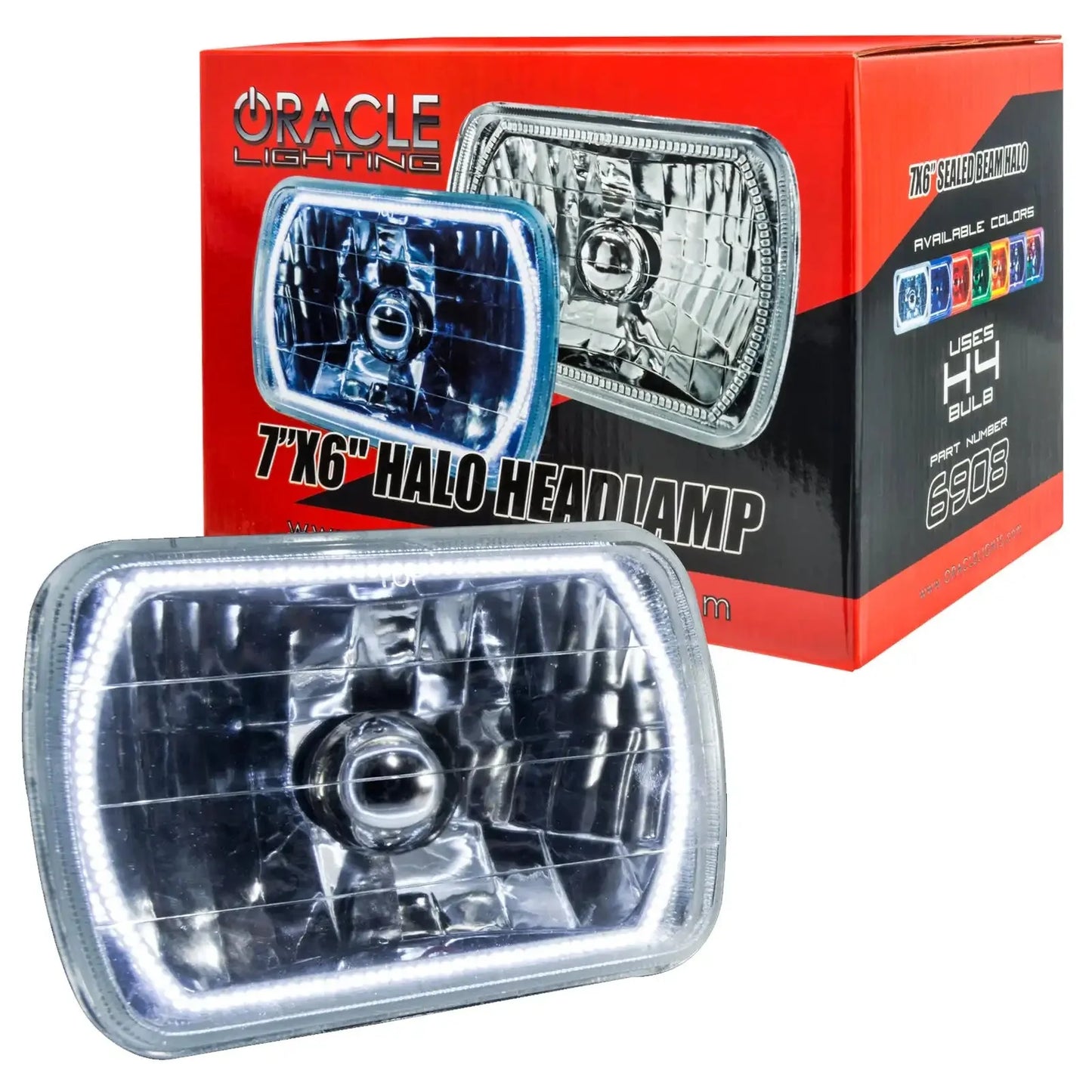

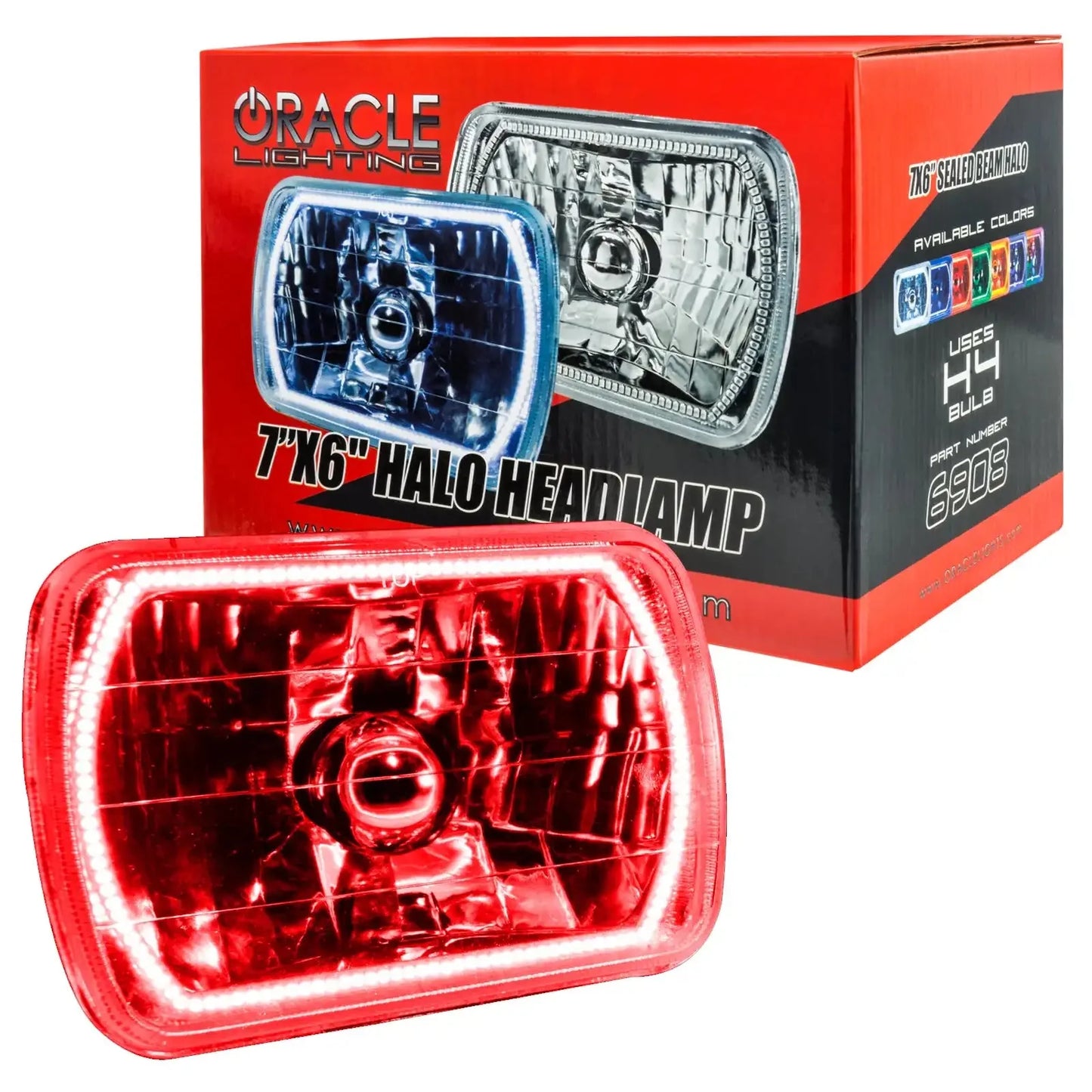

7 halo color options: White, Blue, Red, Green, Amber, UV/Purple, ColorSHIFT
Amber halo approved for use as a front turn signal indicator
Direct 12V wiring - no external driver or module required (ColorSHIFT requires controller)
Replaces H6054 sealed beam headlight (also known as 5"x7")
Fits classic cars, trucks, and motorcycles with 7x6" sealed beam openings
1-Year full replacement warranty

Blue, Green, Red, and UV/Purple halo colors are intended for show use only and are not street-legal for forward-facing illumination in most jurisdictions.

Vehicle Fitment▼

Designed as a direct replacement for the H6054 (7x6" / 5"x7") sealed beam headlight. Common fitments include:

Classic GM vehicles (Camaro, Firebird, Monte Carlo, El Camino, and others) with rectangular 7x6" headlight buckets
Jeep XJ Cherokee, YJ Wrangler, and other Jeep models using H6054
Classic Ford and Dodge trucks and muscle cars with 7x6" openings
Motorcycles with 7x6" or 5"x7" headlight buckets

Some vehicles may require lamp bucket modification to accept the 7x6" format. Verify your exact headlight opening dimensions before ordering.

What's Included▼

(1) ORACLE 7x6" H6054 Sealed Beam Headlight with Pre-Installed SMD Halo (color per selection)

H4 bulb, ColorSHIFT controller, and wiring harness are sold separately. For LED upgrade: see ORACLE Part #S5231.

Installation Guide & Resources▼

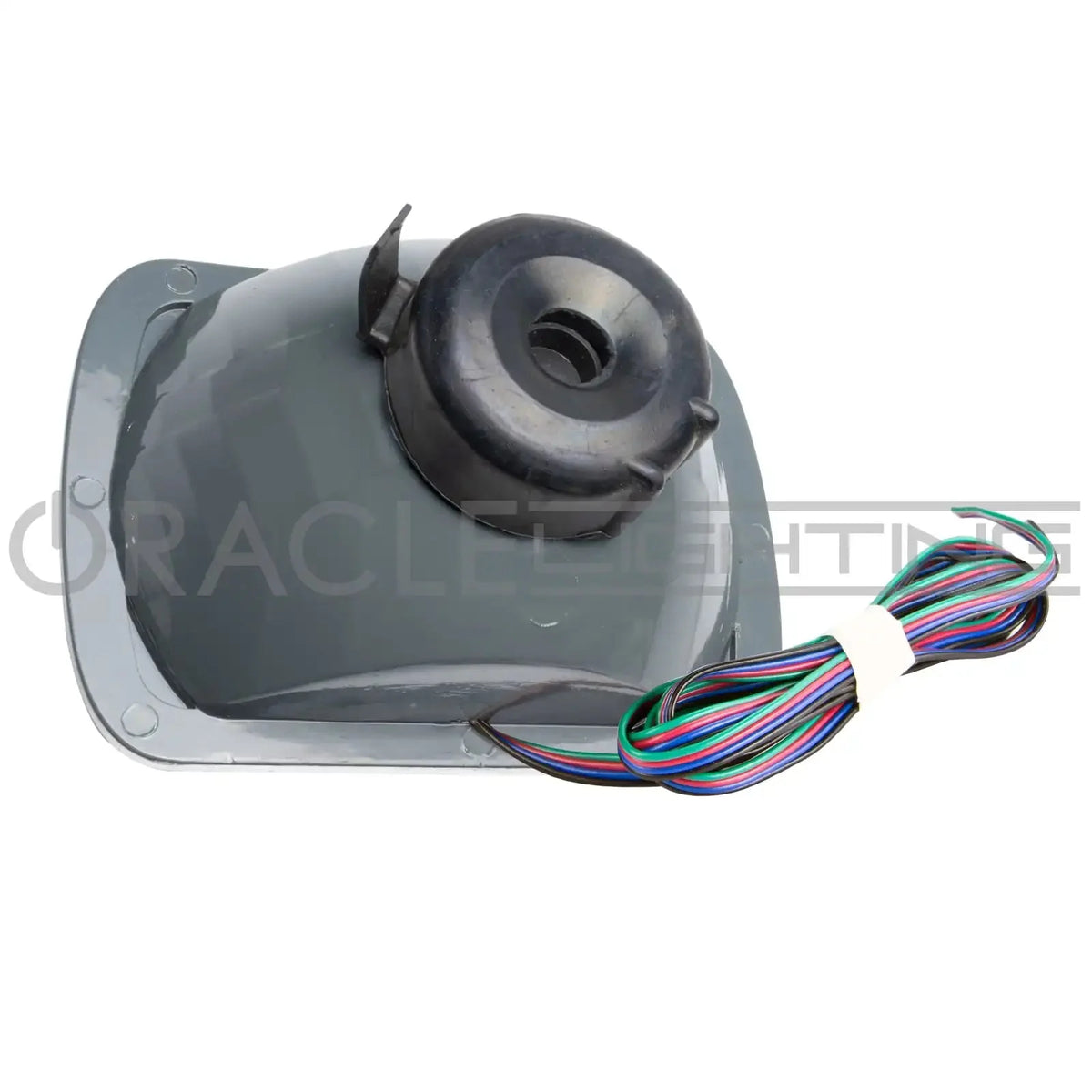

Remove the existing sealed beam retaining ring and lamp. Install the ORACLE unit in its place using the existing hardware. Insert your H4 bulb of choice and connect to the factory headlight harness. Run two wires from the halo ring leads to a switched 12V source and chassis ground. ColorSHIFT variants require connection to an ORACLE ColorSHIFT controller instead.

Estimated Install Time: 15 minutes | Experience Level: Beginner - basic hand tools only.
