ORACLE Lighting Jeep Wrangler JL/Gladiator JT 7" High Powered LED Headlights (Pair)
Sale price
$675.00
Regular price $540.00Select Color Option
Complete plug-and-play package for adding high-performance 7" LED headlights to your Wrangler JL or Gladiator JT-no fabrication, no factory wiring cuts, and built-in vertical/horizontal adjustment so you can put the light on the road where it belongs.
Plug & Play Adjustable Aim 6000K Output Optional Halos DOT / SAE 2-Year Warranty
Product Overview ▼
NOW AVAILABLE - a complete package for adding high-performance 7" LED headlights to your Wrangler JL or Gladiator JT without fabrication or cutting factory wiring. Installation is very easy with the included JL/JT-specific plug-and-play connectors.
This rugged solid-state LED design is a strong option for Jeep owners looking for high-quality nighttime visibility without overpaying. You can also choose optional colored halos for additional customization.
If you are looking for a more flush-fitting headlight option, check out the Oculus 9" BI-LED Projector Headlights.
Key Features ▼
- Low Beam Wattage: 30W Normal / 36W Max
- Low Beam Lumens: 2200 Lumens / 3600 Raw Lumens
- High Beam Wattage: 40W Normal / 48W Max
- High Beam Lumens: 3600 Lumens / 4800 Raw Lumens
- Color Temperature: 6000K (Cool White)
- Input Voltage of Light: 12-24V DC
- Input Voltage of Halo (if included): 12V DC
- Current Draw: 2.50A @ 12V DC / 1.30A @ 24V DC
- Optional: ORACLE Halo Rings Pre-Installed
- Premium Performance Phillips Luxeon ZES LEDs
- Die-Cast Housing with Corrosion Resistant Coating
- Heavy Duty Solid State Electronics
- Hard-coated Polycarbonate Lens
- Wide Beam Pattern with Sharp Cut-Off Line
- Easy Plug & Play Installation
- 2 Year Warranty
- DOT and SAE Certified
Product Improvements
- Improved brightness and reliability by adding a constant current LED driver to the main circuit board to control the halo LEDs
- Increased reliability by conditioning power going to the LEDs to reduce degradation and extend lifespan
- Wider input voltage range - new SMD halos can operate from 12V-24V, helping protect against voltage spikes
- Brighter / more even light by moving resistor heat load off the PCB and increasing LED density without thermal issues
- LED chips upgraded from Cree to Phillips Luxeon ZES for a high efficacy 130LM/W ratio with lower thermal output
What's Included ▼

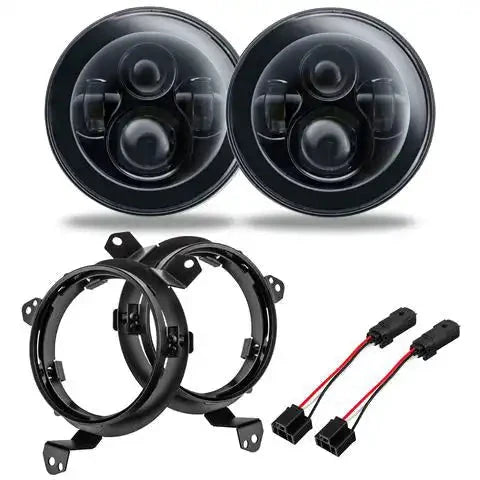

Standard Package
- 2 x ORACLE 7" High Performance LED Headlights (Pair)
- 2 x Wrangler JL / Gladiator JT-specific Plug & Play Wiring Adapters
- 2 x Direct-Fit Beam Adjustable Headlight Brackets
With ColorSHIFT Upgrade
- 2 x ORACLE 7" High Powered LED Headlights (Pair) - Black Bezel with ORACLE ColorSHIFT Halos Pre-installed
- 1 x ORACLE ColorSHIFT Controller Module
- 1 x ORACLE ColorSHIFT Wireless Remote
- 2 x Plug & Play Wiring Adapters
- 2 x 7" Adjustable Headlight Brackets
Installation Guide & Resources ▼
Estimated Installation Time: 2+ hours
Experience Level: Experienced
More involved mechanical or electrical work is expected. Professional installation may be appropriate.
Experience Level: Experienced
More involved mechanical or electrical work is expected. Professional installation may be appropriate.
Wiring & Electrical
White or Amber Halo
Additional wire may be needed.
Important: DRL wire cannot be used as a power source. Tapping into Park Lights will give manual control over the LED accessory during daytime driving. The LED accessory will turn on automatically in night mode when the switch is set to AUTO. For full automatic control over the LED accessory, use fuse F52 in the engine compartment fuse panel.

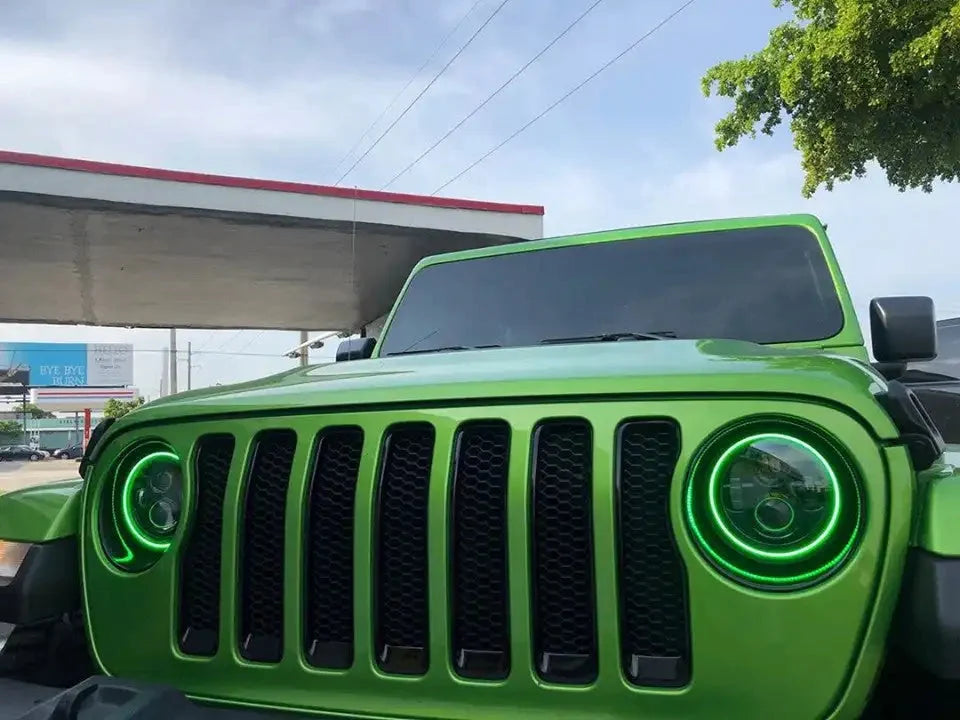

Red, Blue, or Green Halo
- Extend Red (+) wire to controller, toggle switch, or existing headlight halo
- Extend Black (-) wire to common ground
Product Videos ▼
Part Numbers & Options ▼

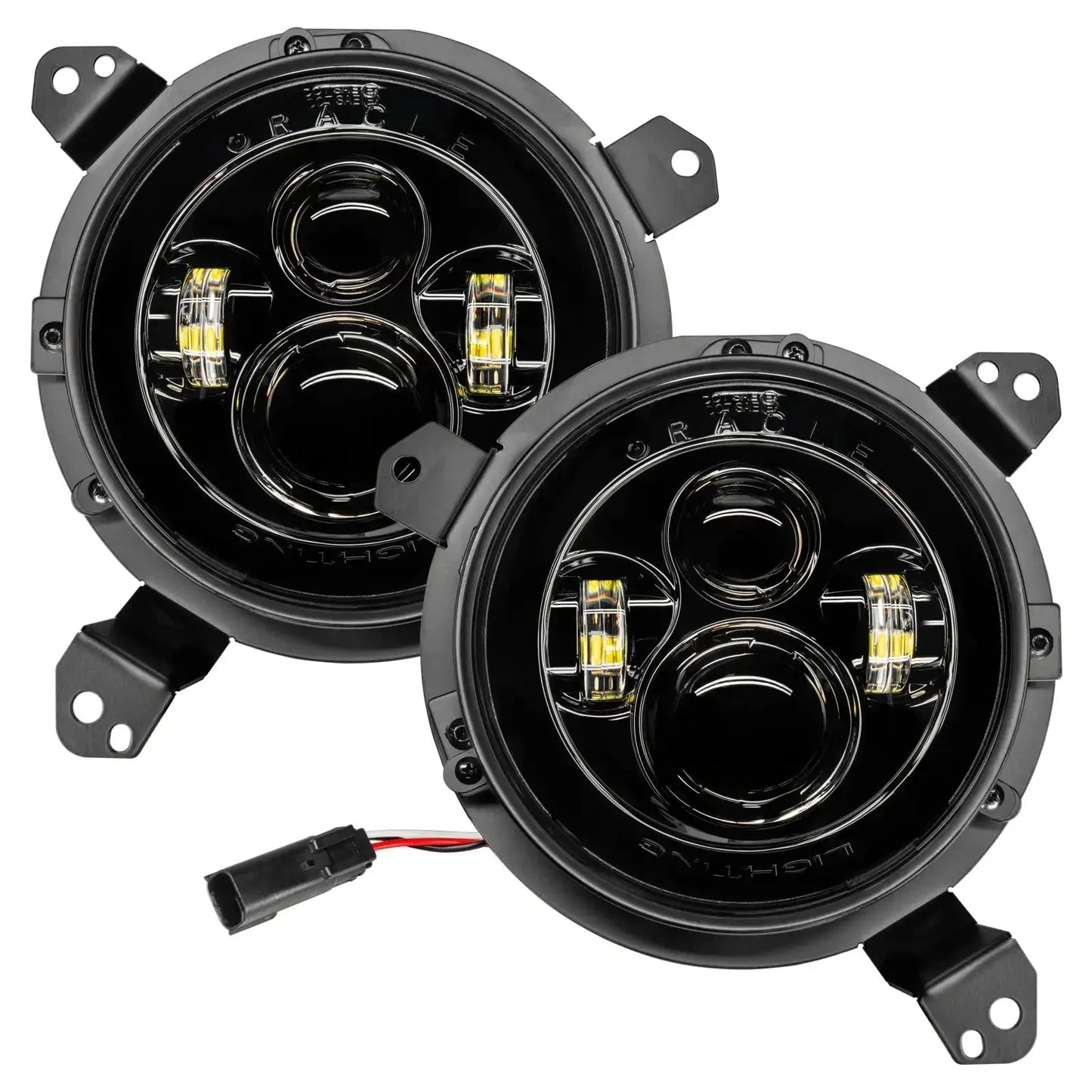

No Halo Kit5769J-504 - No Halo

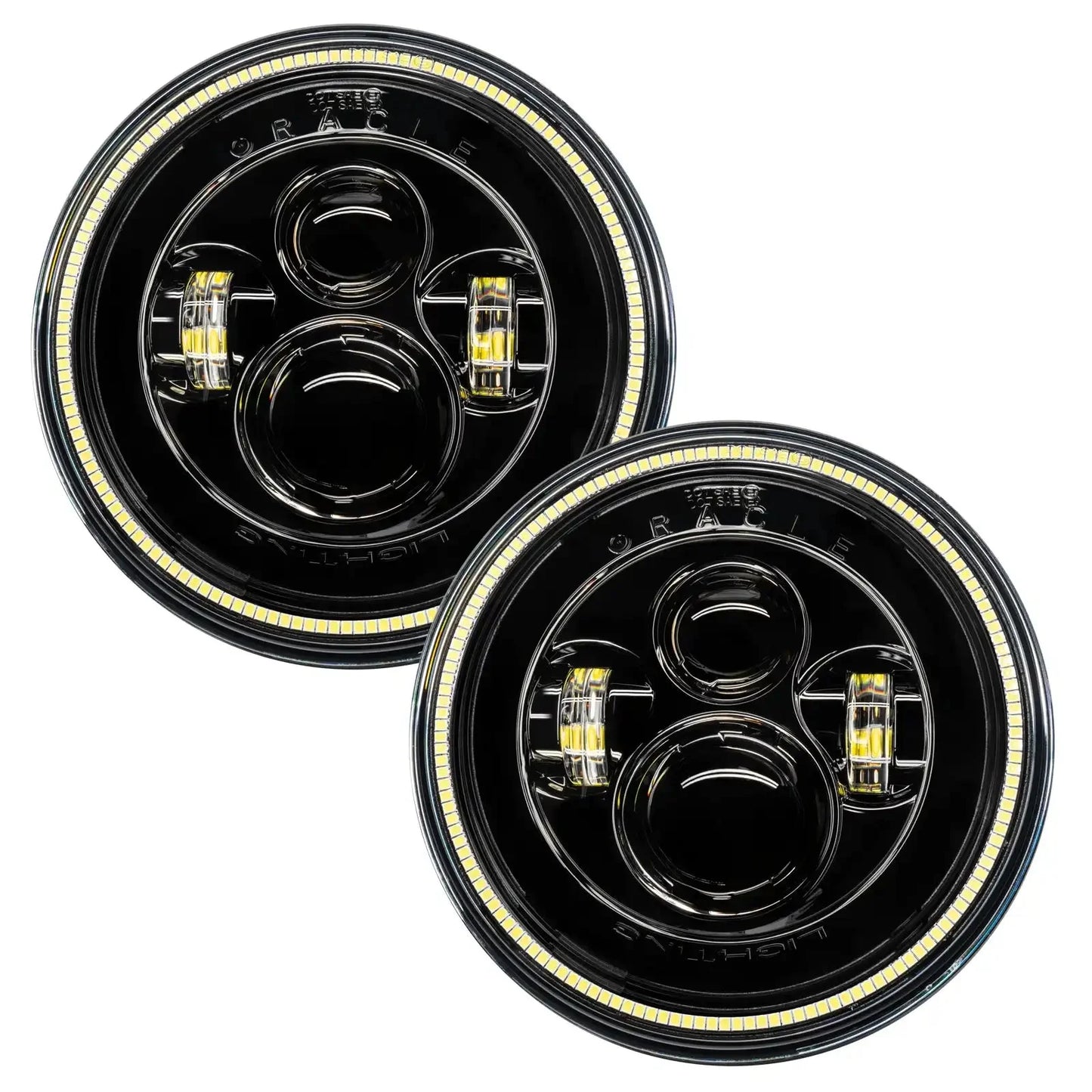

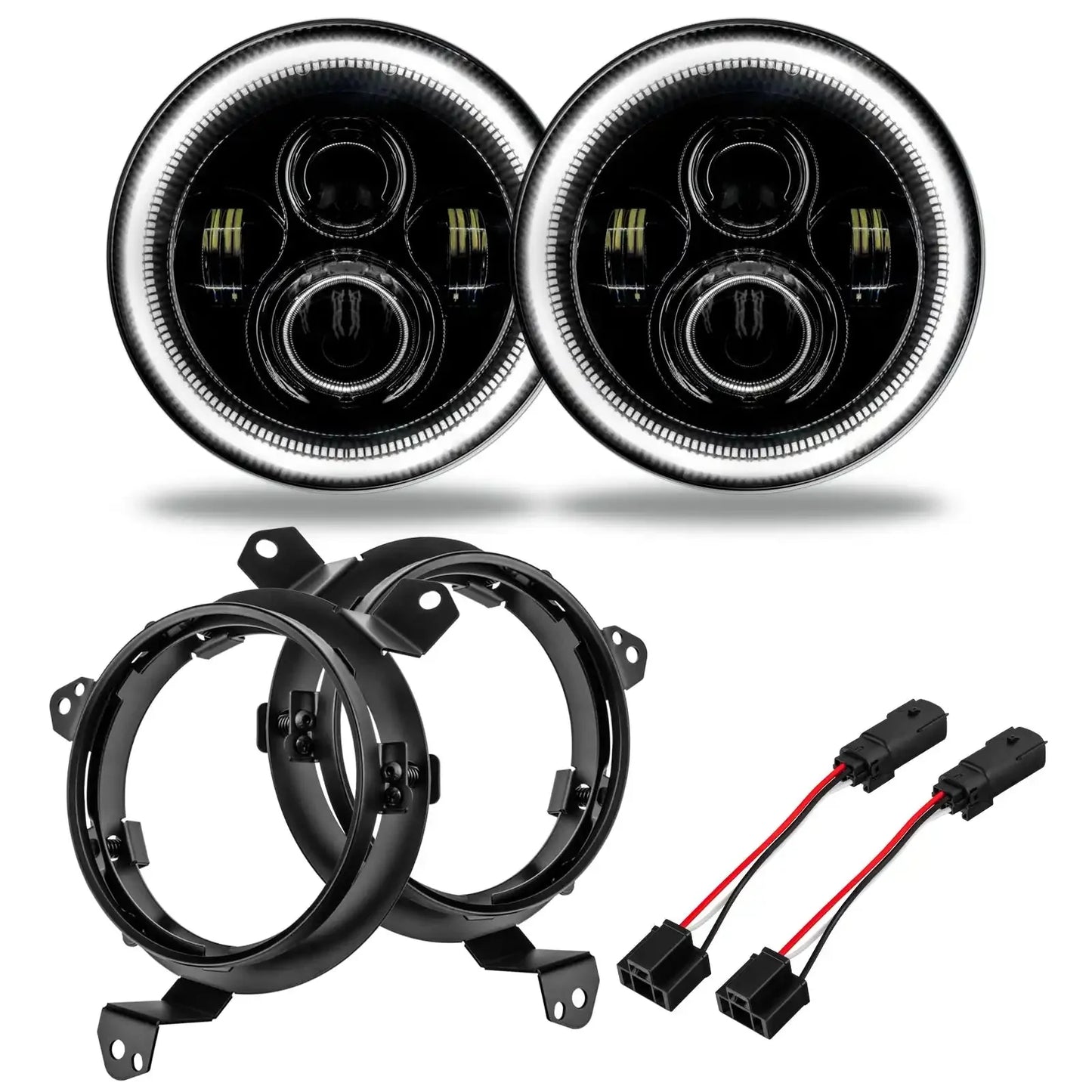

LED Halo Kit5769J-001 - White

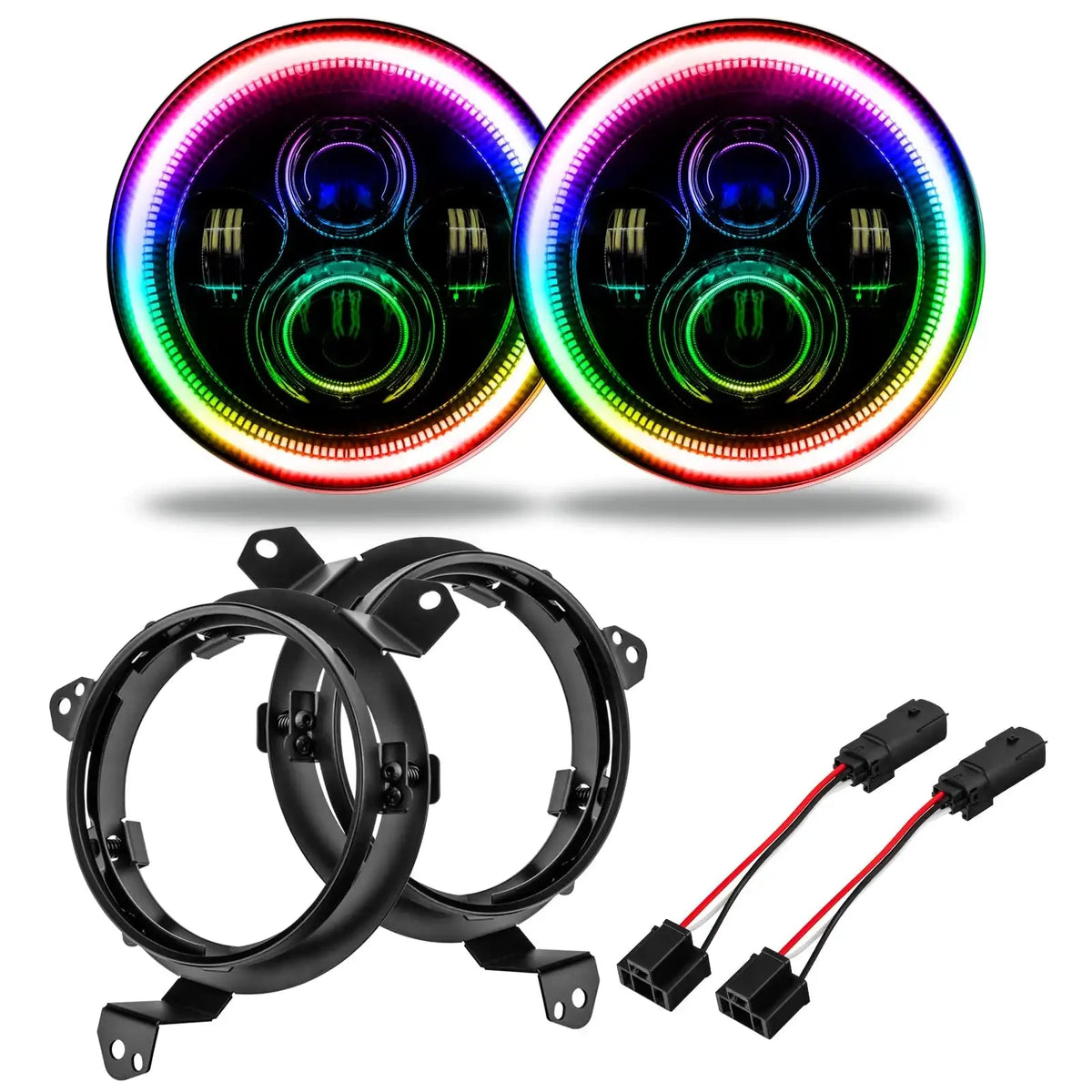

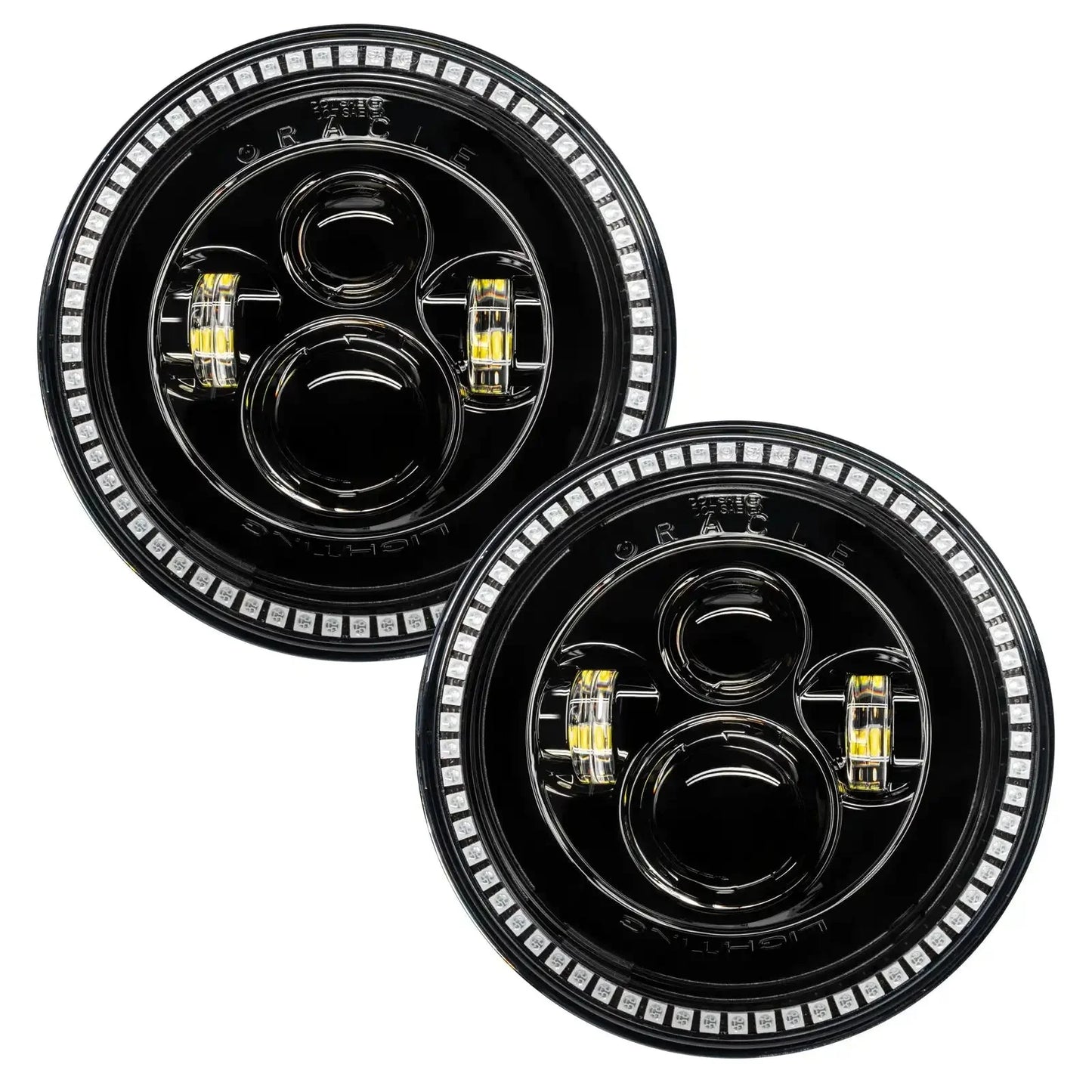

ColorSHIFT Halo Kit5769J-334 - ColorSHIFT / No Controller

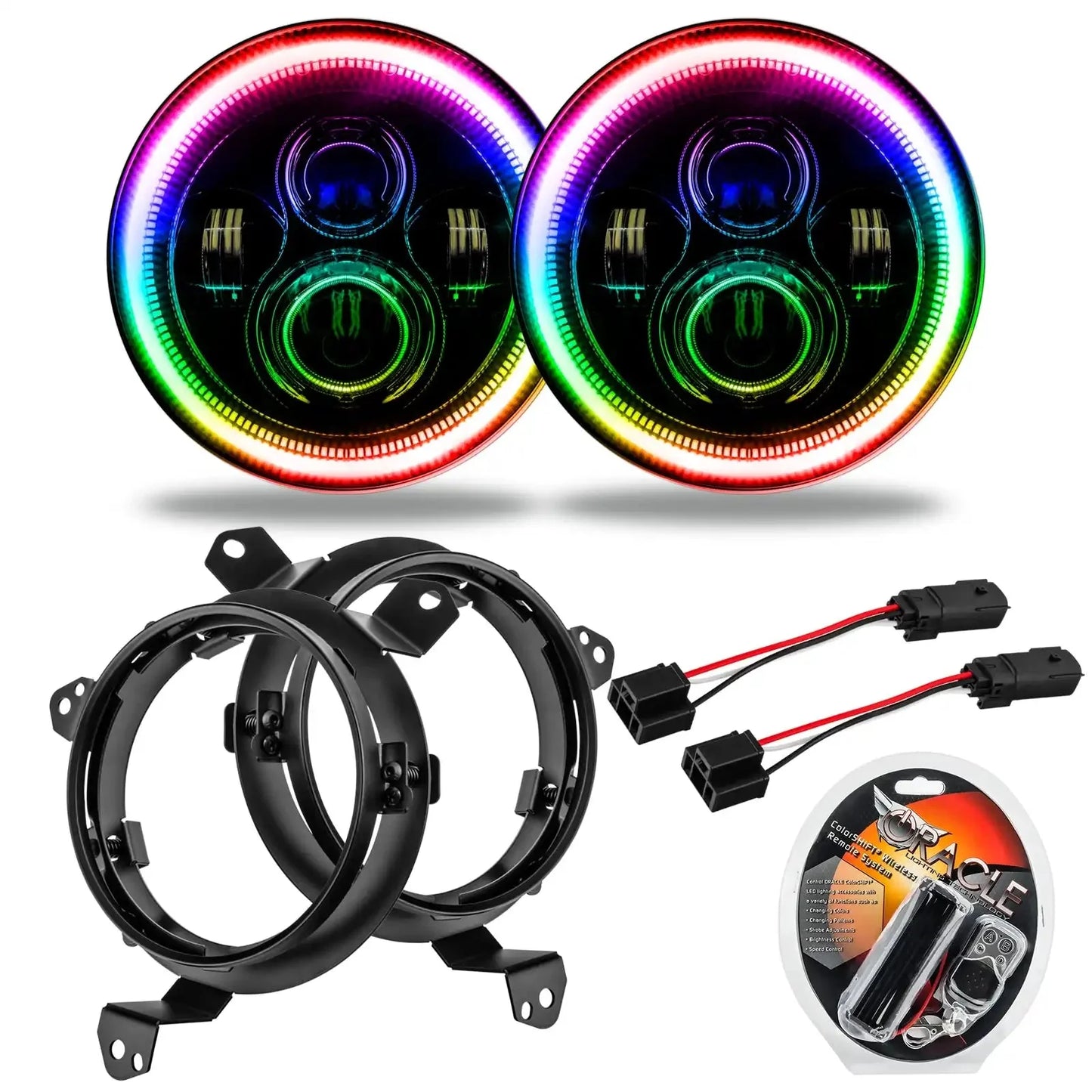

ColorSHIFT Halo Kit5769J-330 - ColorSHIFT / RF Controller

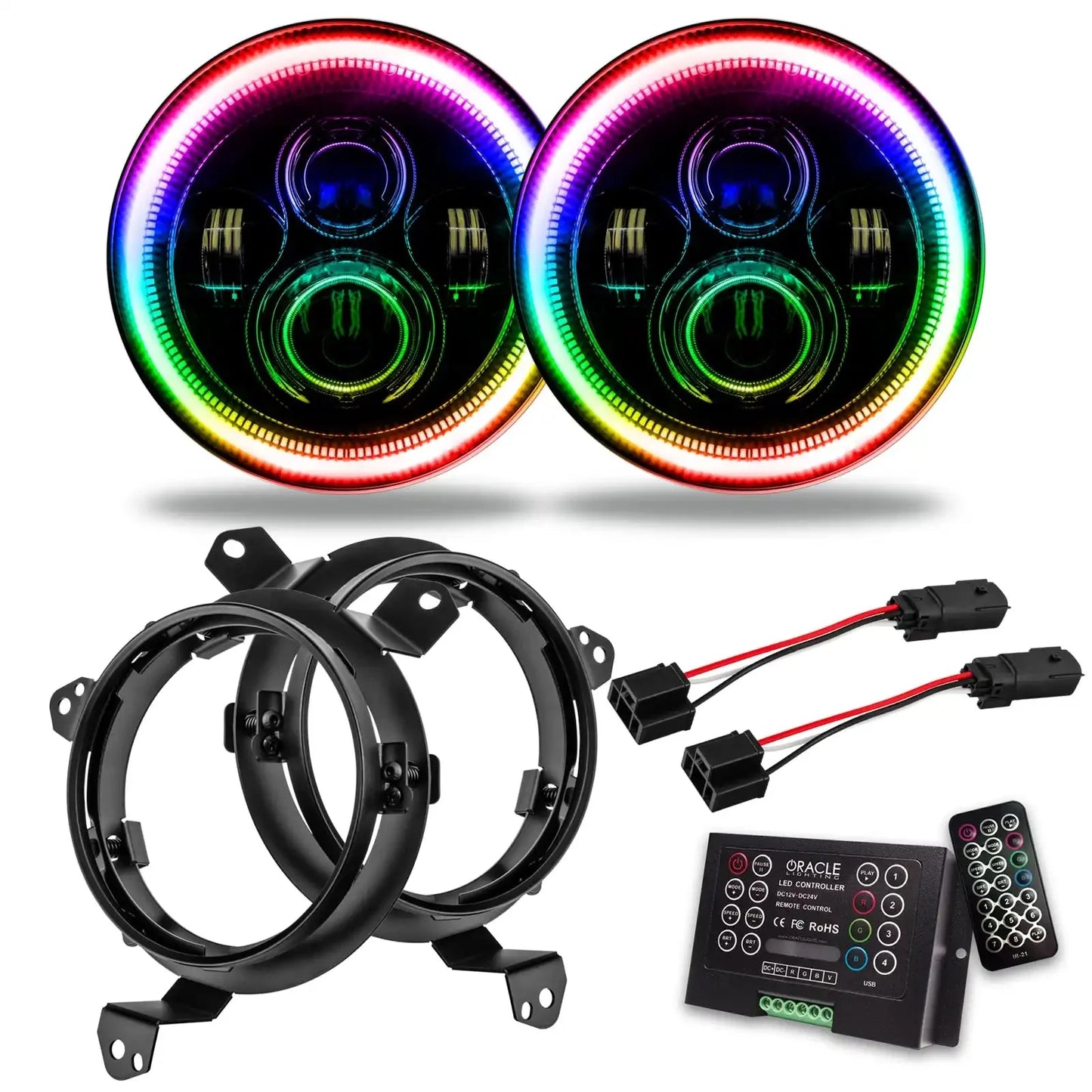

ColorSHIFT Halo Kit5769J-333 - ColorSHIFT / 2.0 Controller

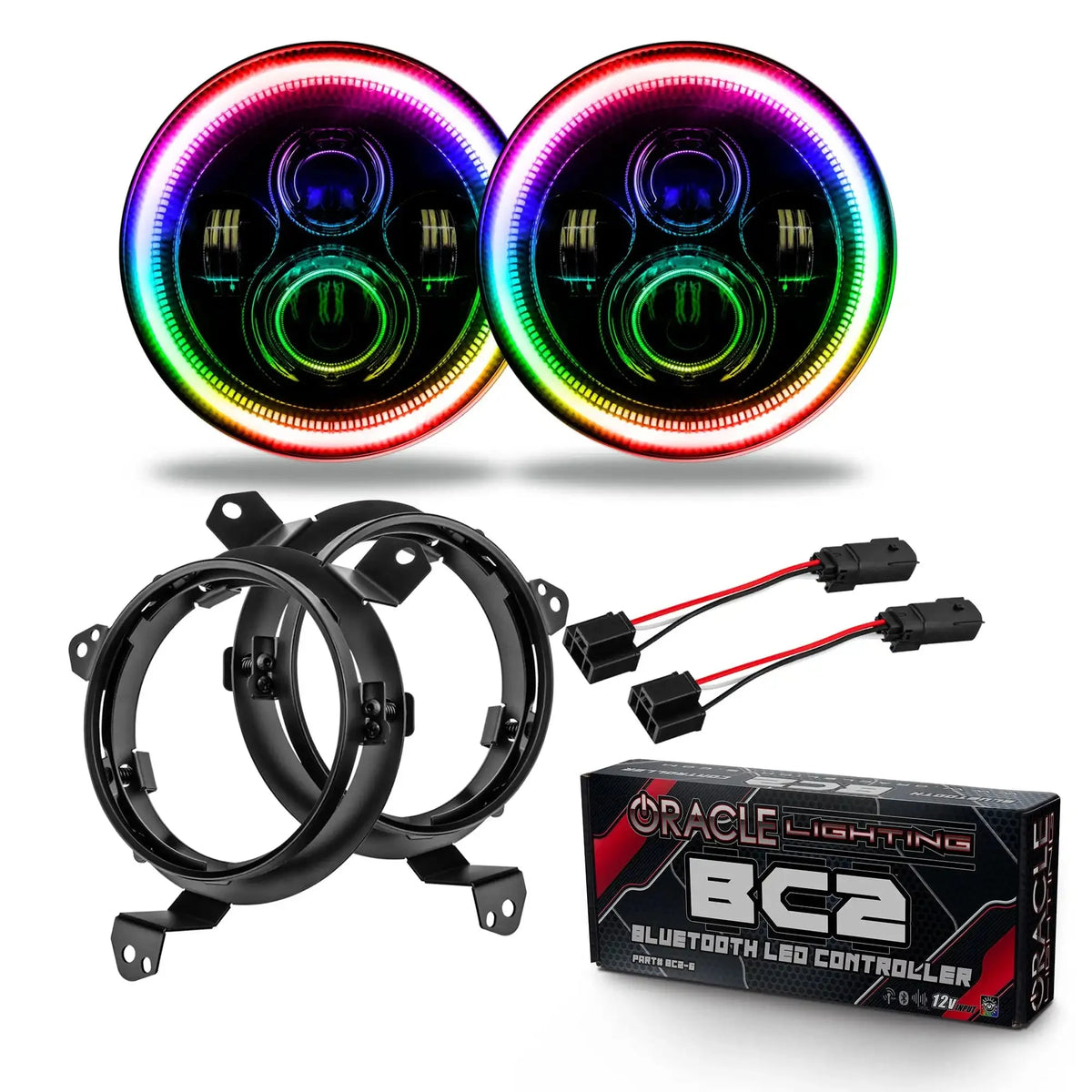

ColorSHIFT Halo Kit5769J-335 - ColorSHIFT / BC2 Controller
