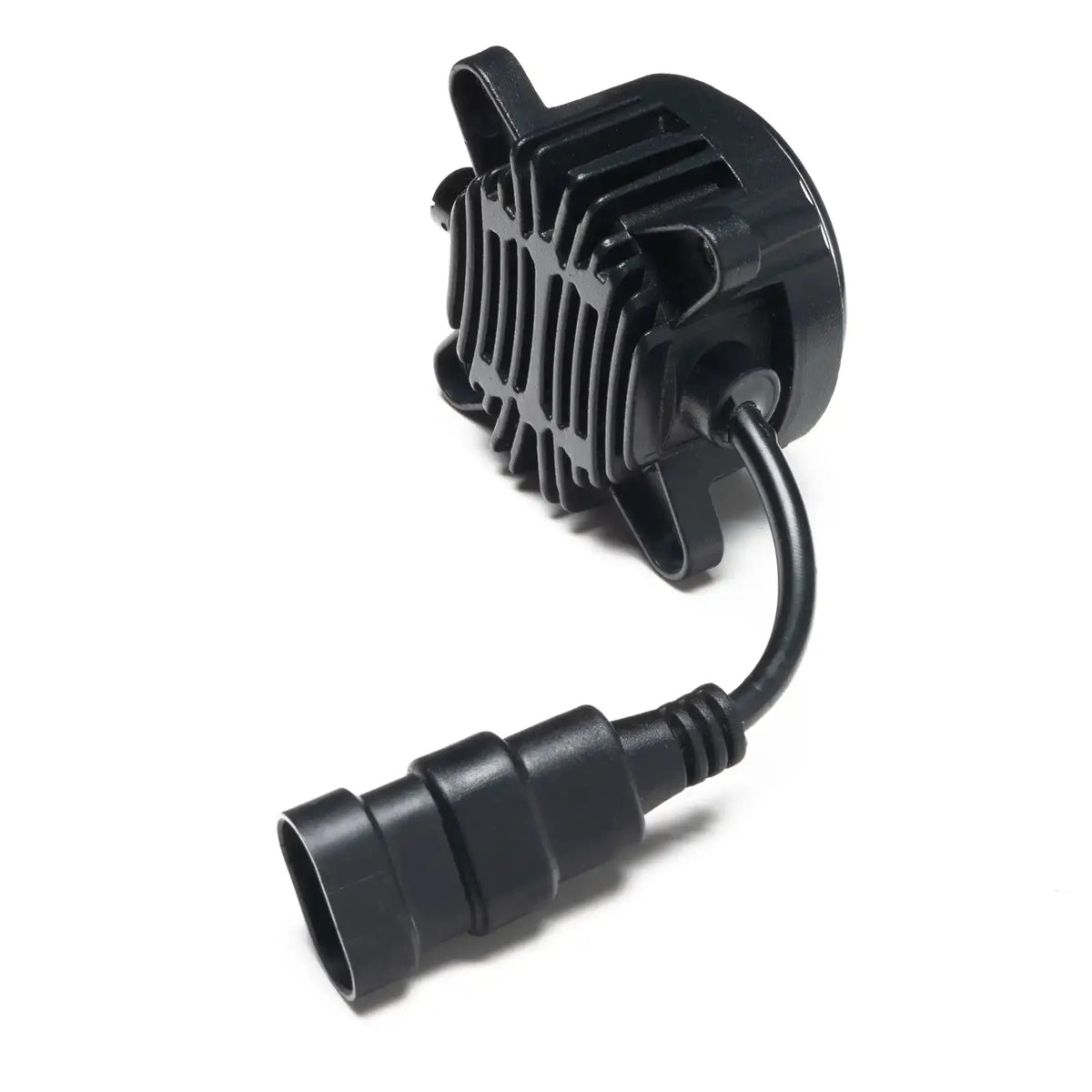

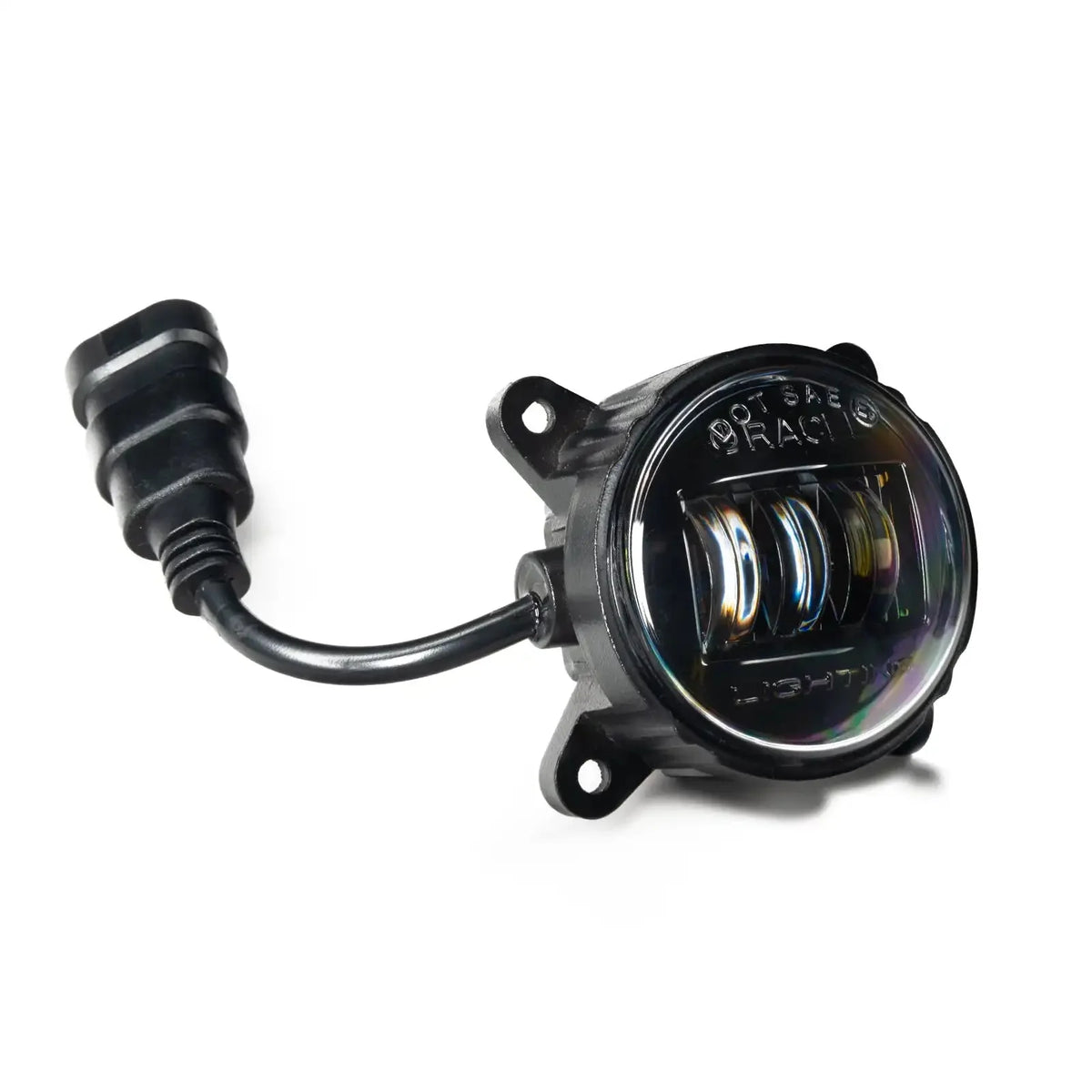

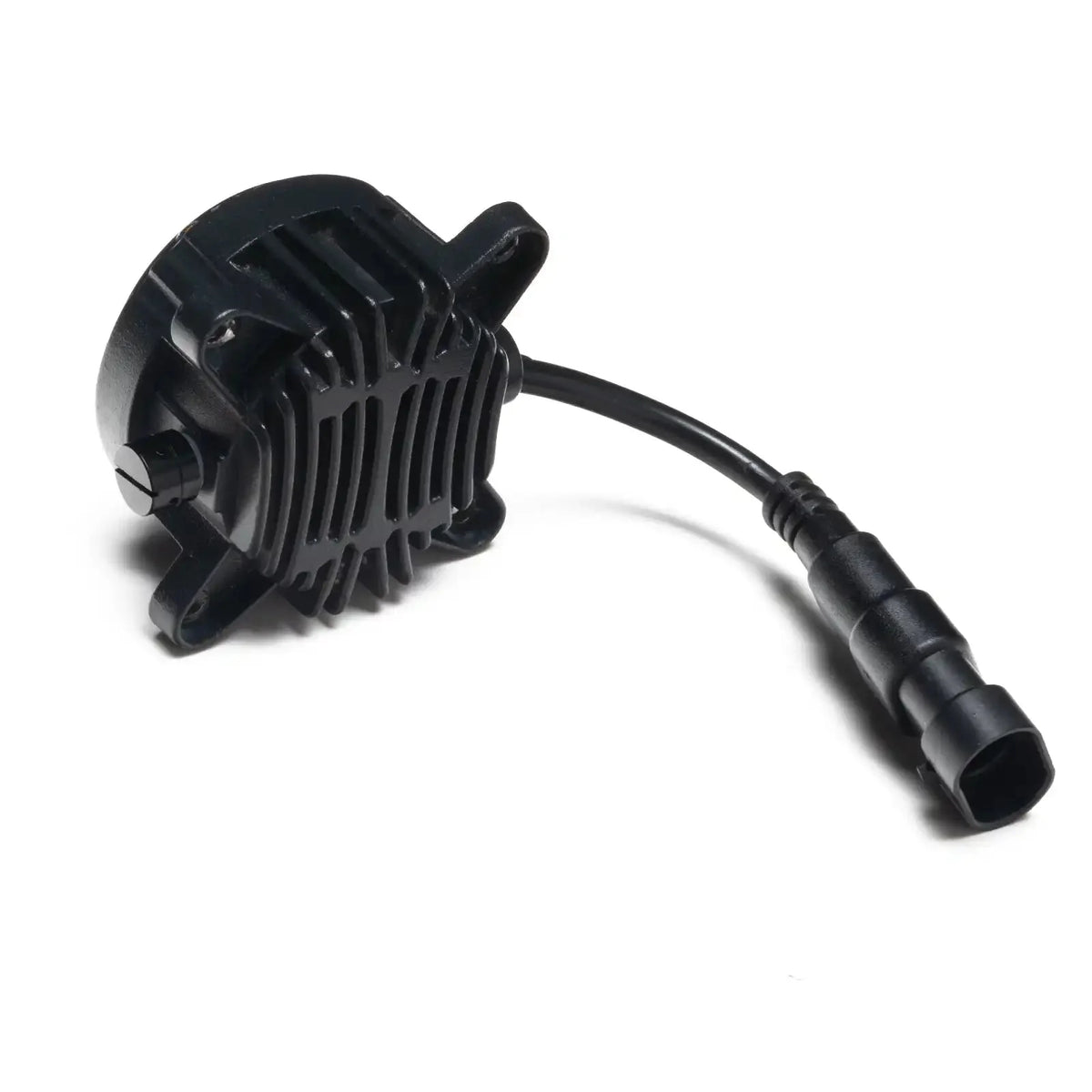

ORACLE Lighting 60mm 15W Low Beam LED Emitter Module
ORACLE Part# 5821-001
These high powered LED modules are small but make a big impact bright white 5000K LED illumination. The Low Beam irradiation angle is perfect for applications where functional on-road illumination is needed in a small package. The housing is just 34mm deep, making it one of the most versatile FMVSS compliant LED modules on the market. Anti-fog breather valve provides trouble free use even in extreme weather situations. Wiring connector is a fully insulated 9005/9006 standard socket, you can link multiple modules with ORACLE Part# 5831-504 wiring adapter.
Product Specifications:
• 1000 Max Lumen Light Output
• 3x High-Output 5W LEDs
• Total Max Wattage: 15W
• Amp Draw: 0.6A @12V DC
• Advanced Optics Design for Optimal Visibility
• Precision Beam "no glare” output design
• Aluminum anti-fog Breather Valve
• 9005 / 9006 Molded Wiring Connector
• Easy “Plug and Play” DIY Installation
• DOT, SAE, and E9 Marked
• IP68 Ingress Protection
• 2 Year Warranty
ORACLE Part# 5821-001
These high powered LED modules are small but make a big impact bright white 5000K LED illumination. The Low Beam irradiation angle is perfect for applications where functional on-road illumination is needed in a small package. The housing is just 34mm deep, making it one of the most versatile FMVSS compliant LED modules on the market. Anti-fog breather valve provides trouble free use even in extreme weather situations. Wiring connector is a fully insulated 9005/9006 standard socket, you can link multiple modules with ORACLE Part# 5831-504 wiring adapter.
Product Specifications:
• 1000 Max Lumen Light Output
• 3x High-Output 5W LEDs
• Total Max Wattage: 15W
• Amp Draw: 0.6A @12V DC
• Advanced Optics Design for Optimal Visibility
• Precision Beam "no glare” output design
• Aluminum anti-fog Breather Valve
• 9005 / 9006 Molded Wiring Connector
• Easy “Plug and Play” DIY Installation
• DOT, SAE, and E9 Marked
• IP68 Ingress Protection
• 2 Year Warranty
