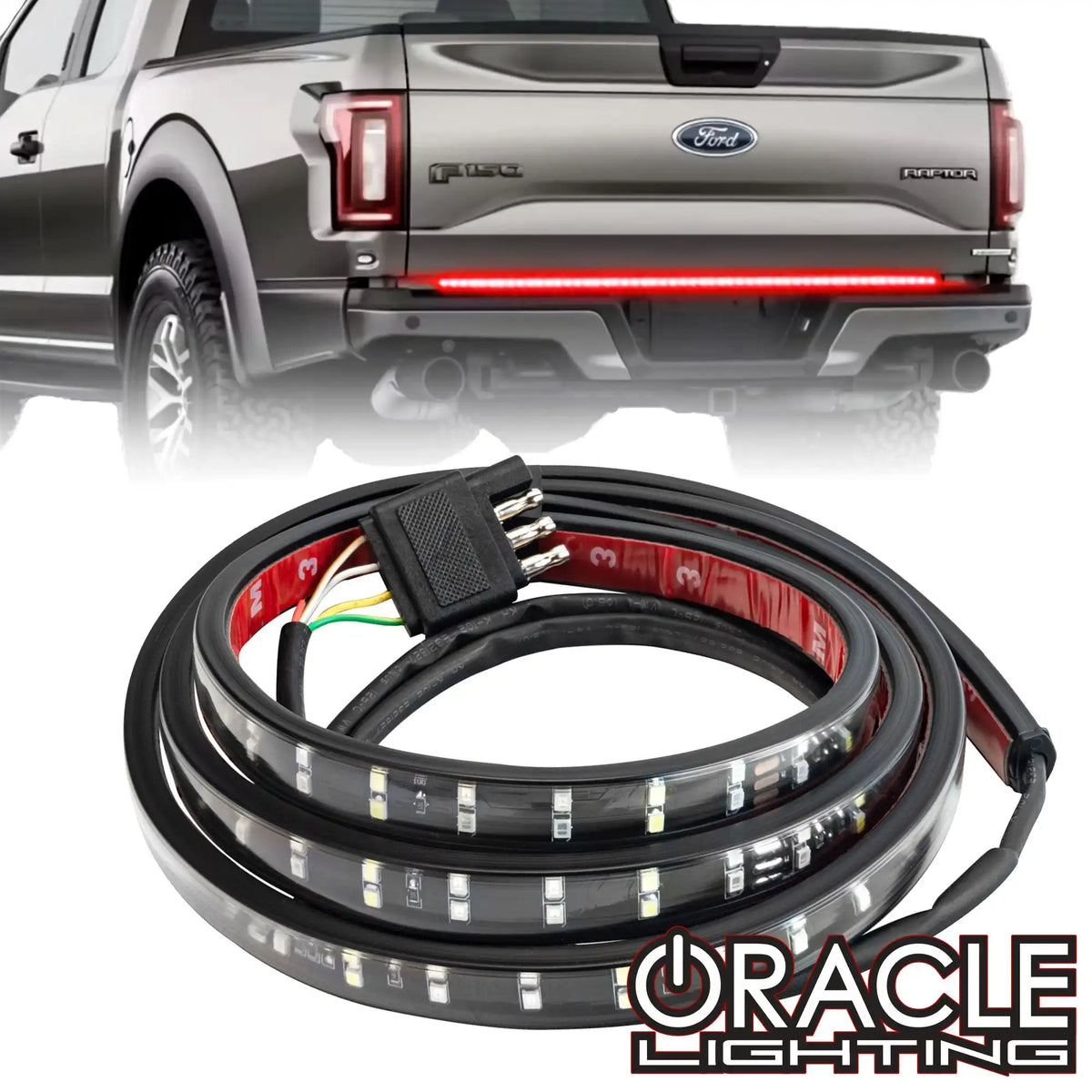

ORACLE Lighting 60" Double Row LED Truck Tailgate Light Bar
$56.16
Regular price $44.93Product Overview ▼
The ORACLE 60" Double Row LED Tailgate Light Bar is the ultimate safety and visibility upgrade for any pickup or work truck. The all-new double row design packs 216 total LEDs - 144 red and 72 white - delivering more than 2x the brightness of conventional single-row tailgate bars.
Simply plug into your factory 4-pin trailer light connector to activate running lights, brake lights, and turn signals instantly. A separate 12V wire taps into your factory wiring to power the ultra-bright white reverse lights. The IP67-rated waterproof silicone enclosure keeps moisture out in any conditions - rain, snow, or mud.
Key Features ▼
- Double Row Design: 216 total LEDs (144 red + 72 white) - 2x the brightness of conventional tailgate bars
- Running Lights: Extra smooth running light activated via 4-pin trailer plug

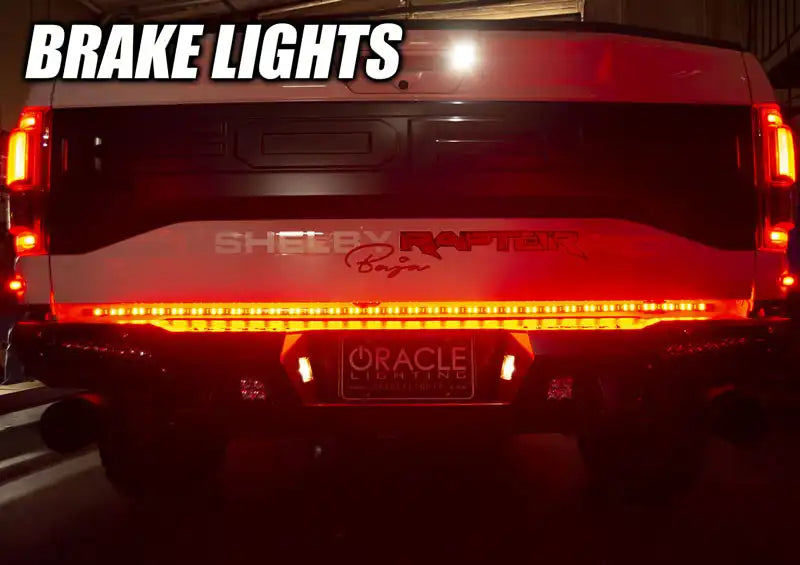

- Brake Lights: Attention-grabbing red brake light - two rows of bright red every time you stop
- Turn Signals: Sequential turn signals integrated into the bar

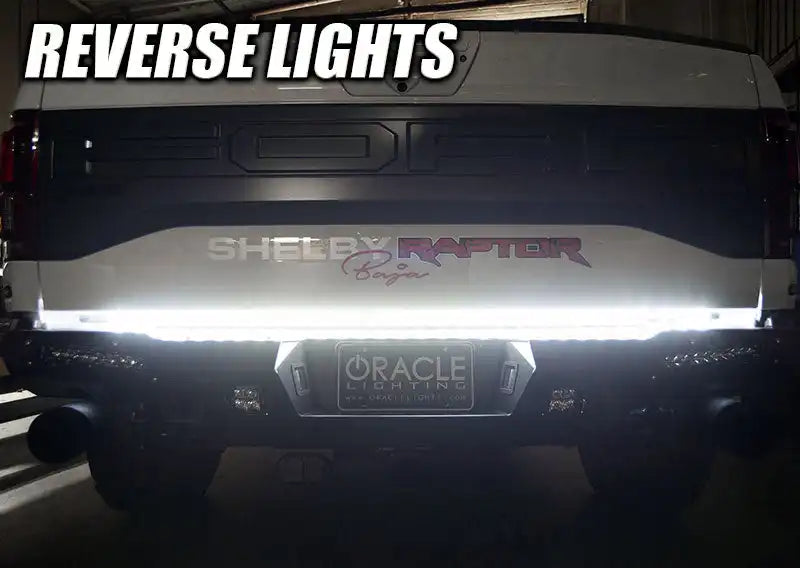

- High-Power Reverse Lights: 72 bright white LEDs activated via a single 12V reverse wire tap
- IP67 Waterproof: Full silicone enclosure rated for all-season, all-weather use

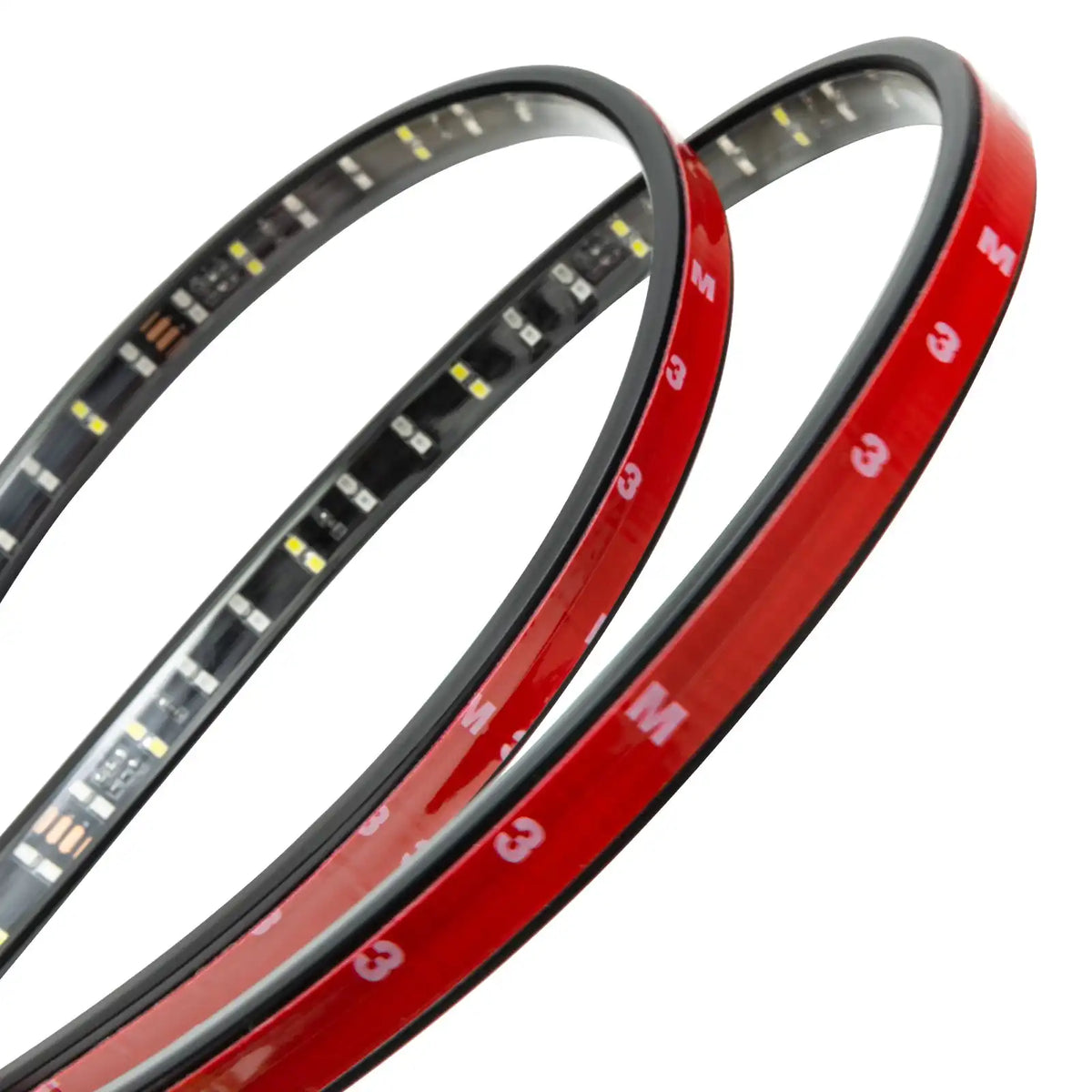

- No Drilling Required: 3M VHB adhesive tape for peel-and-stick mounting

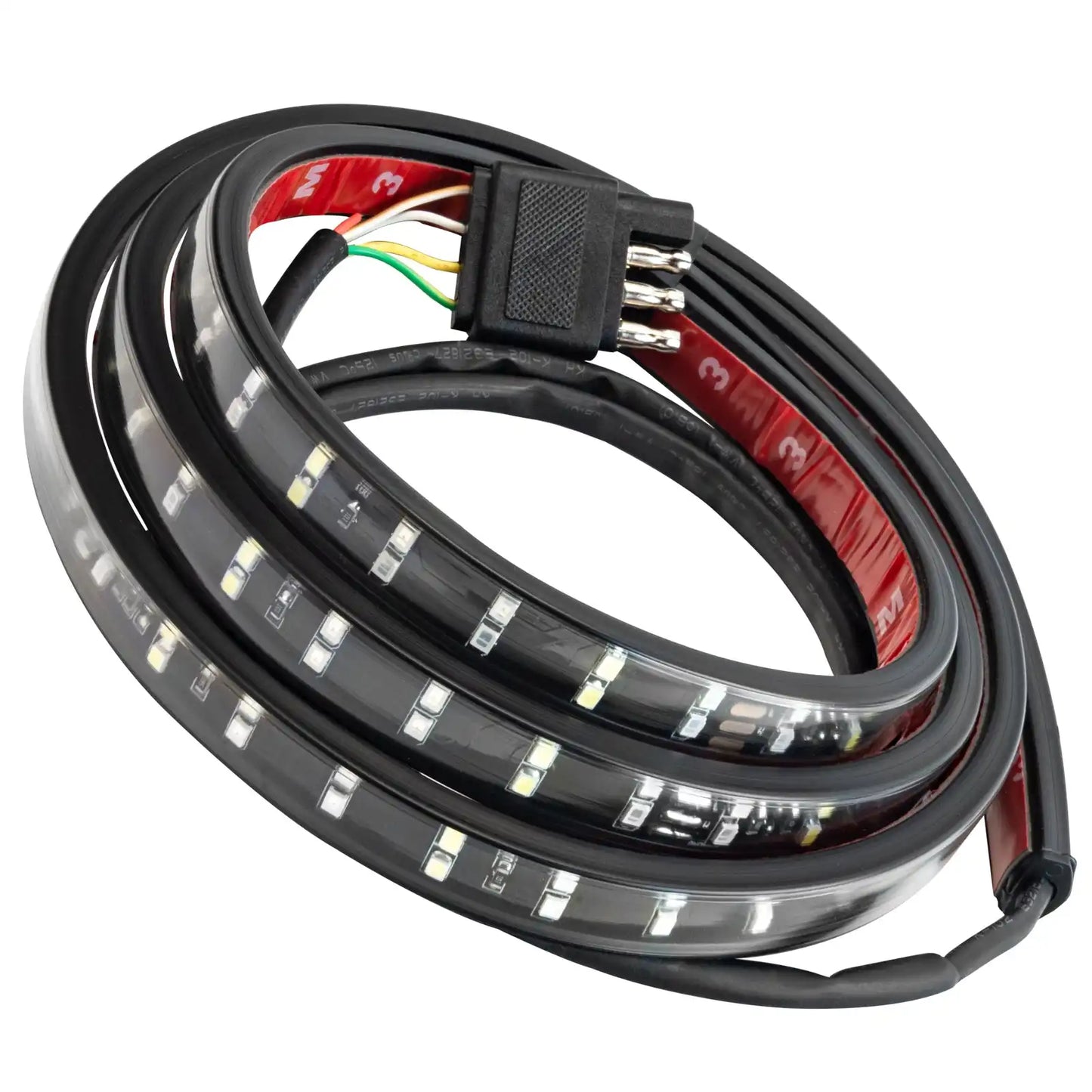

- Plug & Play: Direct 4-pin trailer plug connection - no complex wiring
- Cuttable: Can be trimmed to fit trucks under 60" bed width
Performance & Technical Specifications ▼
Vehicle Fitment ▼
Universal fitment - designed for any pickup truck or work truck with a standard 4-pin trailer light connector and a tailgate width up to 60". Compatible with trucks including Ford F-150/F-250/F-350, Chevy Silverado, GMC Sierra, Ram 1500/2500/3500, Toyota Tacoma/Tundra, Nissan Titan/Frontier, and more.
What's Included ▼
- (1) ORACLE 60" Double Row LED Tailgate Light Bar
- (4) Screws
- (2) Brackets
- 3M VHB Adhesive Tape (Pre-Applied)
- Online Installation Instructions
- 1-Year Warranty
Installation Guide & Resources ▼
Peel the 3M VHB backing and press the bar into position on your tailgate. Secure with the included screws and brackets. Plug the 4-pin connector into your factory trailer plug for running, brake, and turn signal functions. Tap the 12V white wire into your factory reverse circuit to activate the reverse lights.
Experience Level: Beginner
Designed for a straightforward installation using basic hand tools.
Product Badges
Product Videos ▼
Policies ▼
