ORACLE 7" Sealed Beam Headlight with Pre-Installed SMD Halo

ORACLE's original 7" H6024/PAR56 sealed beam headlight with a pre-installed SMD halo ring. Quality glass lens, composite reflector housing, H4 bulb compatible, direct 12V wire with no inverter required. Available in 7 colors including ColorSHIFT. Sold individually.

✓ 7" H6024 / PAR56 ✓ Pre-Installed SMD Halo ✓ Glass Lens ✓ H4 Bulb Compatible ✓ 7 Color Options ✓ No Inverter Required ✓ Classic Cars & Jeep CJ Fit ✓ 1-Year Warranty

Product Overview ▼

ORACLE Lighting invented the sealed beam halo headlight - and these 7" units feature more LEDs and brighter halos than any other sealed beam halo light on the market. Each headlight ships with the SMD halo ring pre-installed, so there's no assembly required. Simply wire directly to a 12V source - no external inverter or regulator needed.

The quality glass lens and composite reflector housing replaces the H6024/PAR56 sealed beam headlight found on a wide range of classic cars, trucks, and motorcycles including the 1945-1985 Jeep Wrangler CJ. The H4 bulb socket accepts standard or LED H4 bulbs (sold separately) - pair with ORACLE S3 H4 LED Conversion Bulbs (Part# S5231) to maximize nighttime visibility.

Sold individually - one headlight per order. Order two for a full pair.

Key Features ▼

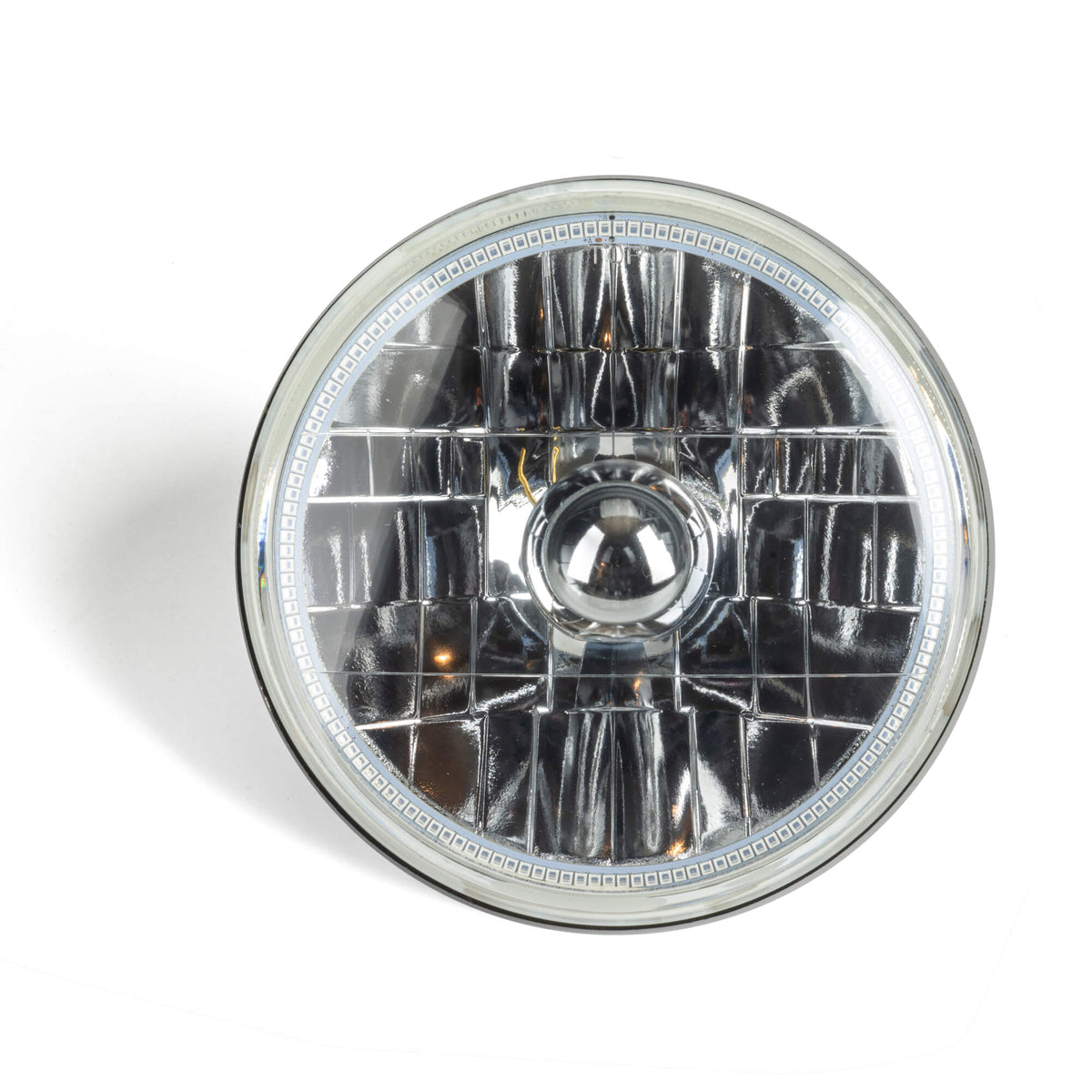

Pre-Installed ORACLE SMD Halo Ring - more LEDs and brighter output than any competitor, no assembly required

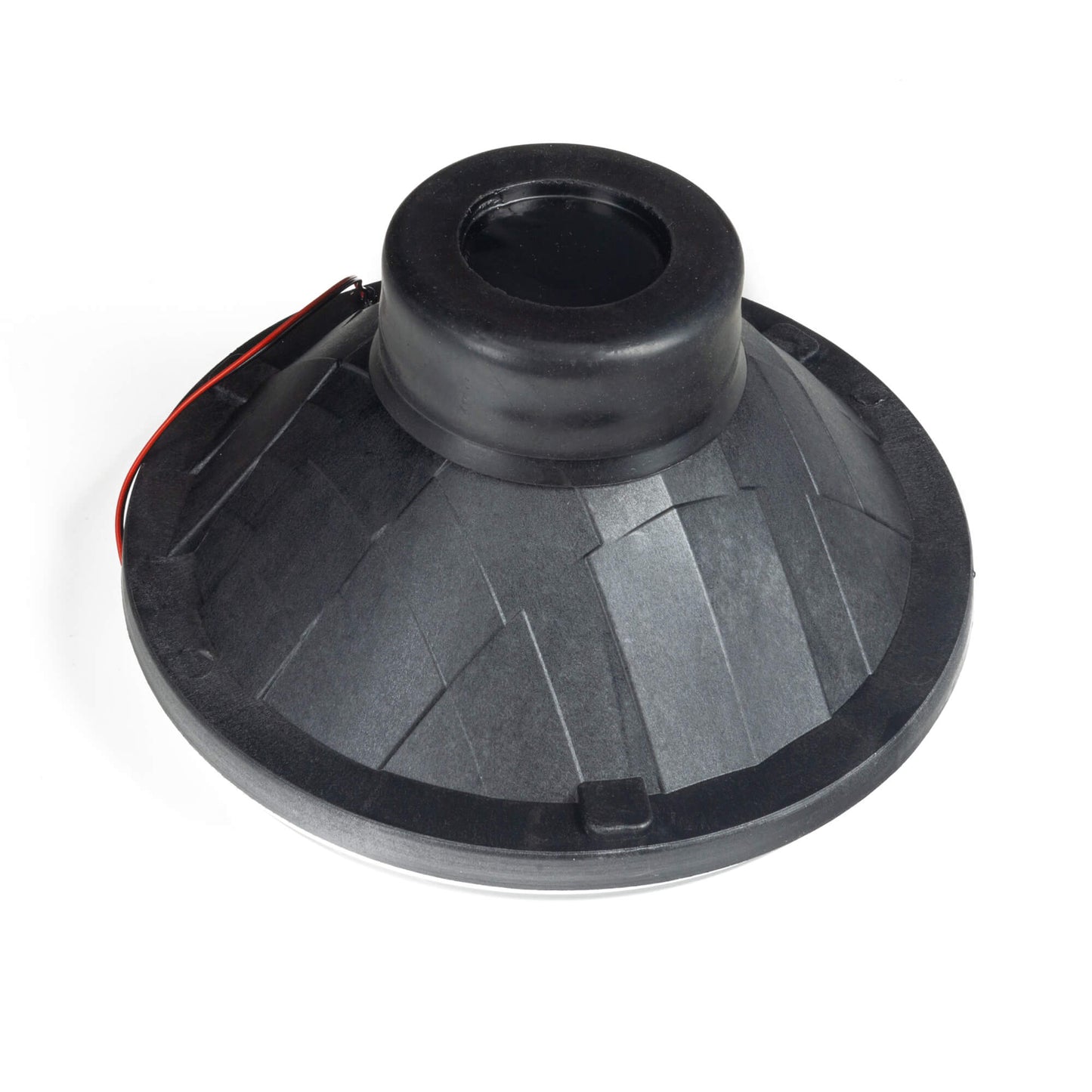

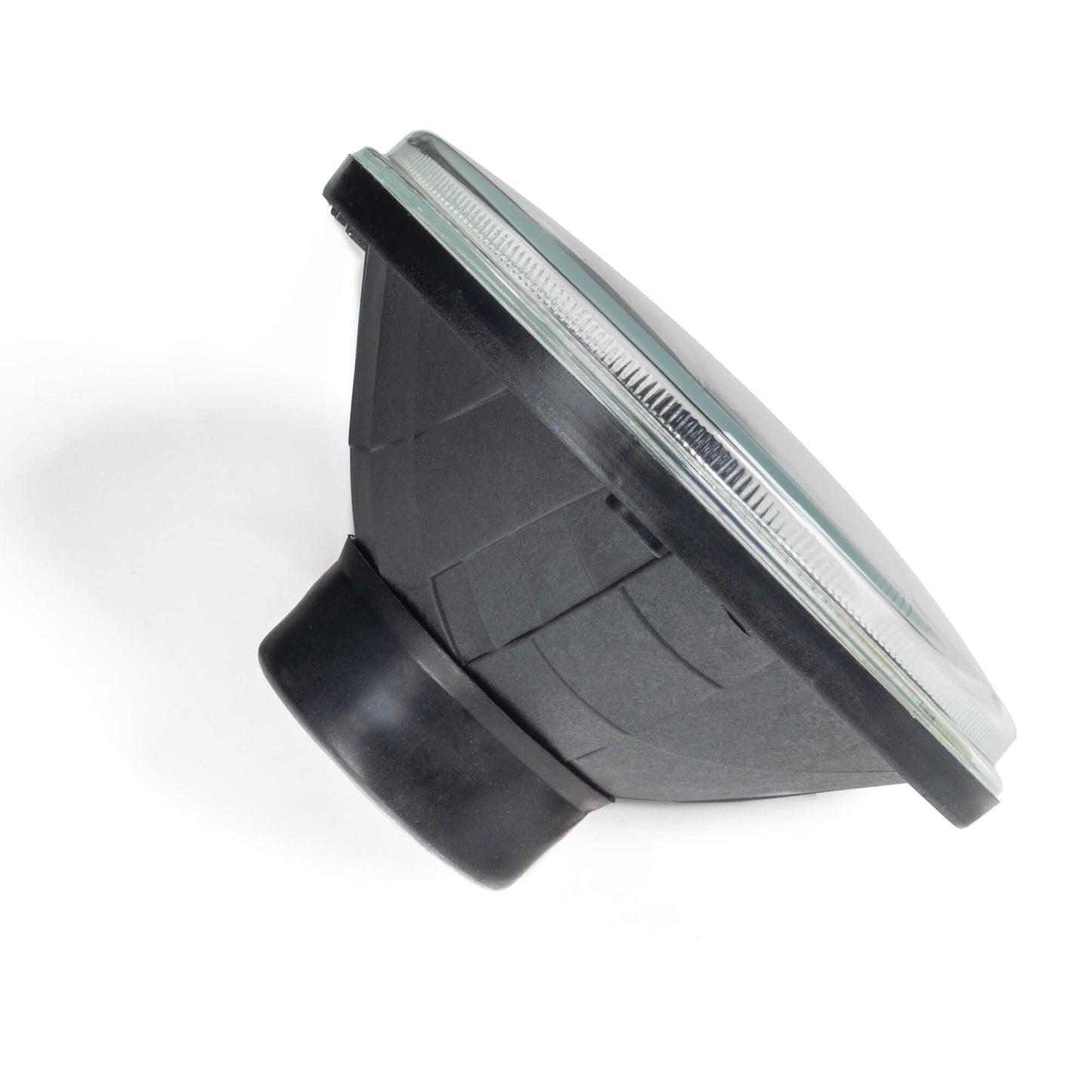

Quality Glass Lens with composite reflector housing - durable sealed beam construction
H4 Bulb Compatible - accepts standard or LED H4 bulbs (sold separately)
Direct 12V Wire Connection - no external inverter or regulator required

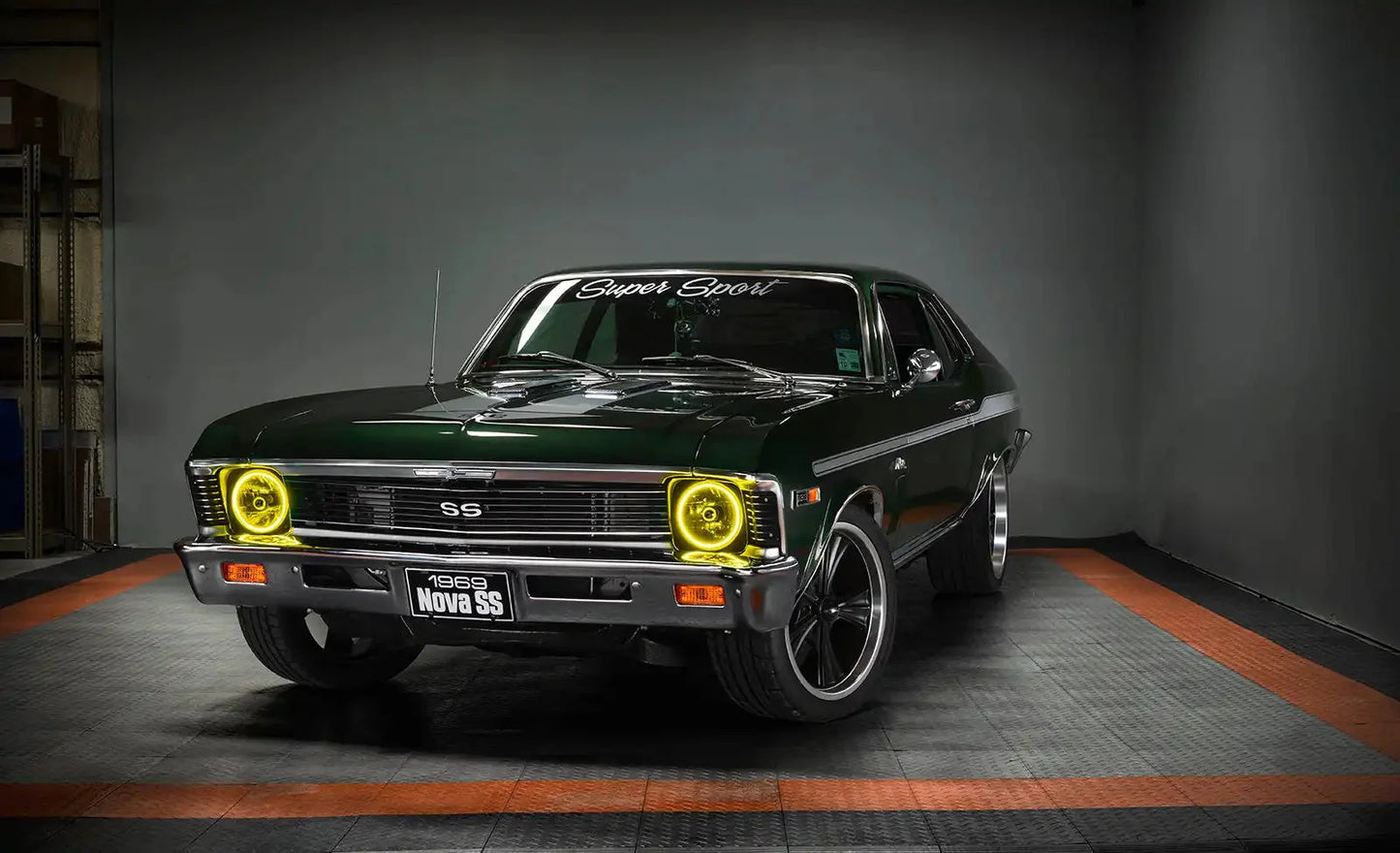

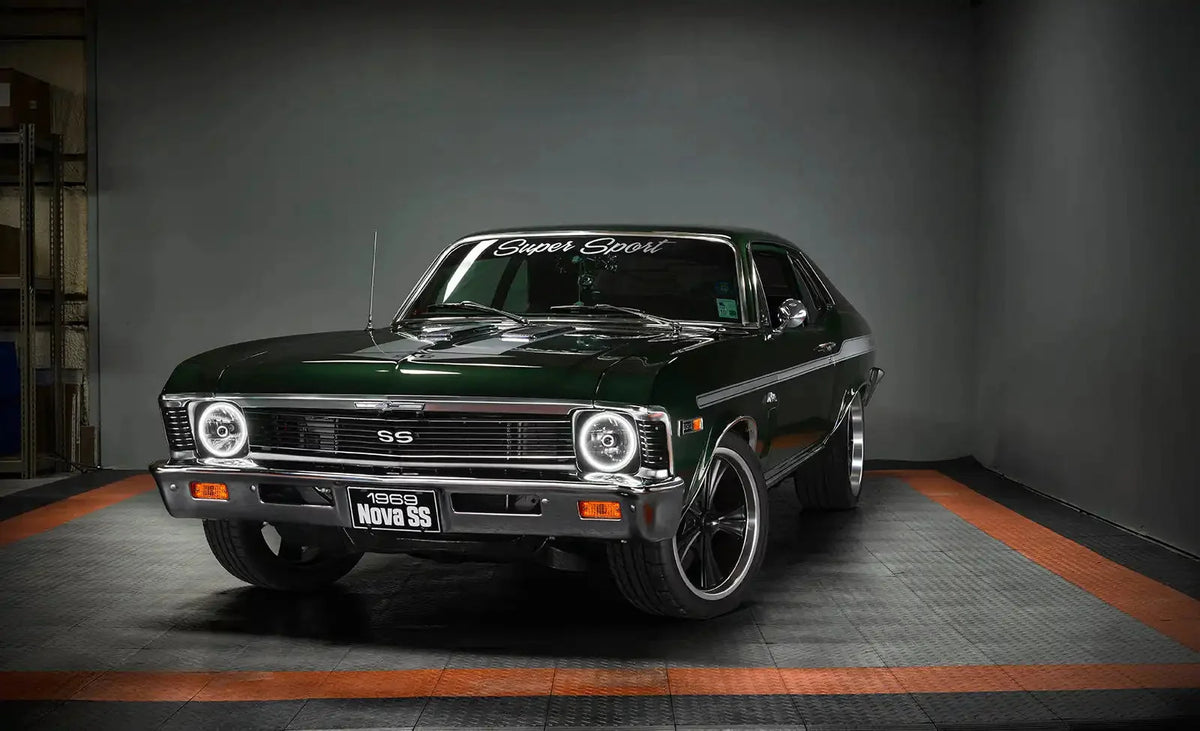

7 Color Options - White, Blue, Red, Green, Amber, UV/Purple, ColorSHIFT
Amber Halo - can be wired as a turn signal for added functionality
Universal Fit - replaces any H6024/PAR56 7" sealed beam including classic cars, trucks, Jeep CJ, and motorcycles
1-Year Full Replacement Warranty

Show Use Only: Blue, Green, Red, and UV/Purple halos are not road-legal in most jurisdictions. Amber and White are road-legal colors - verify your local laws before use.

ColorSHIFT Note: The ColorSHIFT variant (6905-333) requires a compatible ORACLE ColorSHIFT controller - not included. Shop controllers here.

Performance & Technical Specifications ▼

Size7" Round (H6024 / PAR56)

Halo TypePre-Installed ORACLE SMD Ring

LensQuality Glass

HousingComposite Reflector

Bulb SocketH4 (bulb sold separately)

Halo Power12V Direct Wire

External InverterNot Required

Color OptionsWhite, Blue, Red, Green, Amber, UV/Purple, ColorSHIFT

QuantitySold Individually (1 per order)

Warranty1-Year Full Replacement

ColorSHIFT Note: The ColorSHIFT variant (6905-333) requires a compatible ORACLE ColorSHIFT controller - not included. Shop controllers here.

Vehicle Fitment ▼

Replaces any H6024 / PAR56 7" sealed beam headlight. Common applications include:

Classic cars and trucks using 7" sealed beam headlights
1945-1985 Jeep Wrangler CJ
Various motorcycles using 7" H6024/PAR56 headlights

Verify your vehicle uses a 7" H6024 or PAR56 sealed beam headlight before ordering. Sold individually - order two for a full pair.

What's Included ▼

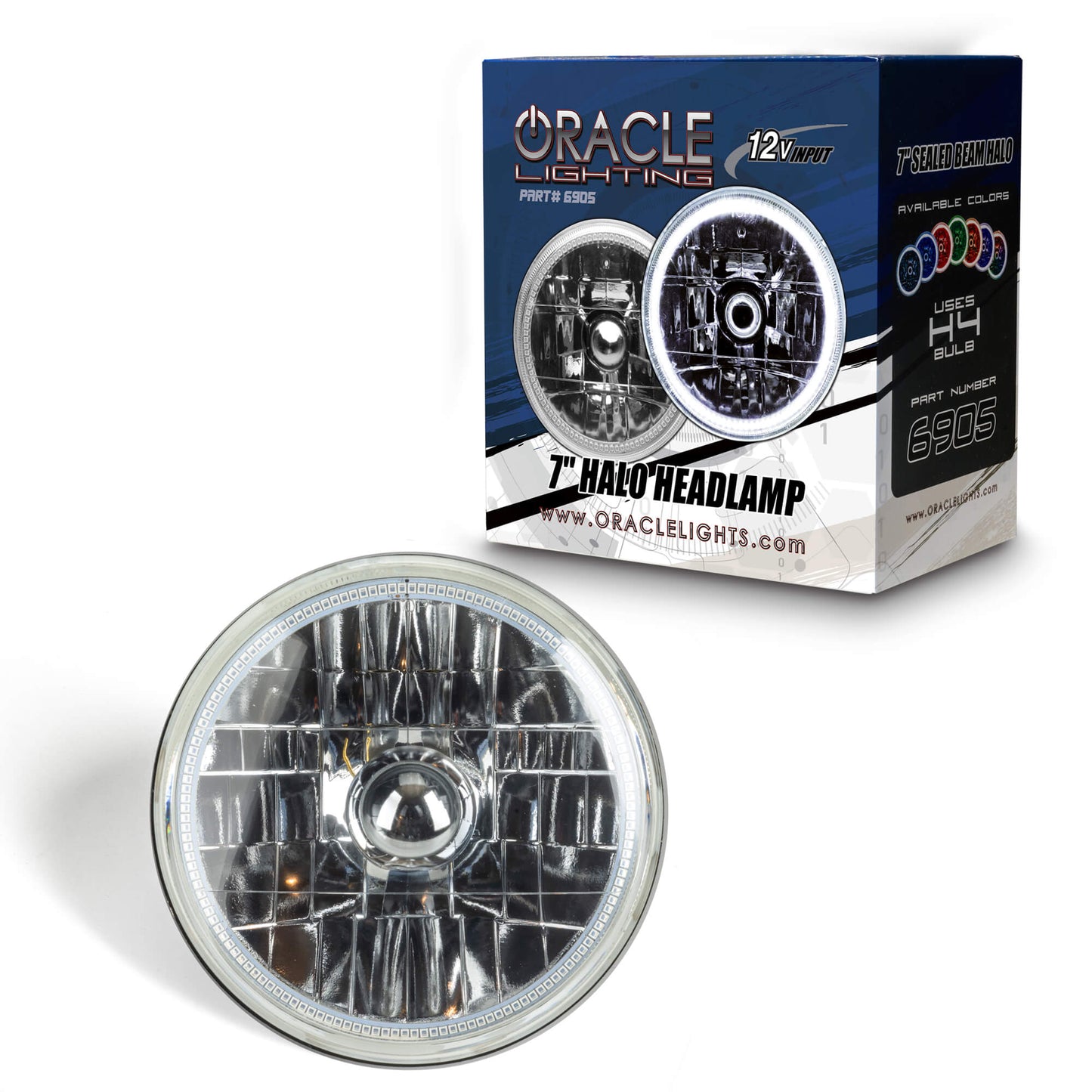

(1) ORACLE 7" H6024/PAR56 Sealed Beam Headlight with Pre-Installed SMD Halo

H4 headlight bulb is not included - sold separately. ColorSHIFT controller is not included (ColorSHIFT variant only).

Installation Guide & Resources ▼

Wire the halo directly to a 12V source - no inverter or regulator needed. The H4 bulb socket accepts standard or LED H4 replacement bulbs (sold separately).

Estimated Installation Time: 2 hours
Experience Level: Experienced
More involved mechanical or electrical work expected. Professional installation may be appropriate.
