ORACLE 4 LED Dual Color Slim Strobe
ORACLE Part # 3512-023
We are proud to serve First Responders and Law Enforcement Officers and these strobe lights will not disappoint! Using the latest in solid-state LED technology these Super-Bright LED strobe lights blow away the competition. The built in controller module allows you to select 19 different patterns without the need of an external LED controller.
Internal electronics are fully encapsulated for extended product life.
View PDF Instructions Here
Product Features:
- Input: 12V-24V
- Wattage: 2W
- LED: 4x 0.5W
- Width: 1"
- Length: 3.75"
- Height: .12"
- Lifetime: 100,000 hours
- Flush Mount Design

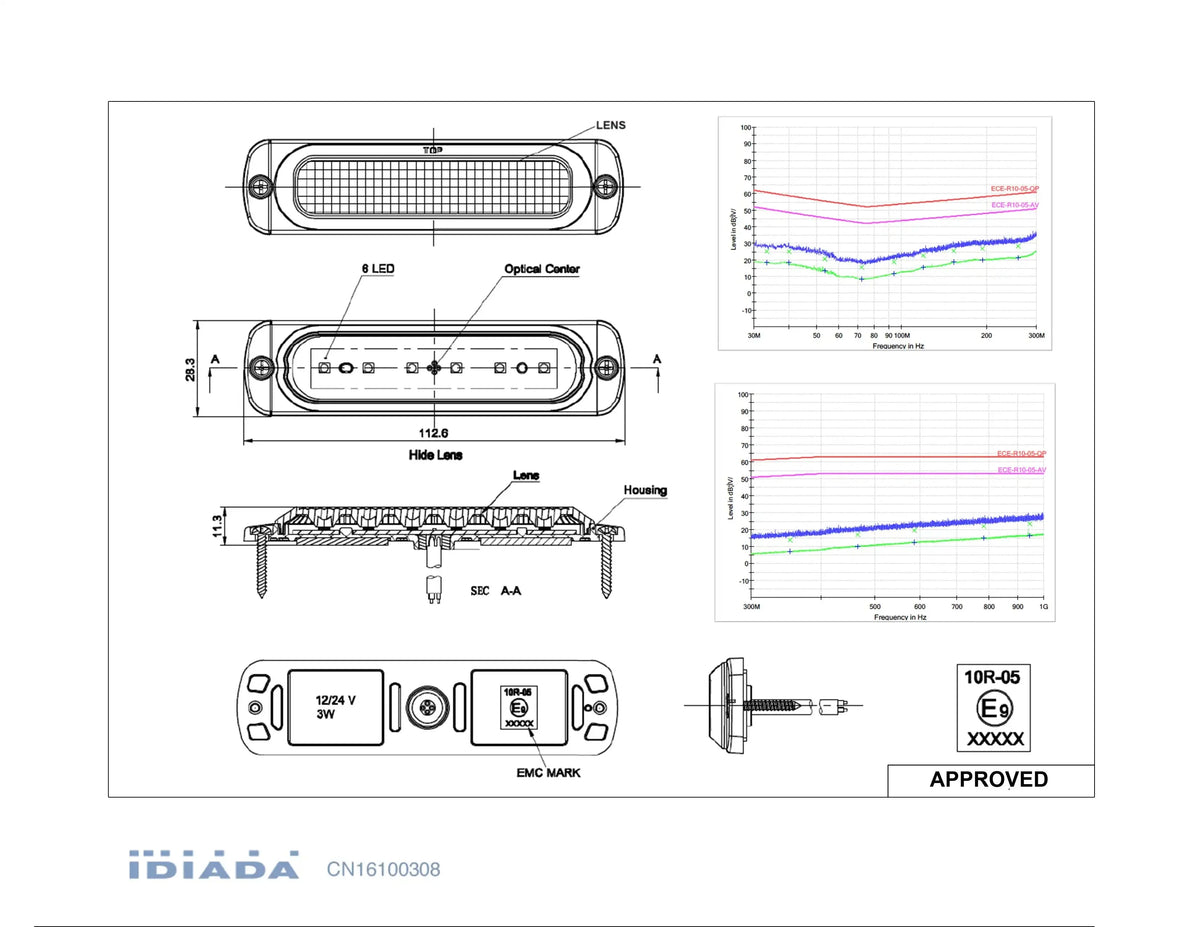

- ECE R10 Class 1 Certification
19 Different Flash Patterns Including but not Limited to:
- Random(default)
- Steady
- Single
- Mega
- Double
- Triple
- Quad
- Quint
- 8 Flash
- Single-Quad
- Single H/L
- Single-Triple-Quint

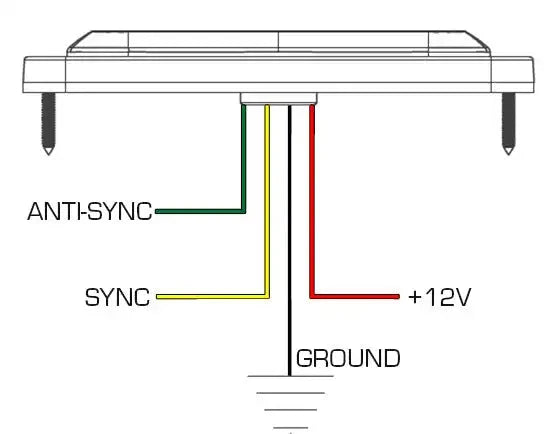

To select Flash Pattern, just apply +12V to Yellow Wire:
- for less than 1 second for next pattern
- for more than 1 second for previous pattern
- for more than 5 seconds to reset to default
Package Includes:
1 x ORACLE 4 LED Slim Strobe
