Jeep JL/JT Integrated Roof LED Light Bar | ORACLE 18,000 Lumens 240W
Sale price
$1,255.00
Regular price $1,004.00Experience the ultimate combination of performance and aesthetics with ORACLE's patented integrated windshield roof light bar. Designed exclusively for JL/JT hardtops, this system delivers professional-grade illumination with a clean OEM-style appearance that stands apart from traditional aftermarket light bars.
Part Number: 5917-023
Part Number: 5917-023
✓ 18,000 Raw Lumens ✓ 240W Total Power ✓ 648m Max Range ✓ IP68 Waterproof ✓ Dual Color Clearance ✓ Patented Design
Compatibility: Hard-Top Only. Not compatible with Soft Top or One Touch Roof. Avoid automatic car washes with overhead brushes.
Overview ▼

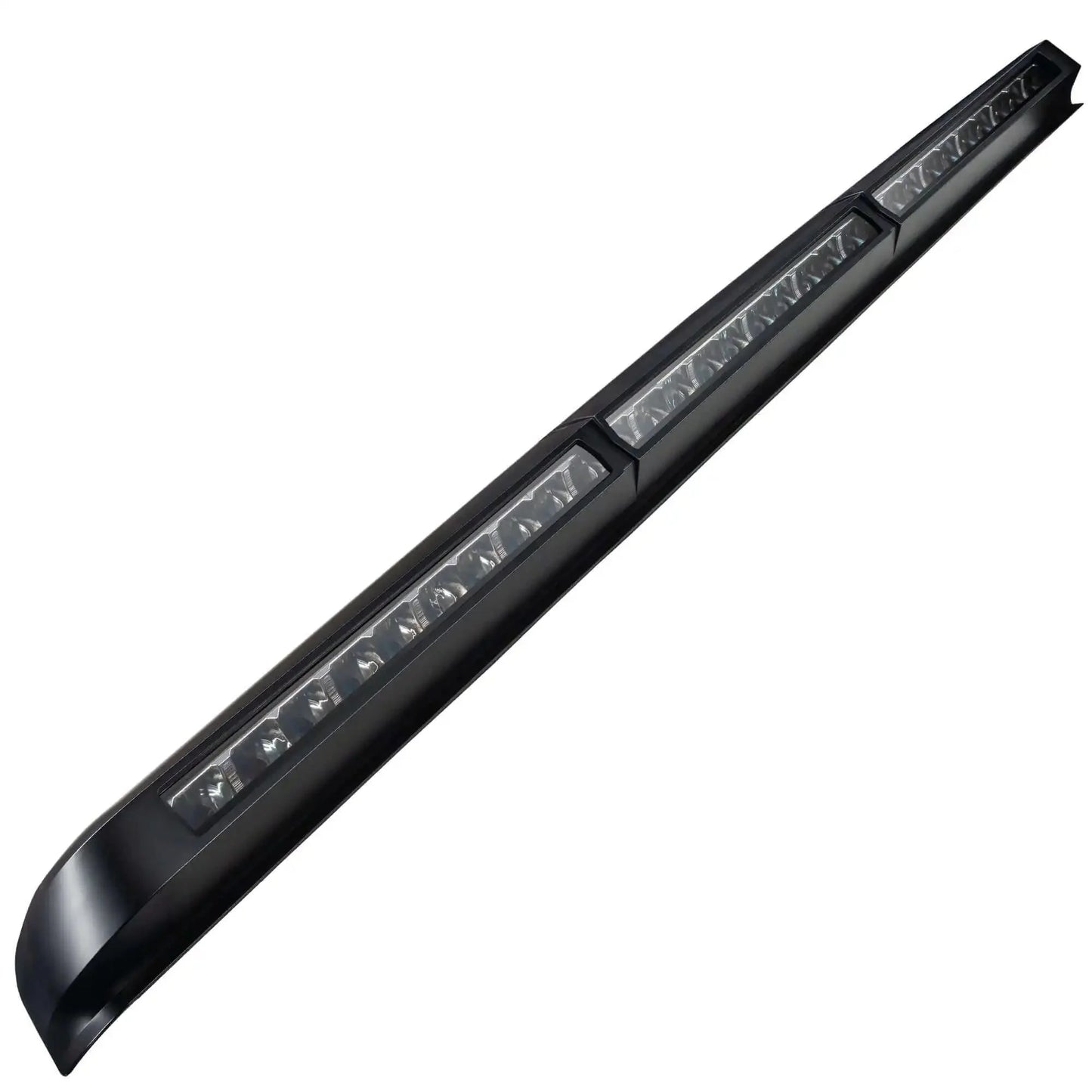

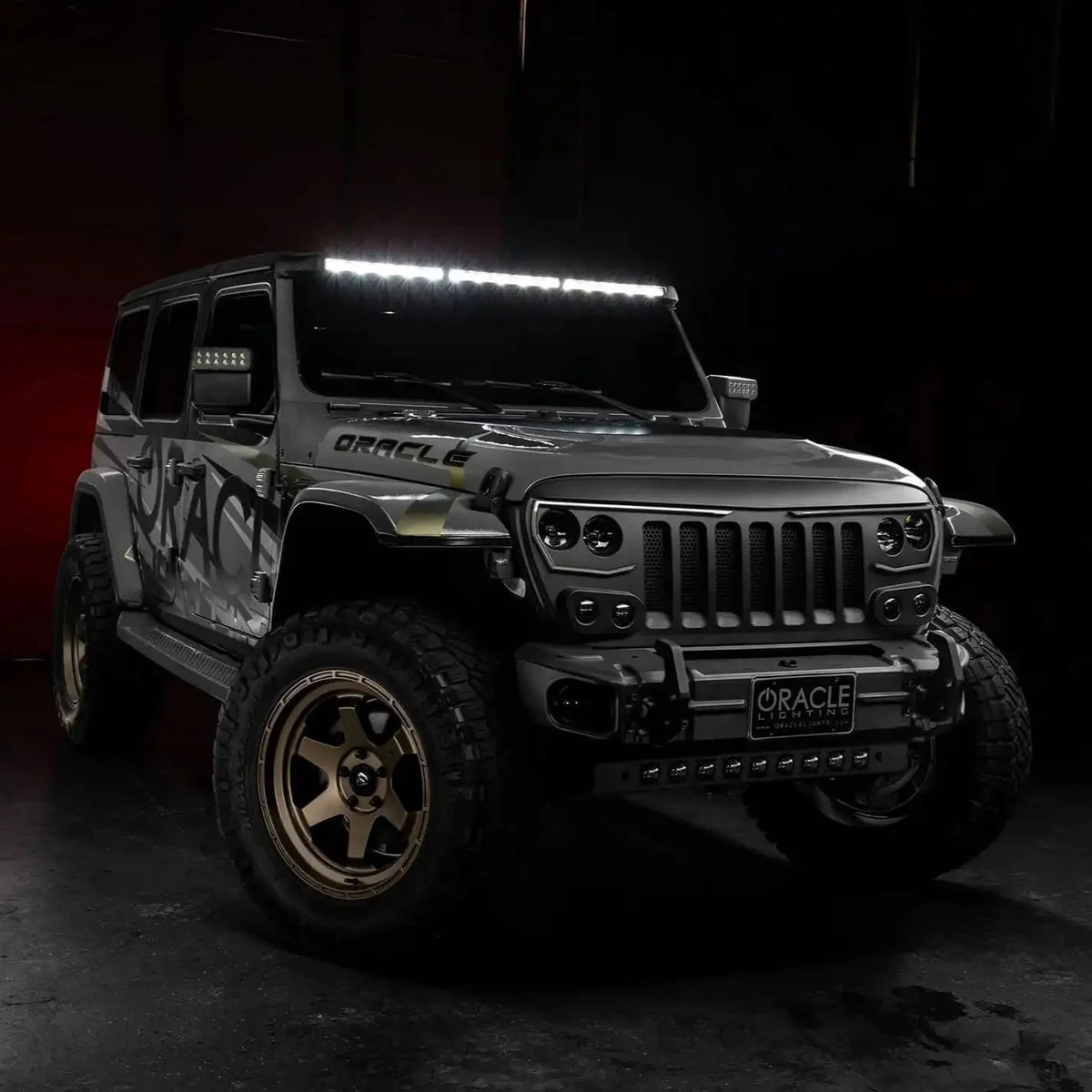

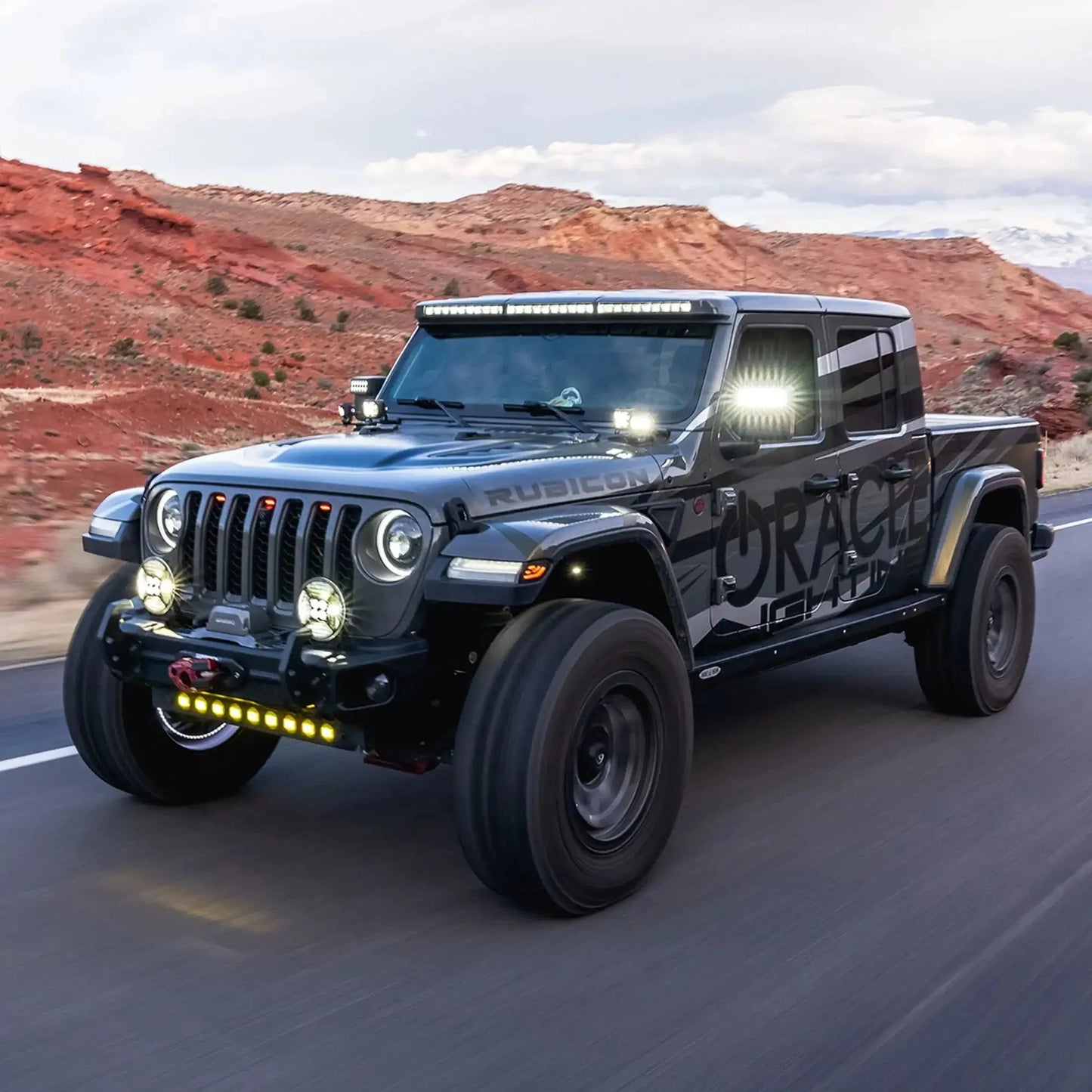

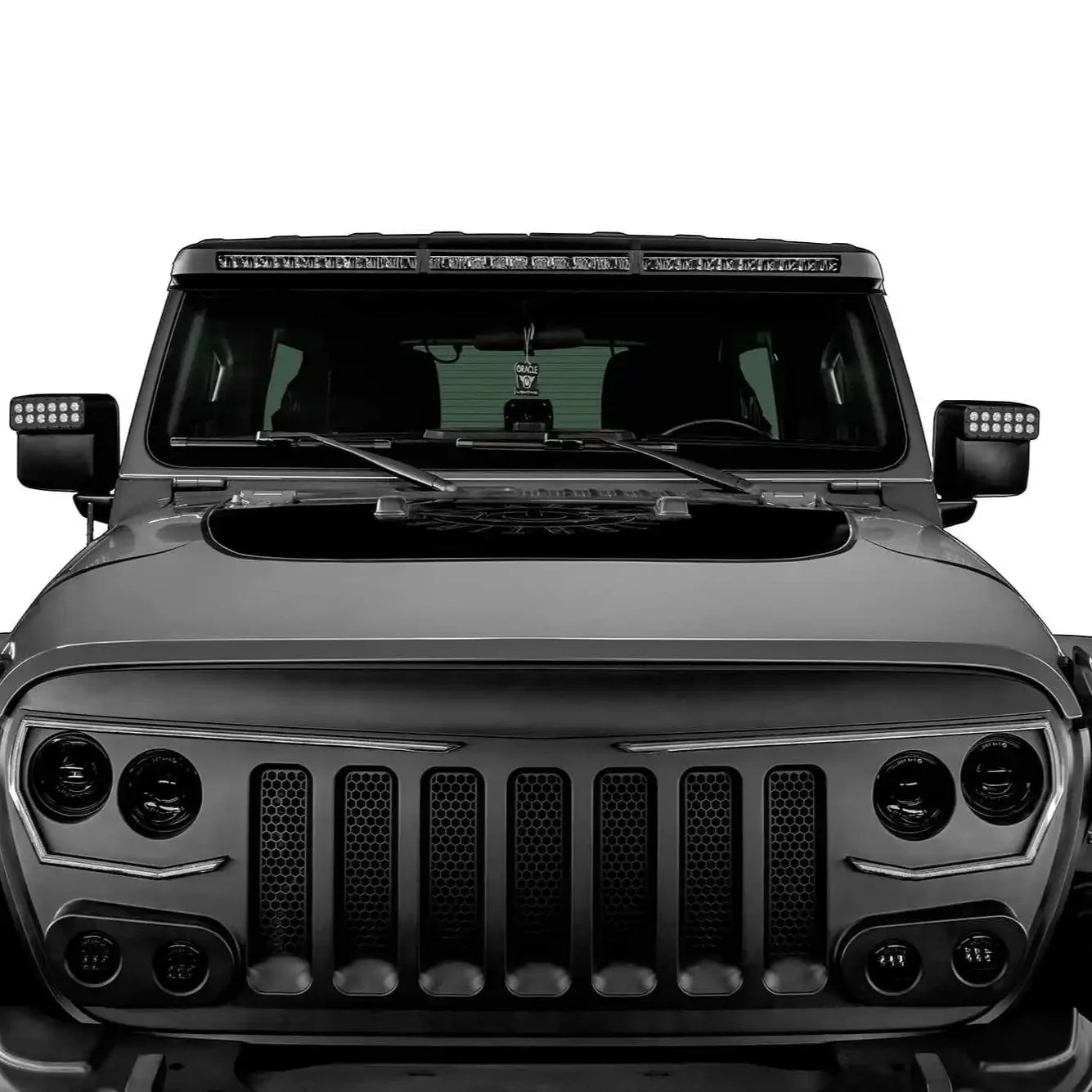

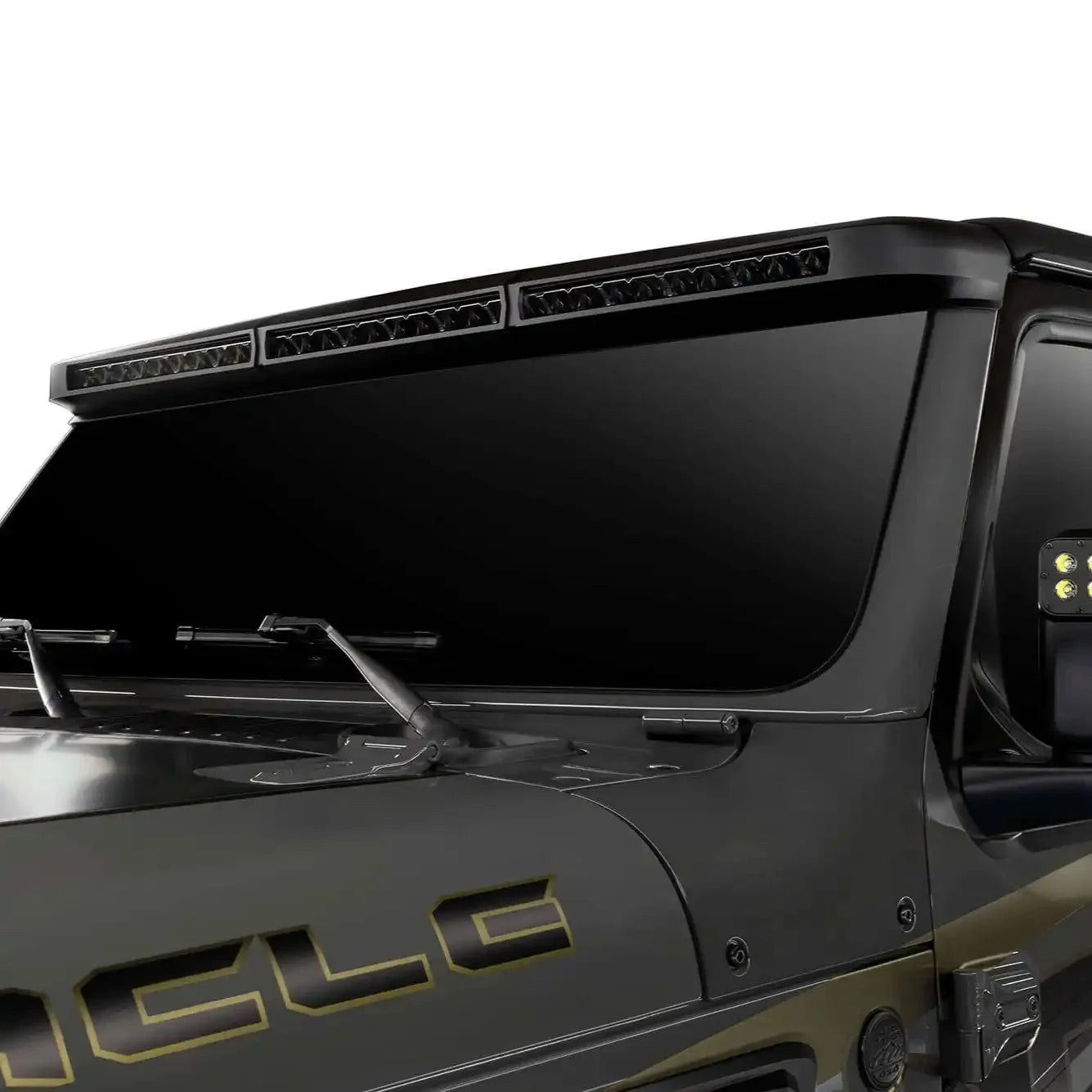

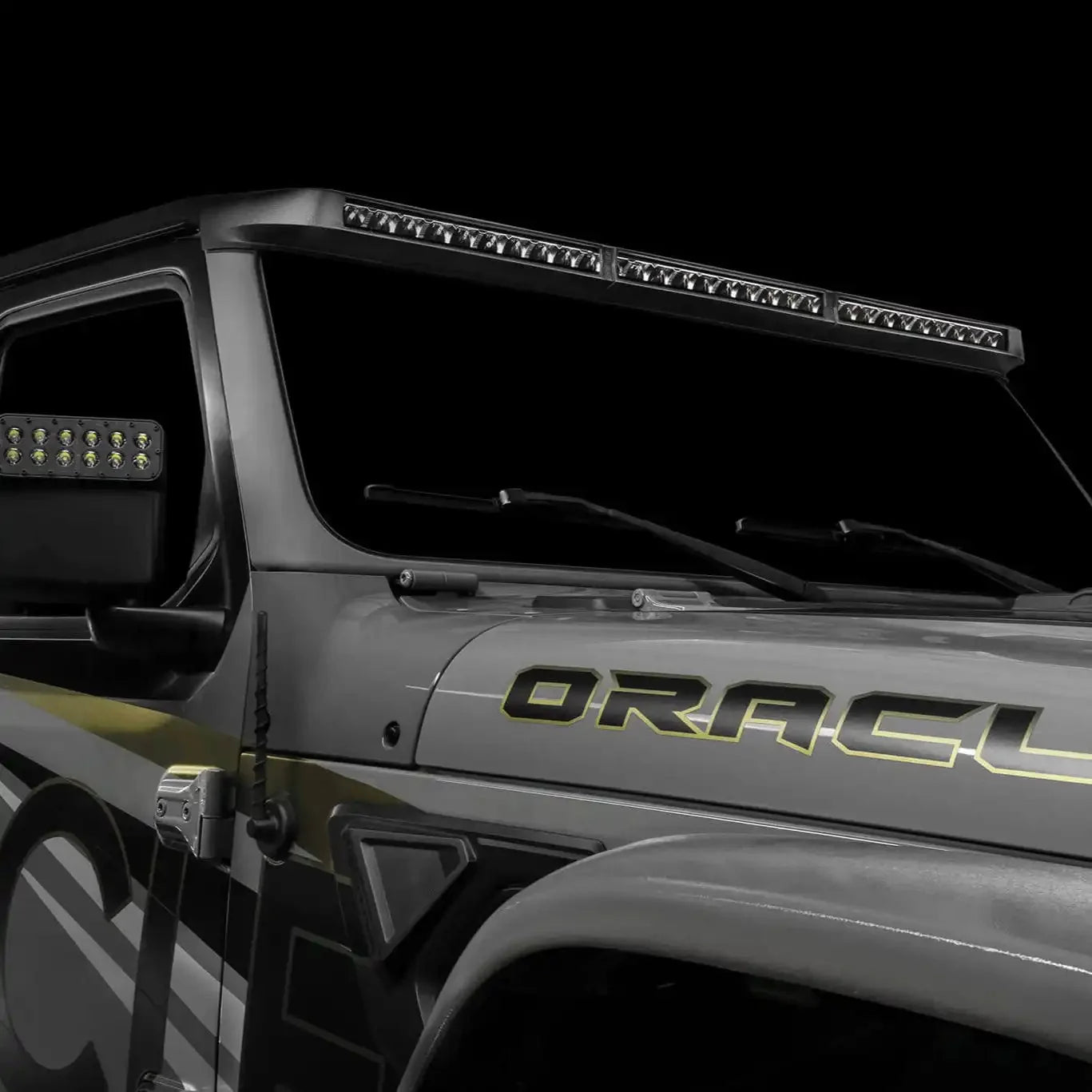

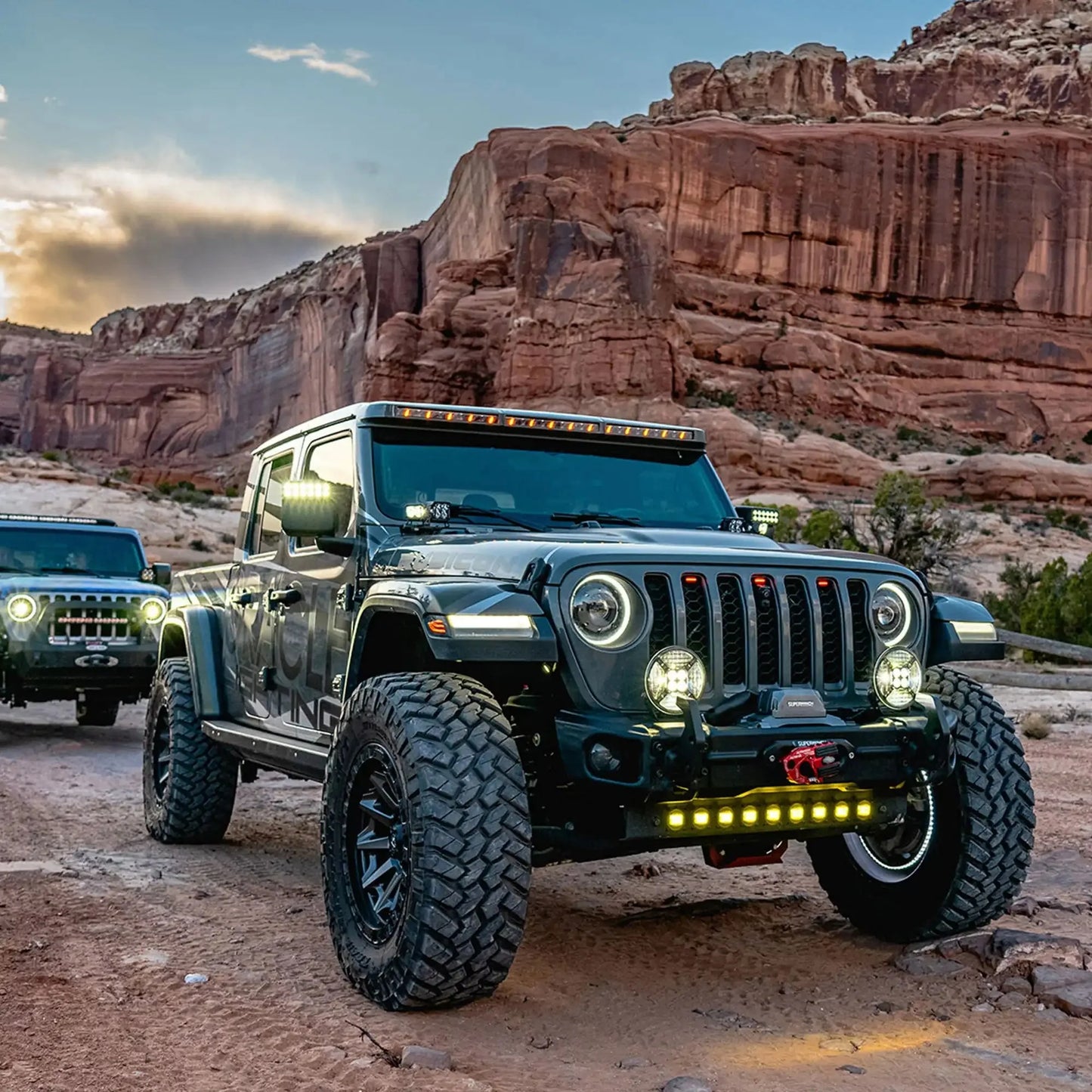

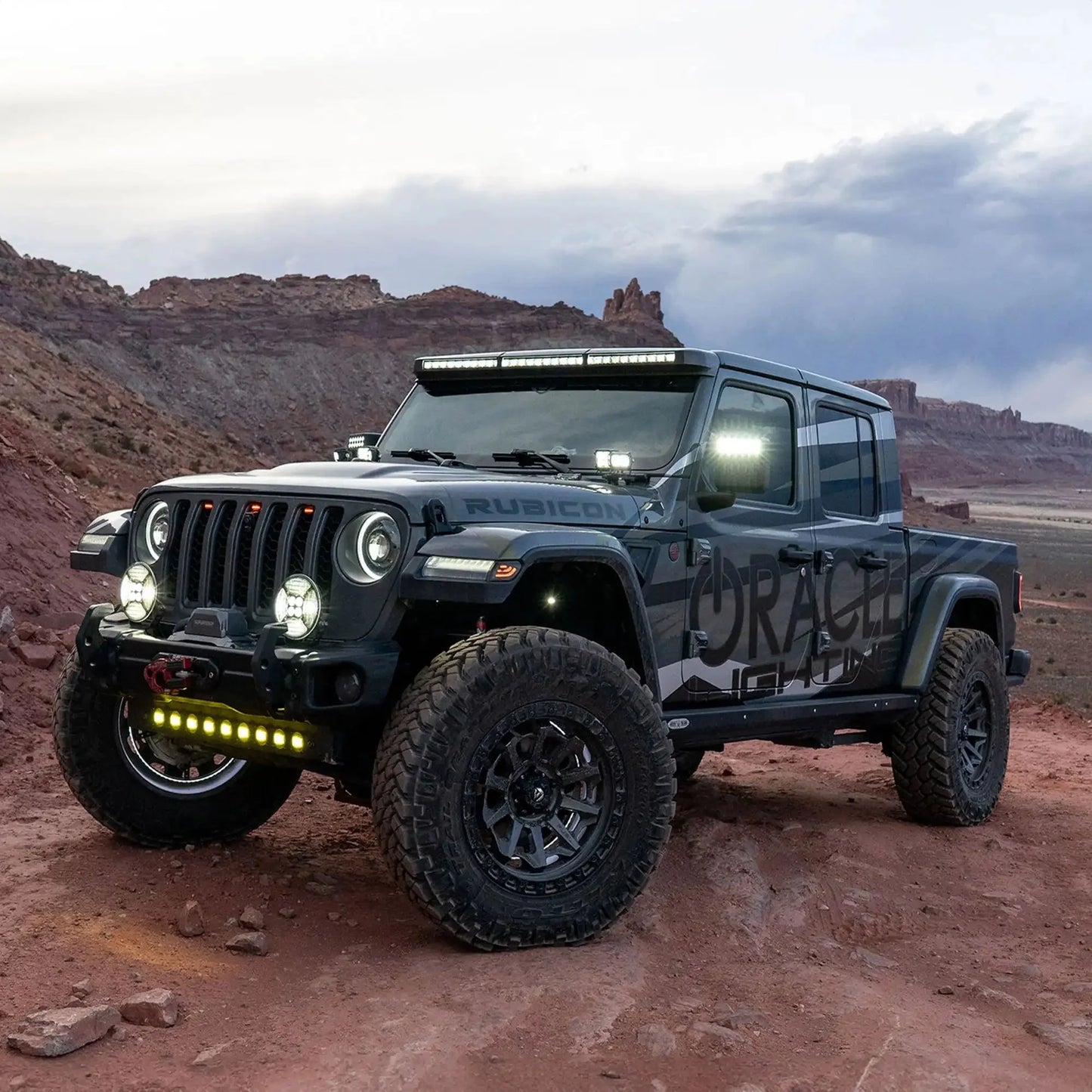

ORACLE's integrated windshield roof light bar offers a smarter alternative to traditional external light bars by blending directly into the factory roof line of JL and JT hardtop models. The patented molded cowling creates a clean factory-style look while delivering serious lighting performance.

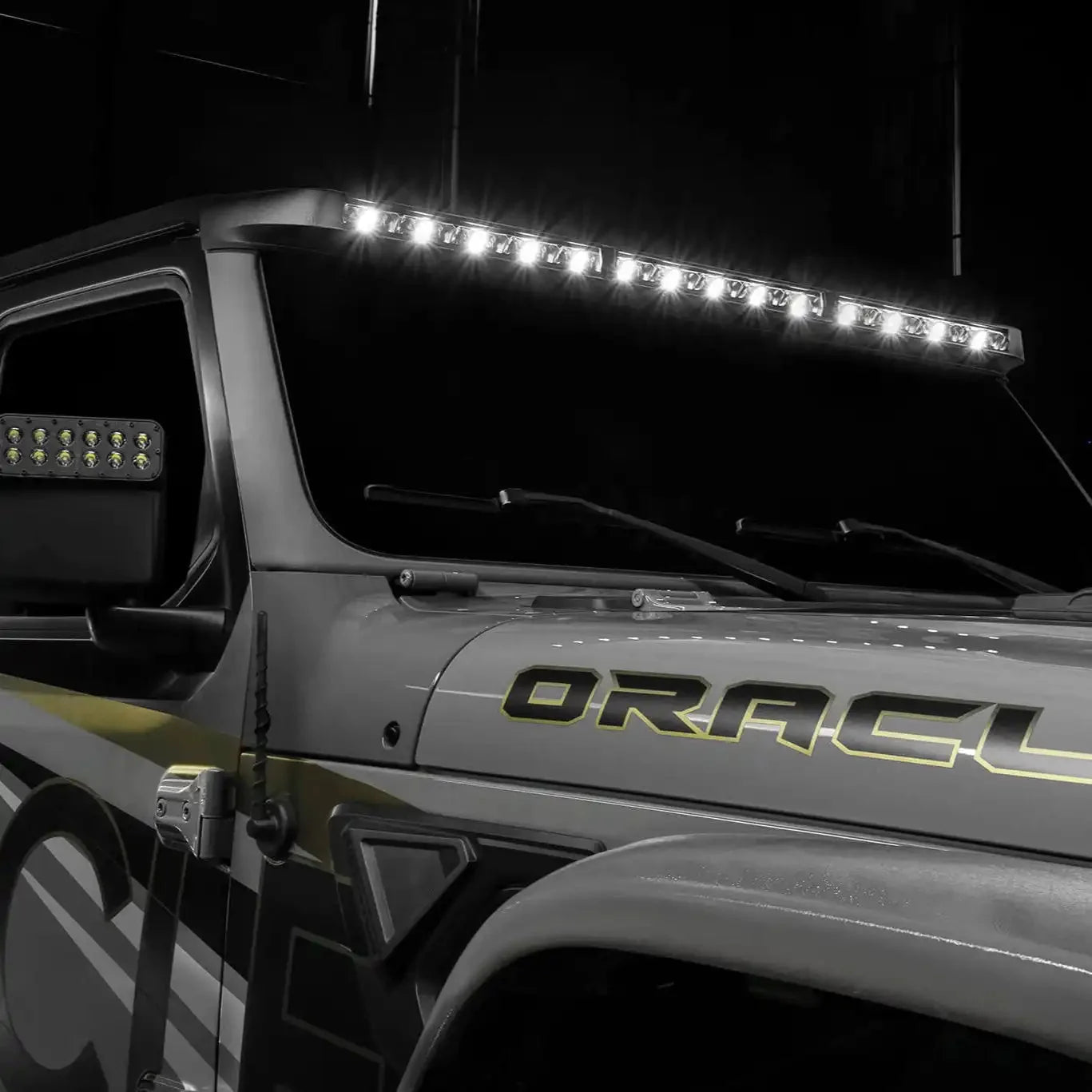

The system combines 30 high-power emitters, advanced reflector-facing LED technology, and built-in amber or white clearance lights to create a highly functional, highly refined lighting upgrade for Jeep owners who want performance without sacrificing appearance.
Compared to traditional roof bars, the integrated design also helps reduce wind noise and aerodynamic drag for a quieter and more refined highway driving experience.
Why Choose the ORACLE Integrated Light Bar? ▼

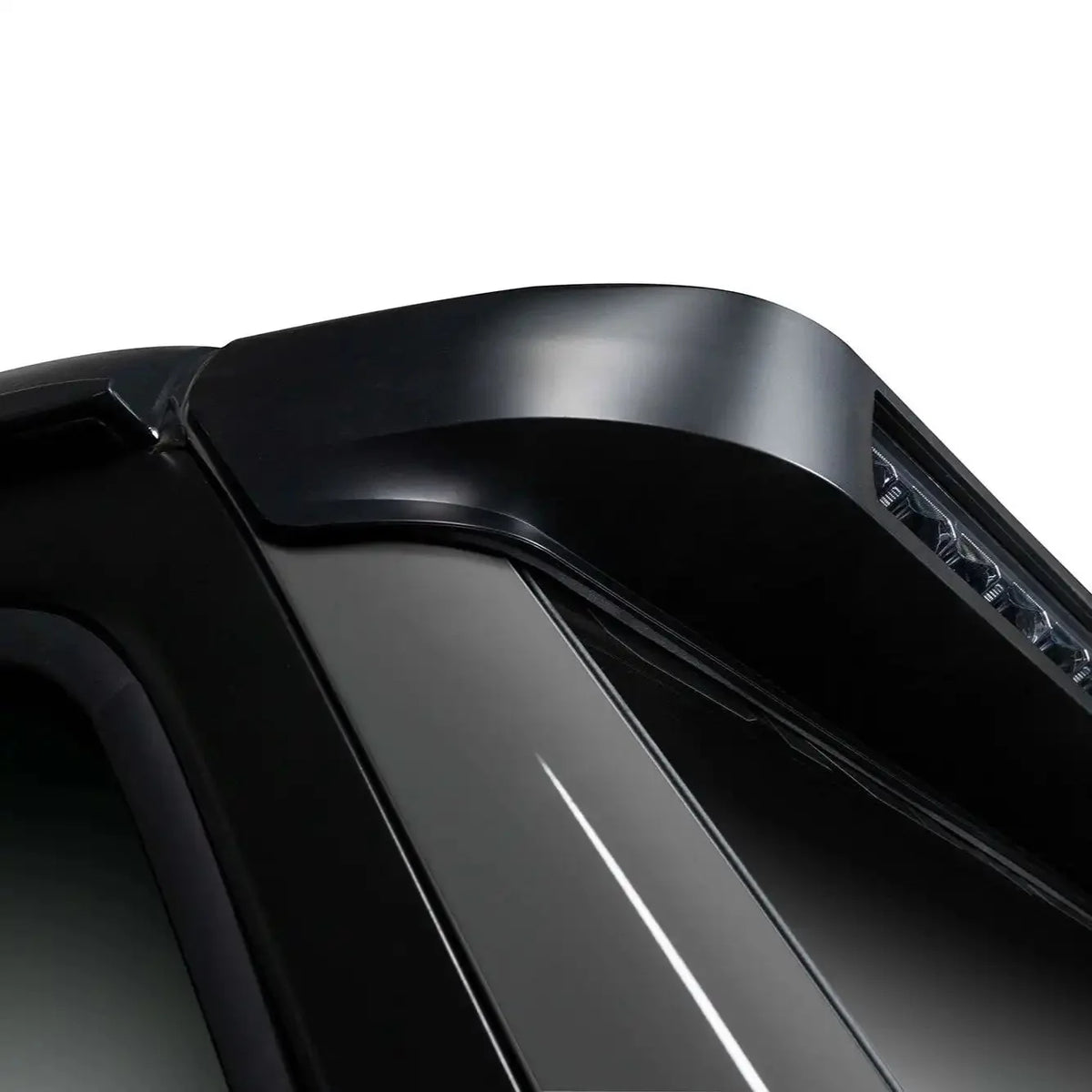

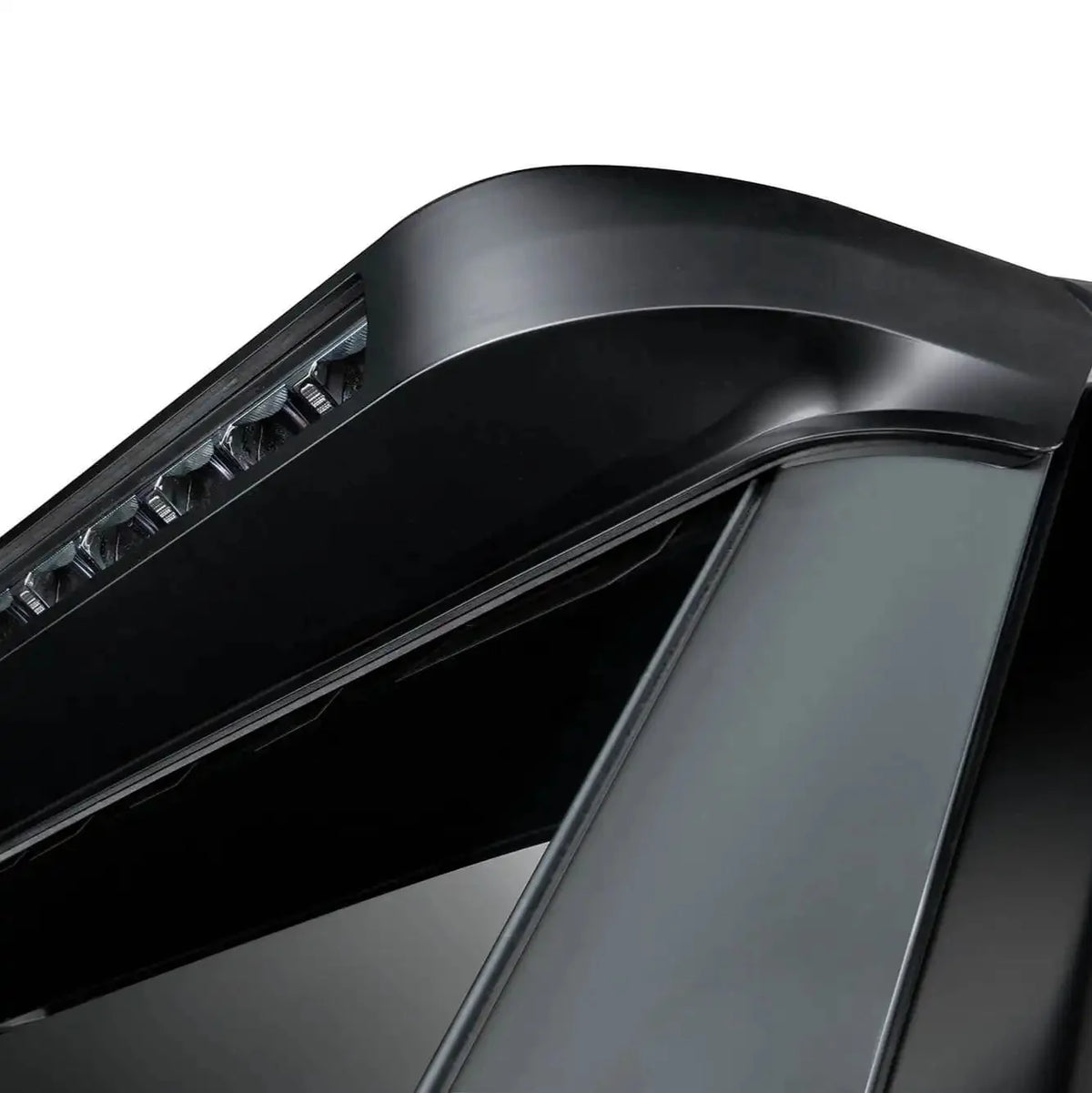

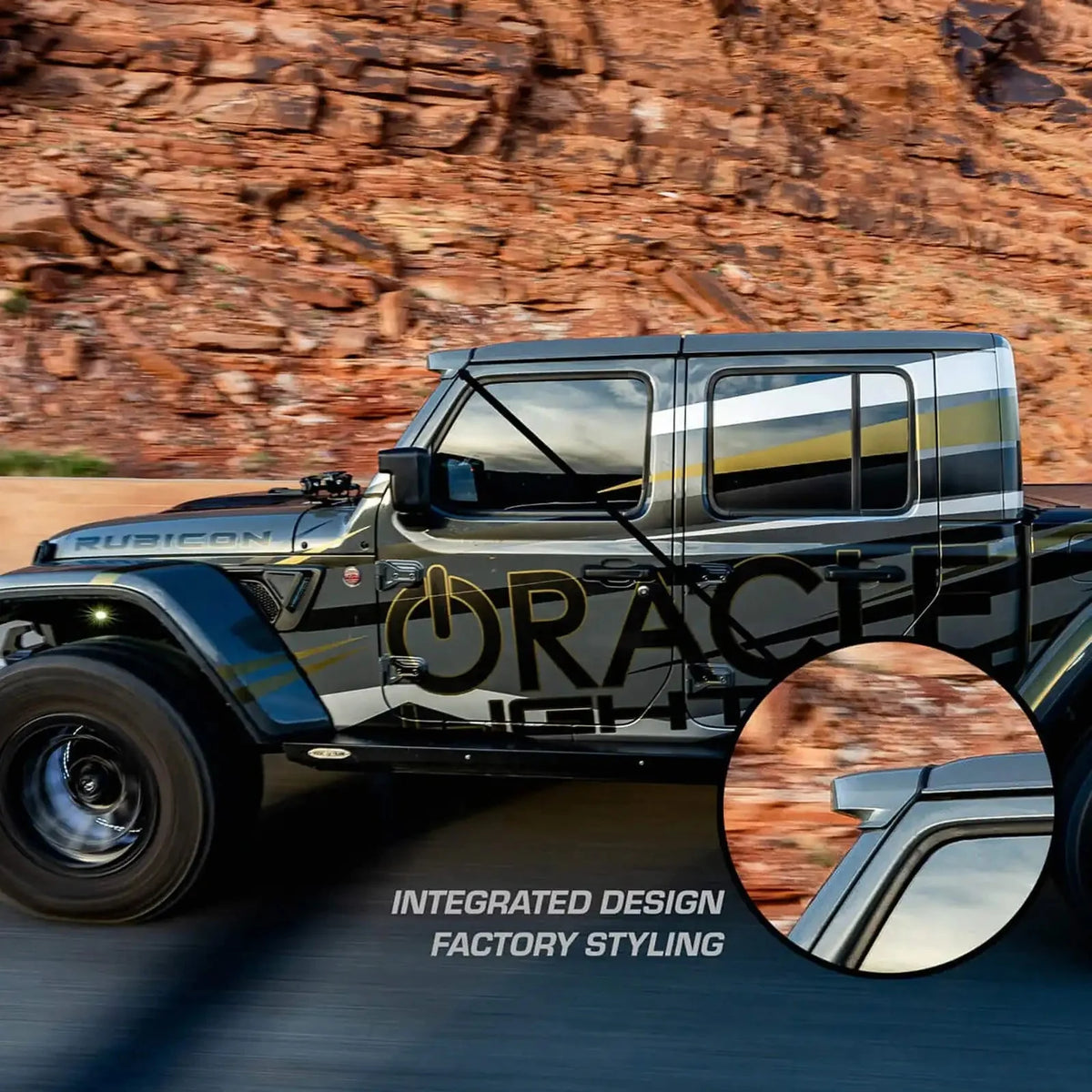

- Factory-Look Integration: Patented molded cowling blends into the roof line for an OEM-style appearance
- Quieter & More Aerodynamic: Helps reduce wind noise and drag compared to traditional external light bars

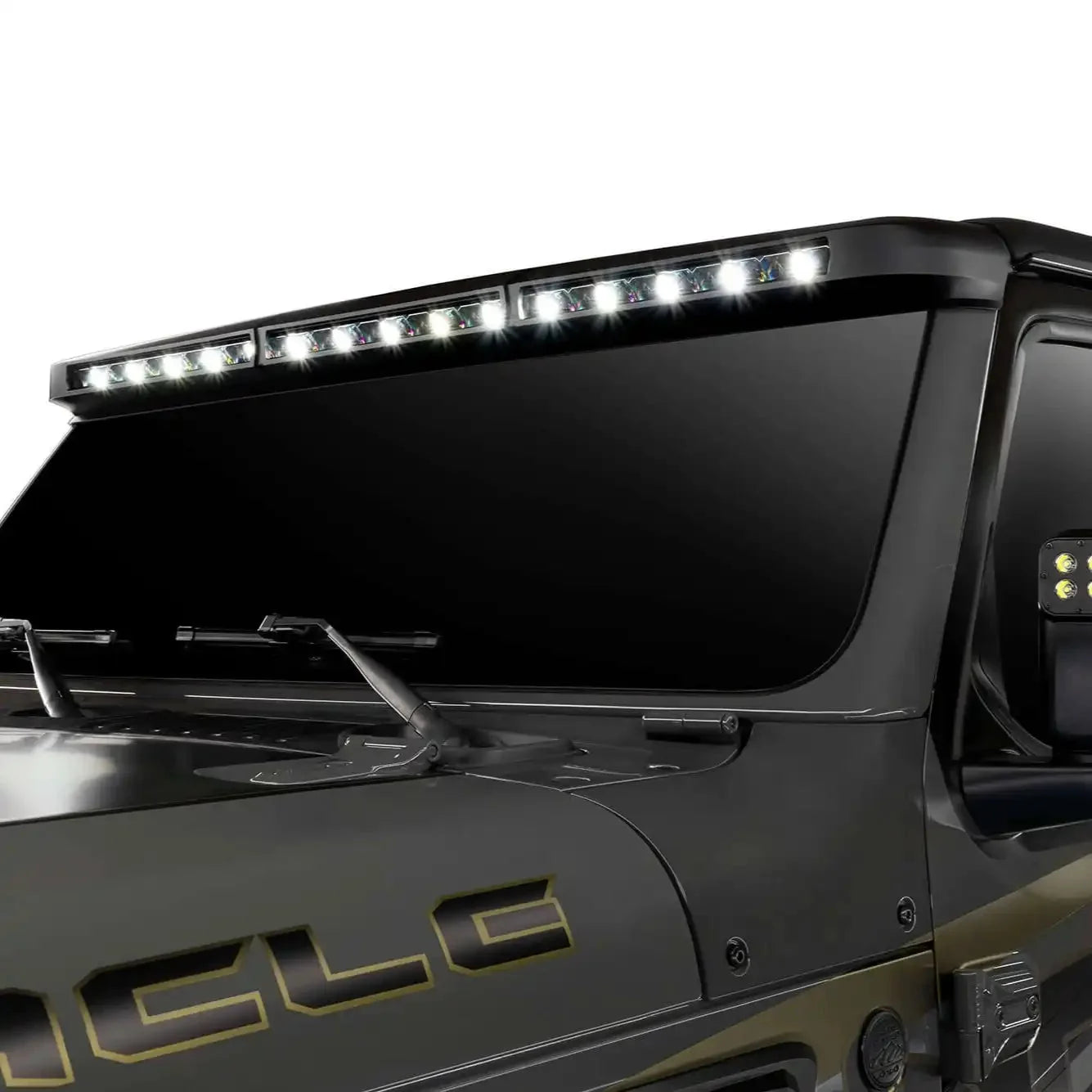

- Advanced Reflector Technology: 30 individual 8W emitters maximize output and projection distance
- Paint-Ready Housing: Ships matte black and can be professionally painted to match your hardtop color

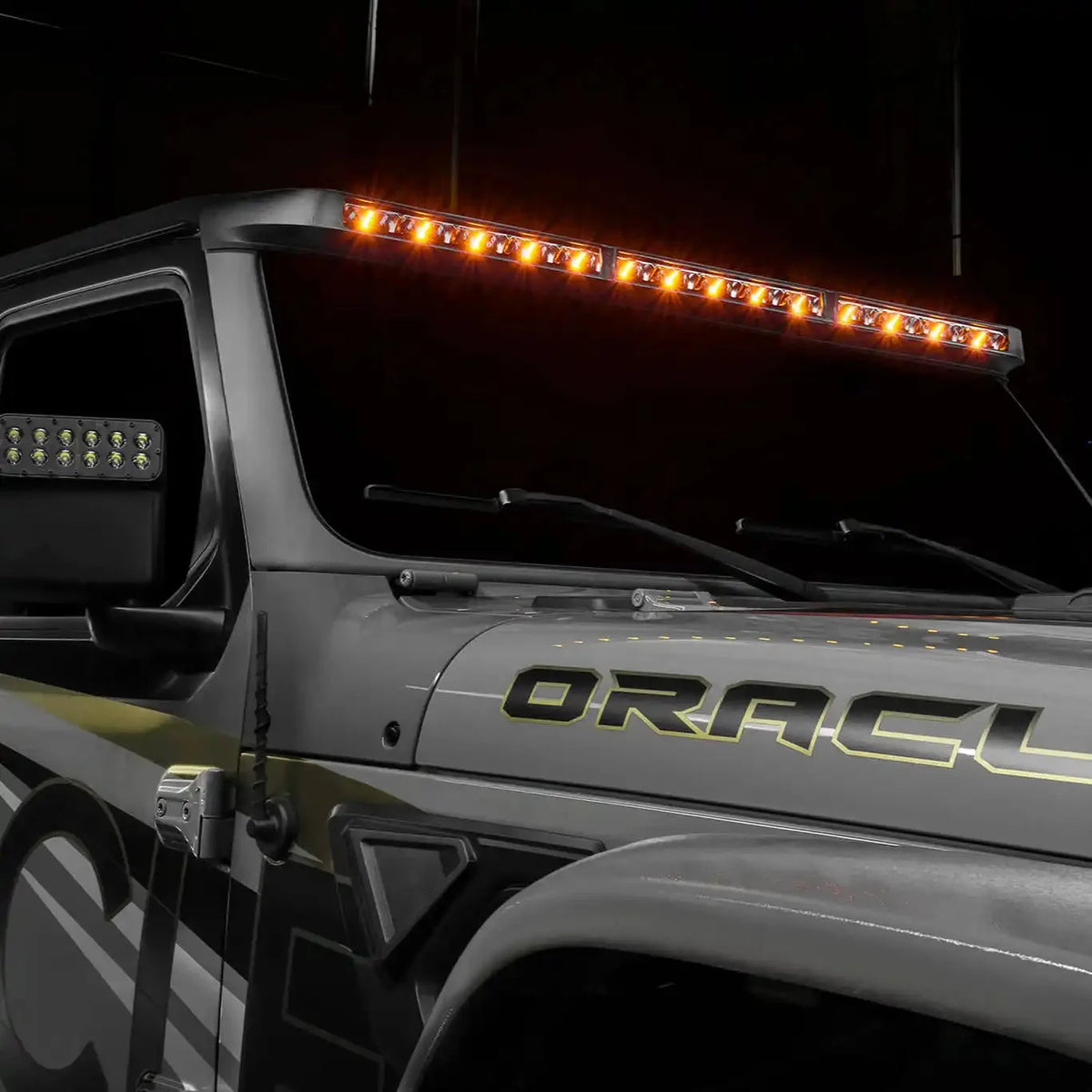

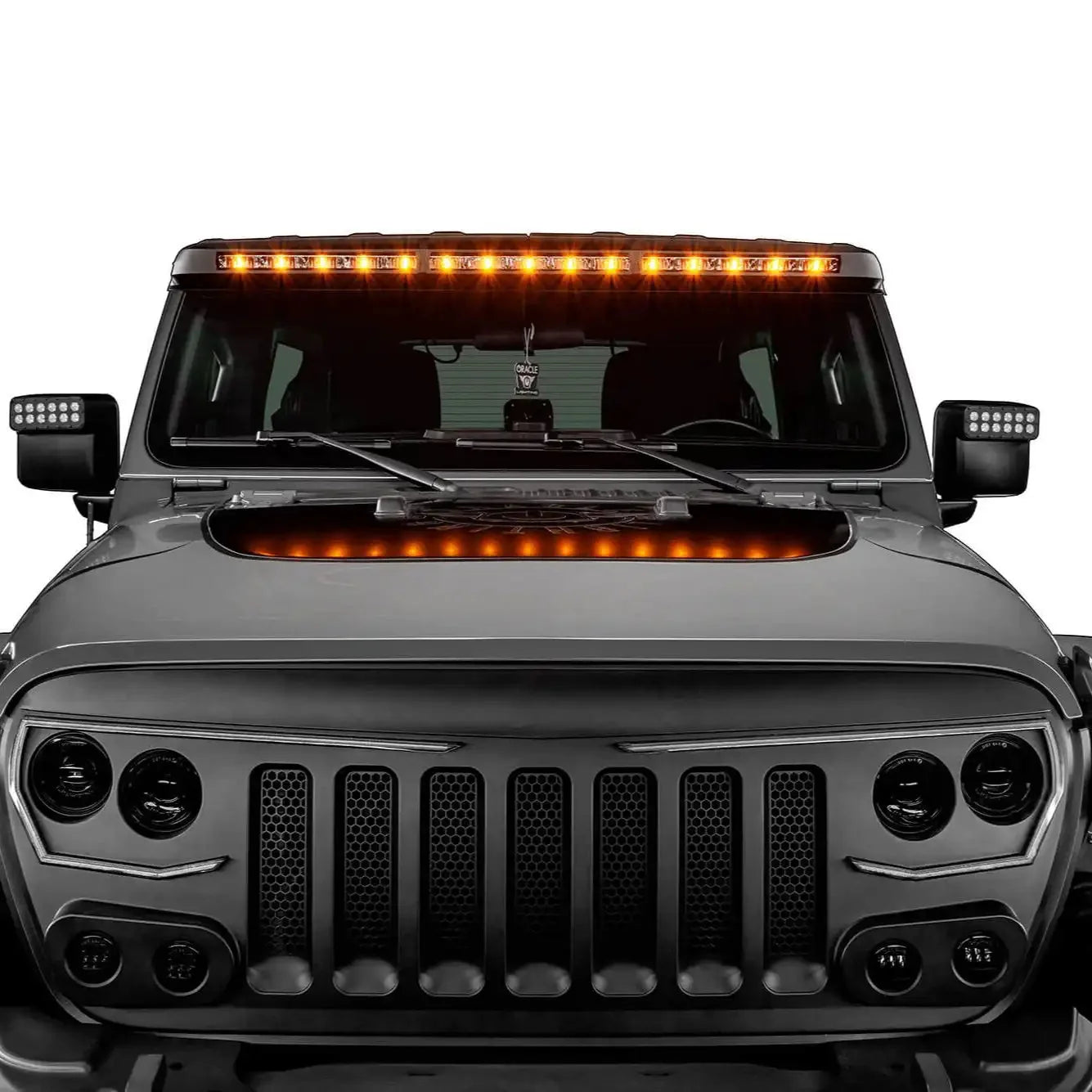

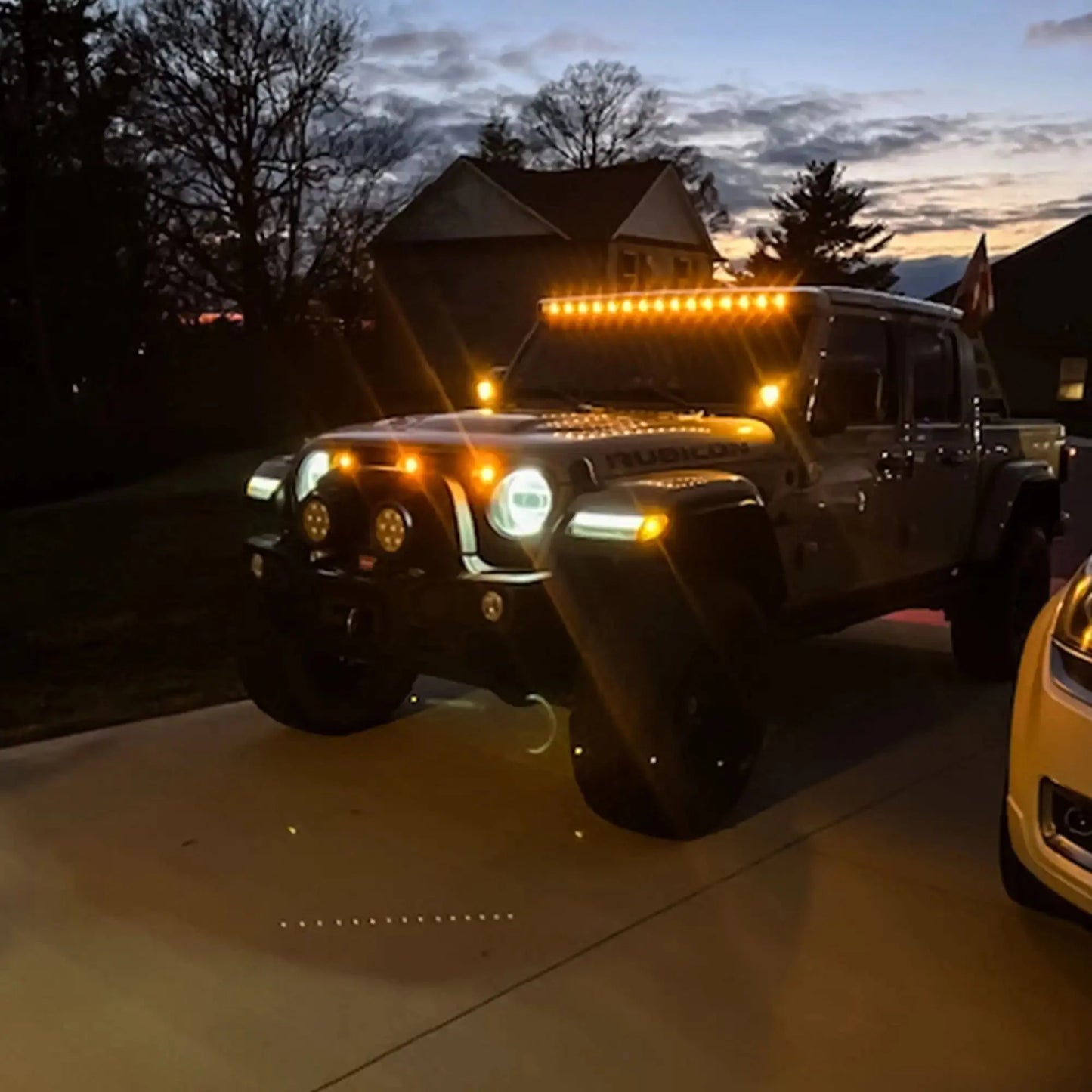

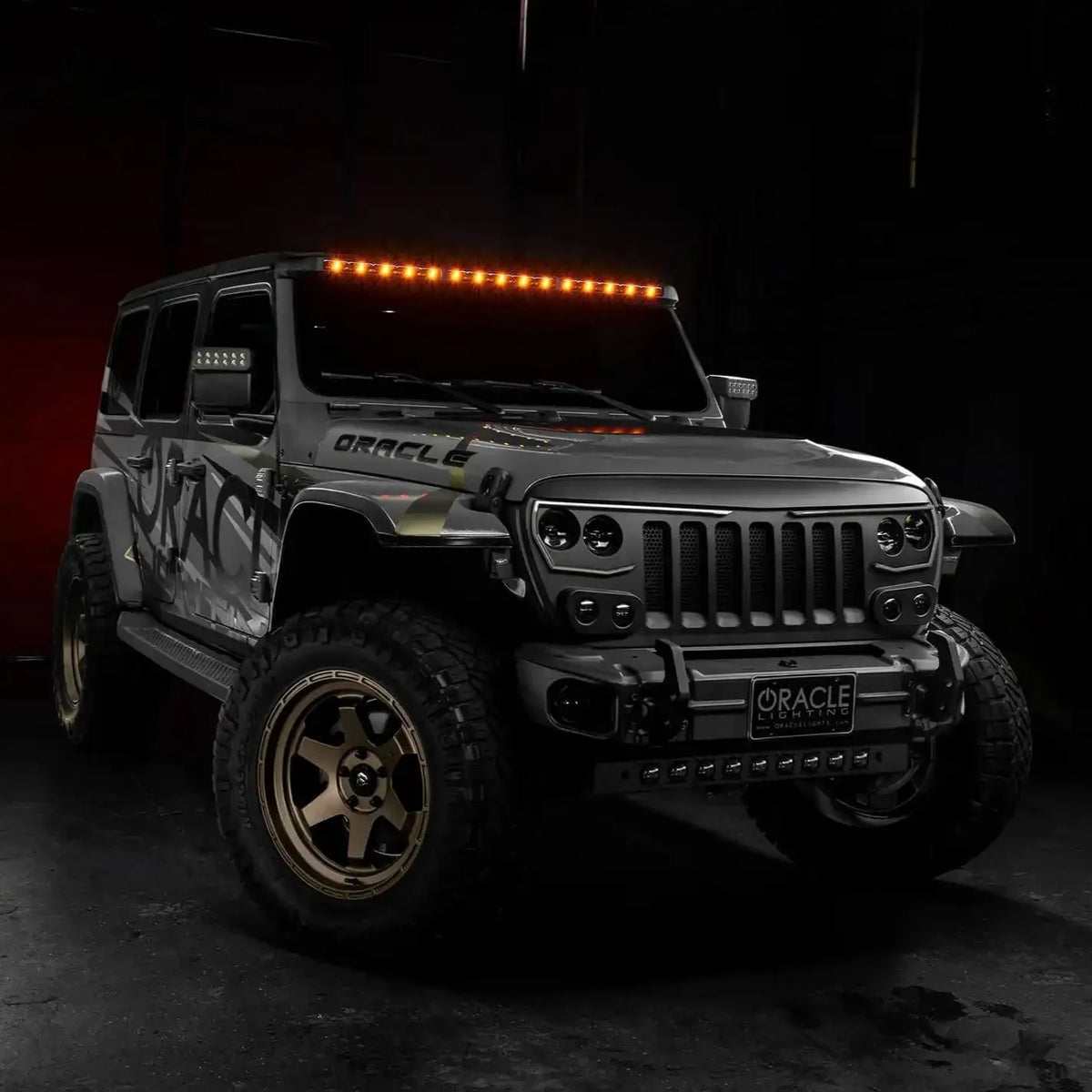

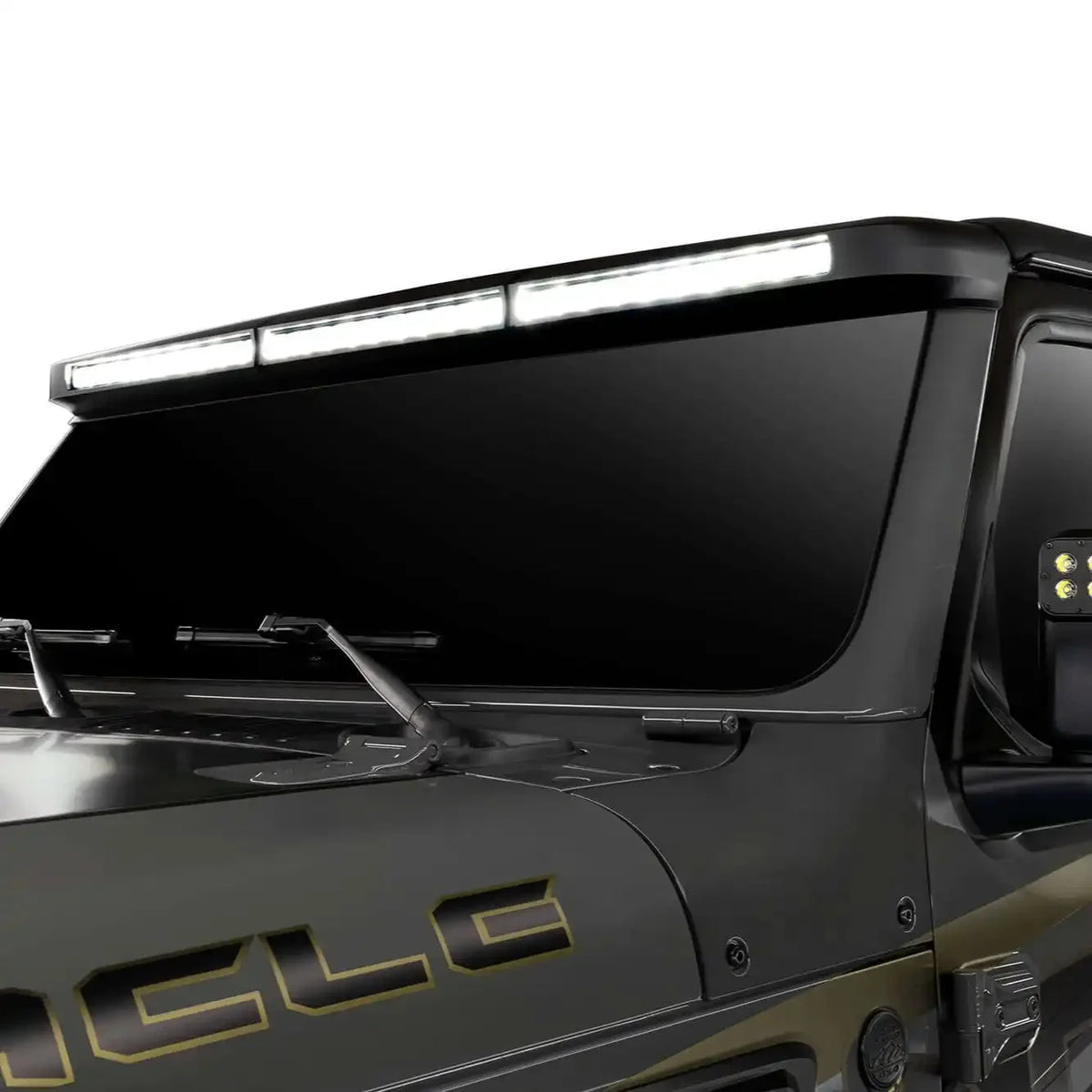

- Selectable Clearance Lights: Built-in amber or white clearance lights can be wired to Aux switches, parking lights, or DRL

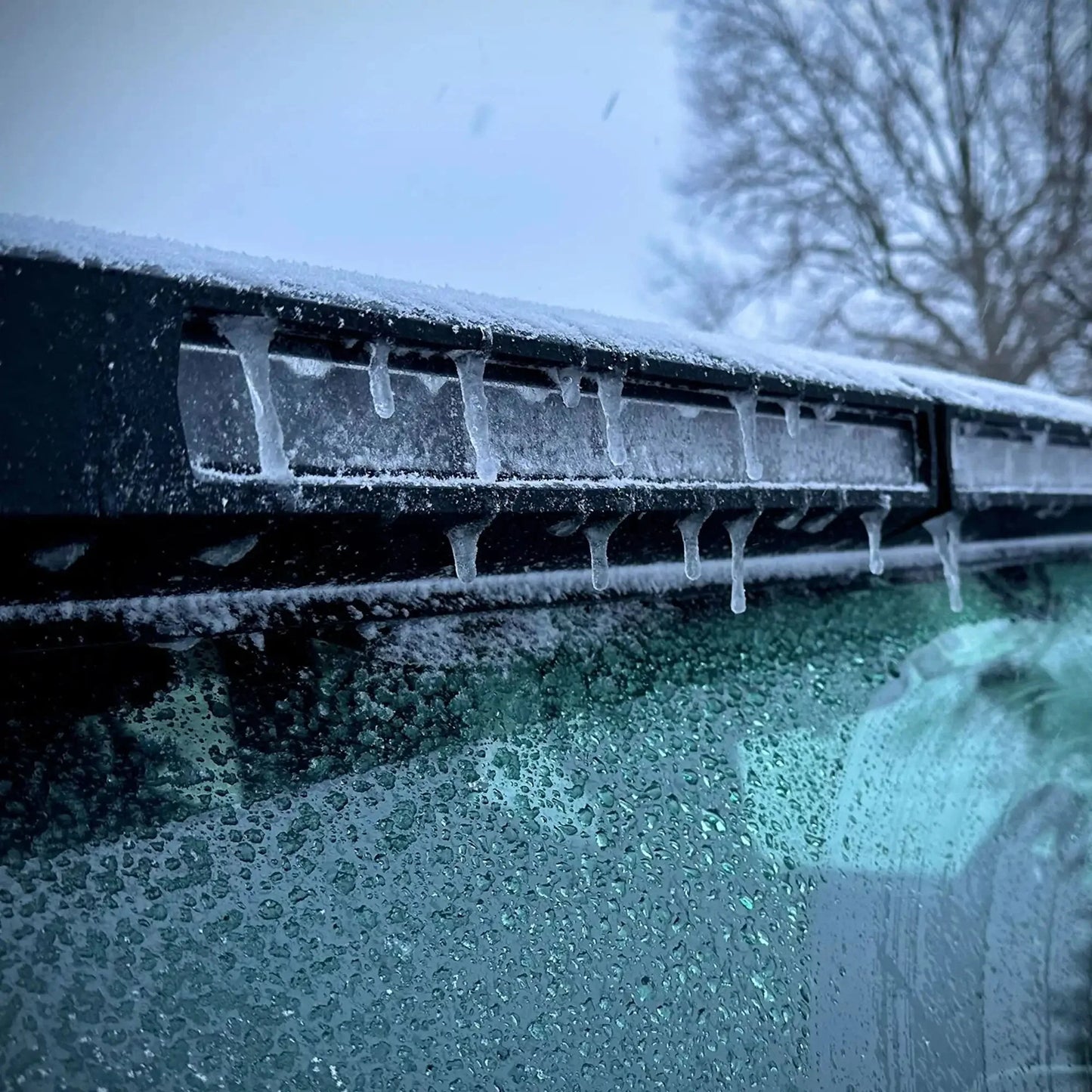

- Built to Last: IP68 waterproofing, thermal management, and voltage protection help ensure reliable long-term use
Performance & Technical Specifications ▼
Raw Lumens18,000 lm
Effective Lumens14,200 lm
Peak Intensity420,000 cd
Total Wattage240W
Amp Draw14A @ 12V DC
Beam Pattern40° Driving Beam

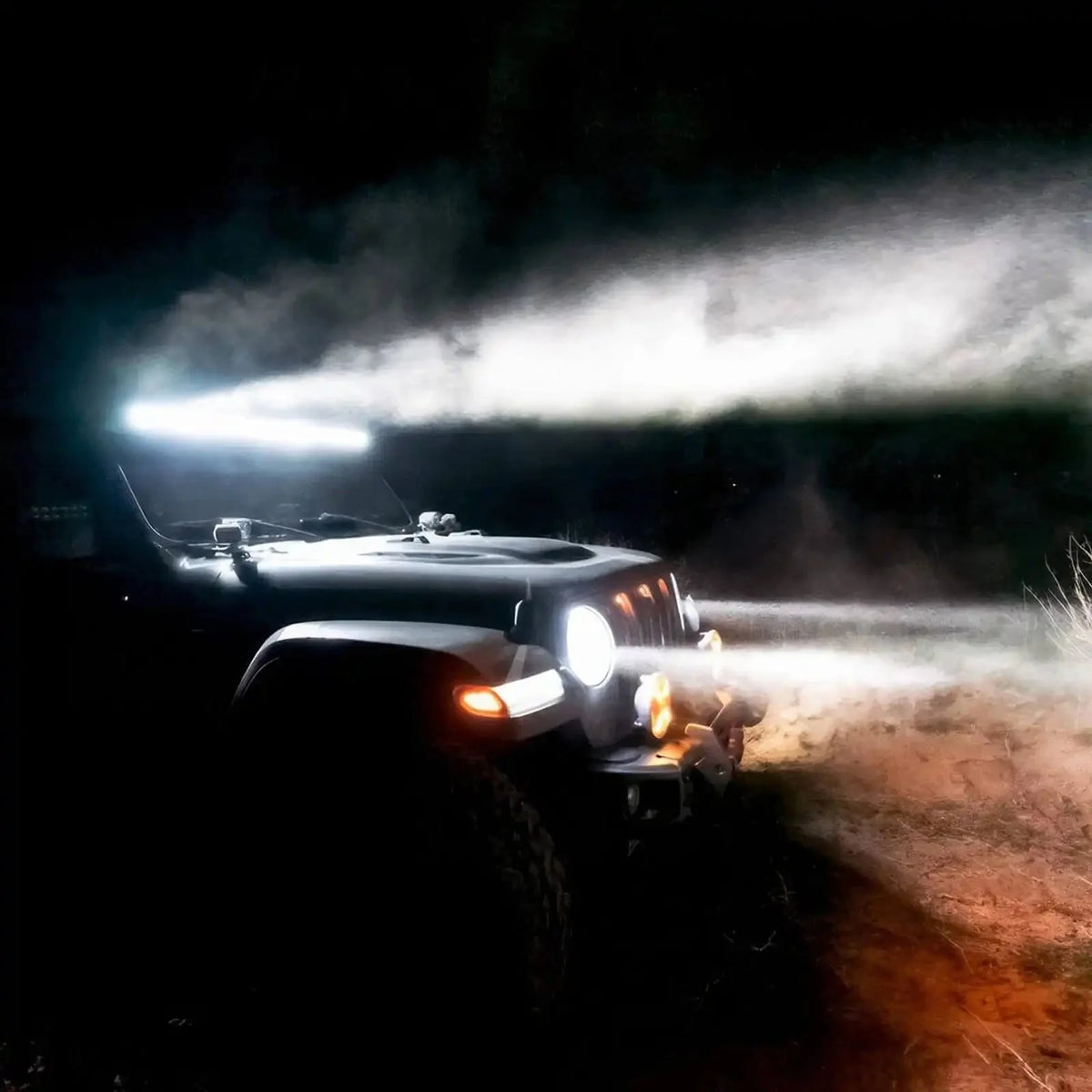

Max Projection1 Lux @ 648m (2,125 ft)
Color Temperature5500K (Bright White)
Waterproof RatingIP68
LED Emitters30 x 8W High-Power
LED Lifespan50,000+ Hours
Operating Voltage9-32V DC
Key Features & Benefits ▼
- Patented Integrated Design for a factory-look roofline
- 30 x 8W LED Emitters with reflector-facing technology

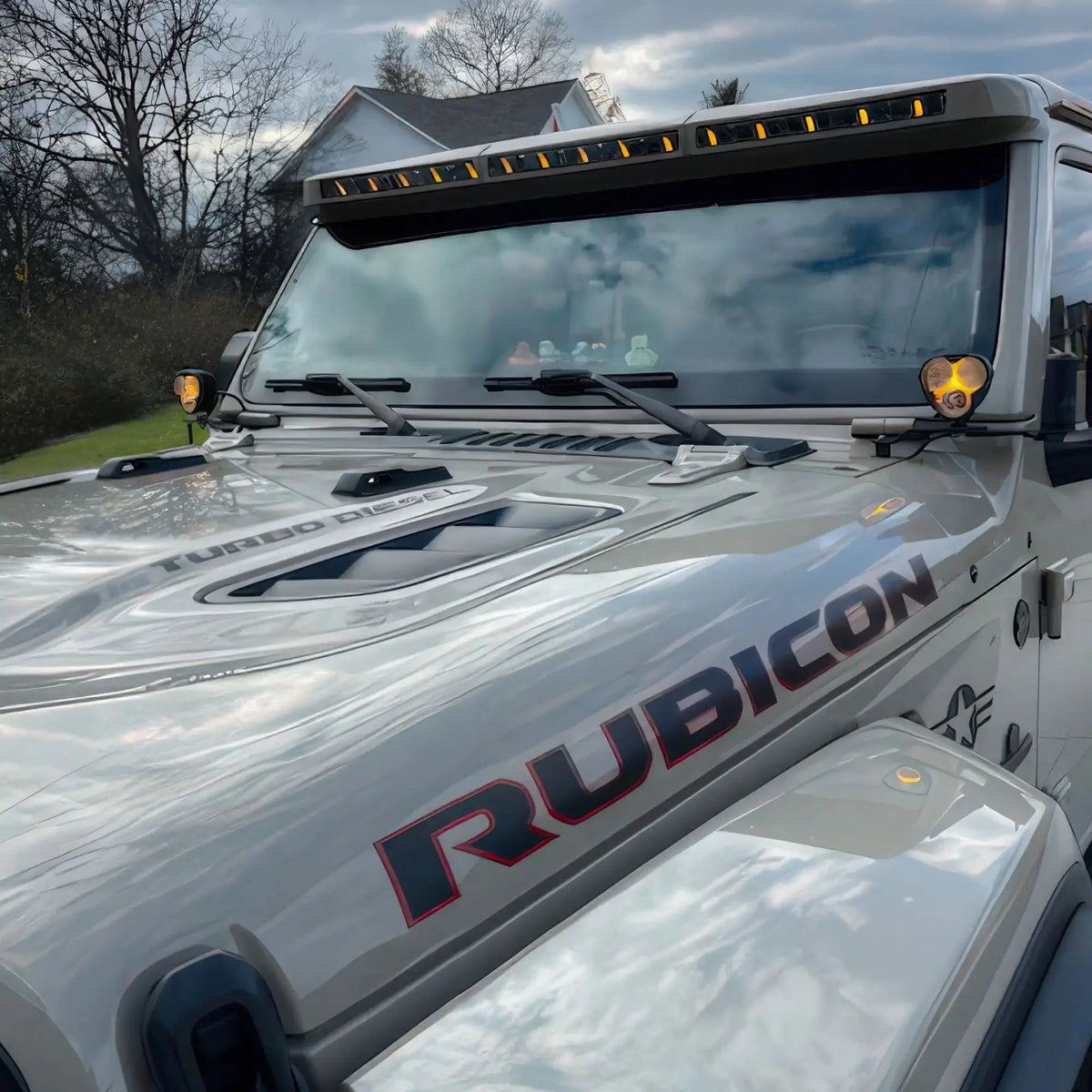

- Dual-Color Clearance Lights with selectable amber or white function
- Aerodynamic & Quiet compared to traditional external bars
- Paint-Ready Housing for custom color matching
- IP68 Waterproof Rating for harsh weather exposure
- Electronic Thermal Management to help prevent overheating
- Voltage Protection against under / over voltage and reverse polarity
- Premium Materials including aluminum housing and Lexan lens
- Designed & Engineered in USA
- 50,000+ Hour LED Lifespan
- 1-Year Warranty backed by ORACLE Lighting
Material & Construction Details ▼
Outer HousingPolycarbonate (Paint-Ready)
Lamp Housing6030 Aluminum Alloy
ReflectorPlated Polycarbonate
Lens MaterialLexan Polycarbonate
FinishPolyester Powder Coat
BreathersStainless Steel Anti-Fog Valves
ConnectorsMolded IP68 Waterproof
Ingress ProtectionIP68 Dust & Water Resistance

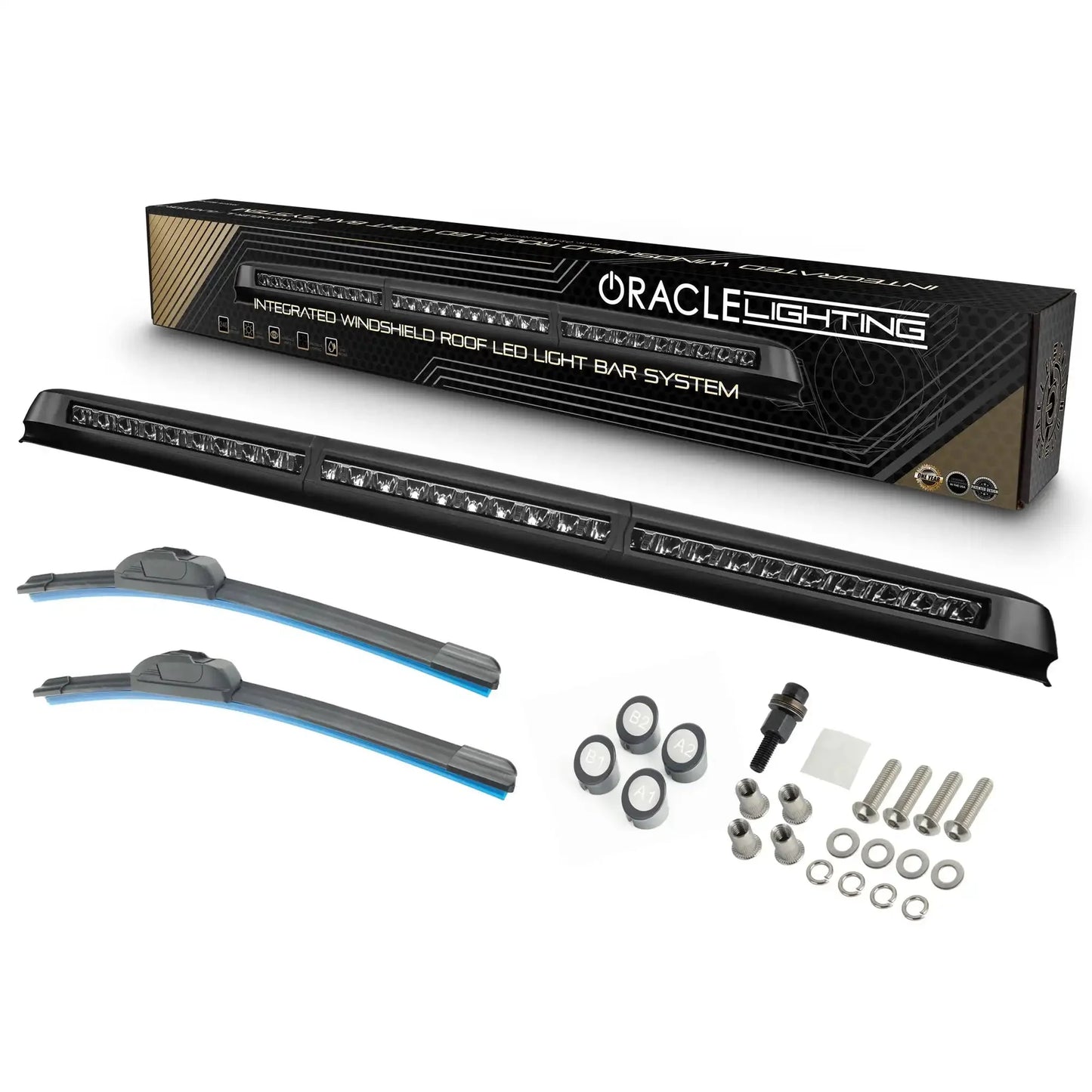

What's Included in the Kit ▼

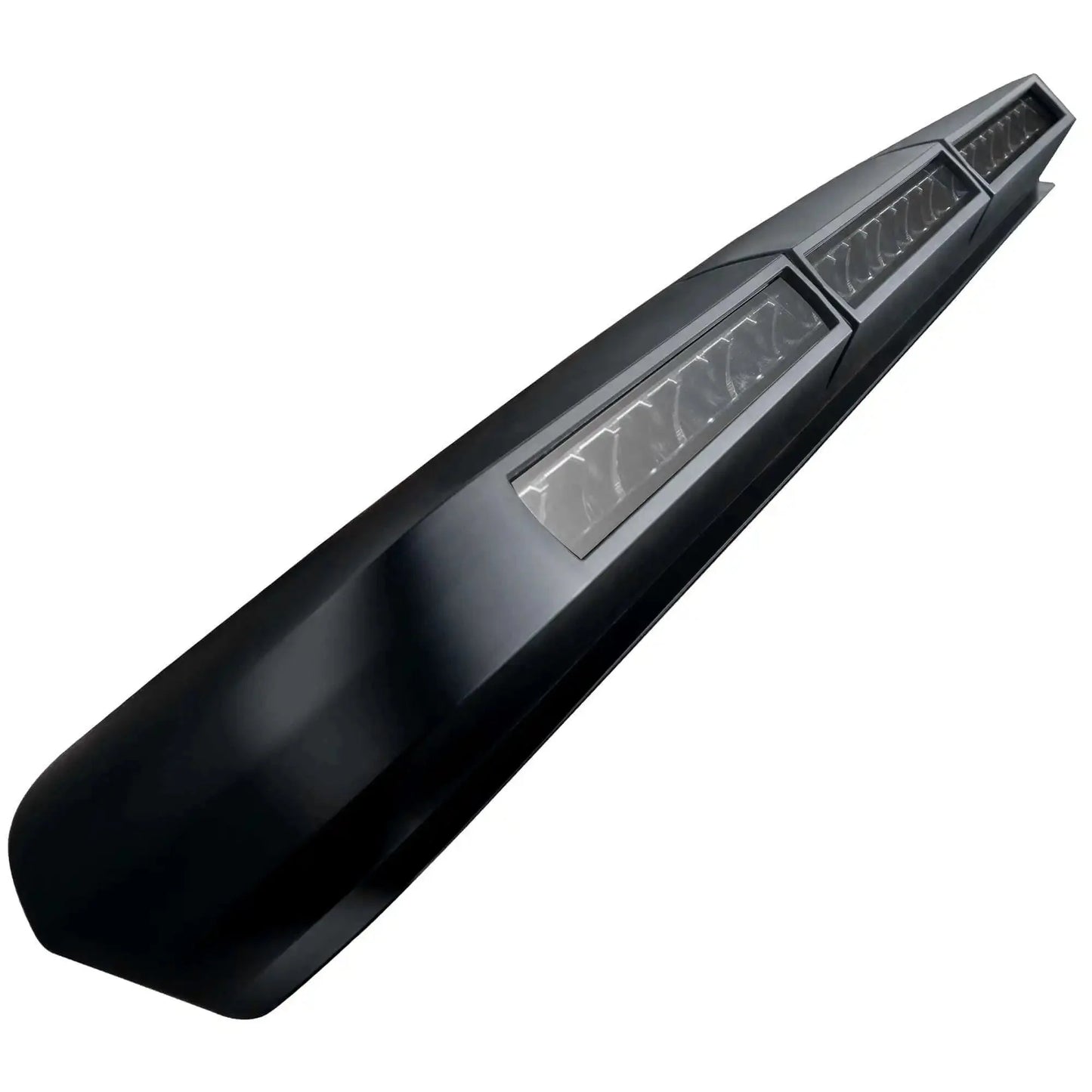

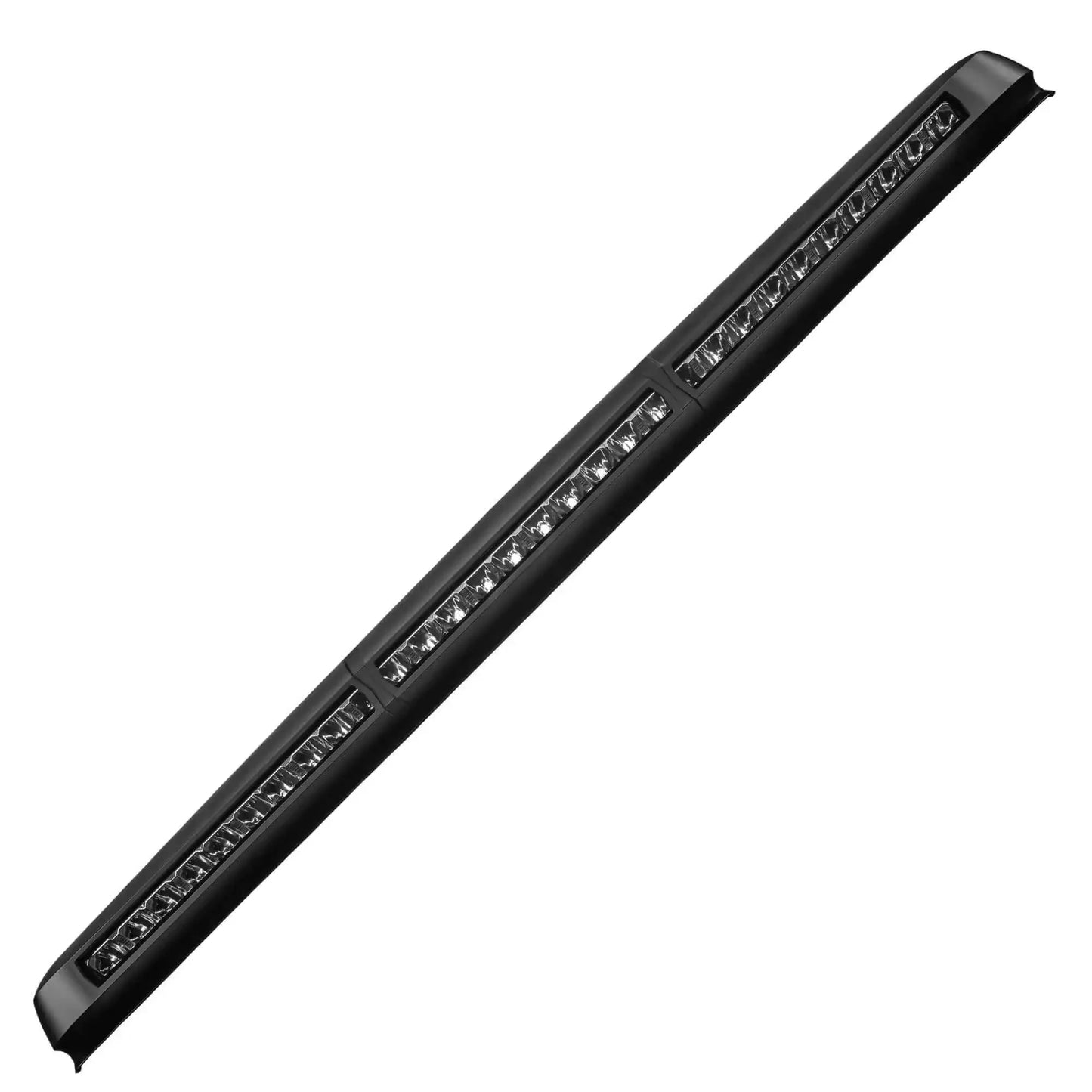

- Integrated LED Light Bar Assembly with Molded Cowling

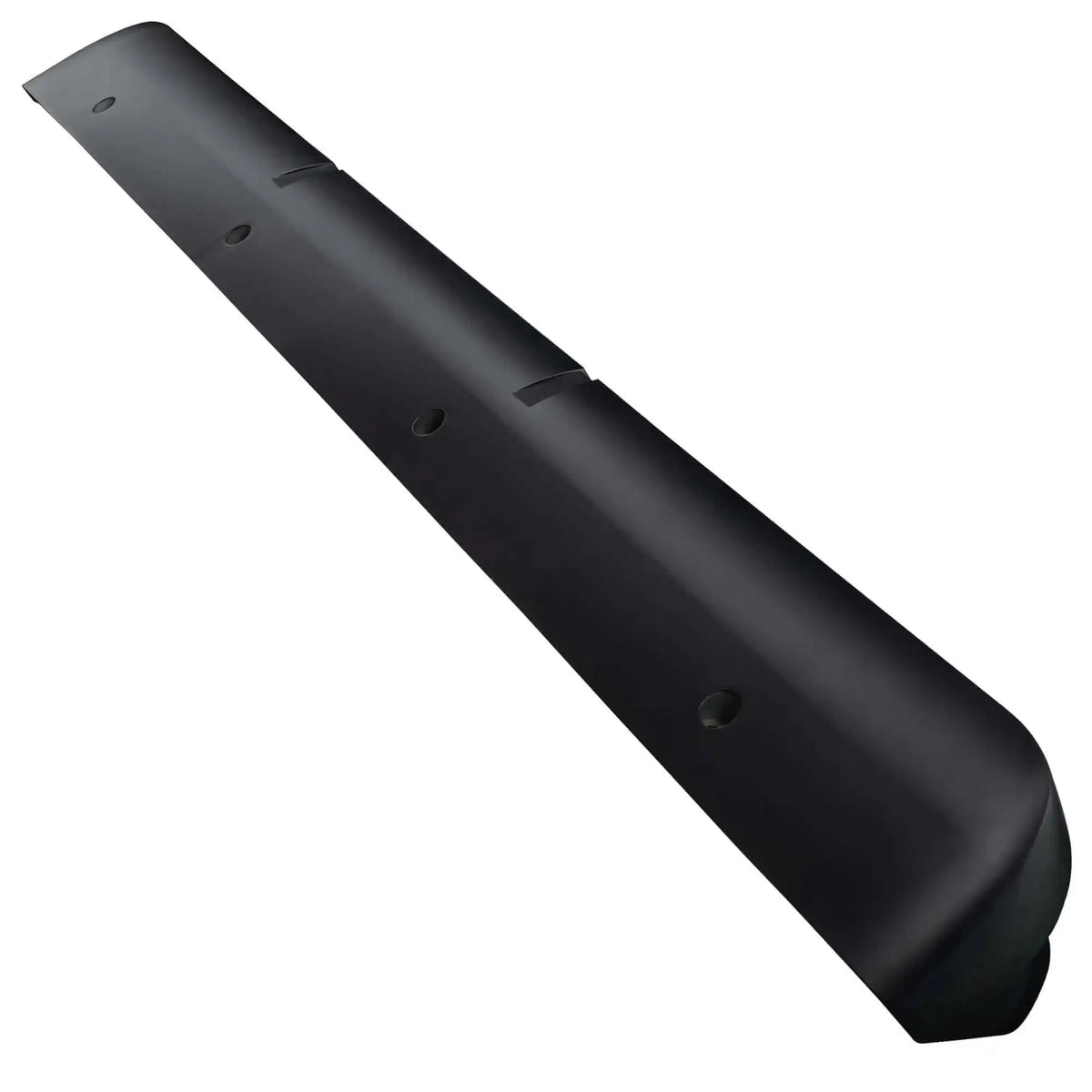

- Polycarbonate Housing (Matte Black, Paint-Ready)
- Complete Wiring Harness with IP68 Connectors
- Mounting Hardware & Threaded Inserts
- Lightbar-Compatible Windshield Wipers
- Installation Tool for Threaded Inserts
- Detailed Installation Instructions
- 1-Year Manufacturer Warranty
Note: Wiring harness for Aux switches is sold separately.
Recommended Add-ons & Accessories ▼
- No Aux Switches? Add the Switched Wiring Harness for easy plug-and-play installation.
- Have Factory Aux Switches? Use the Factory Aux Wiring Harness to integrate with your existing switches.
- Replacement Windshield Wipers: Specially designed Wiper Blade Replacements are available for JL/JT vehicles using the rooftop light bar.
Installation Guide & Resources ▼
Estimated Install Time: 2-3 hours
Tools Needed: Basic hand tools, drill, and included insert tool
Recommended: Two-person installation for easier handling
Tools Needed: Basic hand tools, drill, and included insert tool
Recommended: Two-person installation for easier handling
If you have a painted hardtop, it is recommended to have the housing professionally painted before installation for the best color match.
Product Videos ▼
Vehicle Compatibility ▼
Jeep Wrangler JL2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Jeep Gladiator JT2020, 2021, 2022, 2023, 2024, 2025, 2026
Roof RequirementHard-Top Only
Important: Not compatible with Soft Top or One Touch Power Roof configurations.
Warranty, Shipping & Returns ▼
Product Certifications & Downloads ▼
