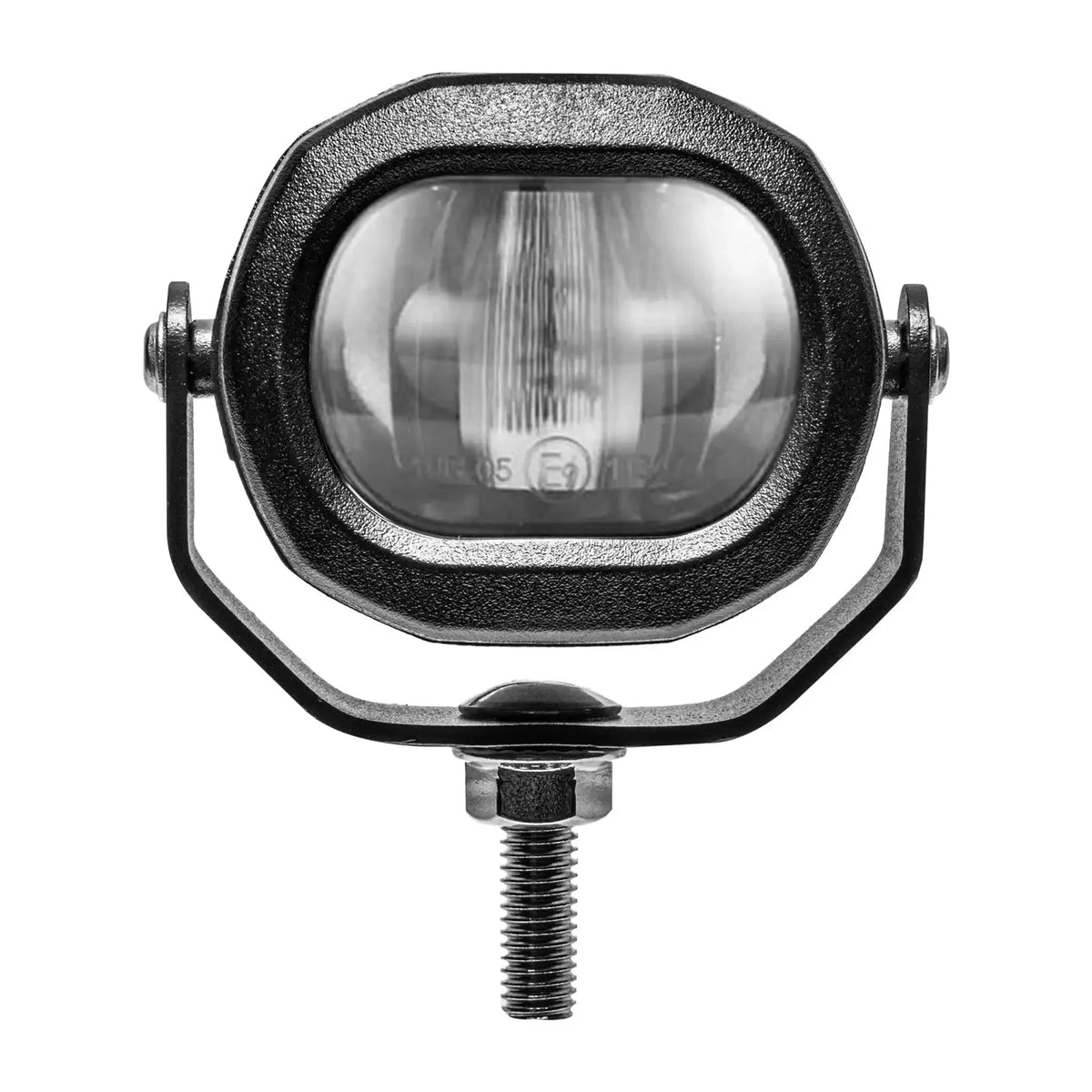

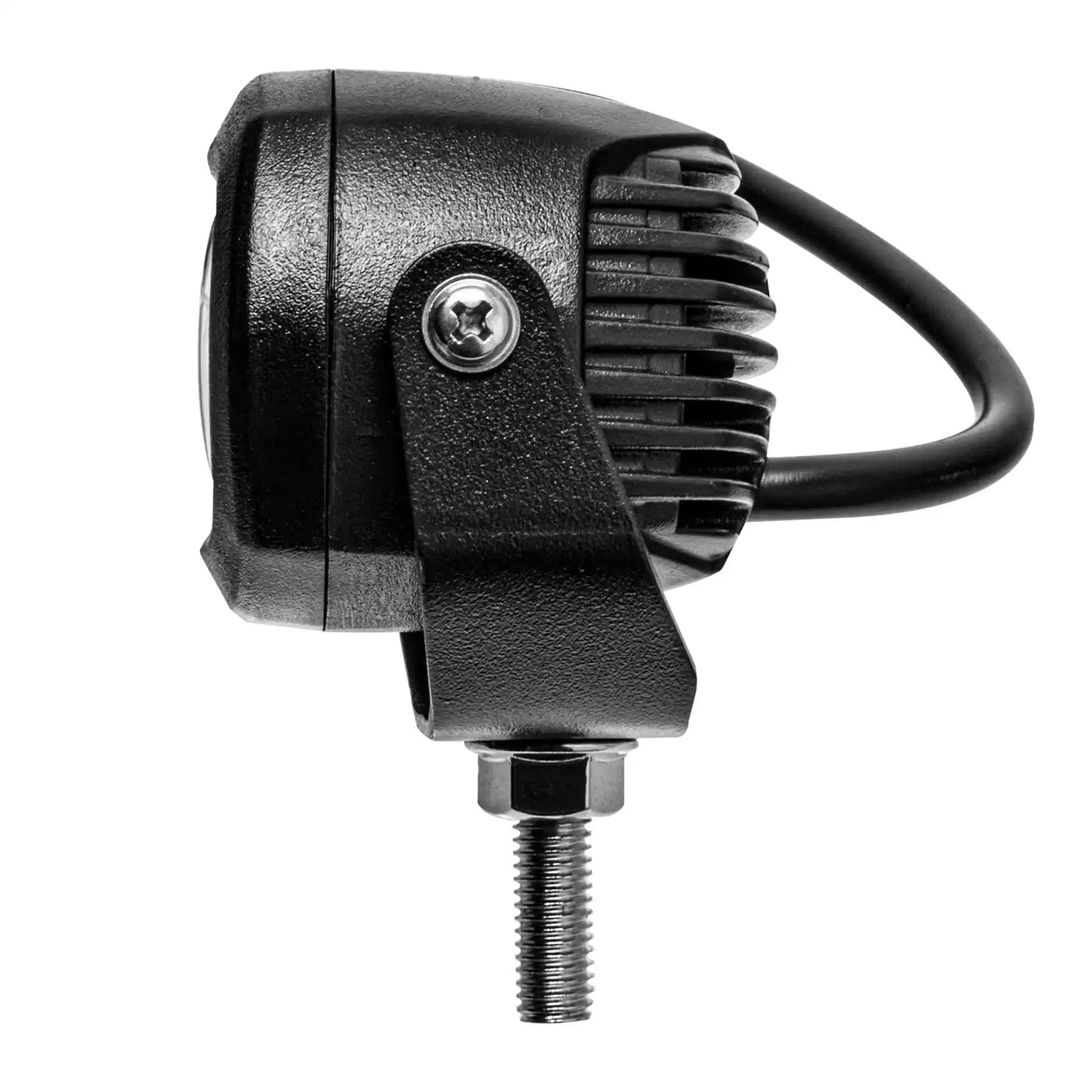

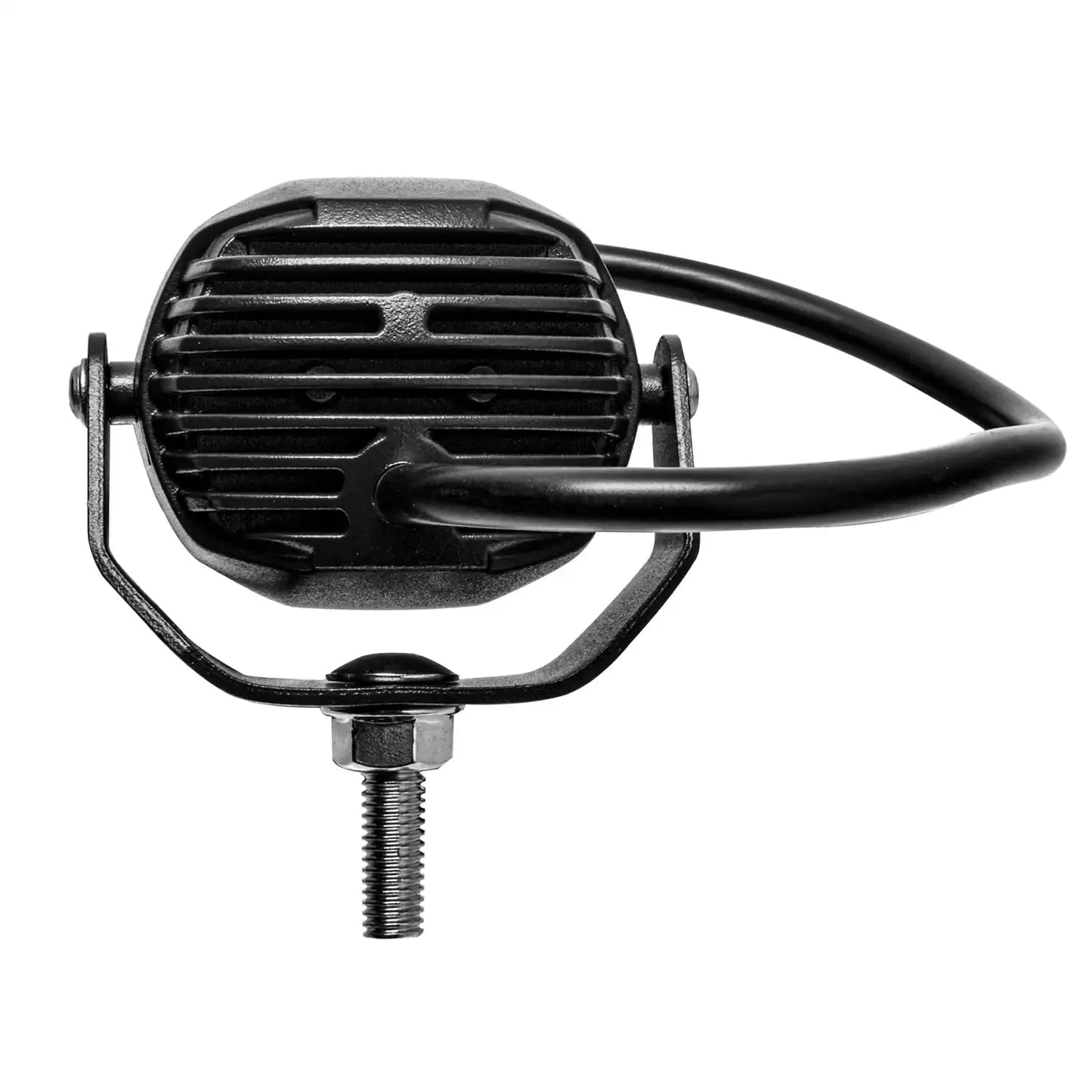

Forklift/Tractor LED Safety Red-Line Pedestrian Awareness LED Light
Product Overview ▼

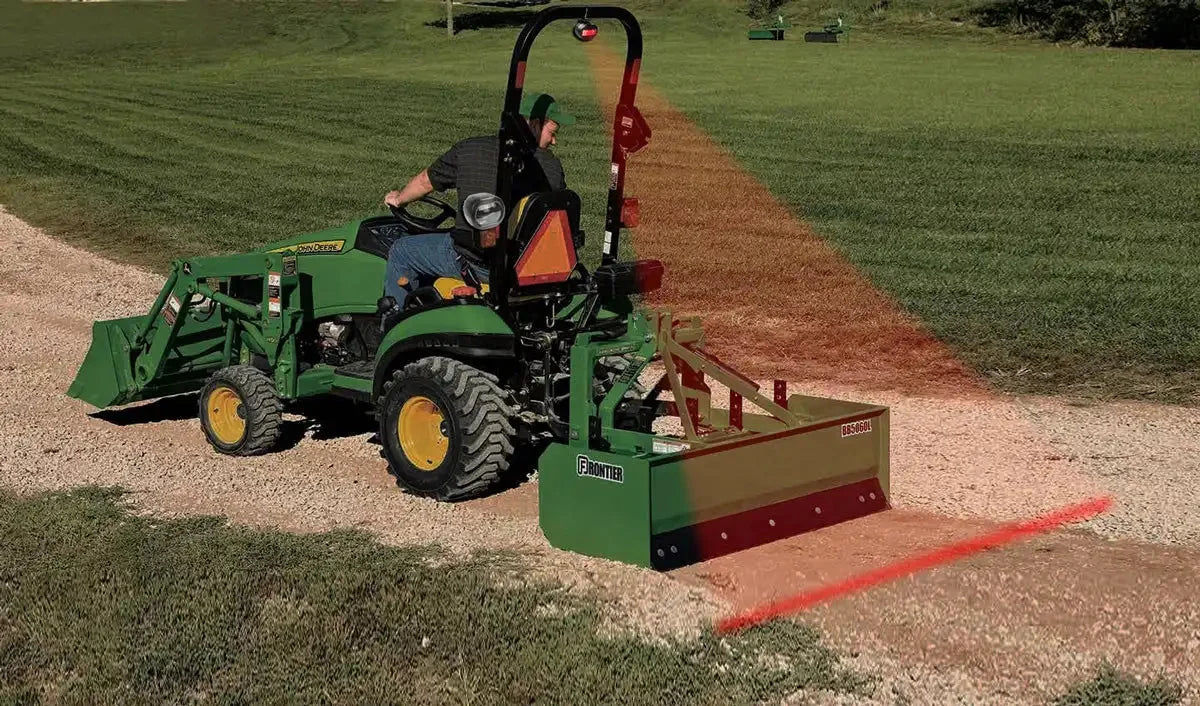

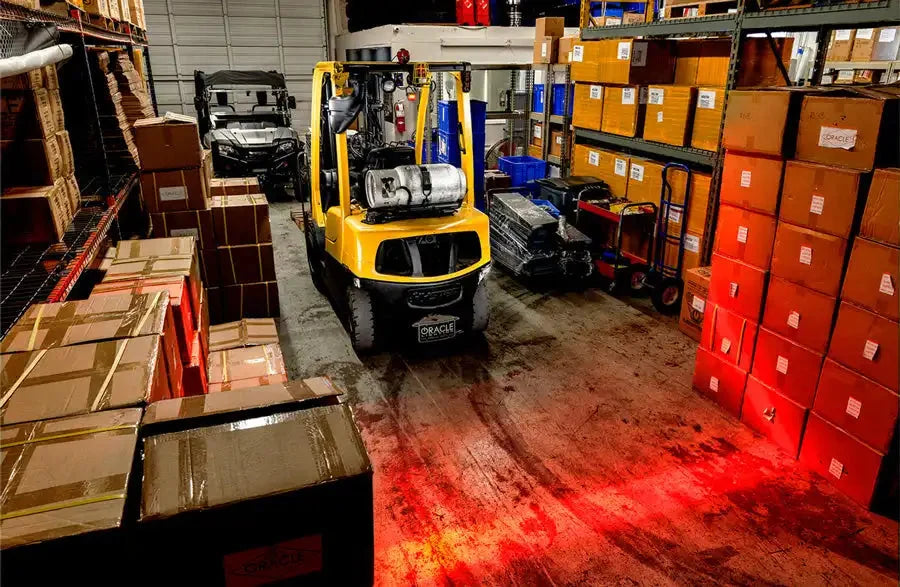

The ORACLE LED Safety Warning Light is a pedestrian awareness system designed for forklifts, tractors, and other heavy equipment operating in shared workspaces. Mounted directly to the machinery, it projects a vivid red line onto the ground surface - creating a clear, visible safety zone that pedestrians can see regardless of ambient noise levels.
Traditional audio backup alarms are easily masked by industrial noise, and workers can become desensitized to repetitive audio warnings over time. The ORACLE red-line system provides a silent, always-visible alternative. Multiple units can be mounted on a single vehicle to project warning lines to the front, rear, and sides simultaneously.
Built for demanding industrial and agricultural environments, the housing is die-cast aluminum with a hard coat anodized finish, rated IP67 waterproof, and operates across a wide voltage range of 10-80VDC - compatible with virtually any equipment electrical system.
Key Features ▼
- Visible red-line ground projection - alerts pedestrians regardless of ambient noise
- Overcomes audio alarm limitations - a visual warning cannot be tuned out the way repetitive audio alarms can
- Multi-mount capable - install multiple units for 360° front, rear, and side coverage
- Wide voltage range - 10-80VDC, compatible with virtually any industrial or agricultural equipment
- IP67 waterproof rated - built for outdoor and wash-down environments
- Die-cast aluminum housing with hard coat anodized finish
- Stainless steel mounting bracket included
- Wide operating temperature - -40° to 140°F
- Other projection colors available as special order
Performance & Technical Specifications ▼
Vehicle Fitment ▼
Verify mounting location, connector requirements, supply voltage, and projected safety-zone placement before installation.

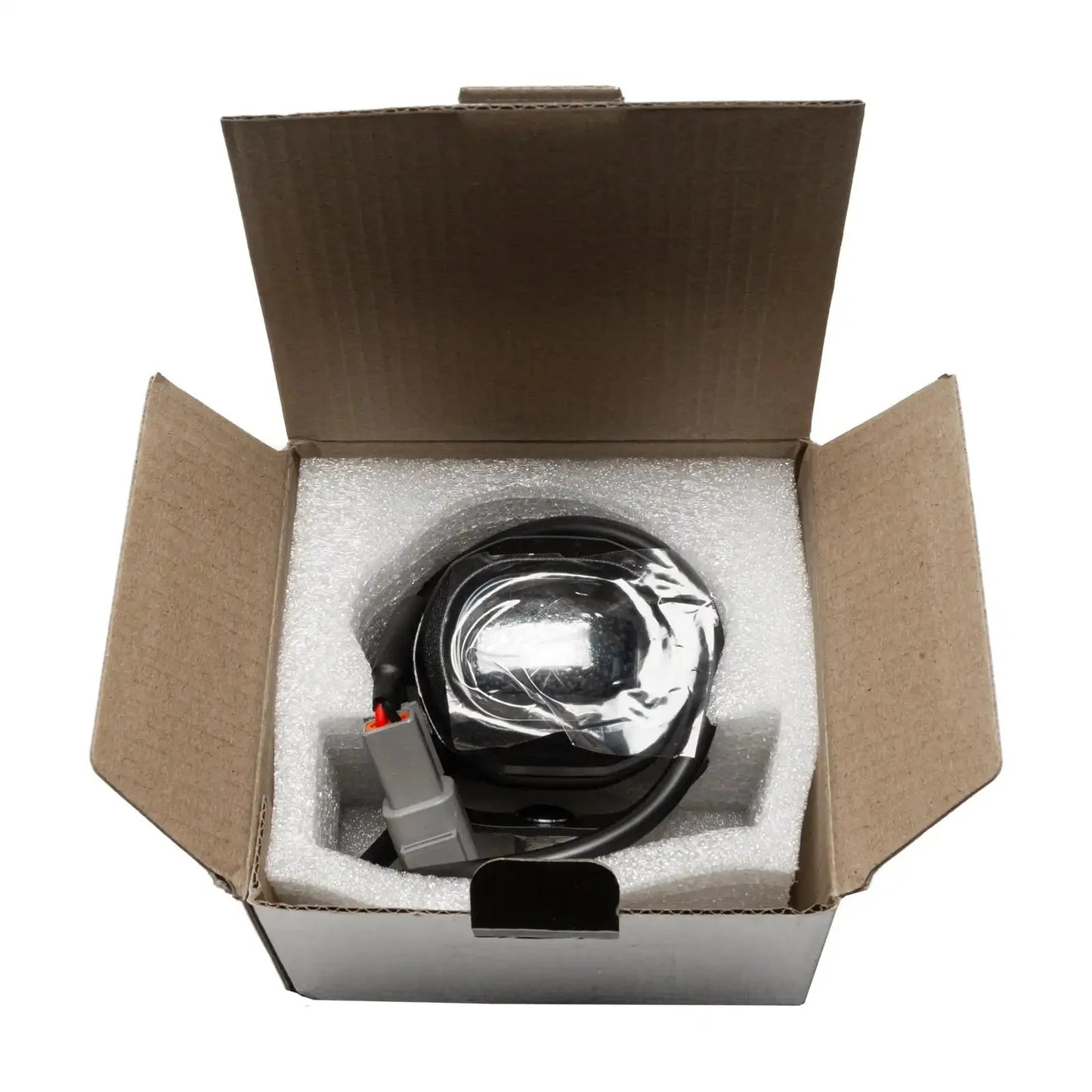

What's Included ▼
- (1) ORACLE LED Safety Red-Line Warning Light
- (1) Stainless Steel Mounting Bracket
Installation Guide & Resources ▼

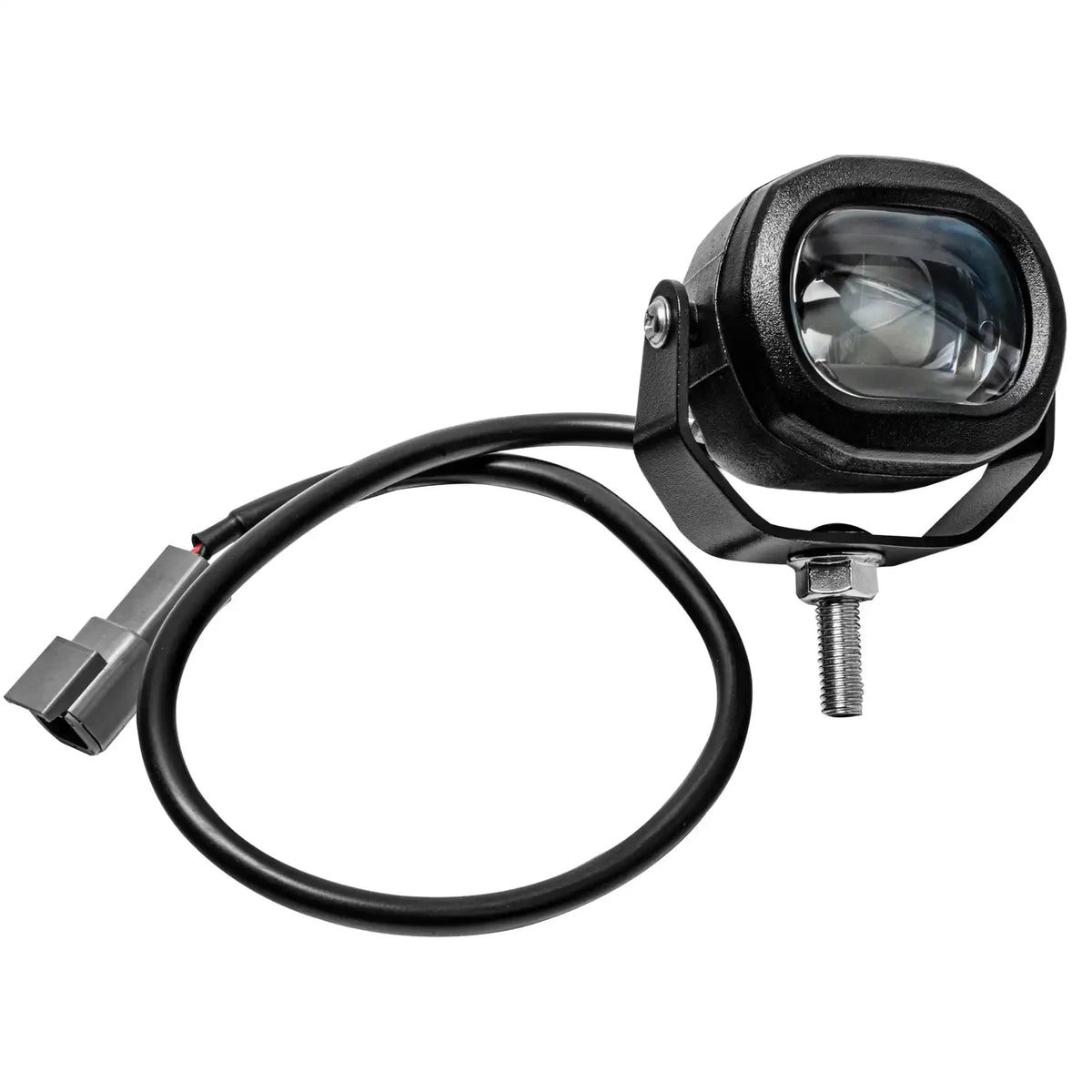

Mounts via the included stainless steel post mount bracket. Connects via DTM04-2P connector with 18AWG / 500mm cable. Multiple units can be installed on a single vehicle for full perimeter coverage.
Experience Level: Beginner
Designed for a straightforward installation using basic hand tools.
Part Numbers & Options ▼
