7" High Powered LED Headlights | DOT Certified Sealed Beam Replacement | Jeep Wrangler & Classic Cars
Regular price
$347.99
Color
No Halo
The ultimate LED replacement headlight option for vehicles with 7" sealed beam lamps. Built for Jeep Wranglers, off-road vehicles, buggies, and classic cars or trucks with rugged construction, plug-and-play connectors, optional halo customization, and premium LED performance.
7" Sealed Beam Upgrade H4 / H13 Plug & Play 6000K Output Optional Halos DOT / SAE 2-Year Warranty
Common Part Number Family: 5769-*
Product Overview ▼

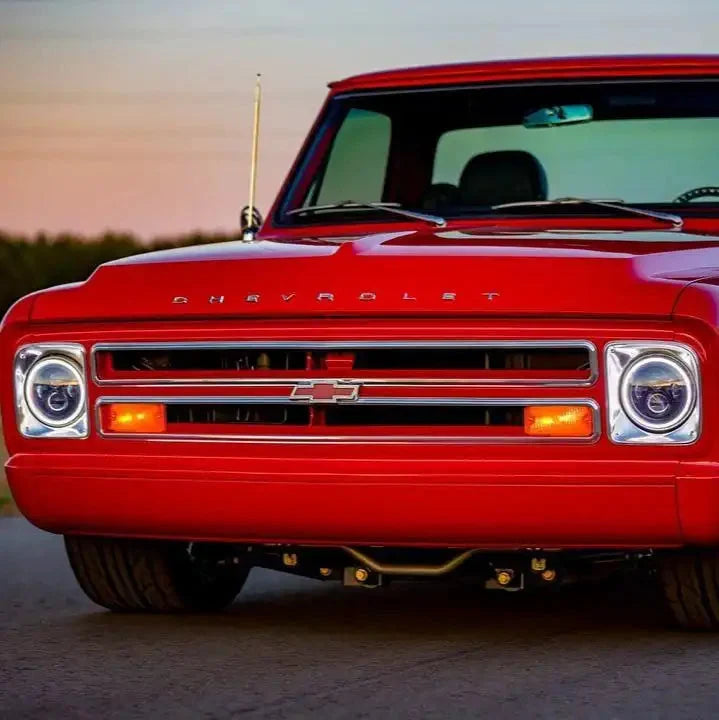

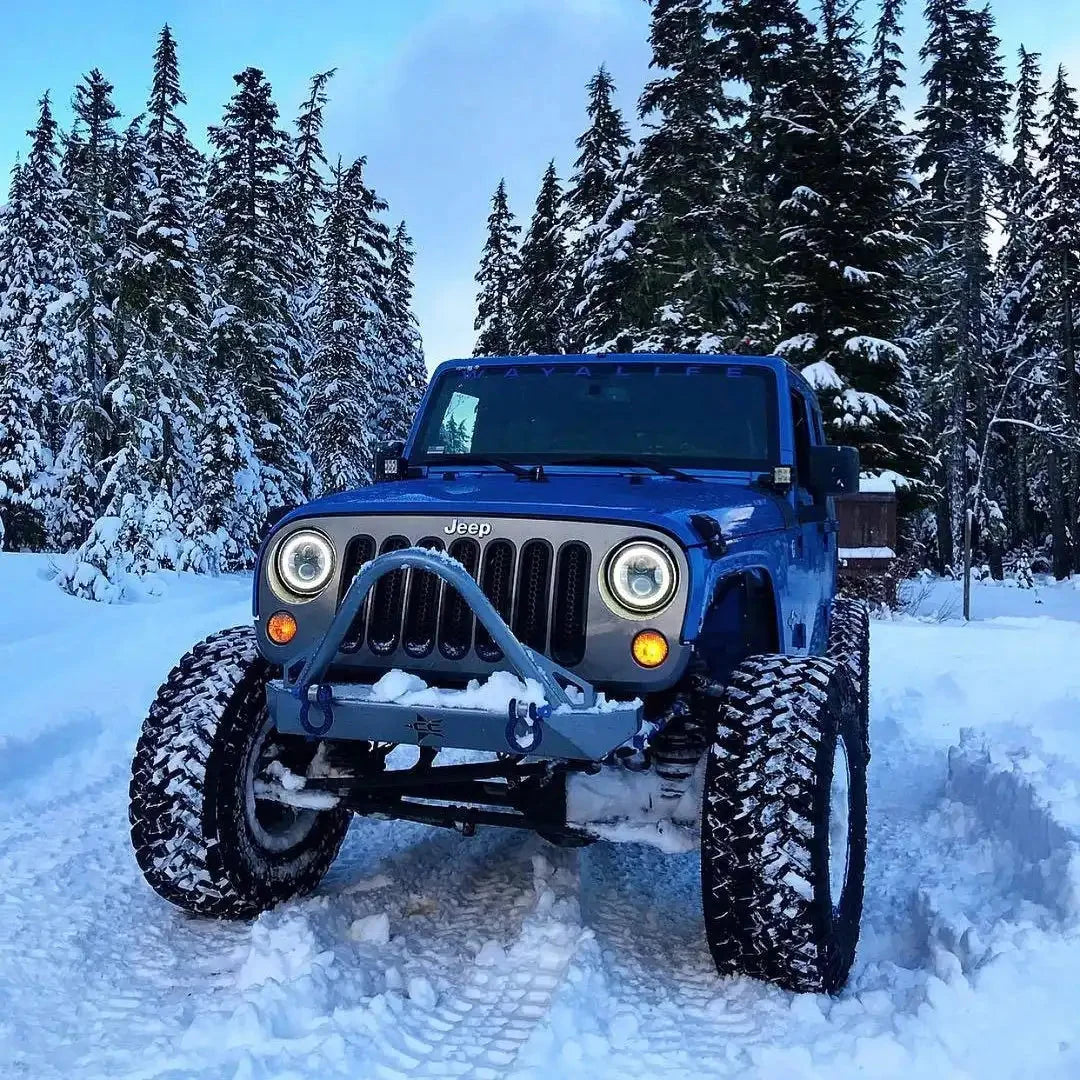

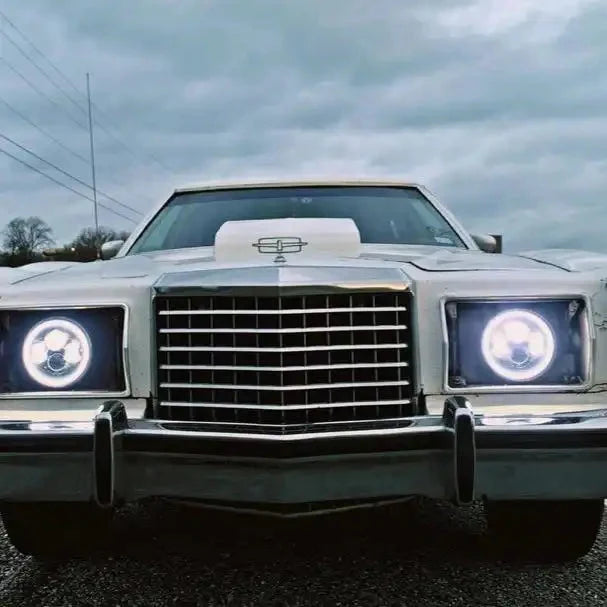

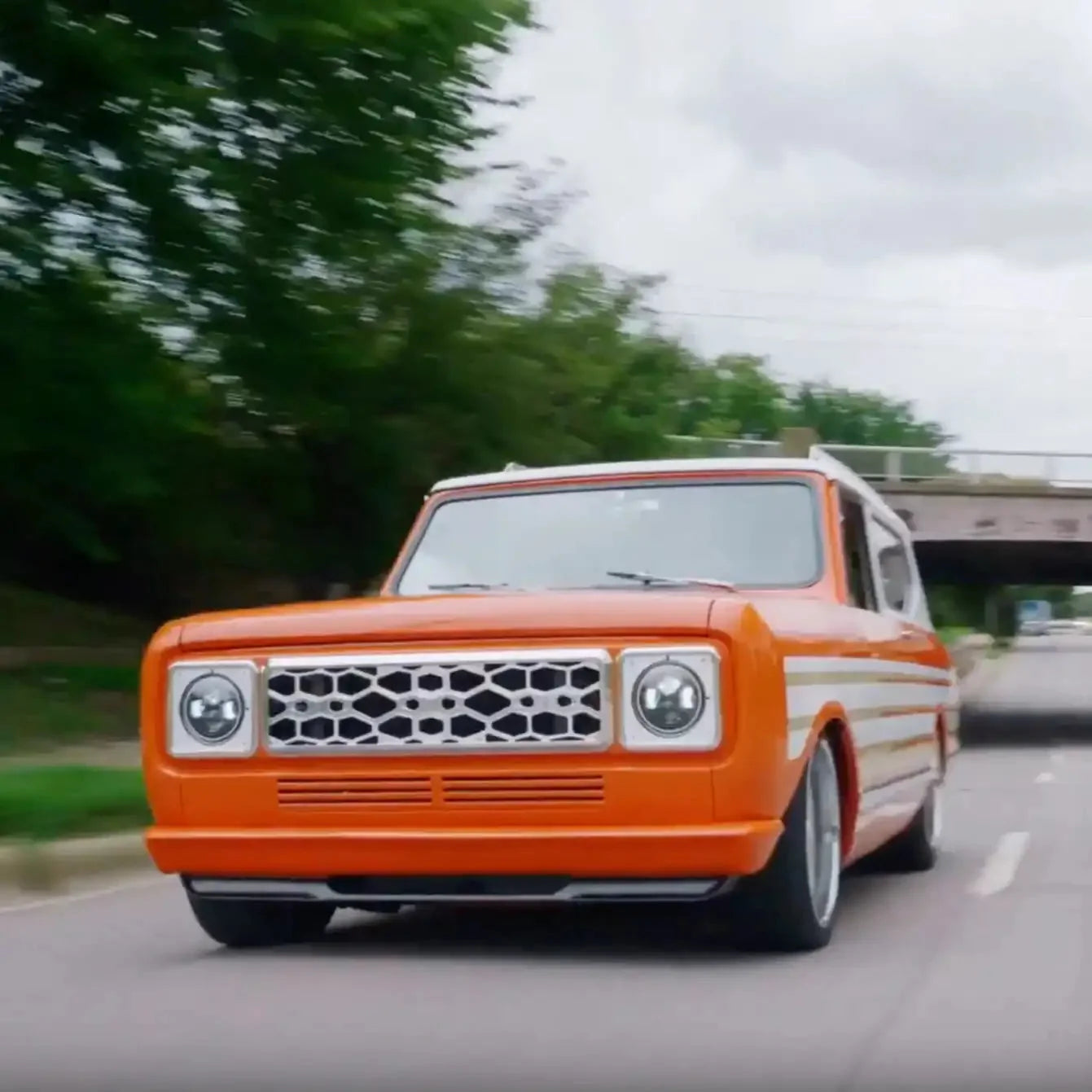

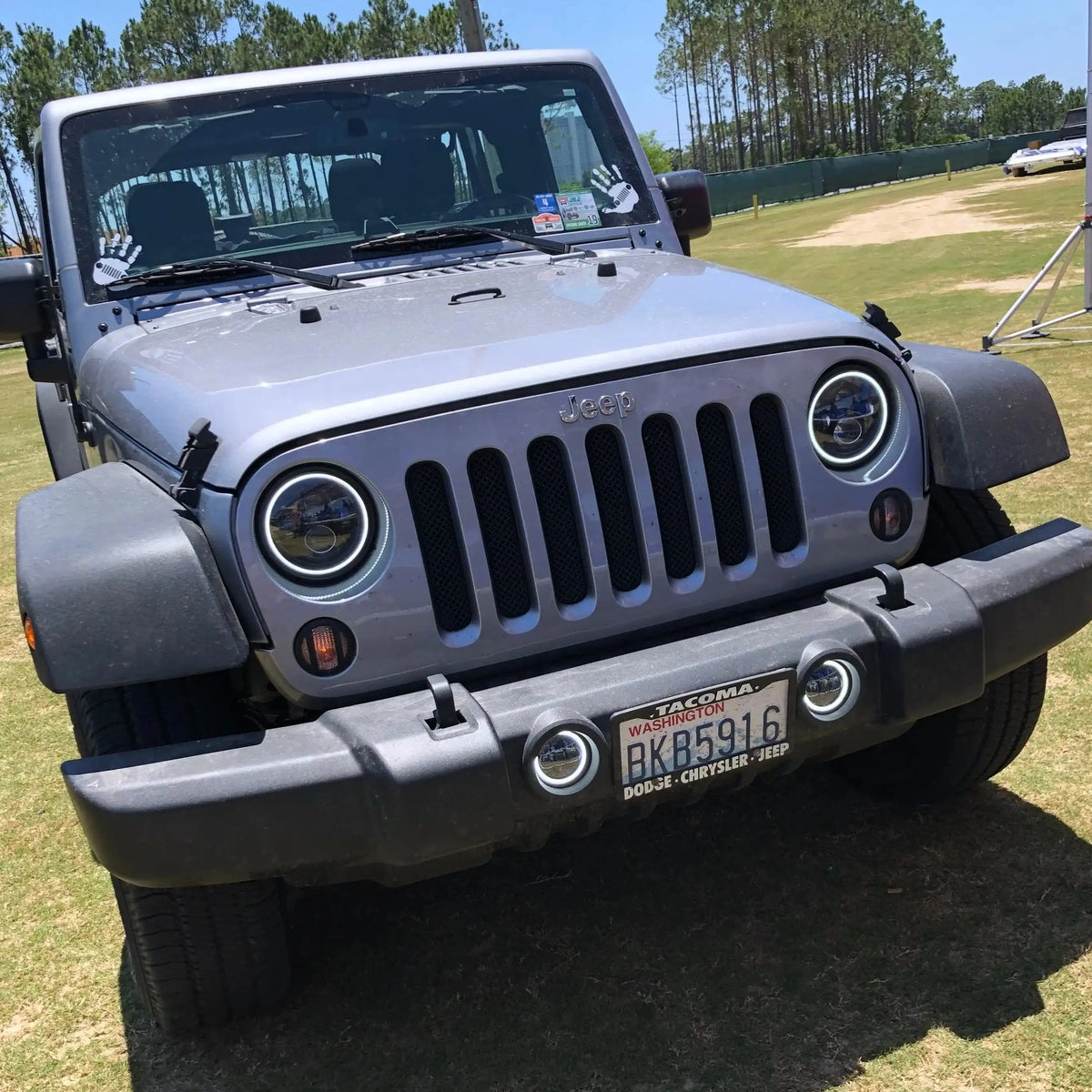

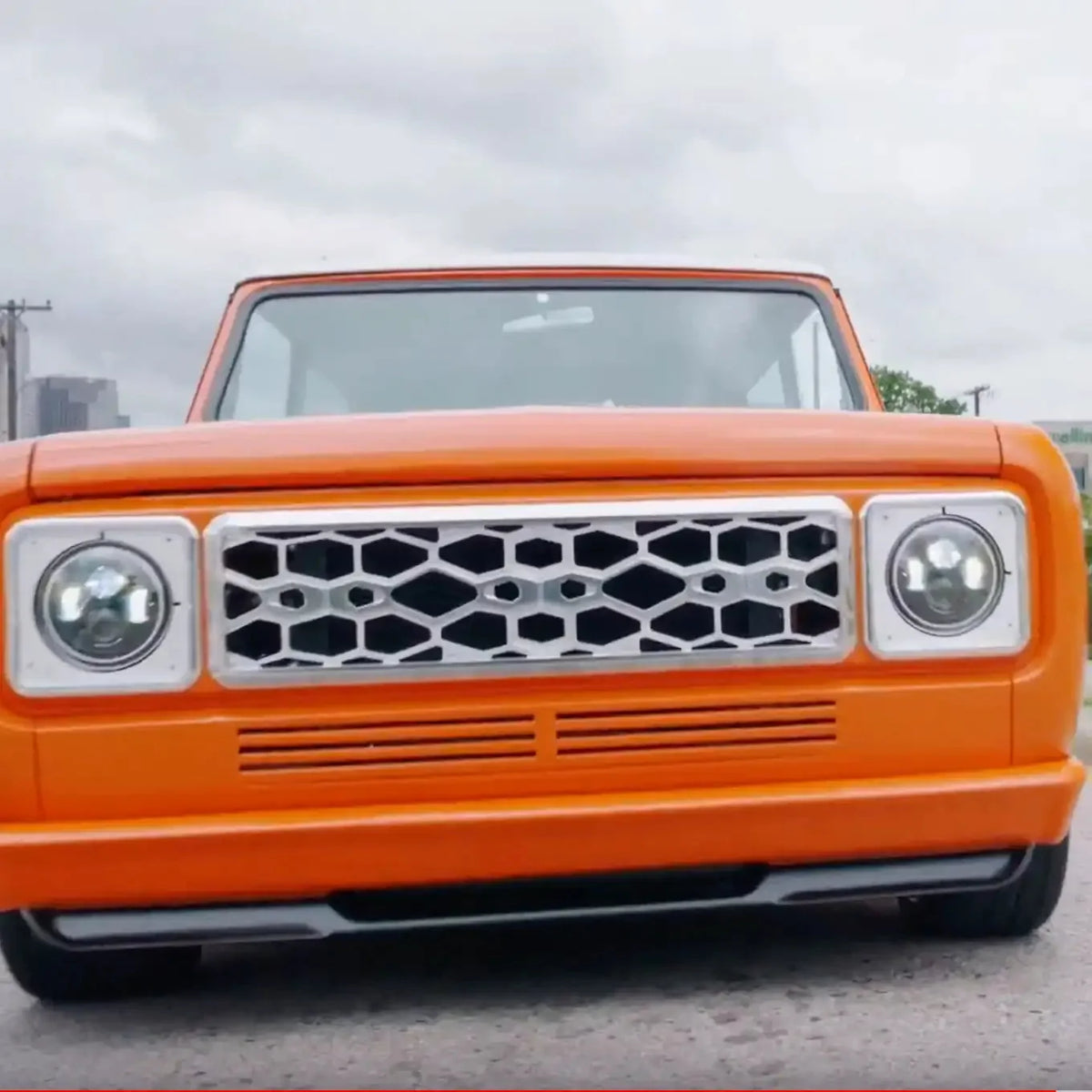

The ORACLE 7" High Performance LED Headlights are designed as a premium replacement for any vehicle with 7" sealed beam lamps. The rugged design is ideal for Jeep Wranglers, off-road vehicles, buggies, and classic cars or trucks looking for modern lighting performance and updated styling.
Installation is easy with the included H4 and H13 plug-and-play connectors. Each set comes in full-color retail-ready packaging and includes a 2-year free replacement warranty.

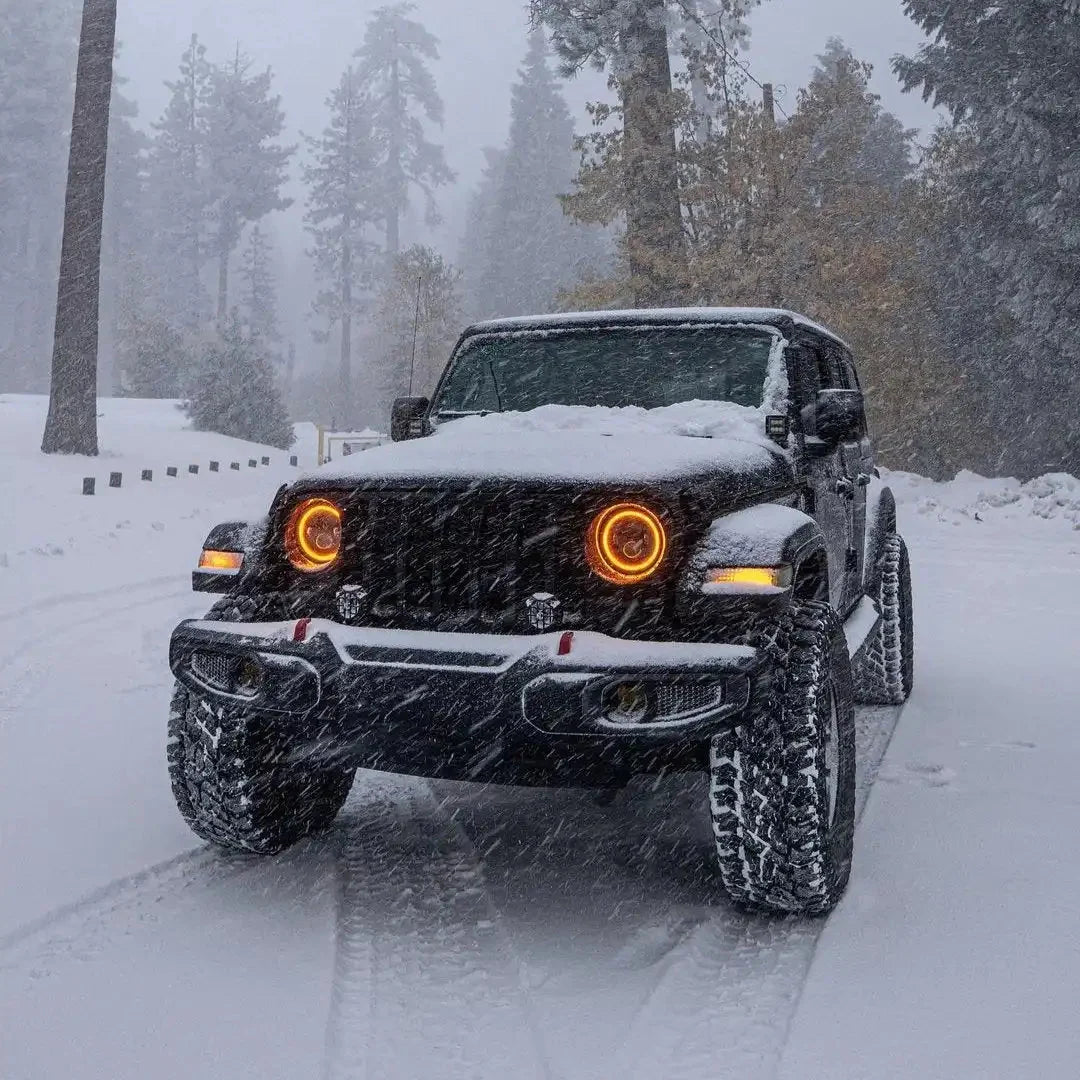

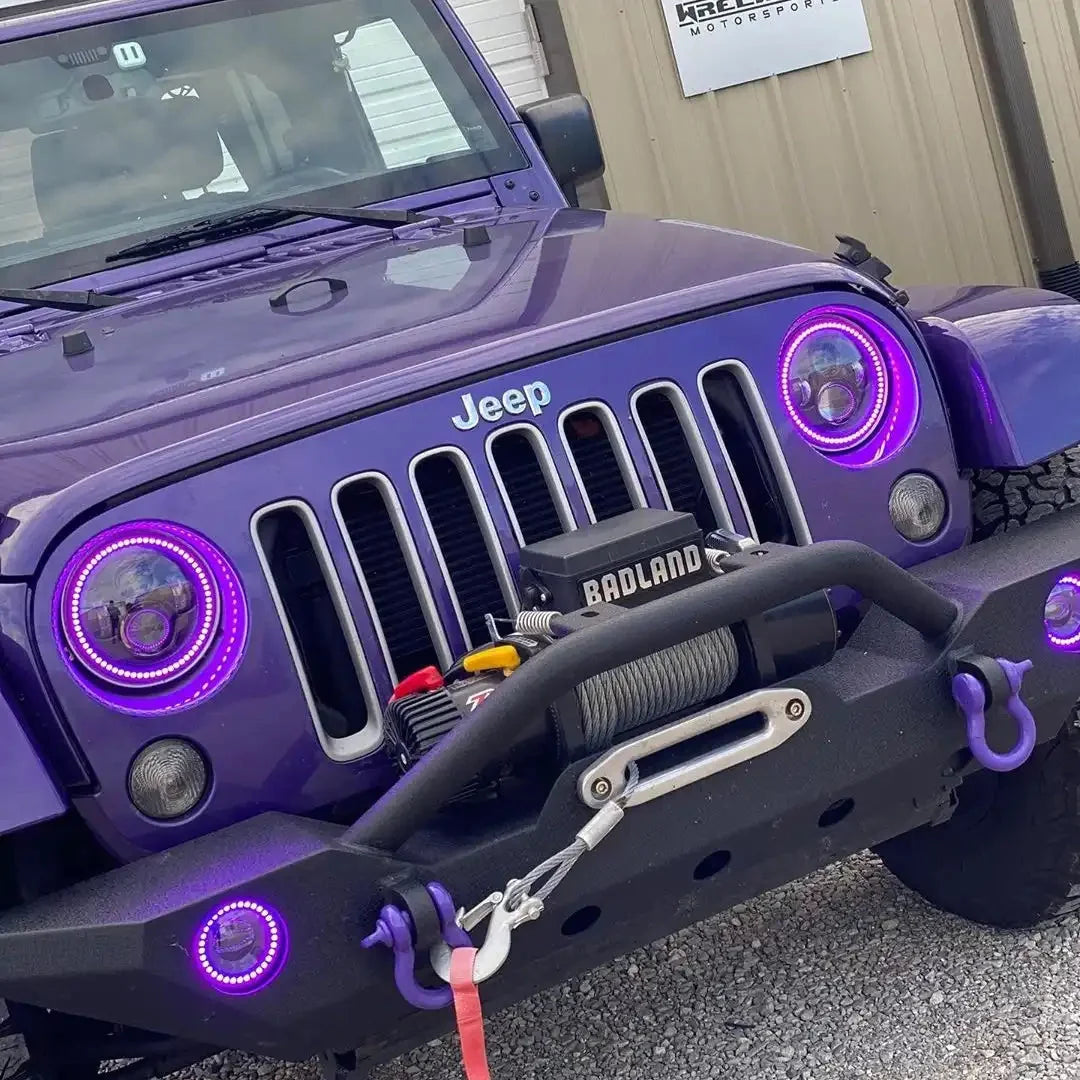

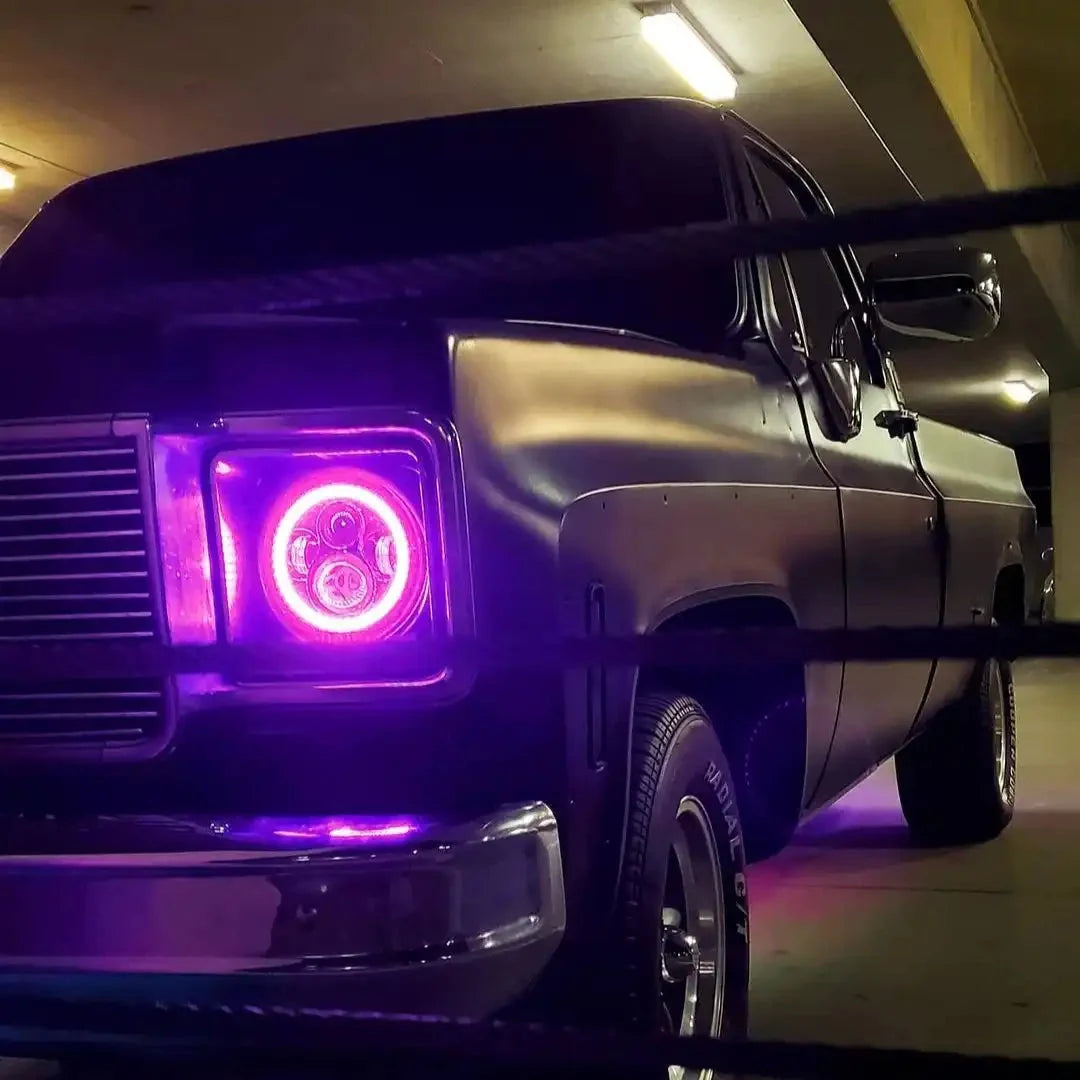

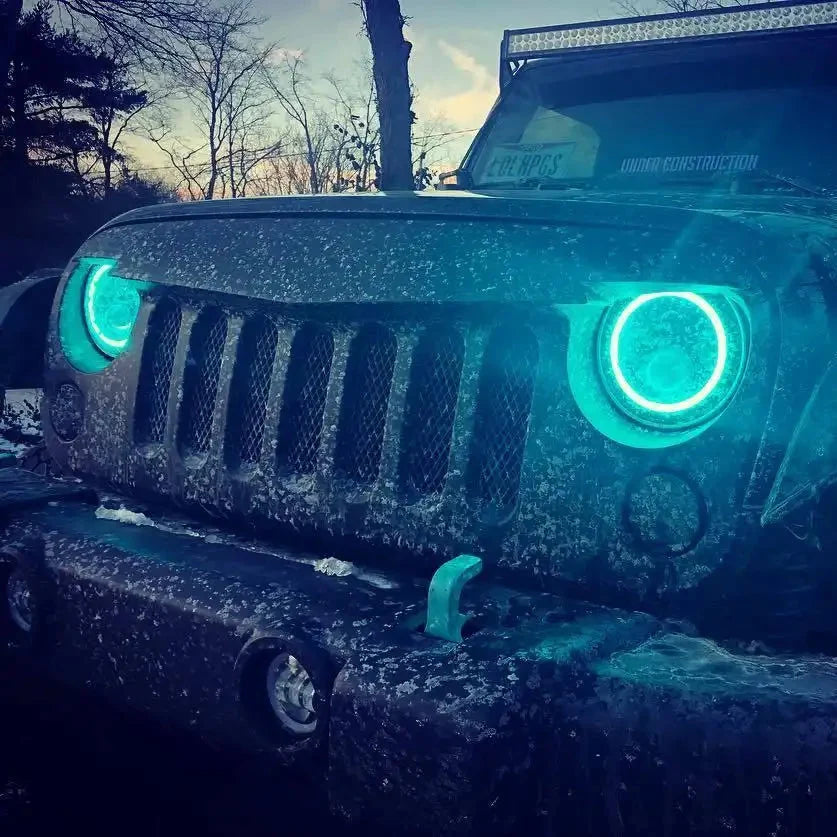

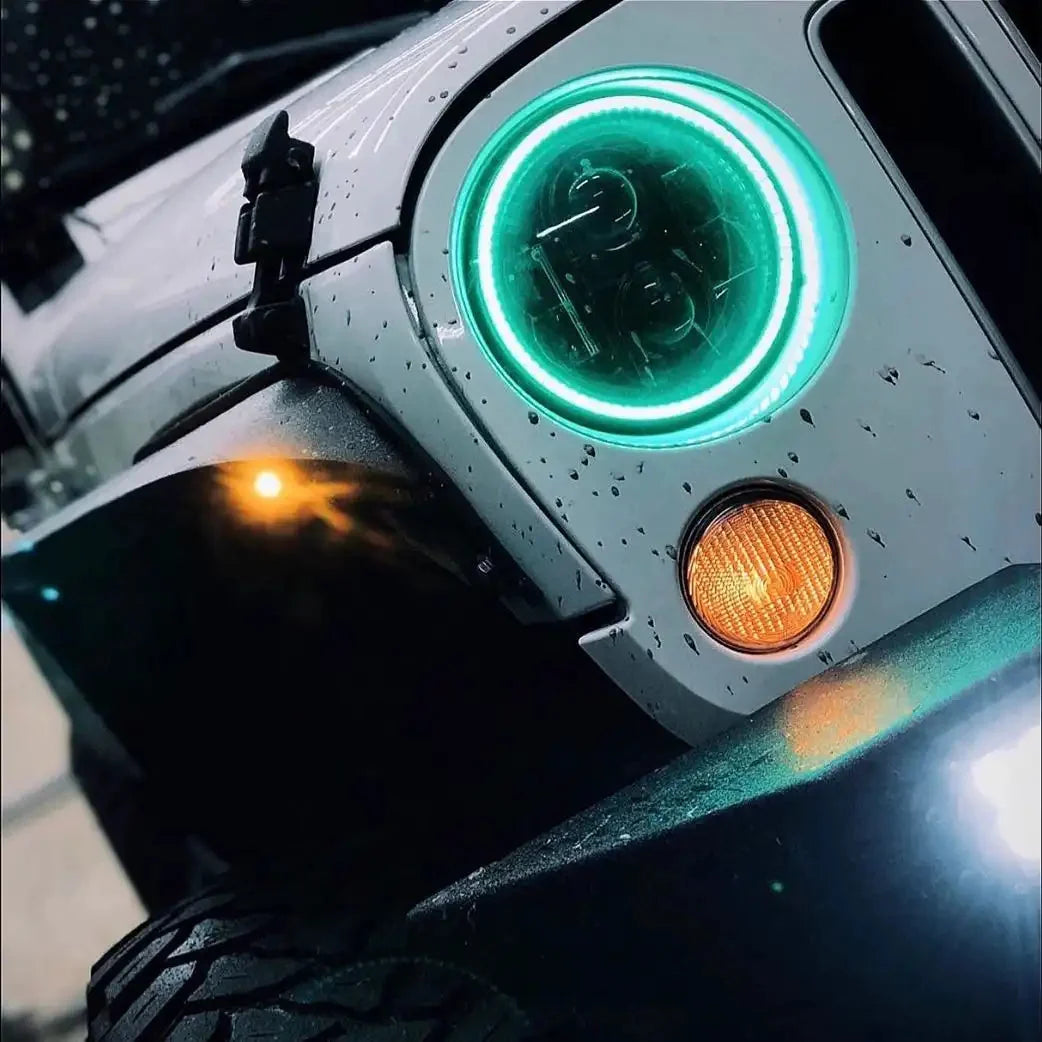

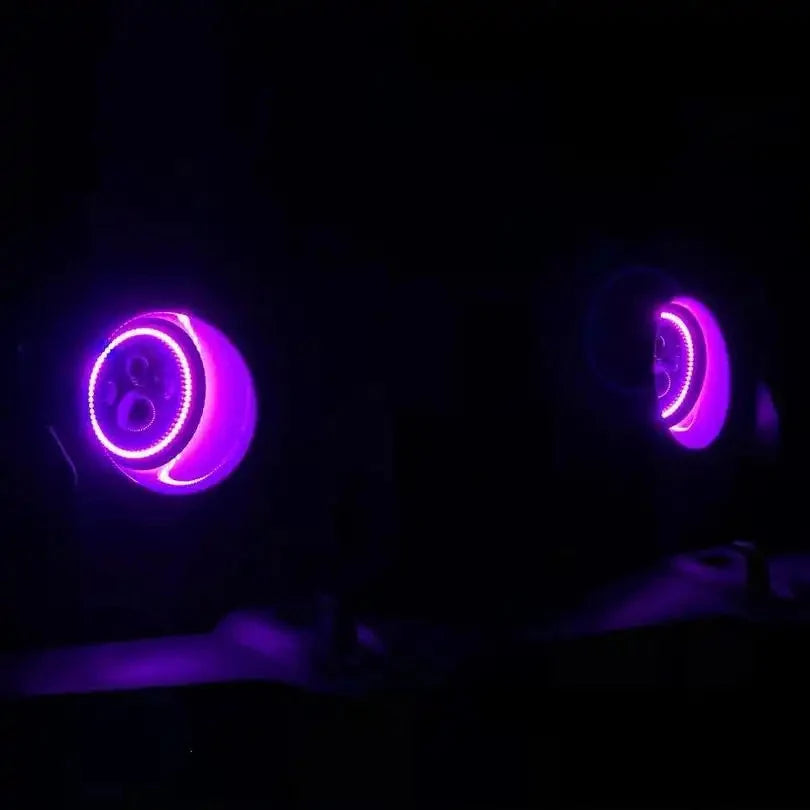

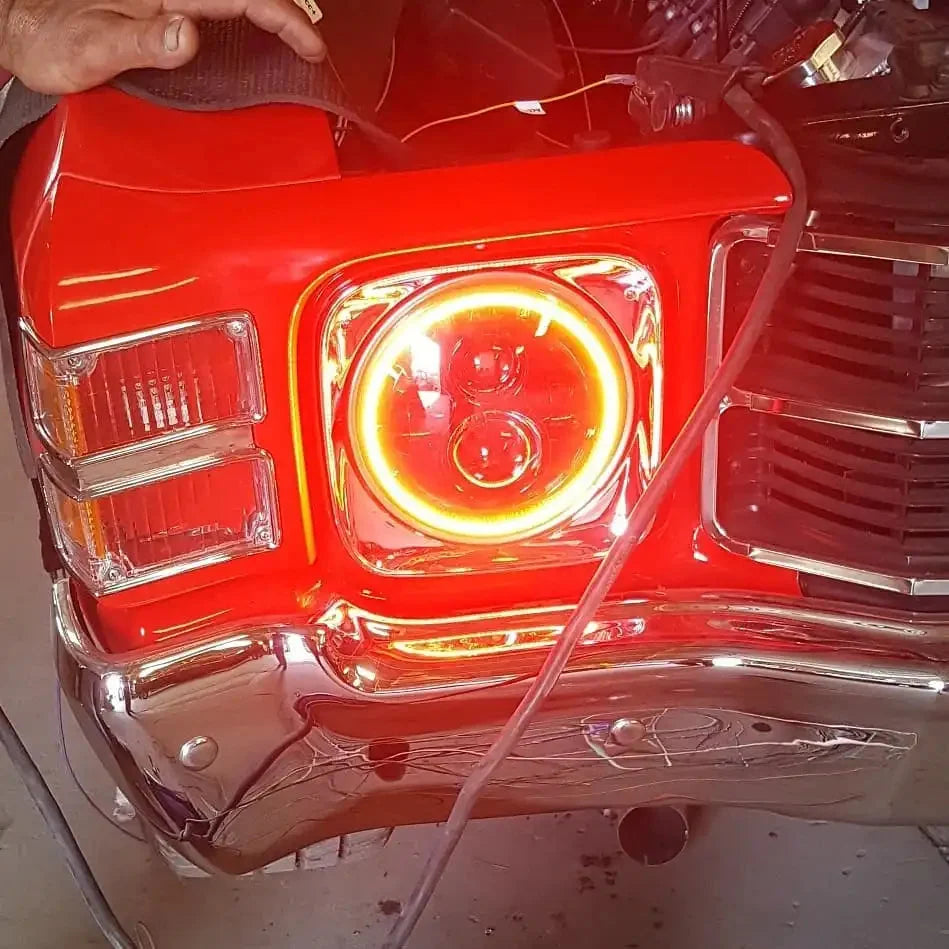

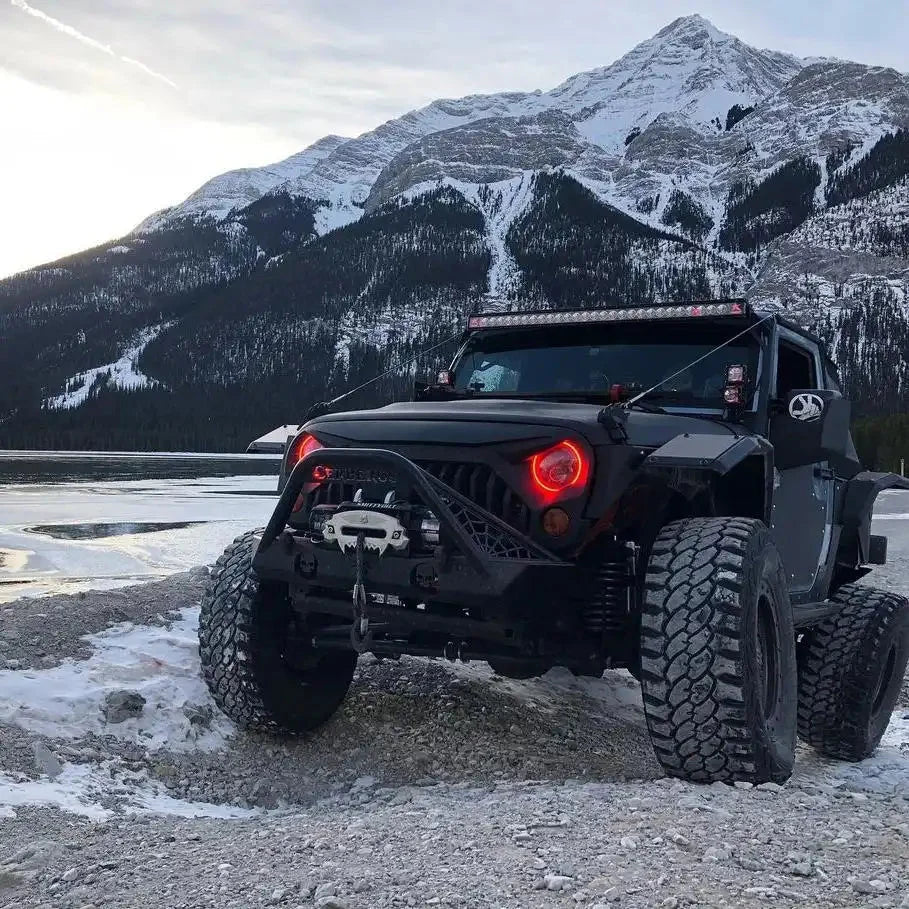

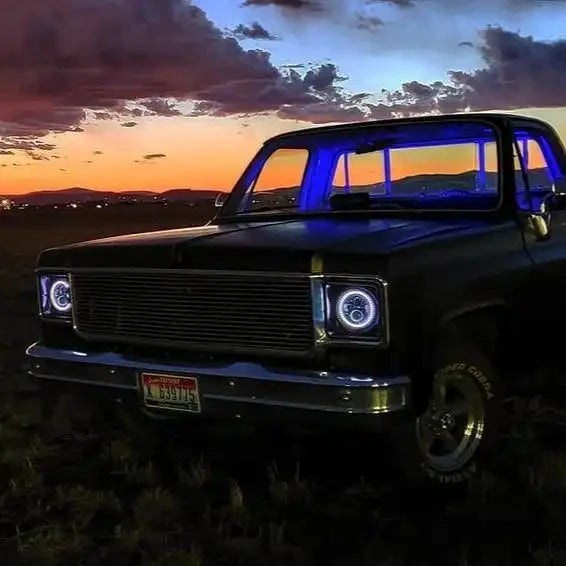

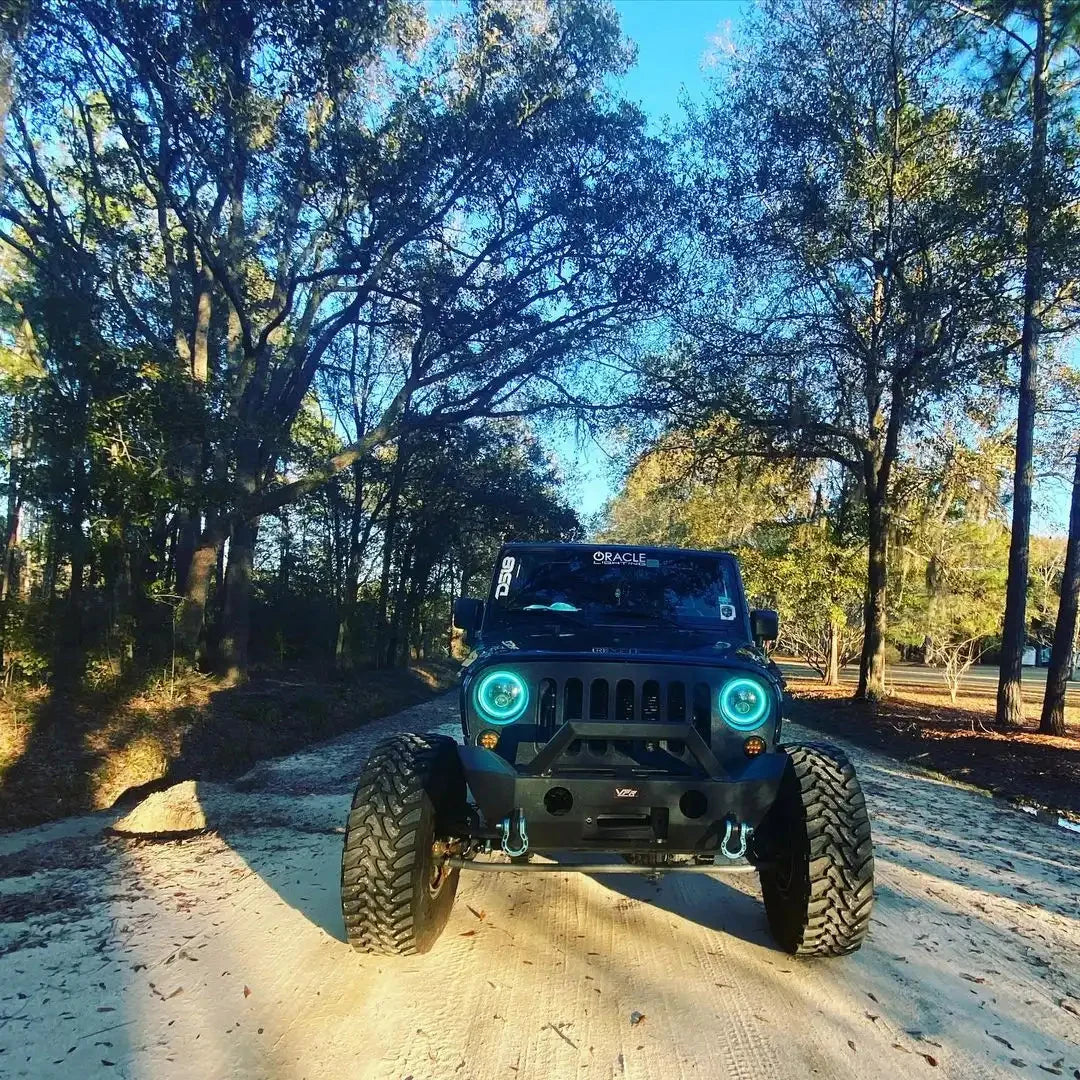

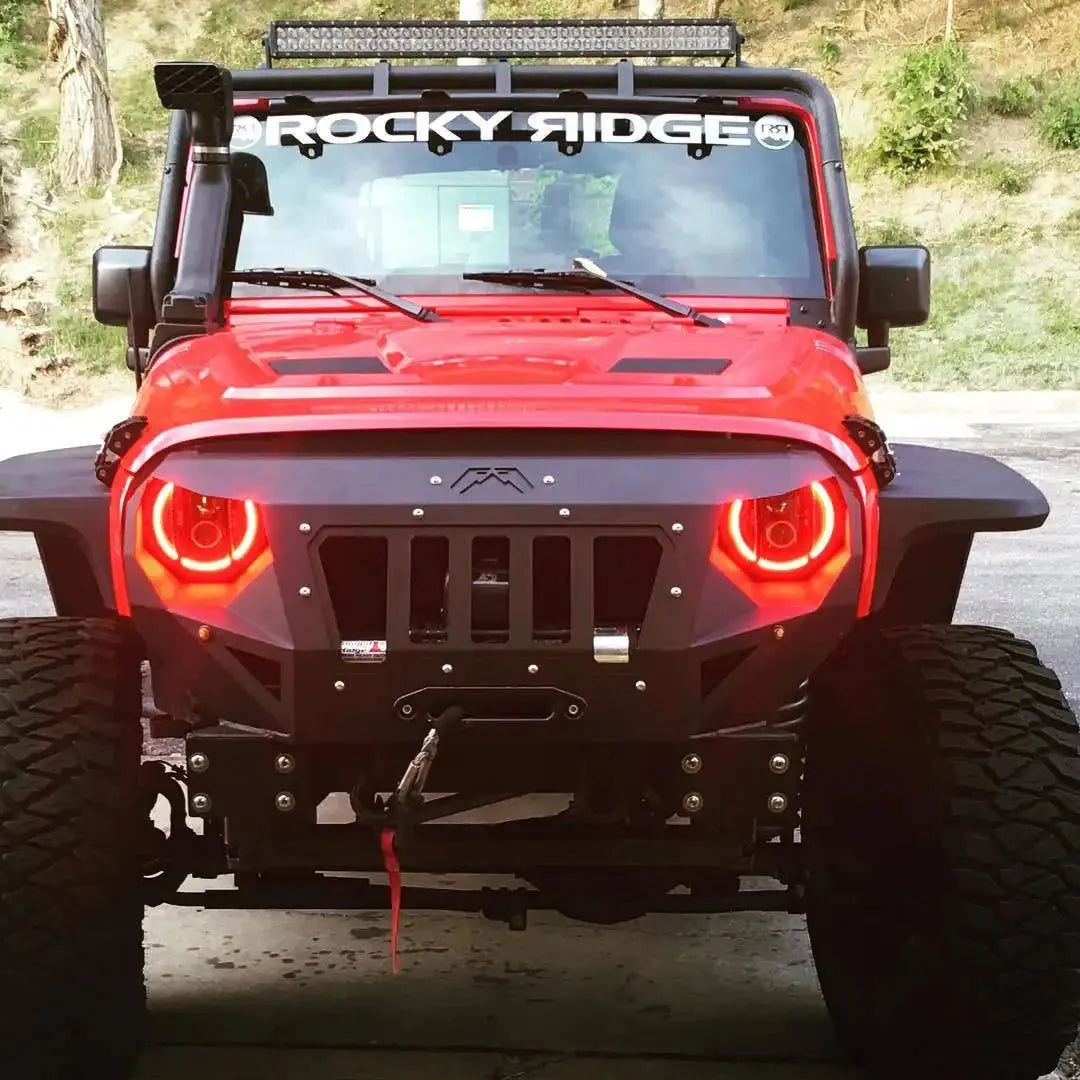

Optional colored halos are also available for added customization.

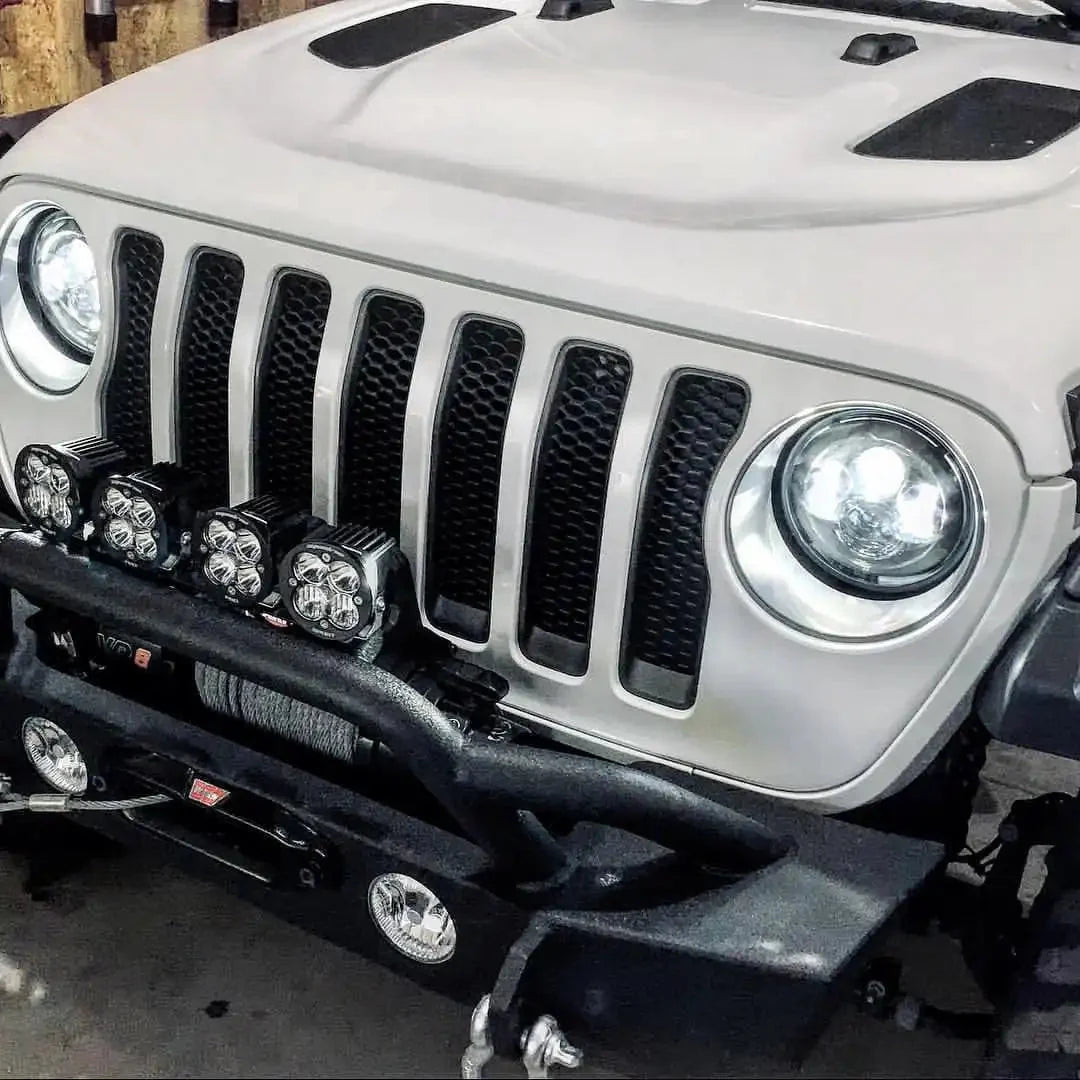

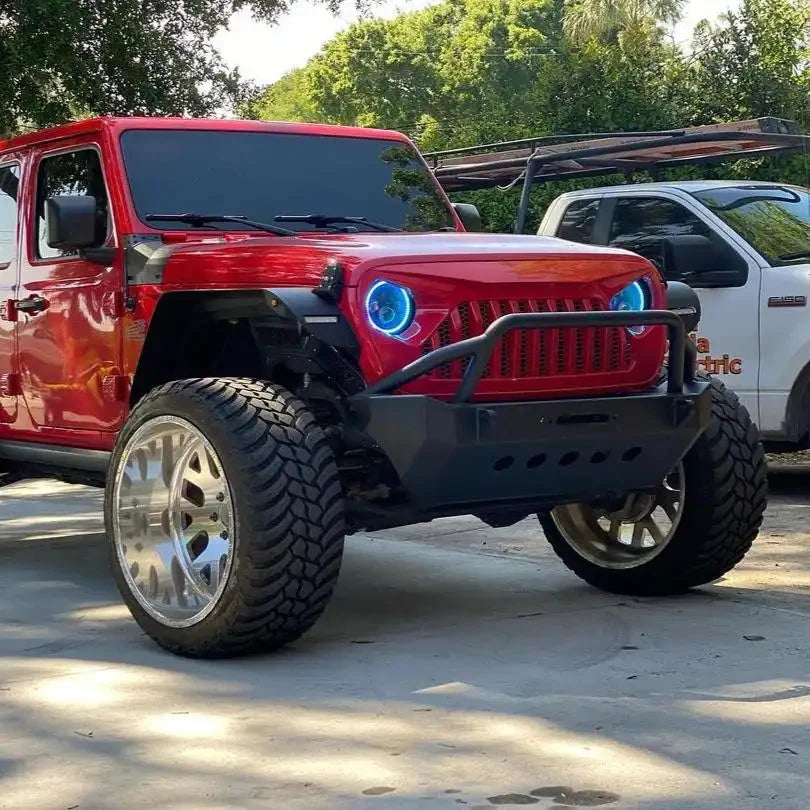

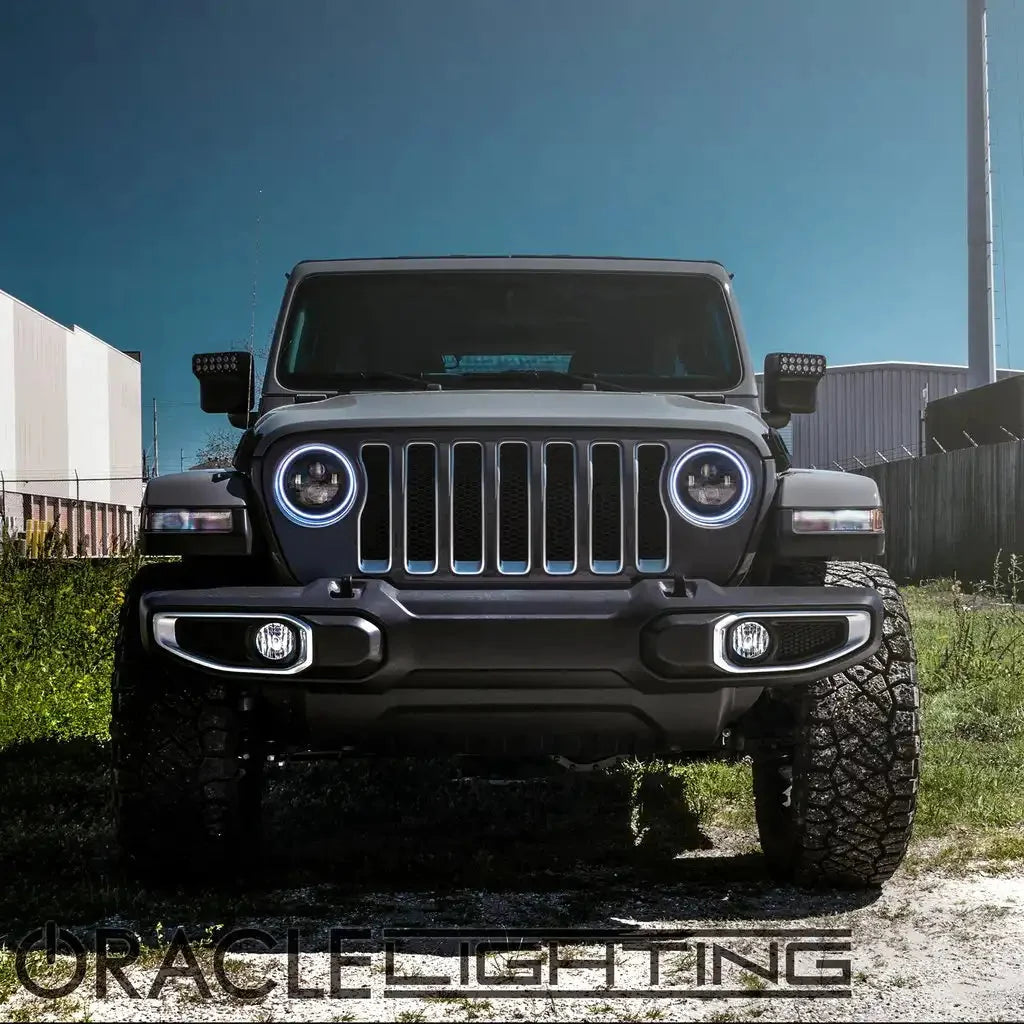

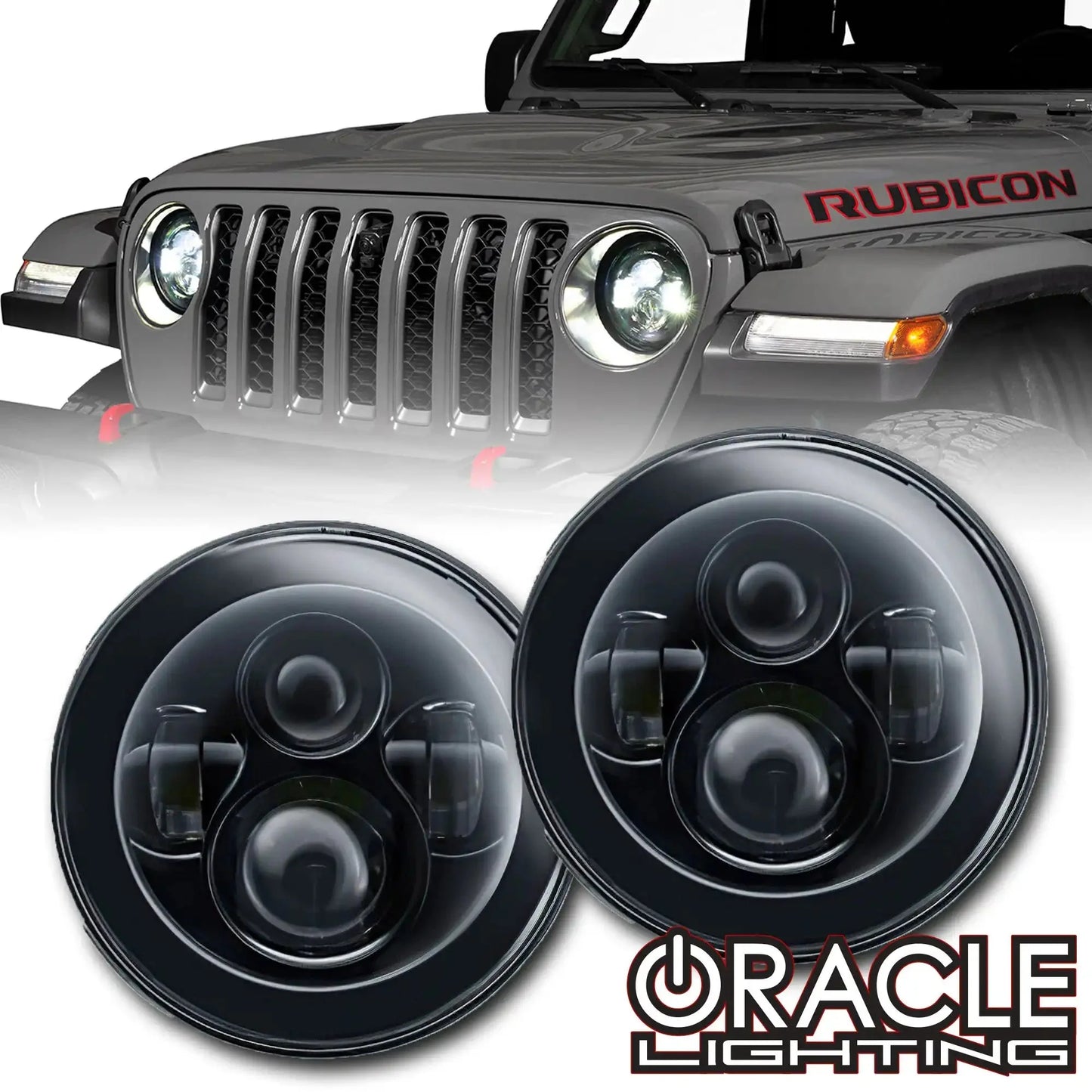

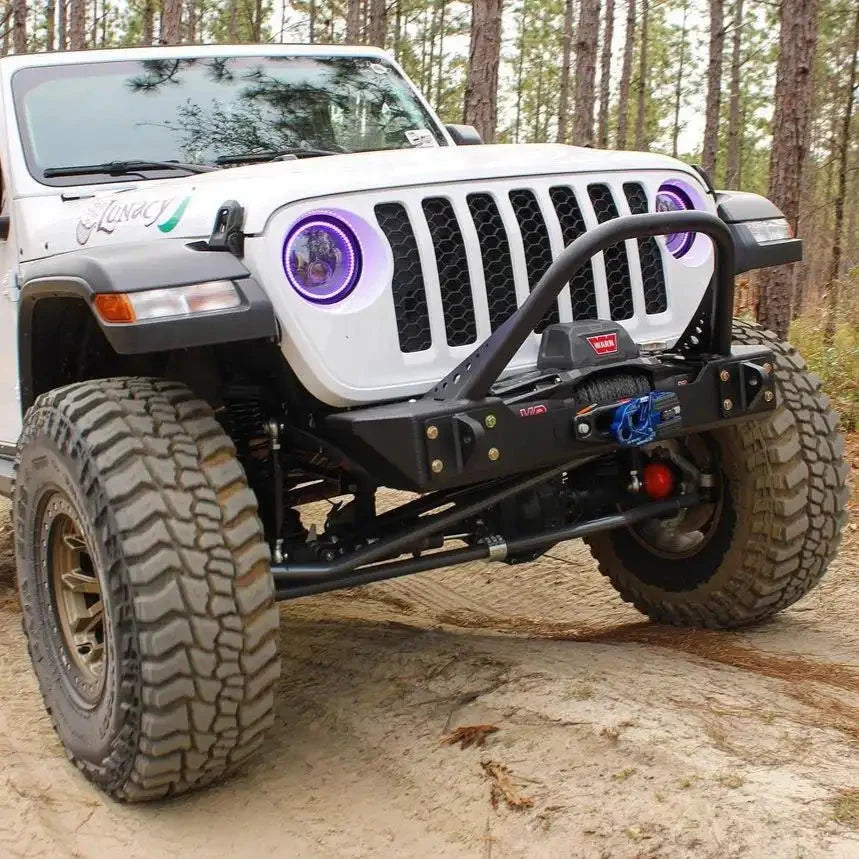

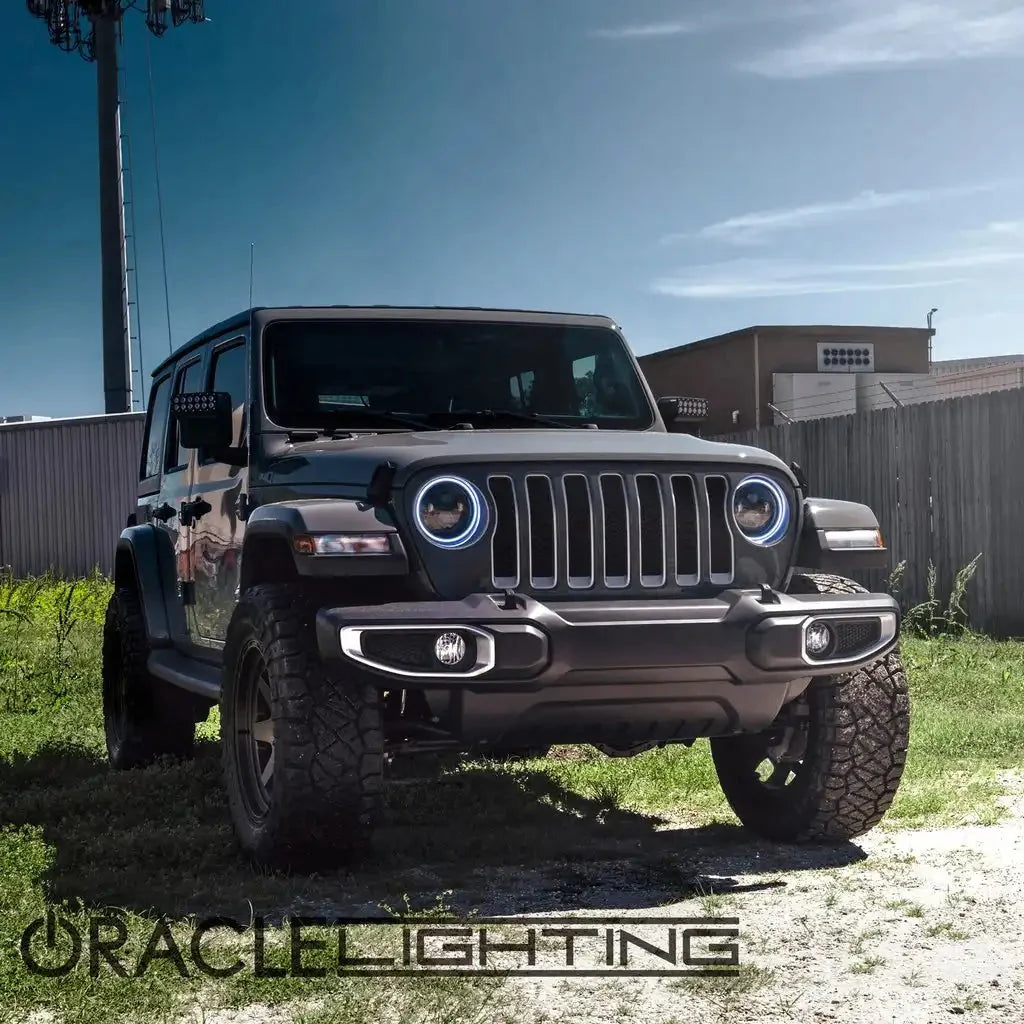

JL / JT Fitment Note: To fit these lights to a JL Wrangler or JT Gladiator, you will need ORACLE Part #5843-504 and ORACLE Part #5844-504.
Key Features ▼
- Low Beam Wattage: 30W Normal / 36W Max
- Low Beam Lumens: 2200 Lumens / 3600 Raw Lumens
- High Beam Wattage: 40W Normal / 48W Max
- High Beam Lumens: 3600 Lumens / 4800 Raw Lumens
- Color Temperature: 6000K (Cool White)
- Input Voltage of Light: 12-24V DC
- Input Voltage of Halo (if included): 12V DC
- Current Draw: 2.50A @ 12V DC / 1.30A @ 24V DC

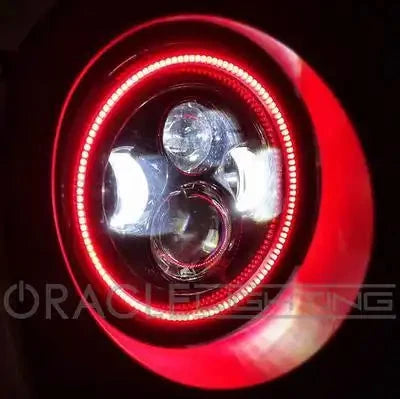

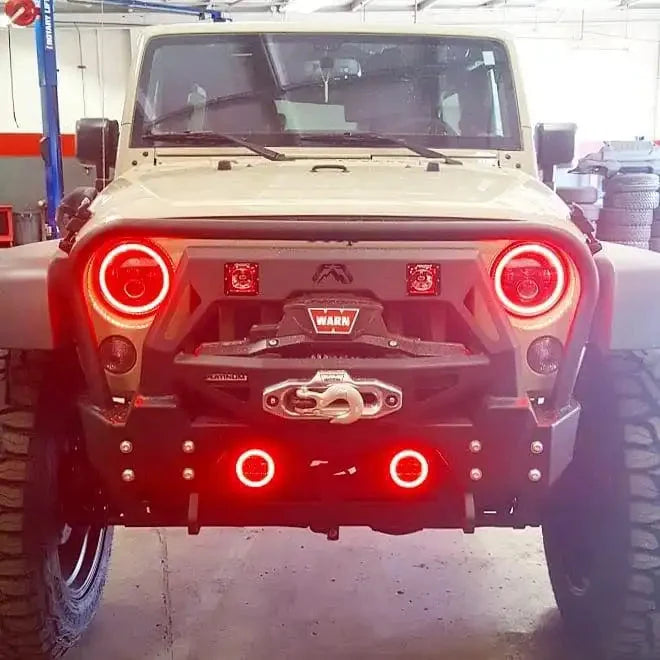

- Optional: ORACLE Halo Rings Pre-Installed
- LEDs: Premium Performance Phillips Luxeon ZES LEDs
- Housing: Die-Cast Housing with Corrosion Resistant Coating
- Electronics: Heavy Duty Solid State Electronics
- Lens: Hard-Coated Polycarbonate Lens
- Beam Pattern: Wide Beam Pattern with Sharp Cut-Off Line
- Installation: Easy Plug & Play Installation
- Certifications: DOT and SAE Certified
- 2 Year Warranty
Product Improvements
- Improved brightness and reliability by adding a constant current LED driver to the main circuit board inside the lamp to control the halos
- NEW: No need for Anti-Flicker Wiring Adapters - the SMART Integrated Can-Bus system automatically adjusts to help prevent flicker issues
- Increased reliability by conditioning power going into the LEDs to help prevent degradation that can shorten product lifespan
- Wider input voltage range - new SMD halos can operate from 12V-24V so voltage spikes do not damage the LEDs
- Brighter LED halos - moving the heat load of the resistors off the PCB allows more LEDs on the circuit board without thermal issues
- LED chips upgraded from Cree to Phillips Luxeon ZES for a high efficacy 130LM/W ratio with lower thermal output

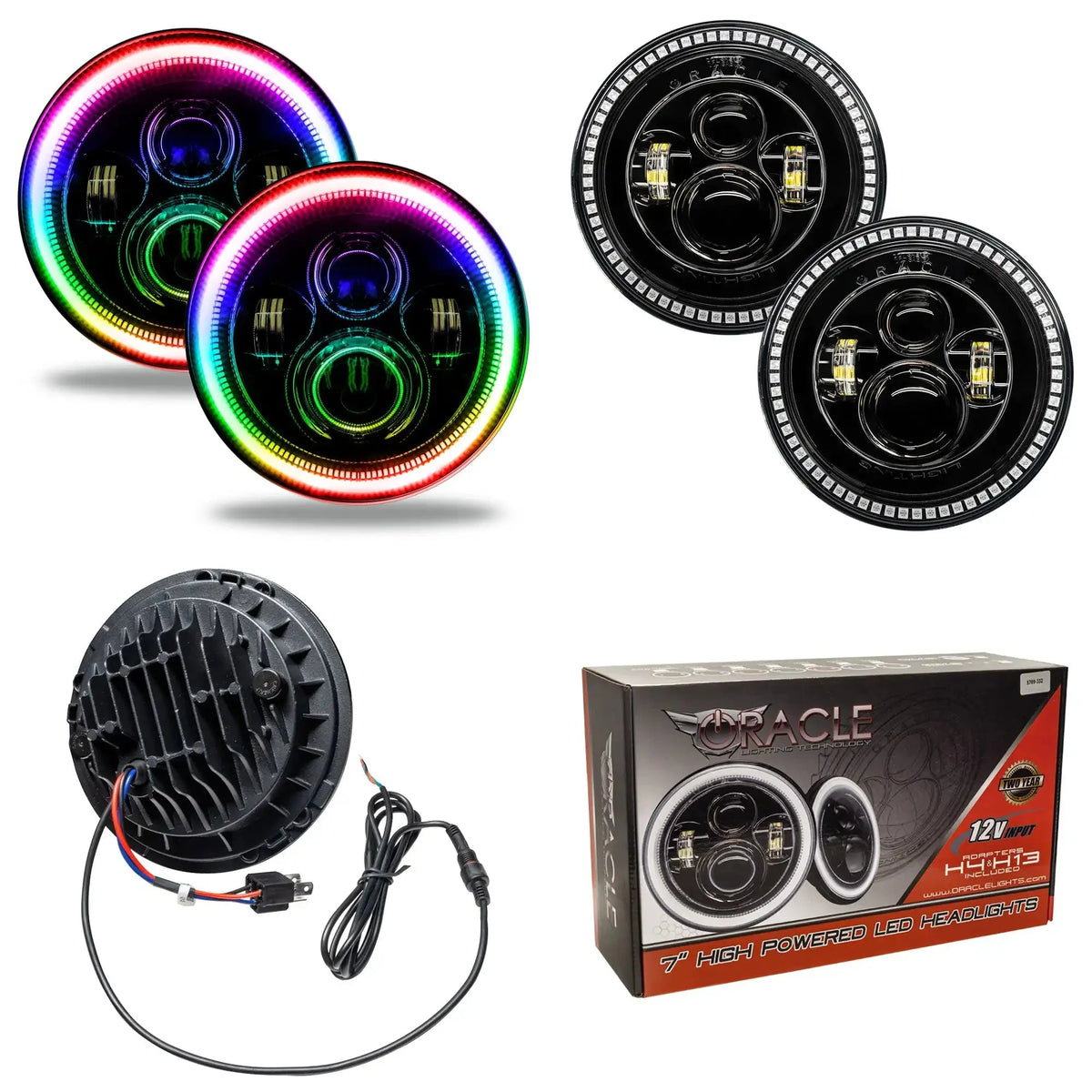

What's Included ▼

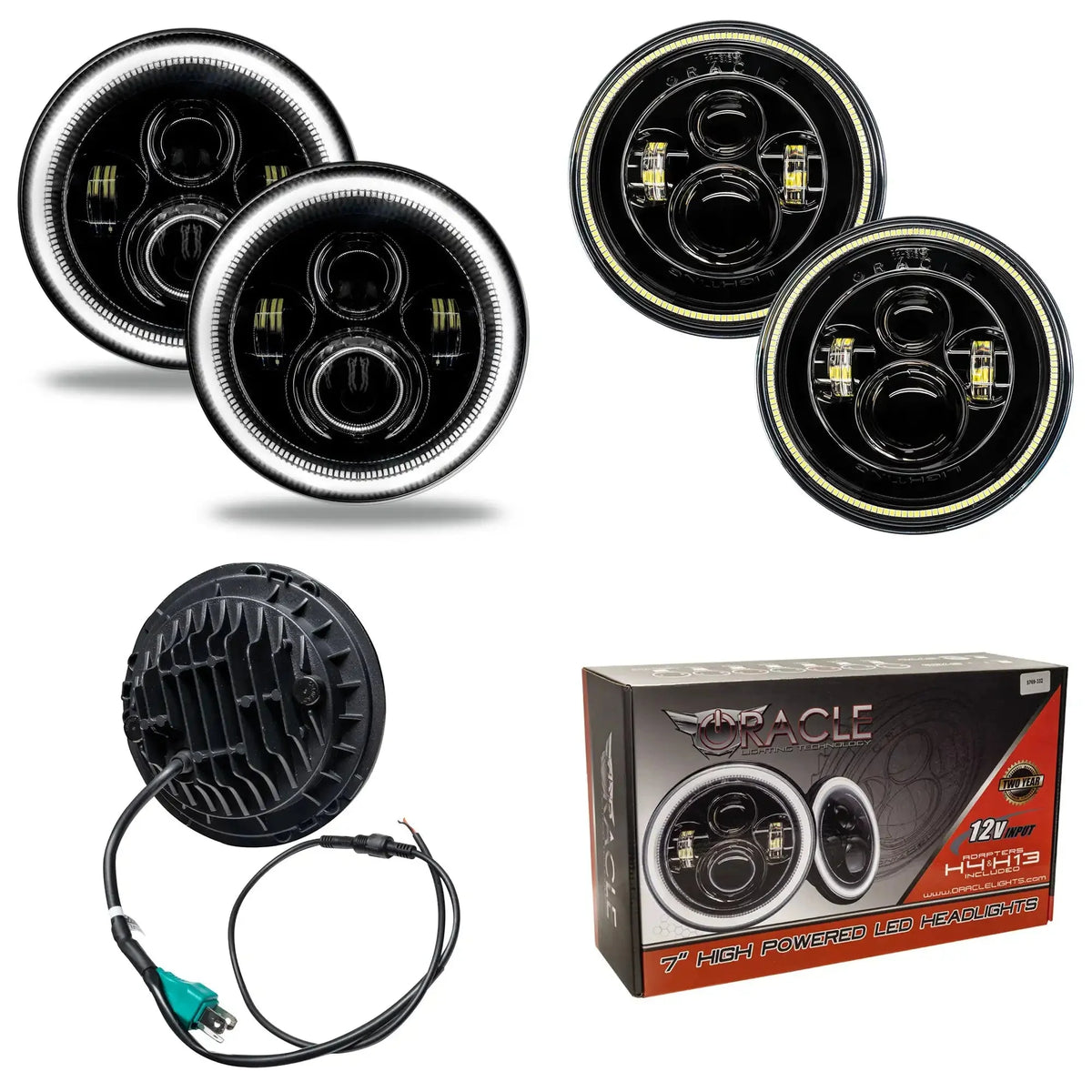

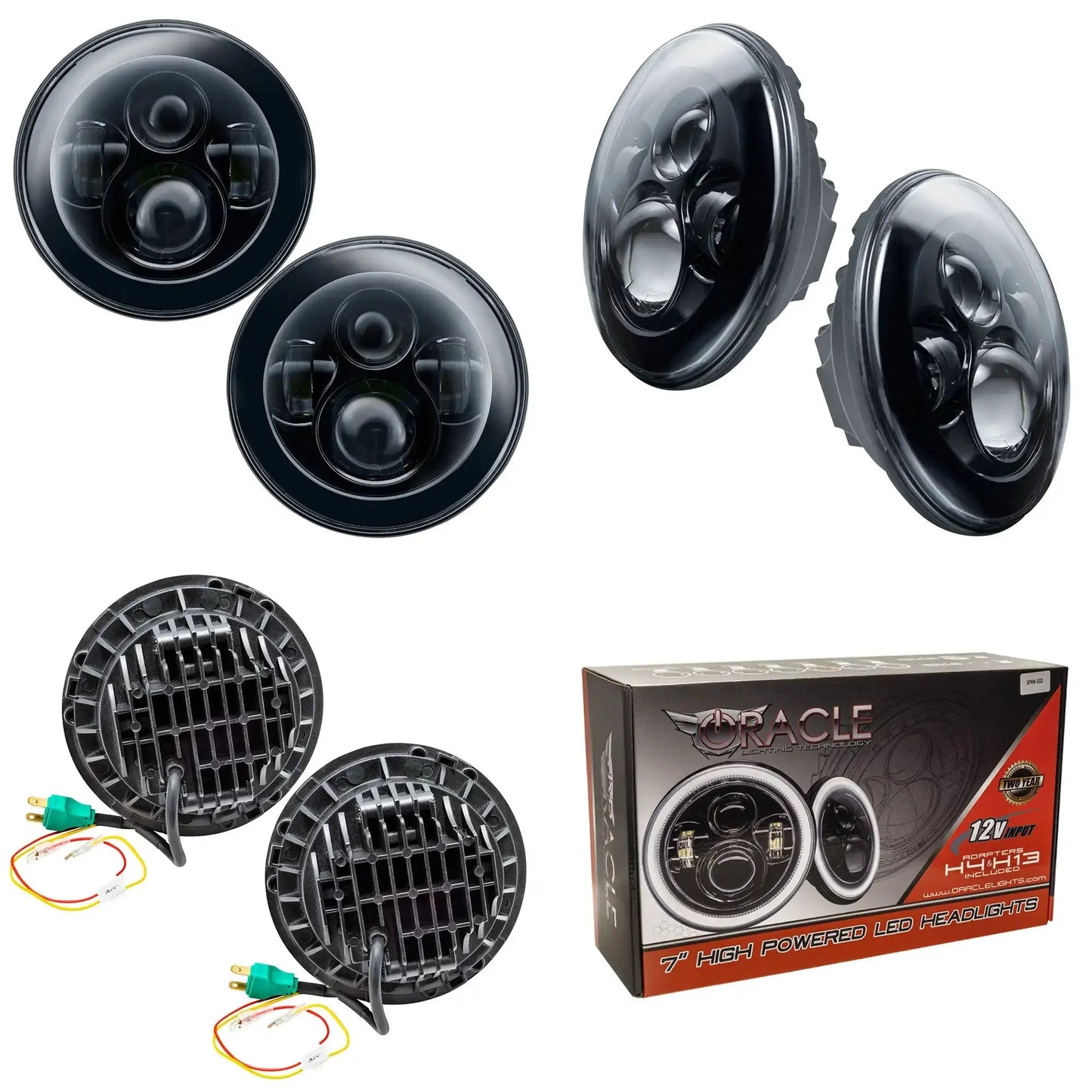

- (2) ORACLE Lighting 7" High Powered LED Headlights with Black Bezel
- H4 / H13 Connectors
Installation Guide & Resources ▼
Estimated Installation Time: 2+ hours
Experience Level: Experienced
More involved mechanical or electrical work is expected. Professional installation may be appropriate.
Experience Level: Experienced
More involved mechanical or electrical work is expected. Professional installation may be appropriate.
Wiring & Electrical
Basic Wiring
- Red Wire: Positive (+)
- Black Wire: Negative (-)

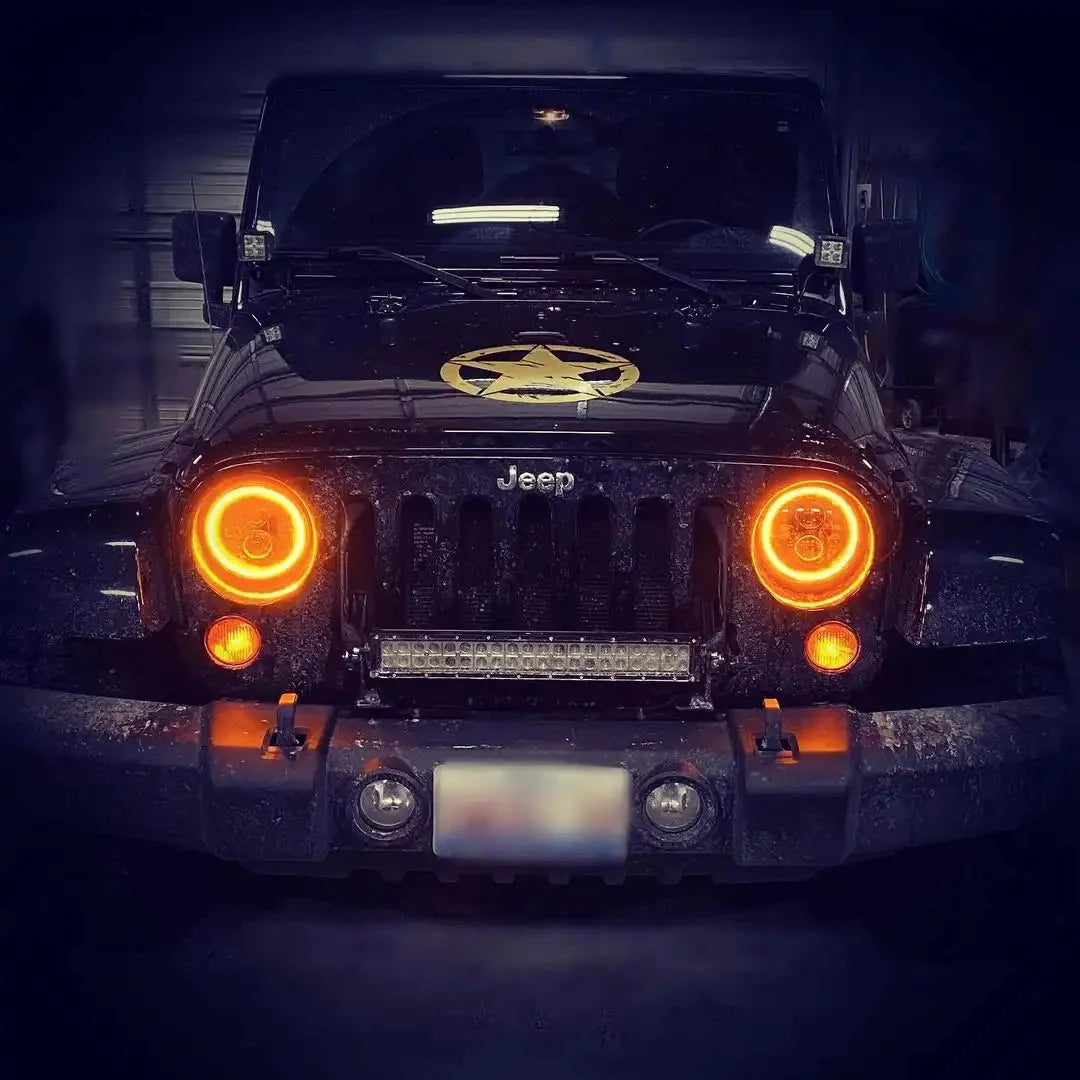

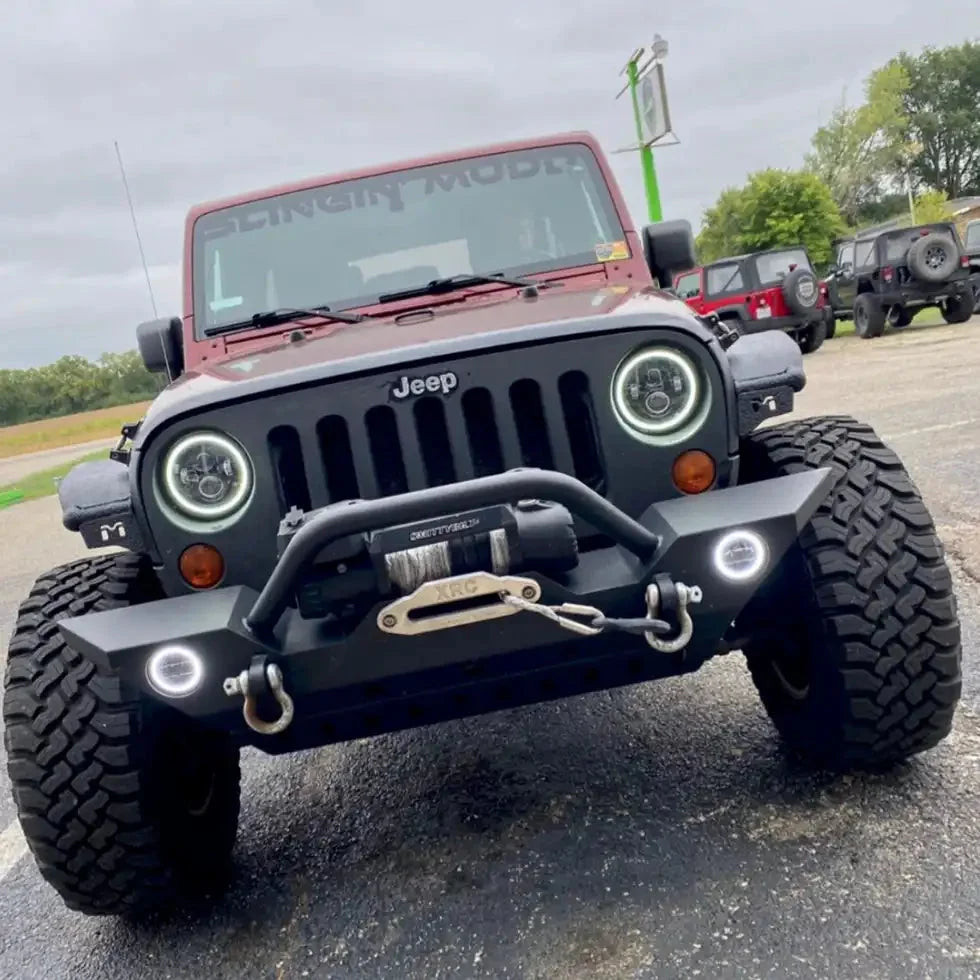

For White and Amber Halos (Road Legal Colors)
- Connect wires to the parking light harness
- Connect wires to ignition power
For Other Single Colors (Non-Road Legal Colors)
For ColorSHIFT® Halos
- Connect wires directly to the ColorSHIFT® Controller you purchased
Product Videos ▼
Part Numbers & Options ▼

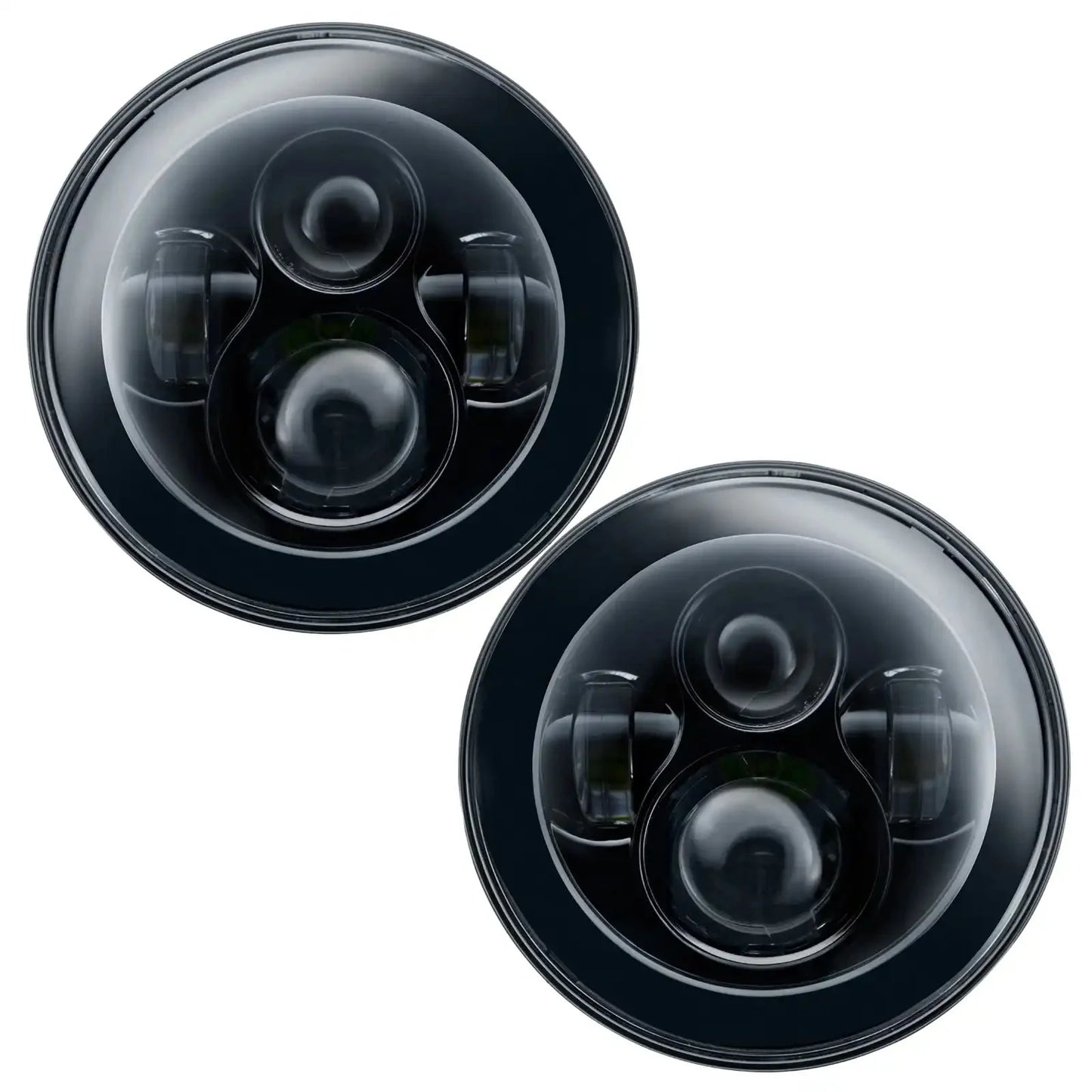

No Halo5769-504

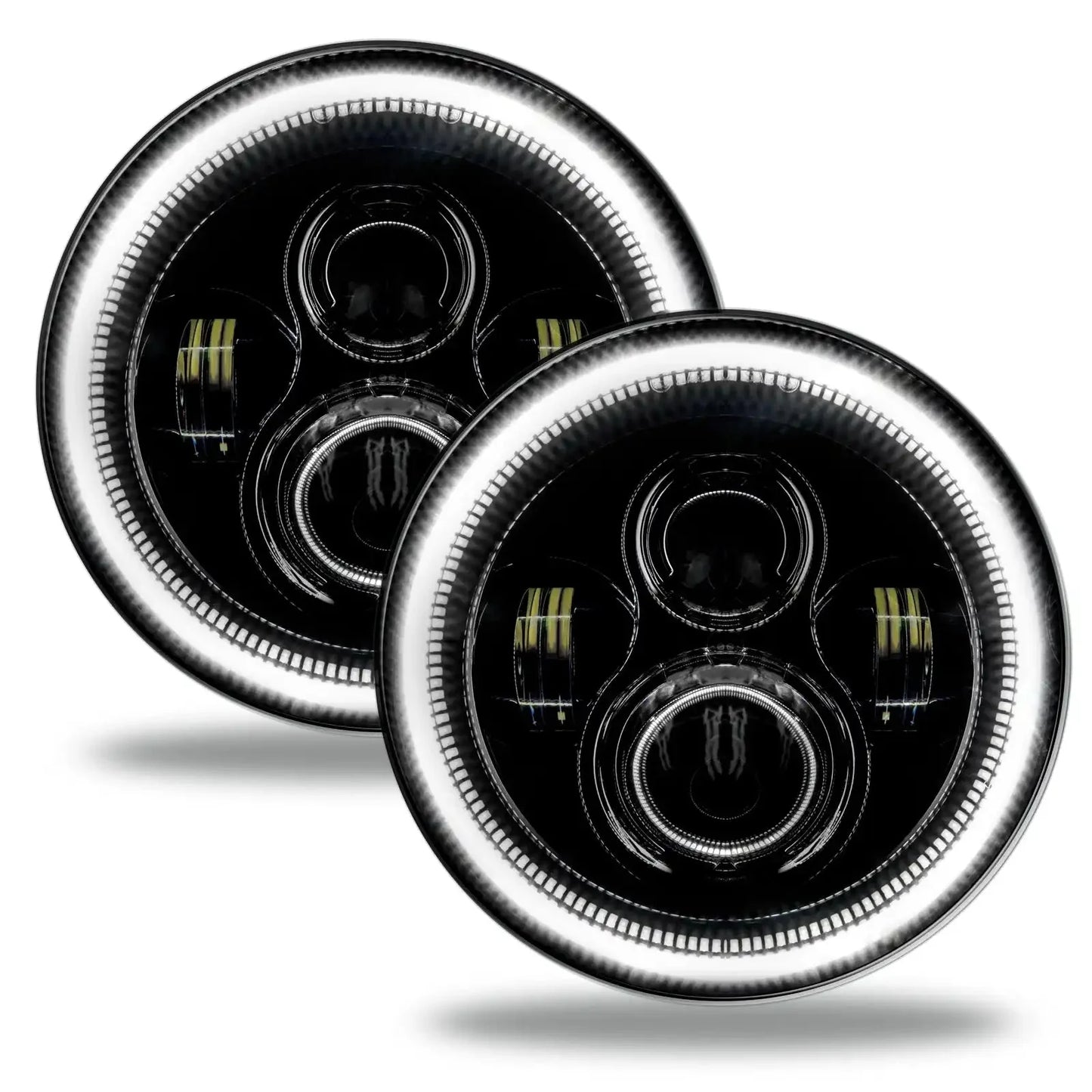

White5769-001 (Currently Backordered)

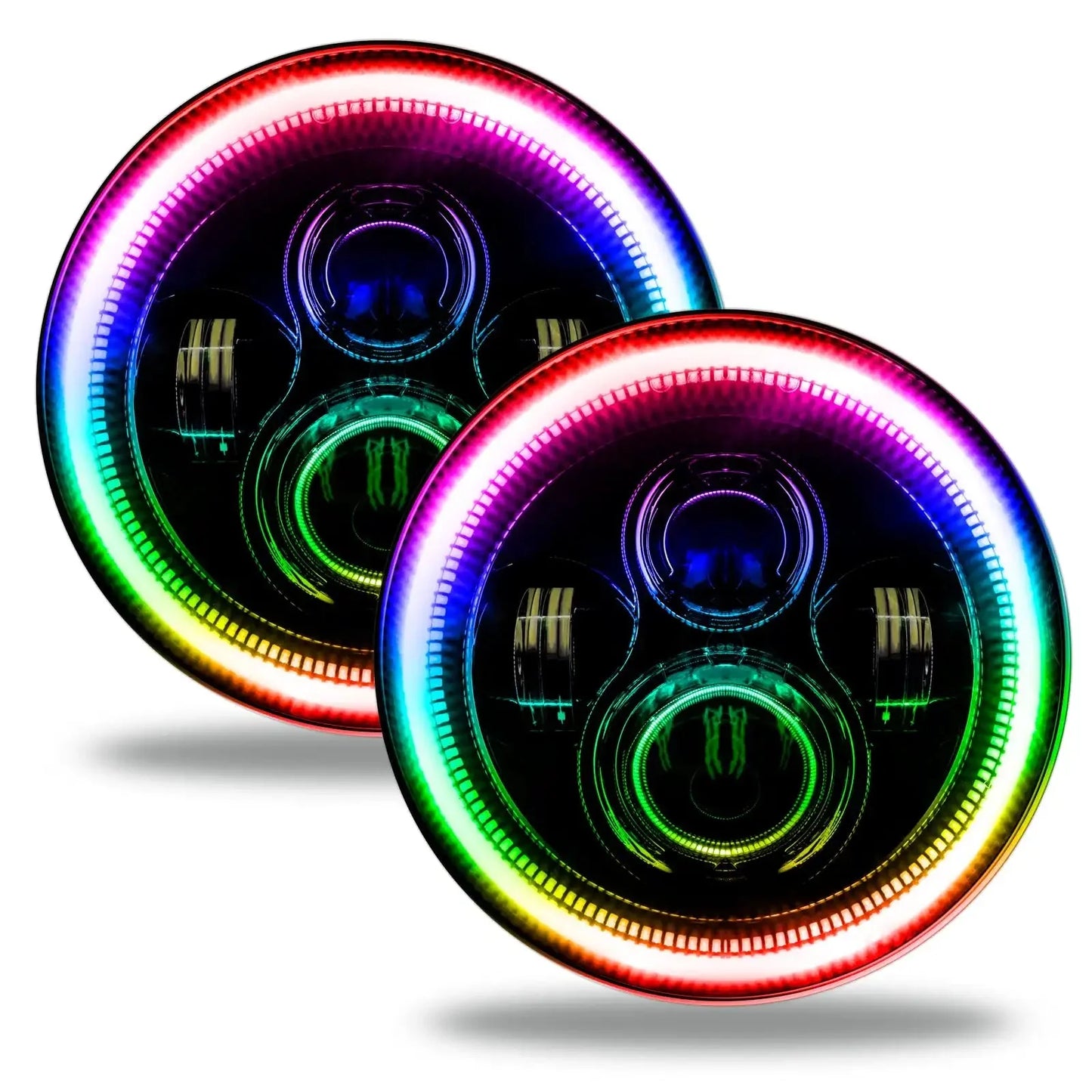

ColorSHIFT® - No Controller5769-334

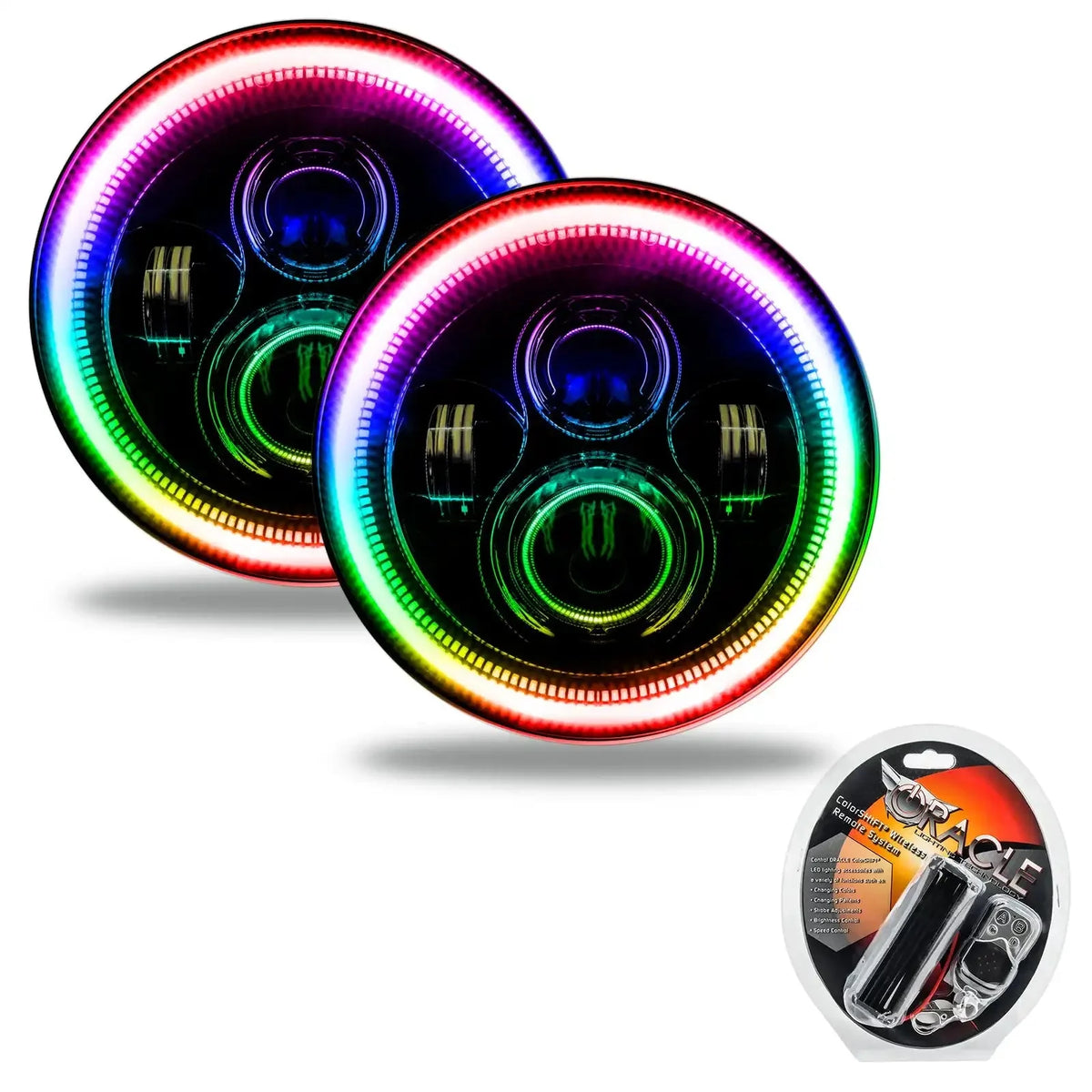

ColorSHIFT® - RF Controller5769-330

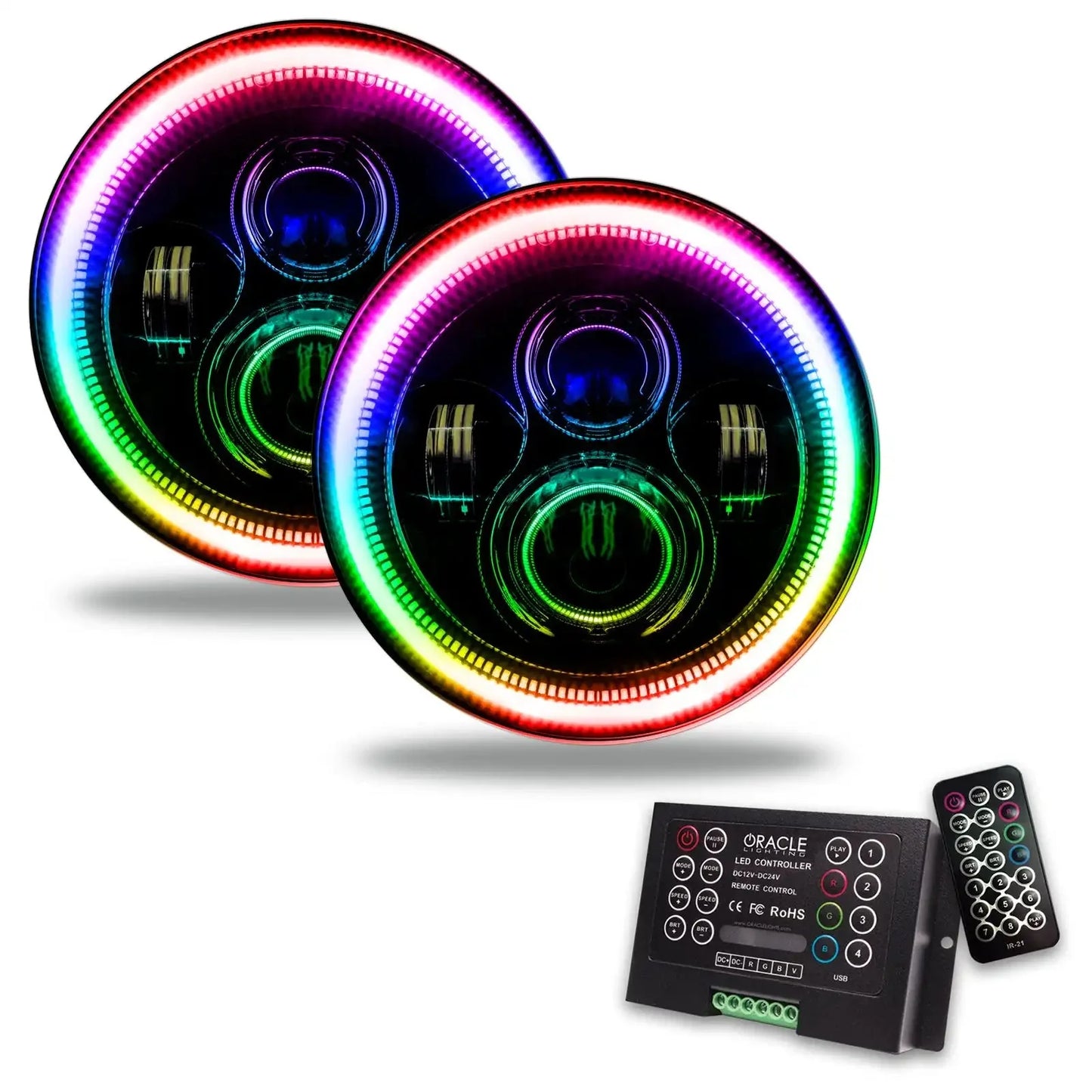

ColorSHIFT® - 2.0 Controller5769-333

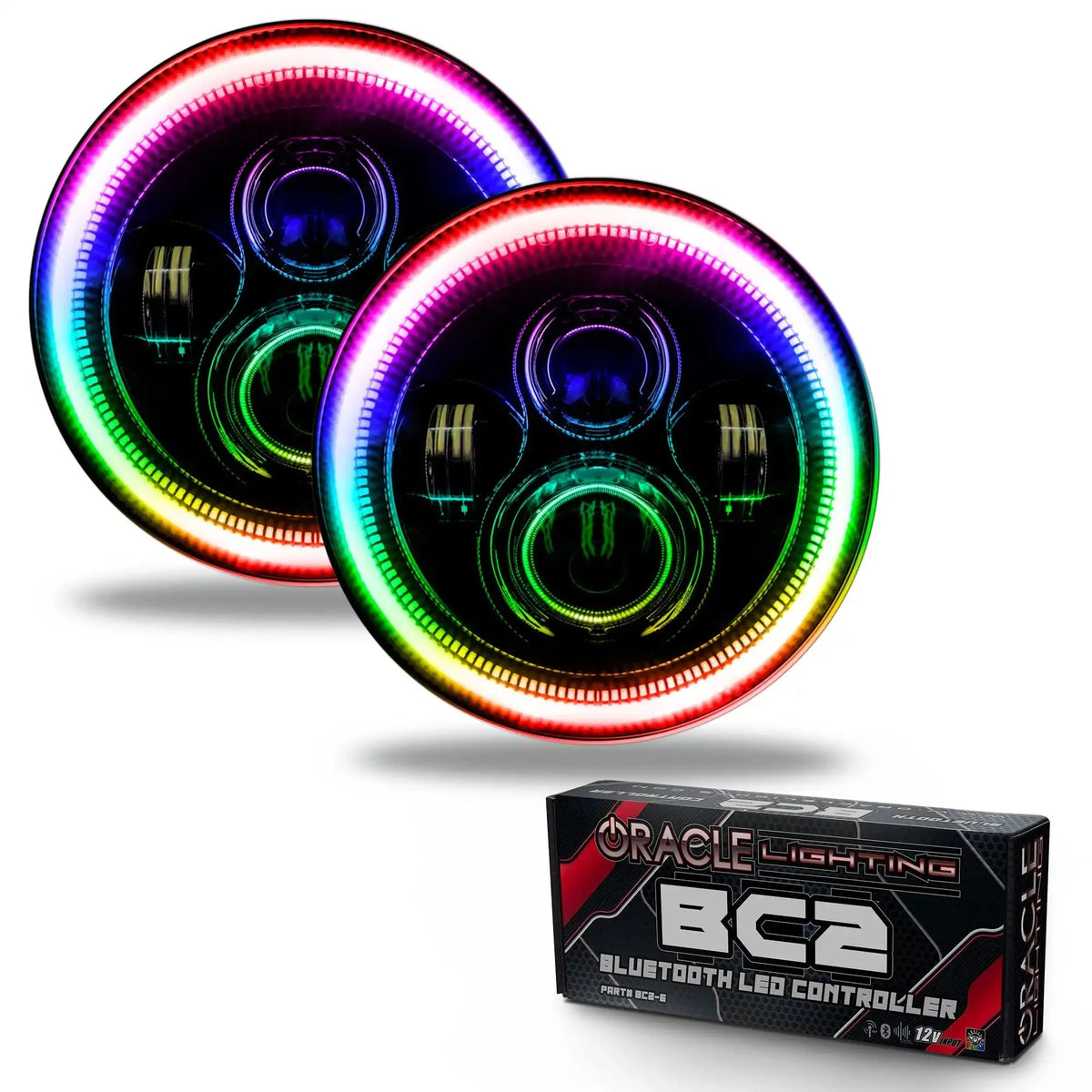

ColorSHIFT® - BC2 Controller5769-335
Complete Your Build ▼

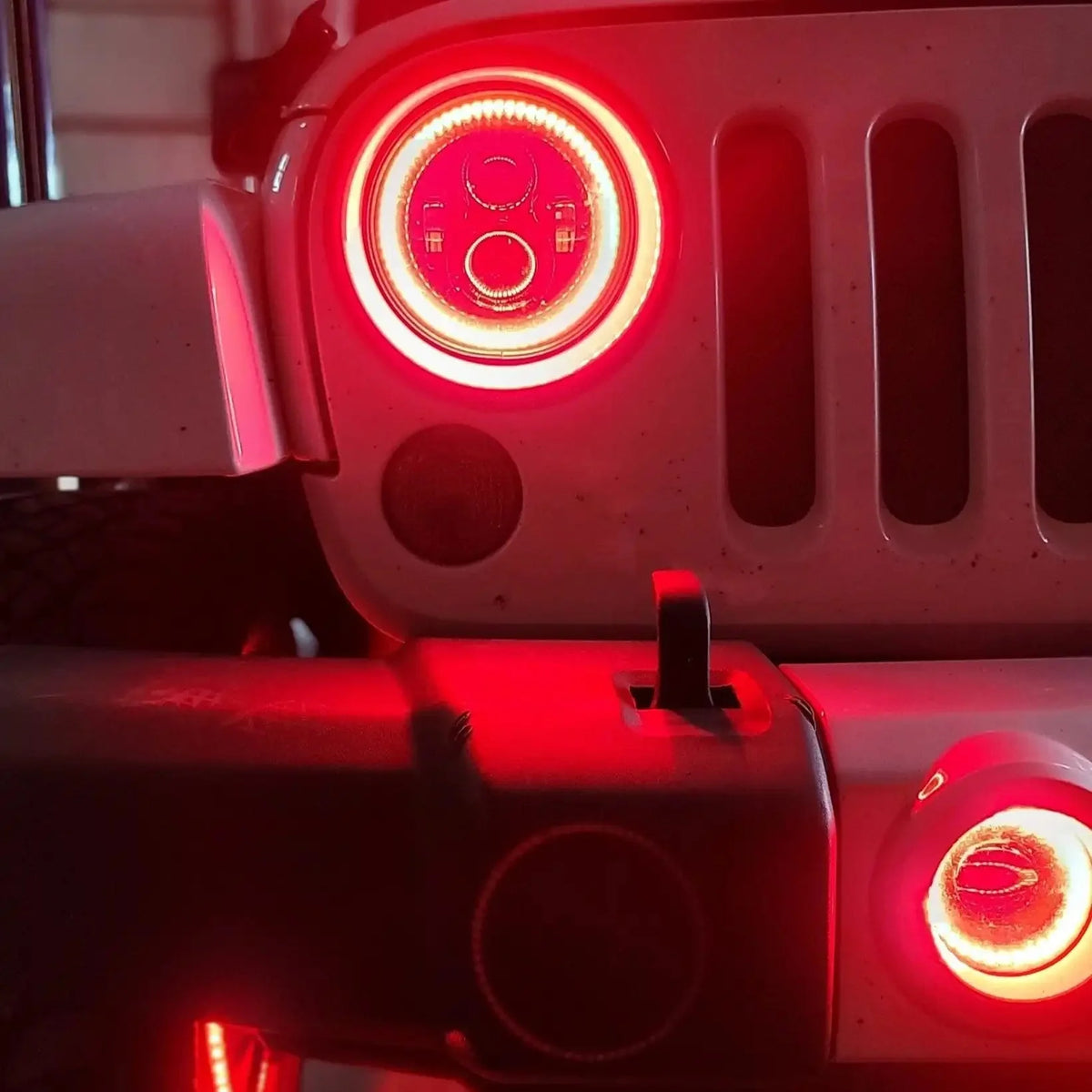

We recommend matching fog lights: ORACLE Part #5846
