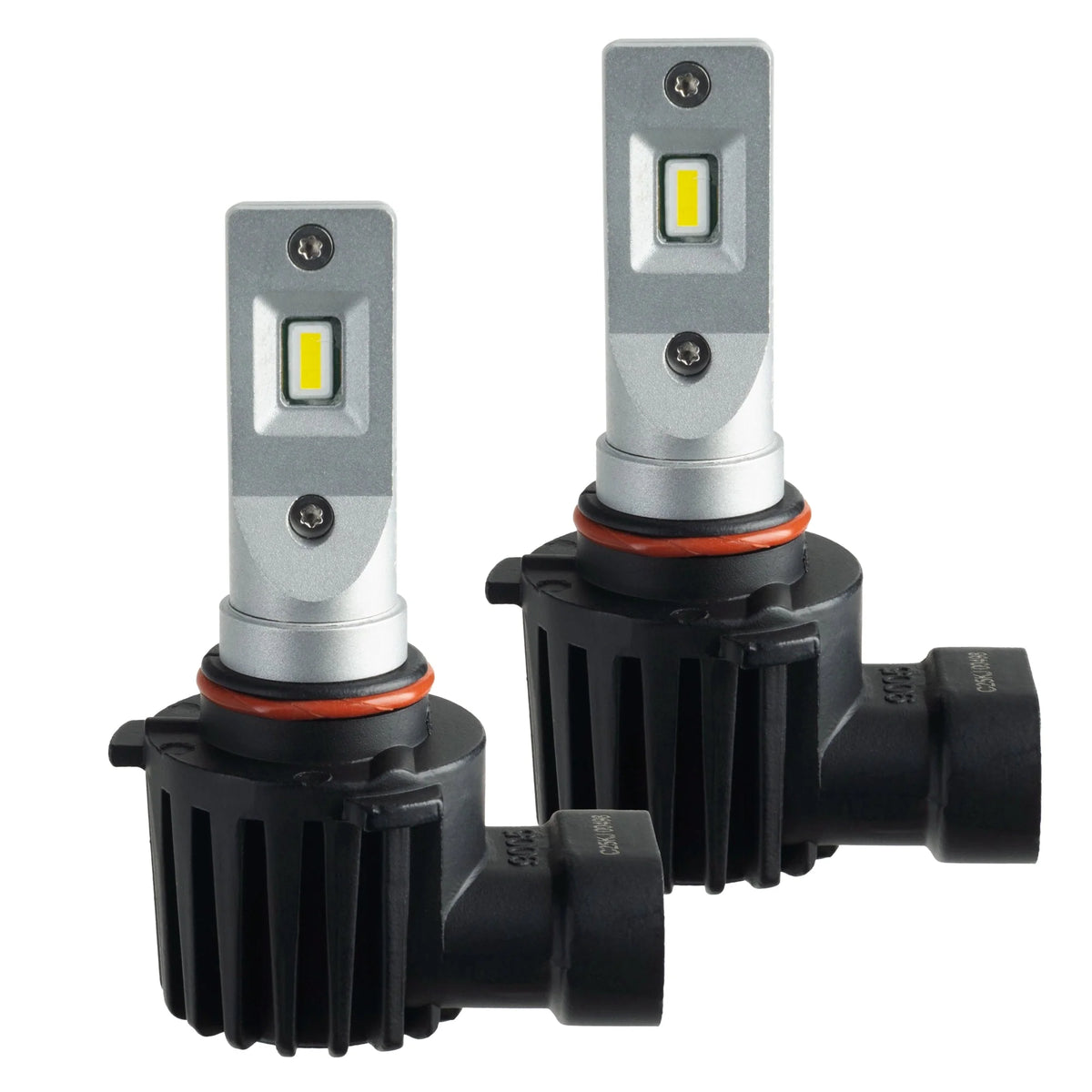

2016-2018 Chevrolet Silverado 3500 9005 - ORACLE VSeries LED Light Bulb Conversion Kit (High Beam Headlight)
2016-2018 Chevrolet Silverado 3500 9005 - ORACLE VSeries LED Light Bulb Conversion Kit (High Beam Headlight)
Fanless LED conversion technology with precision filament geometry, OEM-style fitment, and 6-volt DRL compatibility.
Product Overview ▼
ORACLE VSeries LED conversion bulbs combine a compact OEM-style shape with precision filament geometry for controlled, no-glare illumination and straightforward DIY installation.
The fanless design eliminates bulky heat sinks and external cooling hardware while delivering 3,600 lumens per set and compatibility with supported 6-volt daytime-running-light systems.
This vehicle-specific listing matches the 2016-2018 Chevrolet Silverado 3500 High Beam Headlight application to ORACLE part number V5239-001 using the supplied bulb fitment guide.

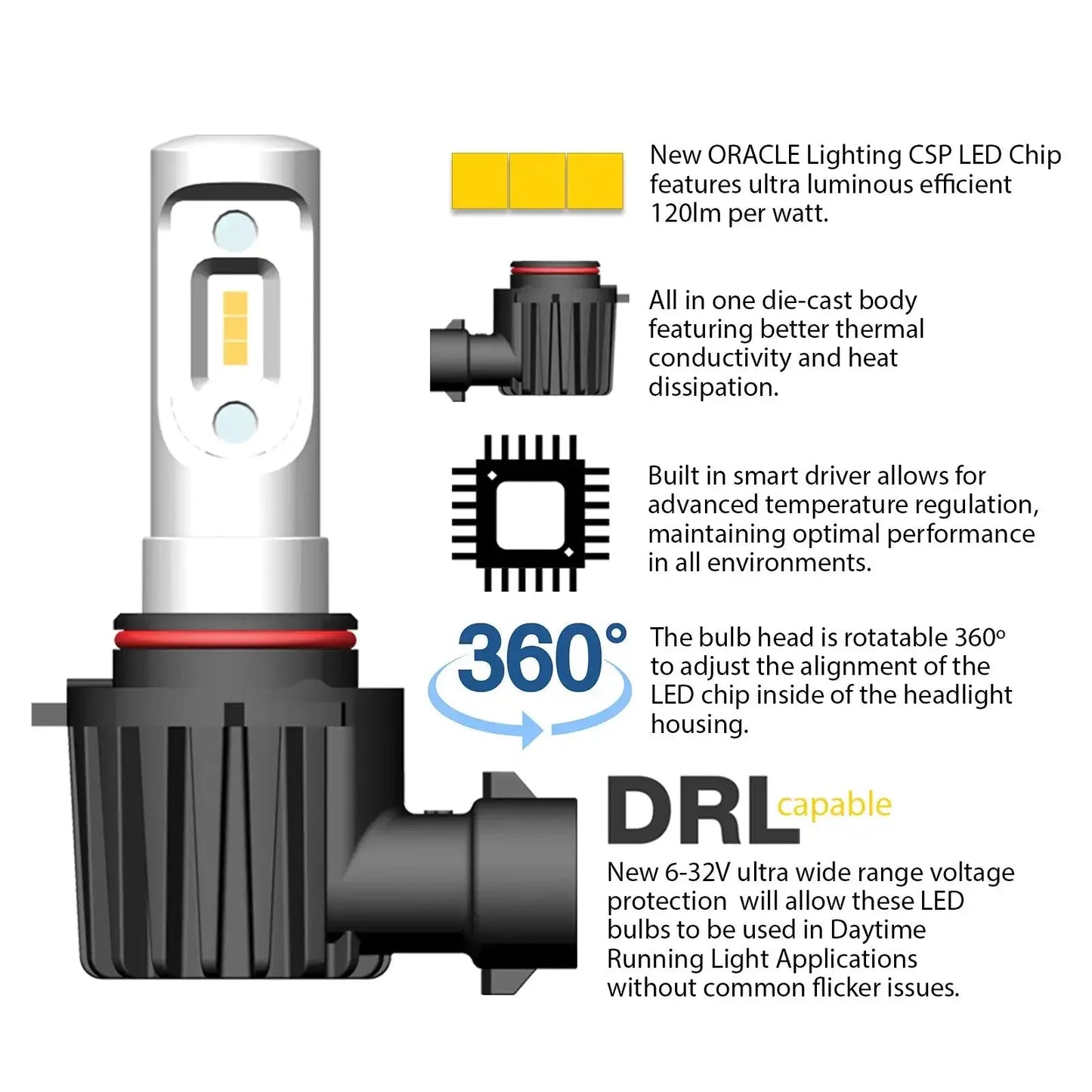

Key Features ▼
- 6-volt daytime-running-light compatible LED design
- Precision filament geometry for controlled, no-glare illumination
- Fanless design with no bulky heat sink or obstructive cooling system
- OEM-style physical dimensions for direct-fit installation
- Up to 2.65 times increased visibility compared with stock halogen bulbs
- Wide 6-32V DC operating range
- Industry-leading efficacy greater than 100 lumens per watt
Performance & Technical Specifications ▼
Vehicle Fitment ▼
- 2016 Chevrolet Silverado 3500 - 9005 High Beam Headlight
- 2017 Chevrolet Silverado 3500 - 9005 High Beam Headlight
- 2018 Chevrolet Silverado 3500 - 9005 High Beam Headlight
What's Included ▼
- Two ORACLE VSeries LED conversion bulbs
Installation Guide & Resources ▼
- Confirm the vehicle uses a 9005 bulb for the High Beam Headlight position before installation.
- Remove the factory bulb, install the ORACLE replacement, and test operation before reassembling the lamp housing or trim.
- Do not touch LED emitters or force the bulb into an incompatible socket.
- Some CAN-BUS-equipped vehicles may require an additional decoder if flashing, strobing, or shutdown occurs with the engine running.
- For daytime-running-light operation, confirm the vehicle supplies a supported 6-volt DRL signal; lower voltage may cause flickering.
Experience Level: Beginner
Designed for a straightforward installation using basic hand tools.
Product Badges
