Name: 2015-2020 Ford F-150 H11 - ORACLE V-Series LED Bulb Upgrade (Low Beam Headlight)
Brand: ORACLE Lighting
SKU: V5235-001
Price: 124.79 USD
Availability: InStock

Upgrade your 2015-2020 Ford F-150 low beam headlights with ORACLE V-Series LED Bulbs - 3,600lm set output, 6000K crystal white, DRL compatible, no fan or heatsink, and precision filament geometry for no-glare OEM-style illumination.

 Verified Vehicle Fitment  3,600lm / Set  6000K Crystal White  DRL Compatible  No Fan or Heatsink  Precision Filament Geometry  6-32V DC  3-Year Warranty

Part #V5235-001 | Fits: 2015-2020 Ford F-150 | Application: Low Beam Headlight | Bulb: H11

Product Overview ▼

The ORACLE V-Series LED Headlight Bulbs are engineered for drivers who want a bright, versatile, and easy-to-install LED headlight conversion with advanced features at an exceptional value. This listing is fitment-verified for the low beam headlight position on 2015-2020 Ford F-150 trucks.

The V-Series features Precision Filament Geometry for no-glare illumination that closely mimics the OEM halogen beam pattern - no blinding oncoming traffic, no scattered hotspots. The fanless, heatsink-free design physically matches the original bulb for true OEM fitment and simple DIY installation. With 6-32V DC input range, the V-Series is also the first LED headlight bulb compatible with 6-Volt Daytime Running Light systems.

Key Features ▼

Verified Vehicle Fitment - Confirmed for the low beam headlight position on 2015-2020 Ford F-150.
First 6-Volt DRL Compatible LED Bulb - Works with 6-32V DC systems including 6V daytime running light circuits.
Precision Filament Geometry - No-glare illumination that mirrors the OEM halogen beam pattern.
No Fan, No Heatsink - Clean, compact design with no obstructing cooling components.
OEM Physical Match - Physically matches the original bulb for easy plug-and-play DIY installation.
2.65x Increased Visibility - Compared to stock halogen bulbs.
3,600lm Output (Set) - 6000K crystal white color temperature.
Active Thermal Regulation - Learn more about V-Series thermal technology.
3-Year Limited Warranty - Backed by ORACLE Lighting's quality guarantee.

These bulbs will not replace "XS" bulbs. For XS applications, please purchase the ORACLE Premium or S3 bulbs. Vehicle must be 6V compatible for the DRL option to function properly - verify your vehicle's DRL voltage before ordering. Dodge, Chrysler, Jeep, or later-model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN-BUS decoder harnesses if flashing, strobing, or shutoff occurs with engine on.

Performance & Technical Specifications ▼

Part NumberV5235-001

Bulb FitmentH11

ApplicationLow Beam Headlight

Lumen Output3,600lm / Set

Color Temperature6000K (Crystal White)

Power Draw17W per bulb

Input Voltage6-32V DC

DRL CompatibleYes (6V+ DRL systems)

Luminous Efficacy>100 lm/W*

Cooling SystemNone (fanless, heatsink-free)

Beam PatternPrecision Filament Geometry

Visibility Improvement2.65x vs stock halogen

Sold AsPair (2 bulbs)

Warranty3-Year Limited

*Industry-Leading Efficacy Ratio

Vehicle Fitment ▼

Vehicle Fitment: 2015-2020 Ford F-150.

Bulb and Application: H11 low beam headlight.

Always verify the factory bulb size and vehicle configuration before ordering.

What's Included ▼

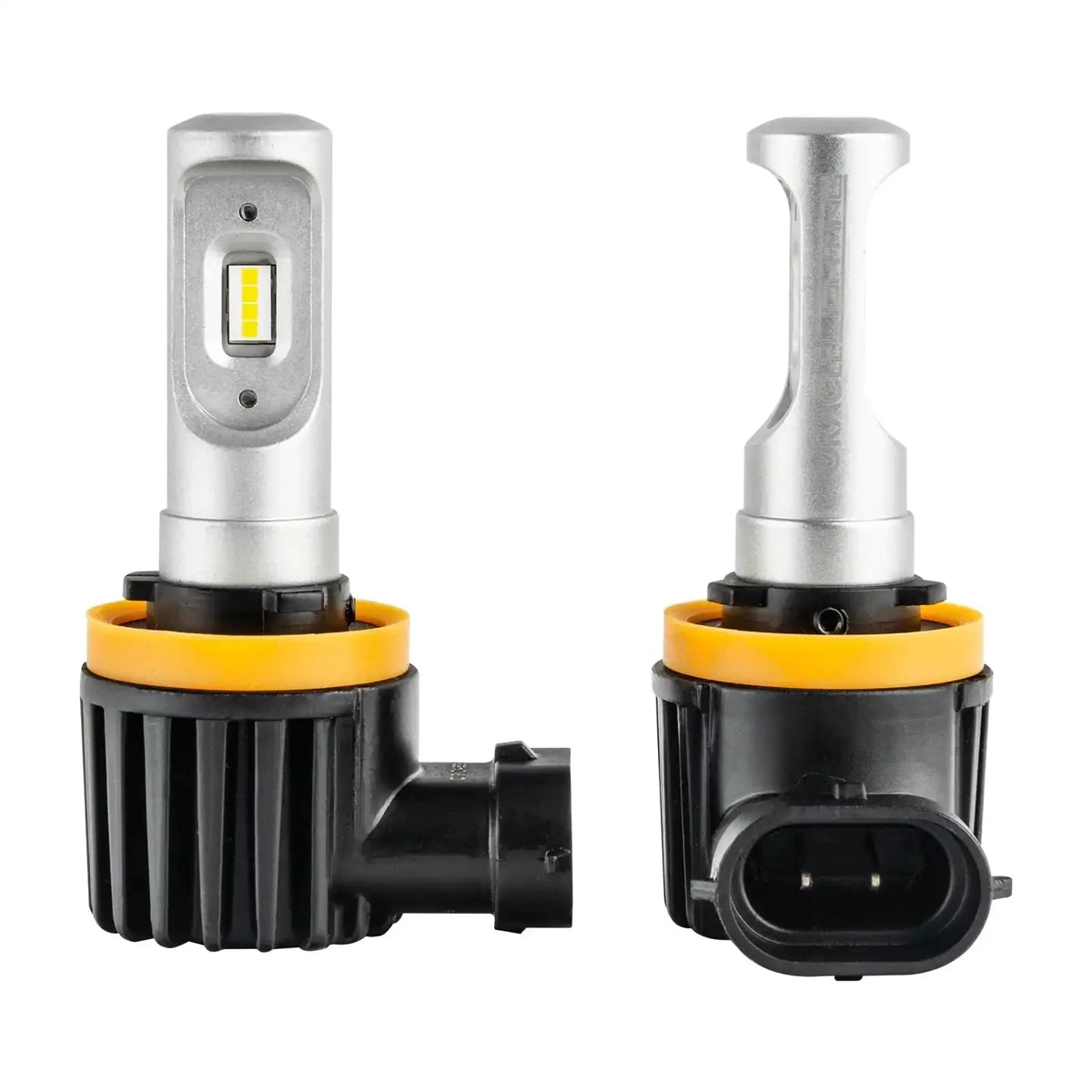

2x ORACLE V-Series H11 LED Low Beam Headlight Bulbs

Installation Guide & Resources ▼

True plug-and-play installation - the V-Series physically matches the original H11 bulb for a direct socket swap. No wiring modifications, no cutting, no tools required. Estimated install time: approximately 5 minutes per side.

If flashing, strobing, or shutoff occurs after installation, a CAN-BUS decoder harness may be required for your vehicle. Common on Dodge, Chrysler, Jeep, and later-model EU vehicles.
