2007-2018 Jeep Wrangler JK Switchback LED Halo Headlights- DRL and Turn Signal
$405.99
Regular price $324.79(Currently Backordered)
Product Overview ▼
ORACLE's 7" JK LED Halo Headlights are the definitive headlight upgrade for the Wrangler JK platform. High-quality LED illumination is focused through advanced precision optics for a wide beam pattern with a sharp cut-off line - maximizing road coverage while keeping oncoming drivers safe.

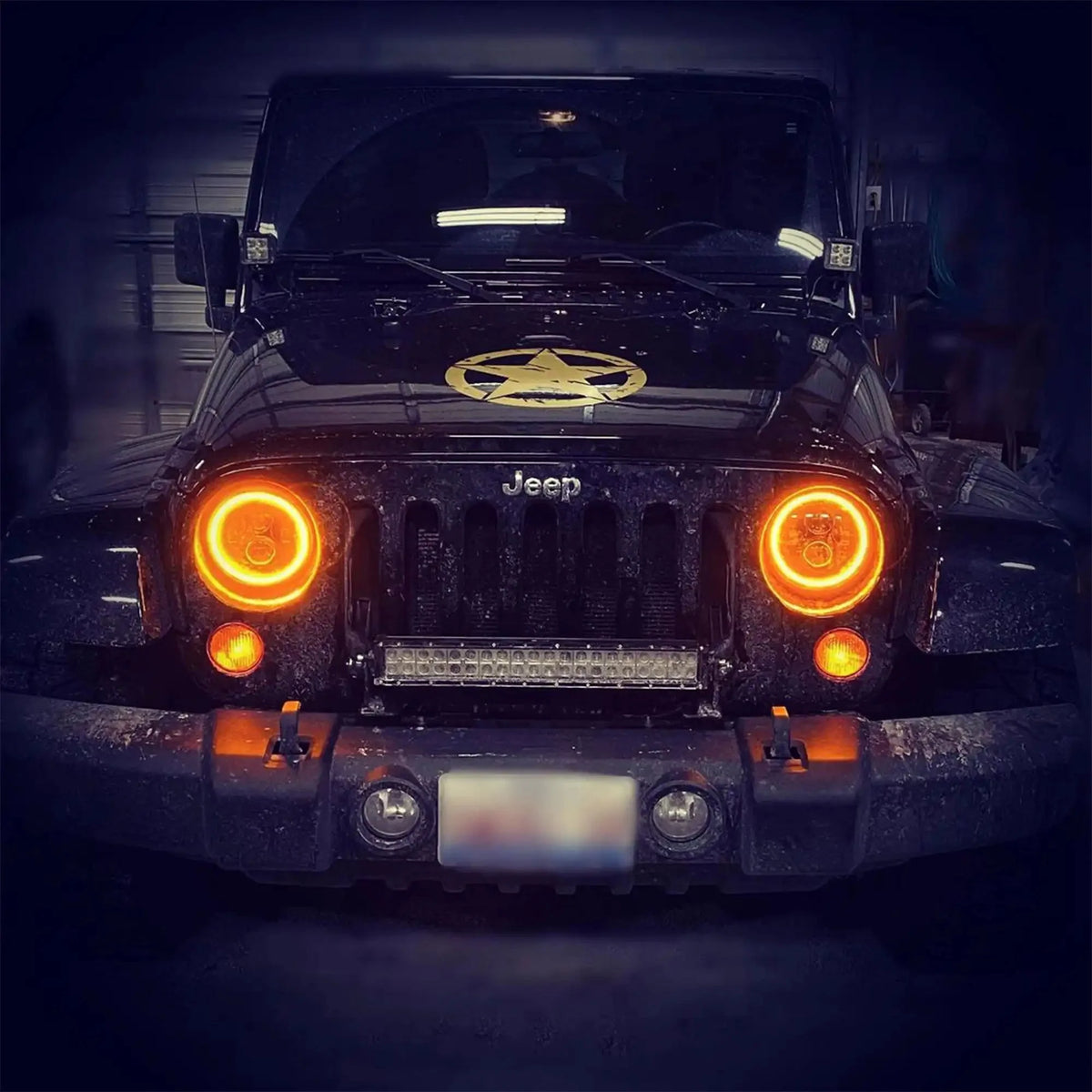

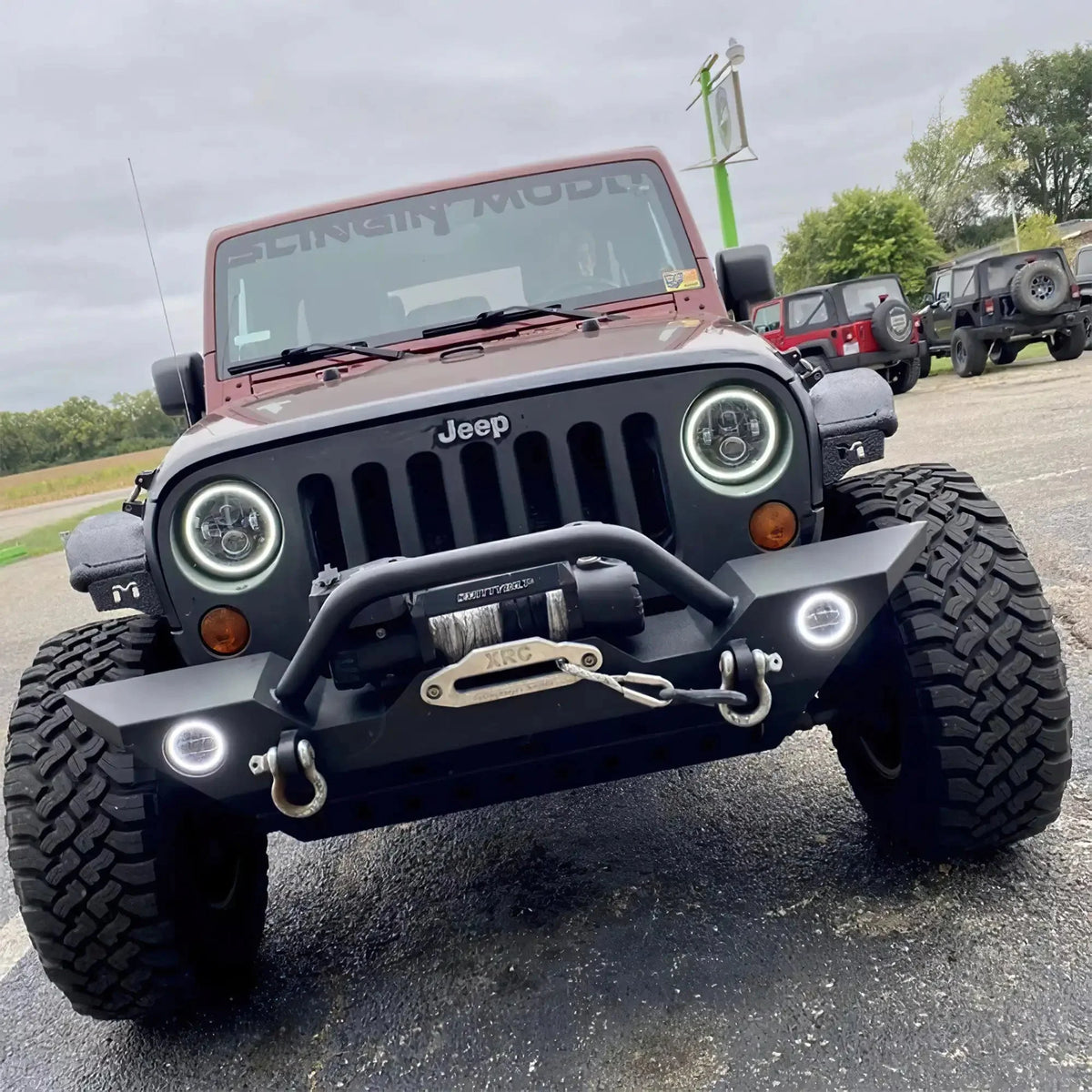

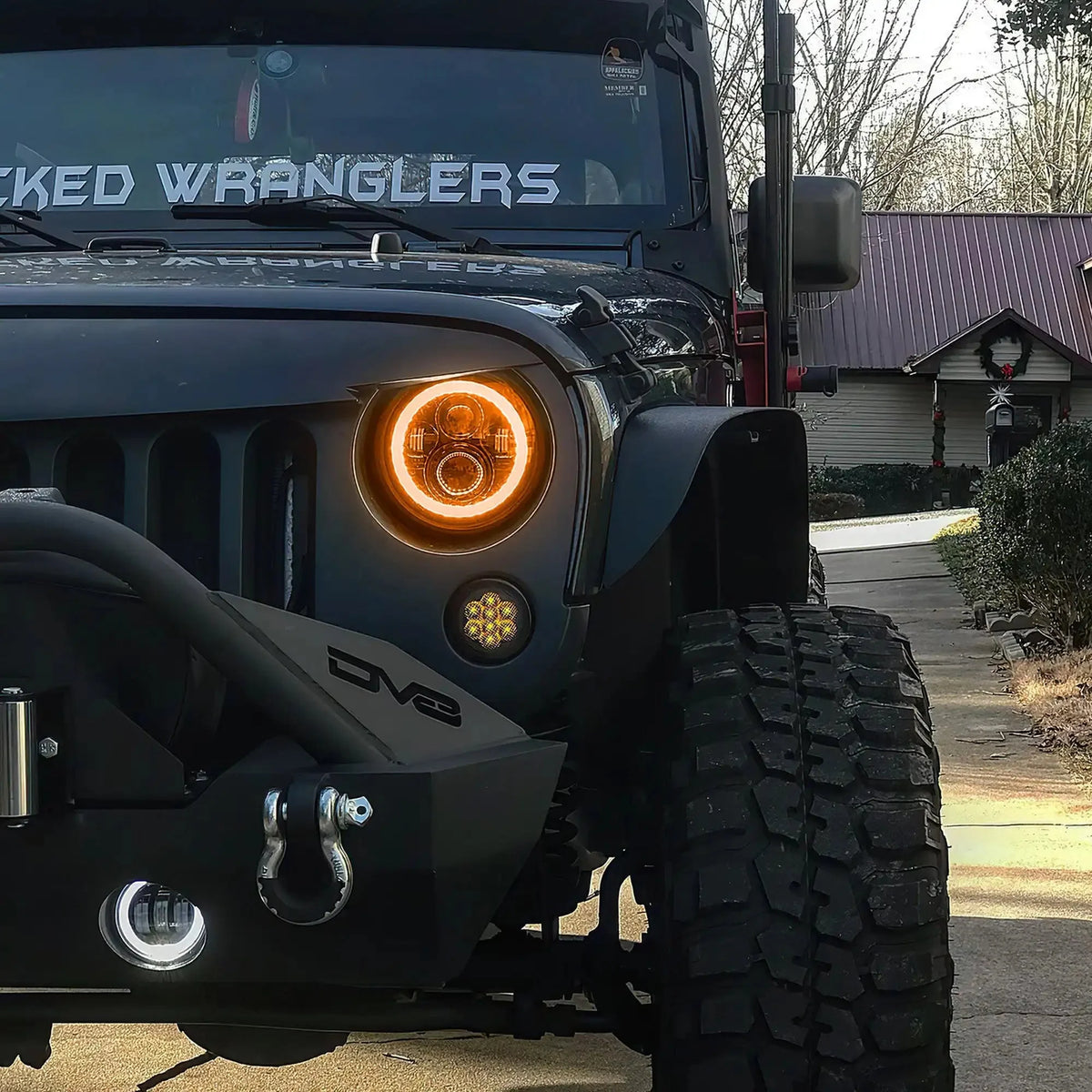

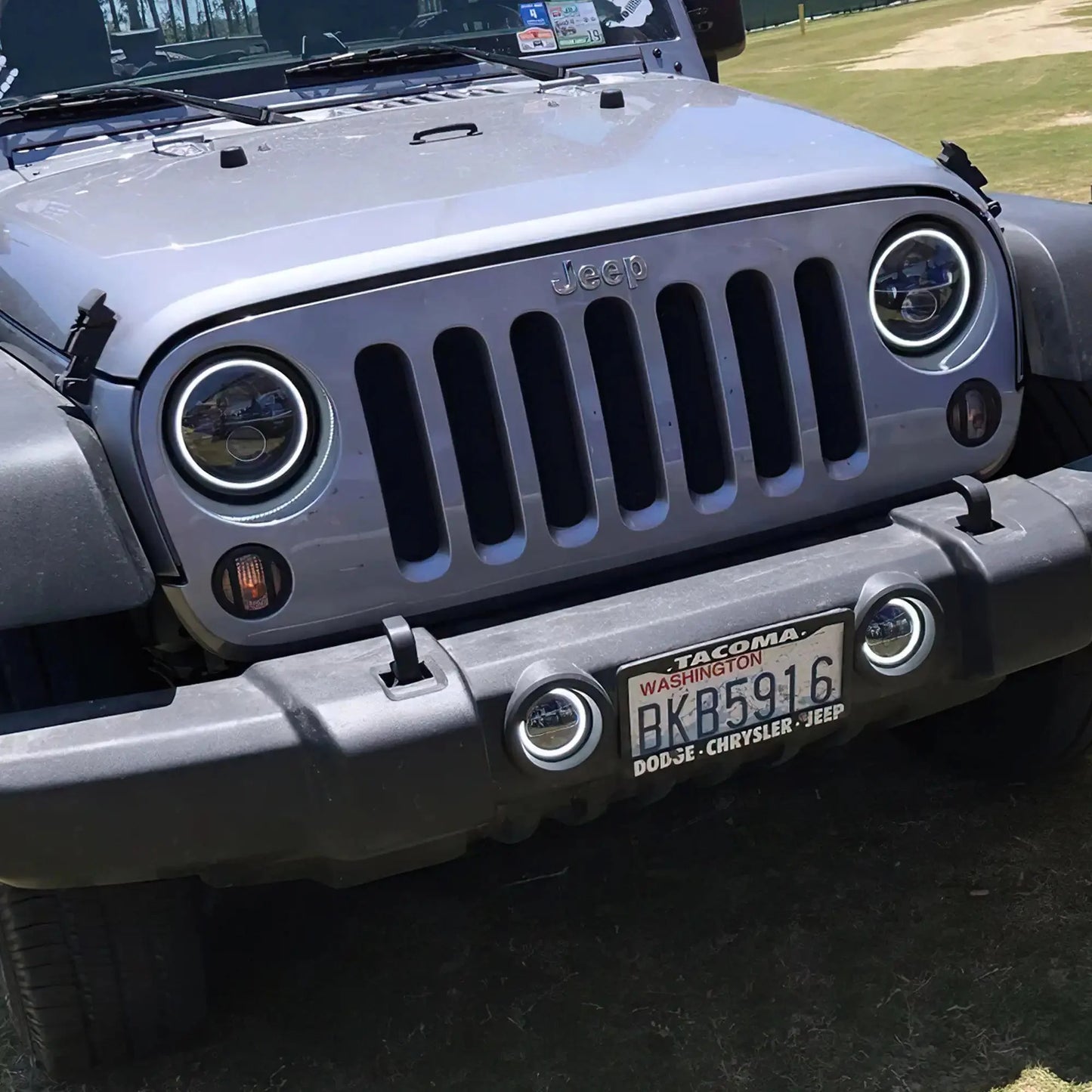

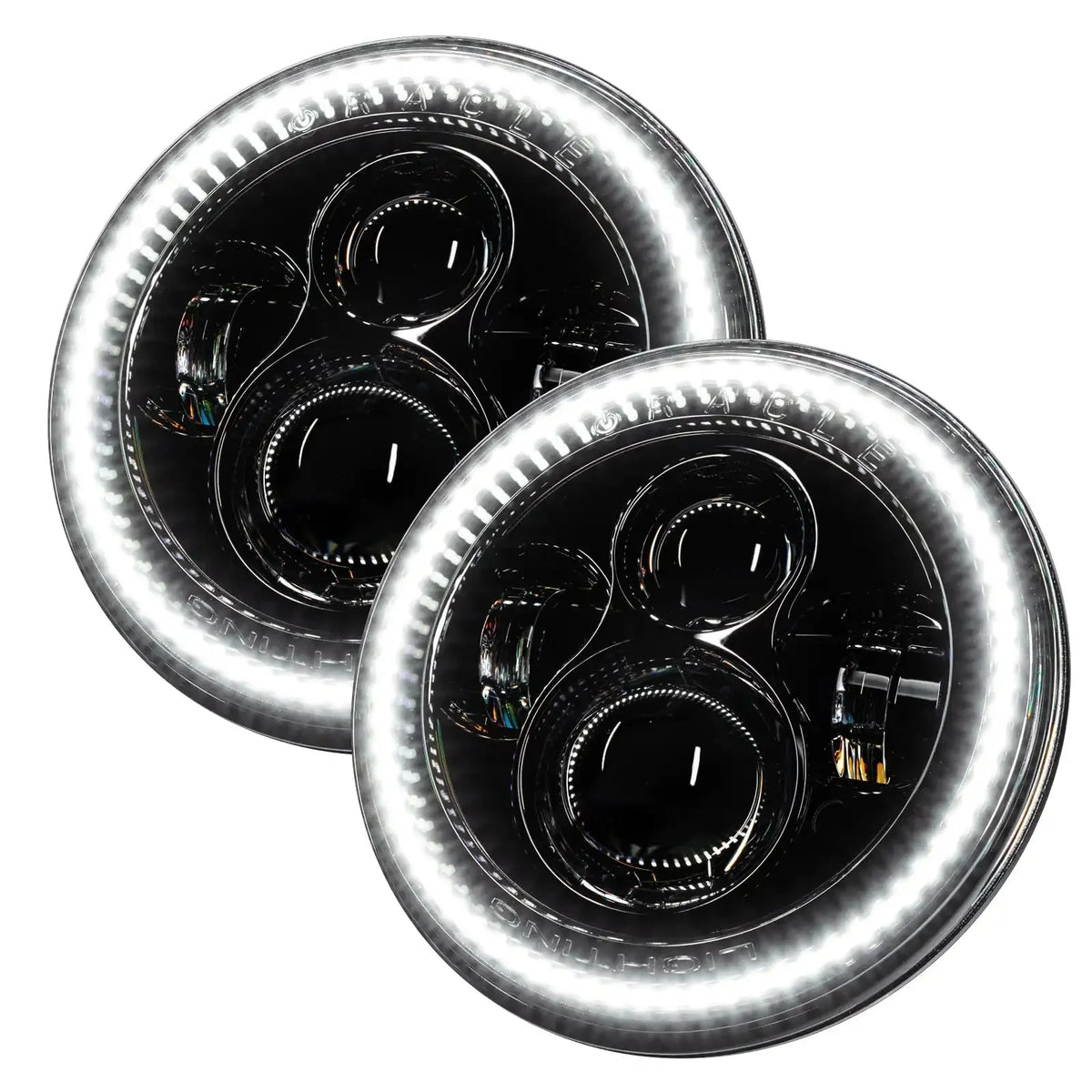

The integrated white/amber switchback halo ring is pre-installed and serves dual duty: white as a DRL during normal driving, automatically switching to amber when the turn signal is activated. This gives the JK a modern, premium look while adding genuine functional safety.
The latest revision features Philips Luxeon ZES LED chips - upgraded from Cree - delivering 130 lm/W efficacy with lower thermal output. A constant current LED driver on the main circuit board controls the halos for improved brightness, reliability, and a wider 12V-24V input range that protects against voltage spikes.
Key Features ▼
- Philips Luxeon ZES LED chips - 130 lm/W efficacy, lower thermal output vs. Cree

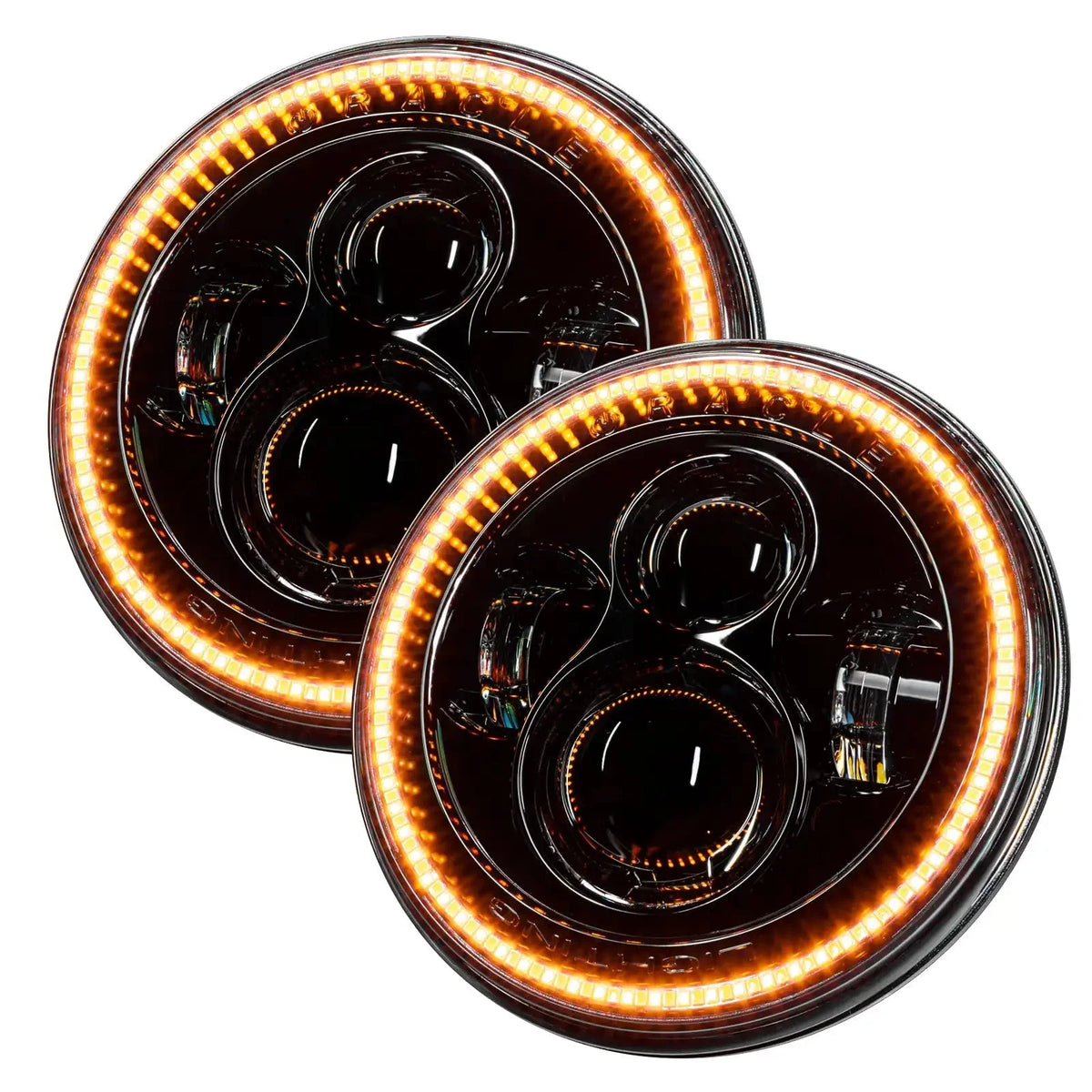

- White/Amber switchback halo pre-installed - white DRL, amber turn signal
- Wide beam pattern with sharp cut-off line - precision optics for maximum road coverage
- Constant current LED driver - protects halos from voltage spikes, extends lifespan
- Die-cast housing with corrosion-resistant coating
- Hard-coated polycarbonate lens - scratch and UV resistant
- Heavy-duty solid-state electronics
- Easy plug-and-play installation - direct JK fitment
- DOT compliant - FMVSS 108 tested
- 12V-24V DC input - wide voltage range
- 2-Year Replacement Warranty
- Sold as a pair - (2) headlights per order
Performance & Technical Specifications ▼
Vehicle Fitment ▼
- 2007 Jeep Wrangler JK
- 2008 Jeep Wrangler JK
- 2009 Jeep Wrangler JK
- 2010 Jeep Wrangler JK
- 2011 Jeep Wrangler JK
- 2012 Jeep Wrangler JK
- 2013 Jeep Wrangler JK
- 2014 Jeep Wrangler JK
- 2015 Jeep Wrangler JK
- 2016 Jeep Wrangler JK
- 2017 Jeep Wrangler JK
- 2018 Jeep Wrangler JK
What's Included ▼

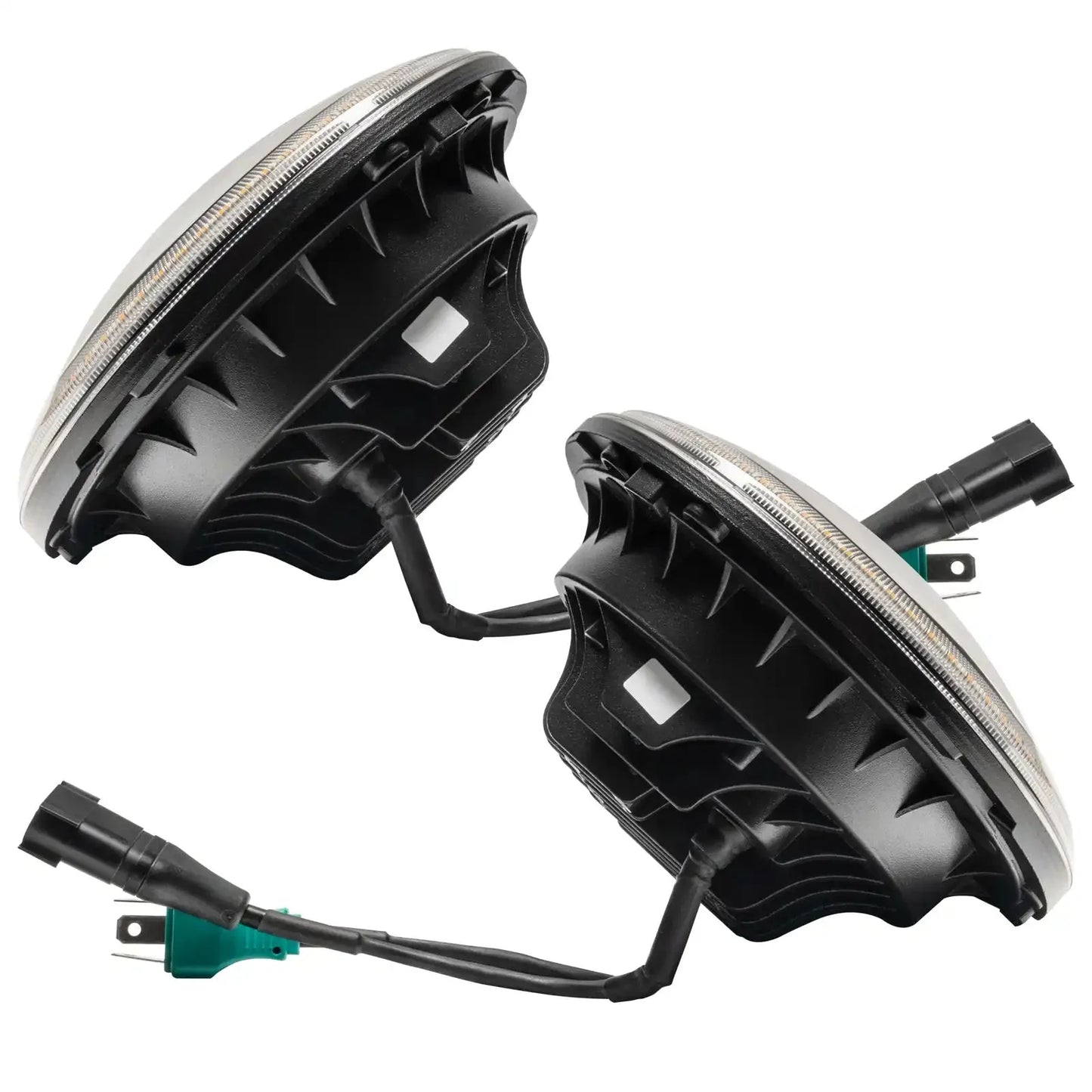

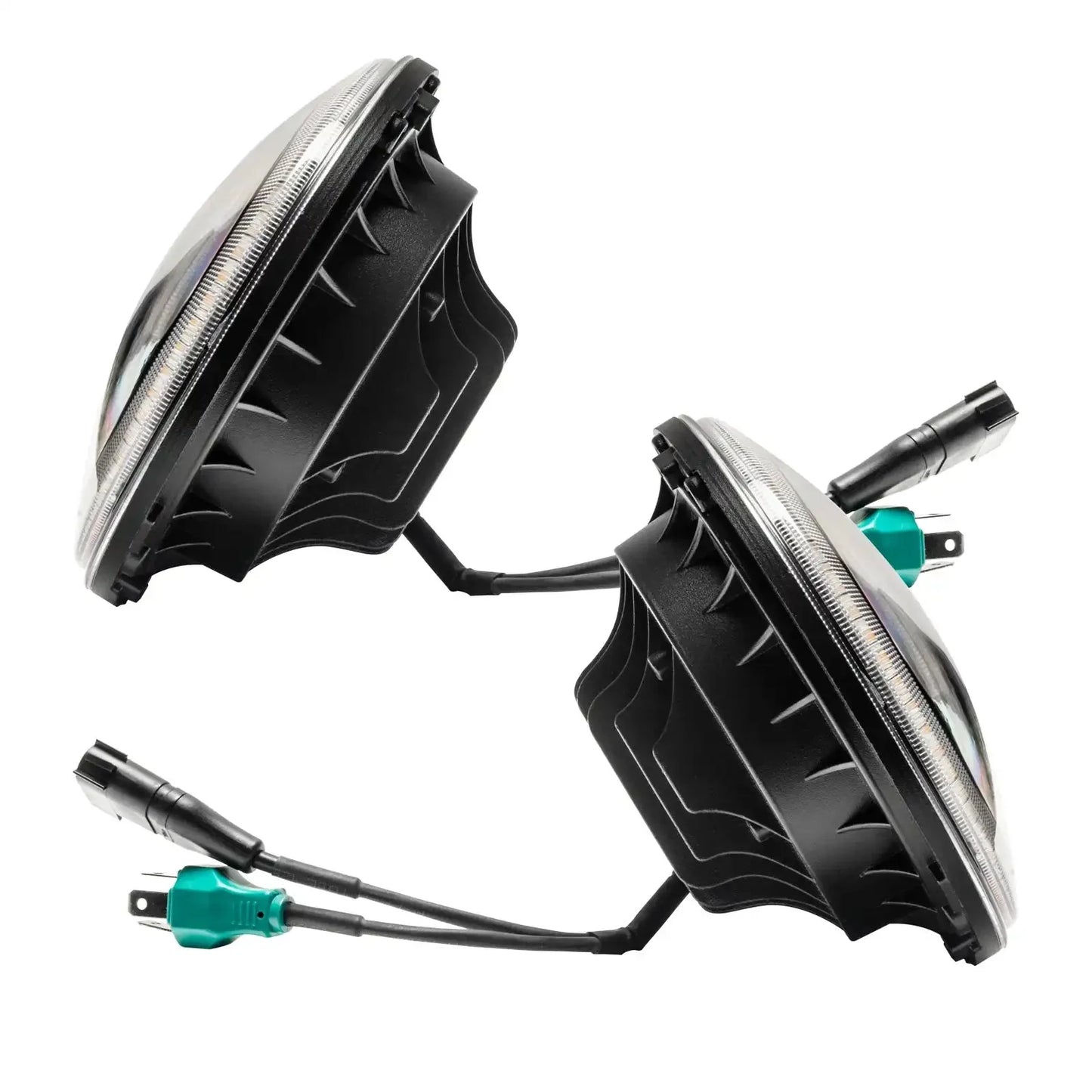

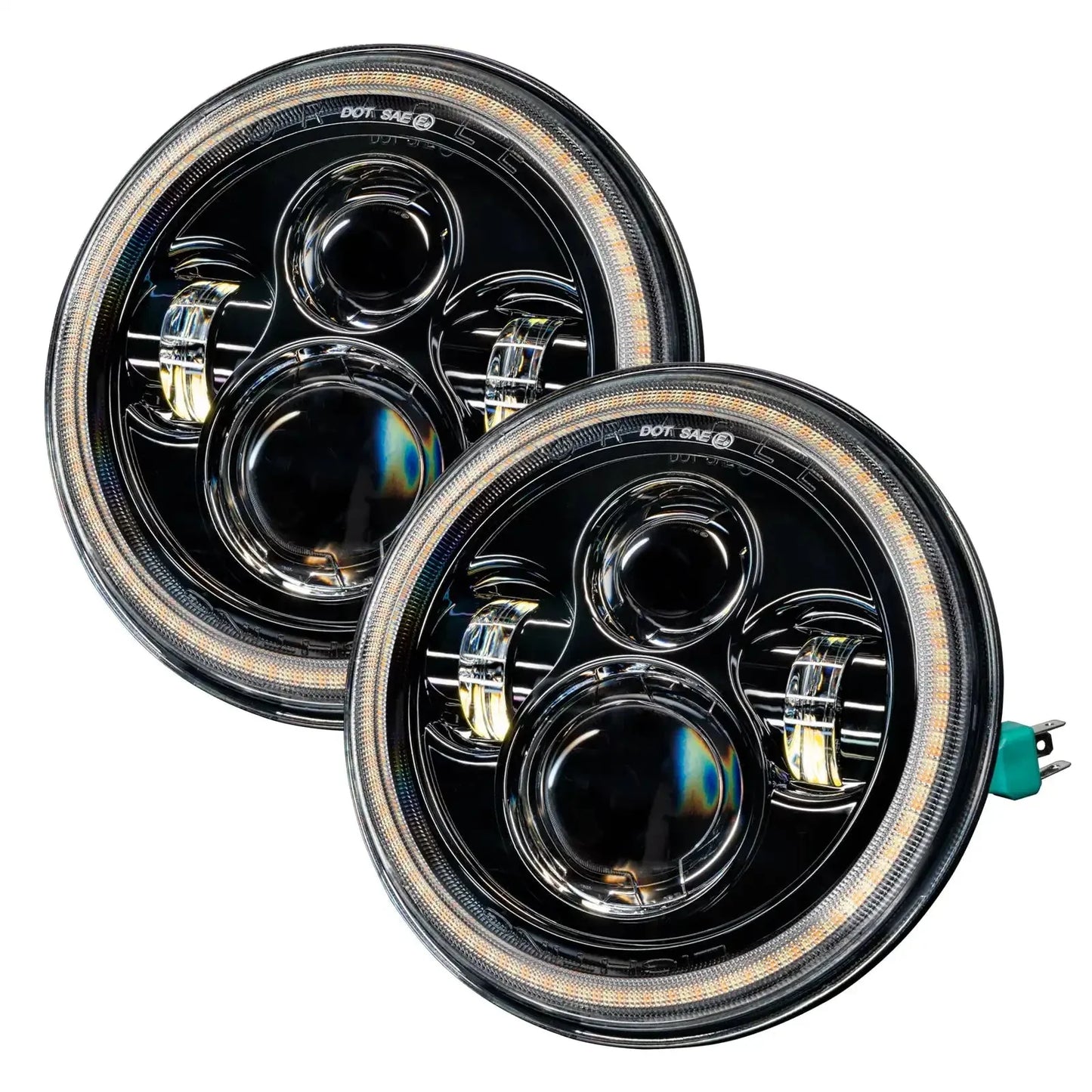

- (2) ORACLE 7" High-Powered LED Headlights - Black Bezel, with pre-installed White/Amber Switchback Halo
Installation Guide & Resources ▼
Plug-and-play installation - direct replacement for the factory JK 7" headlights. Estimated install time: ~2 hours.
Experience Level: Experienced
More involved mechanical or electrical work is expected. Professional installation may be appropriate.
Wiring & Electrical
The switchback halo can be configured two ways depending on whether you want to retain your factory turn signal alongside the halo turn signal:
- Option A - Halo turn signal only (no factory turn signal): No additional parts needed. However, the halo will hyper-flash (rapid flash / bulb-out warning). To prevent this, add a Load Equalizer (50W / 6 Ohm) for each headlight.
- Option B - Halo turn signal + factory turn signal together: Purchase the JK Switchback Turn Signal Y-Splitter Adapter (one per headlight). This allows both the factory turn signal and the halo amber to operate simultaneously.
Wiring Diagrams:
Certifications & Downloads
DOT Compliant - View FMVSS 108 Test Report
