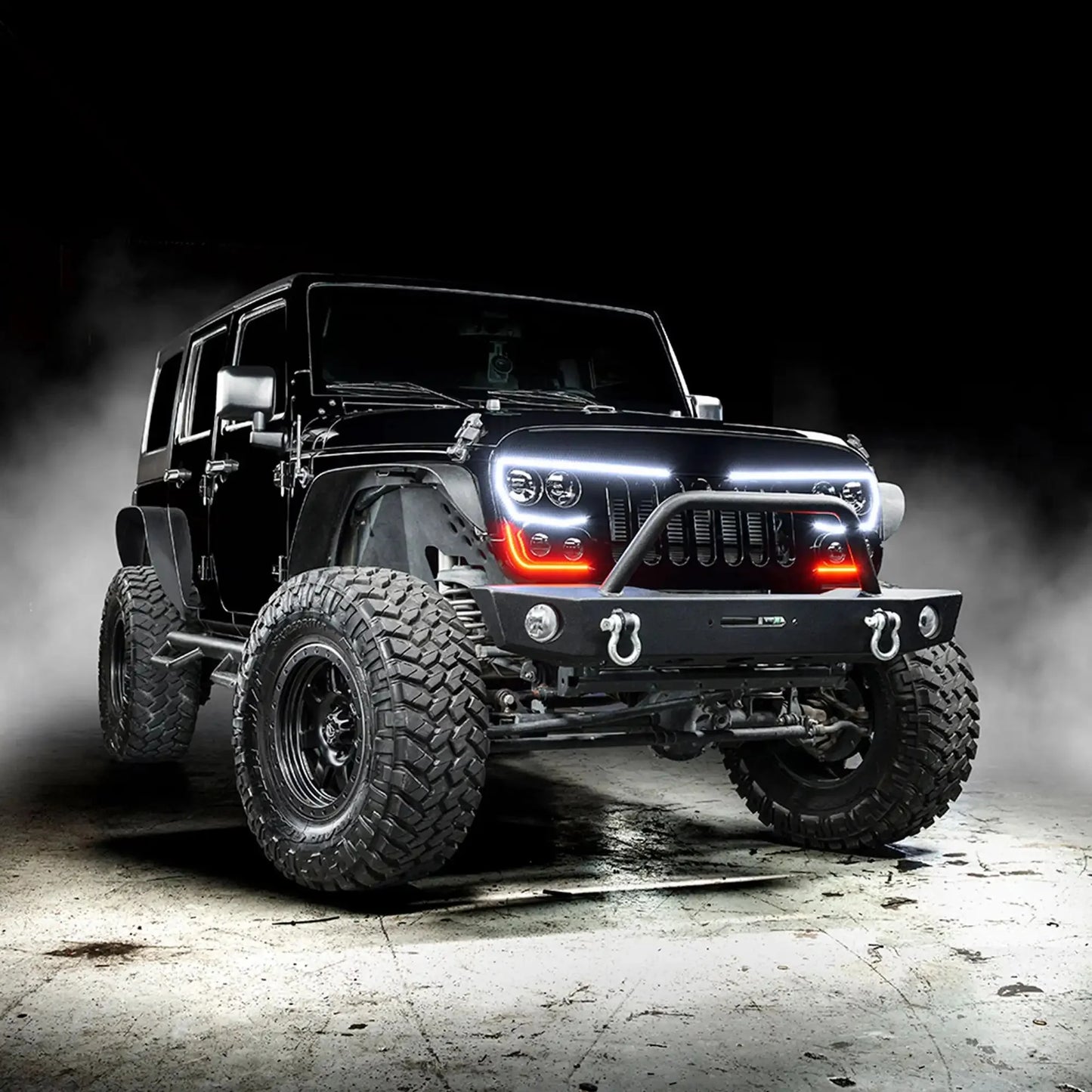

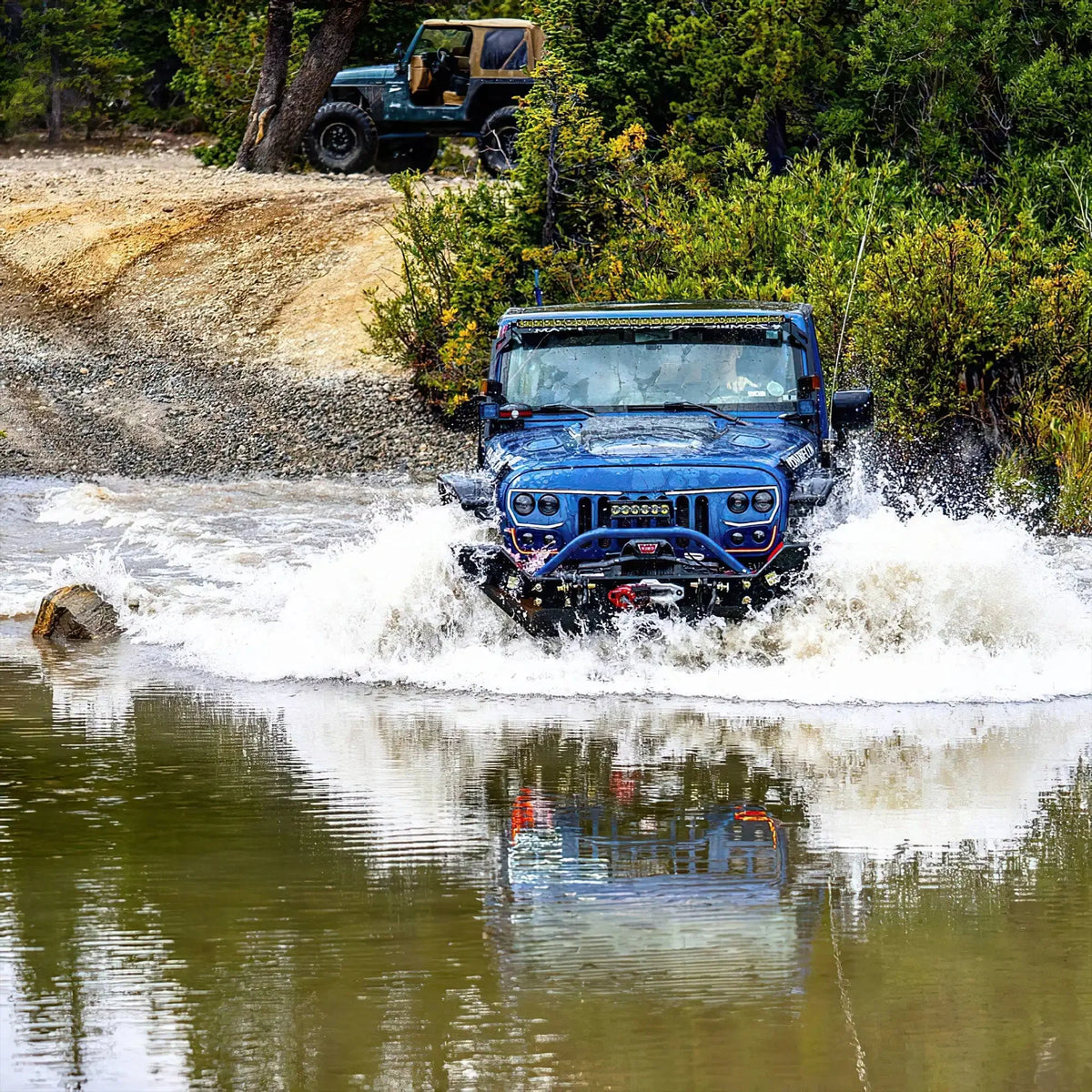

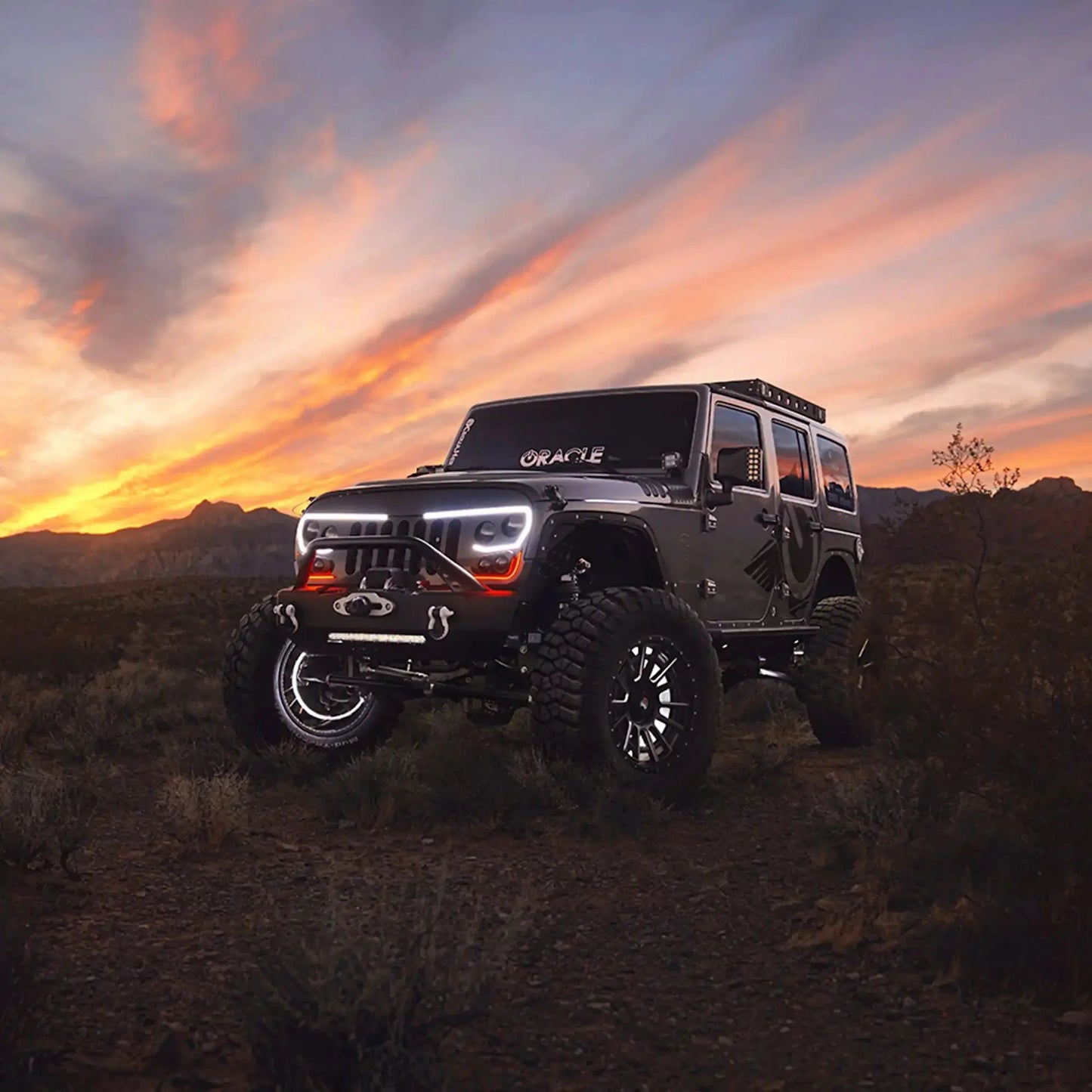

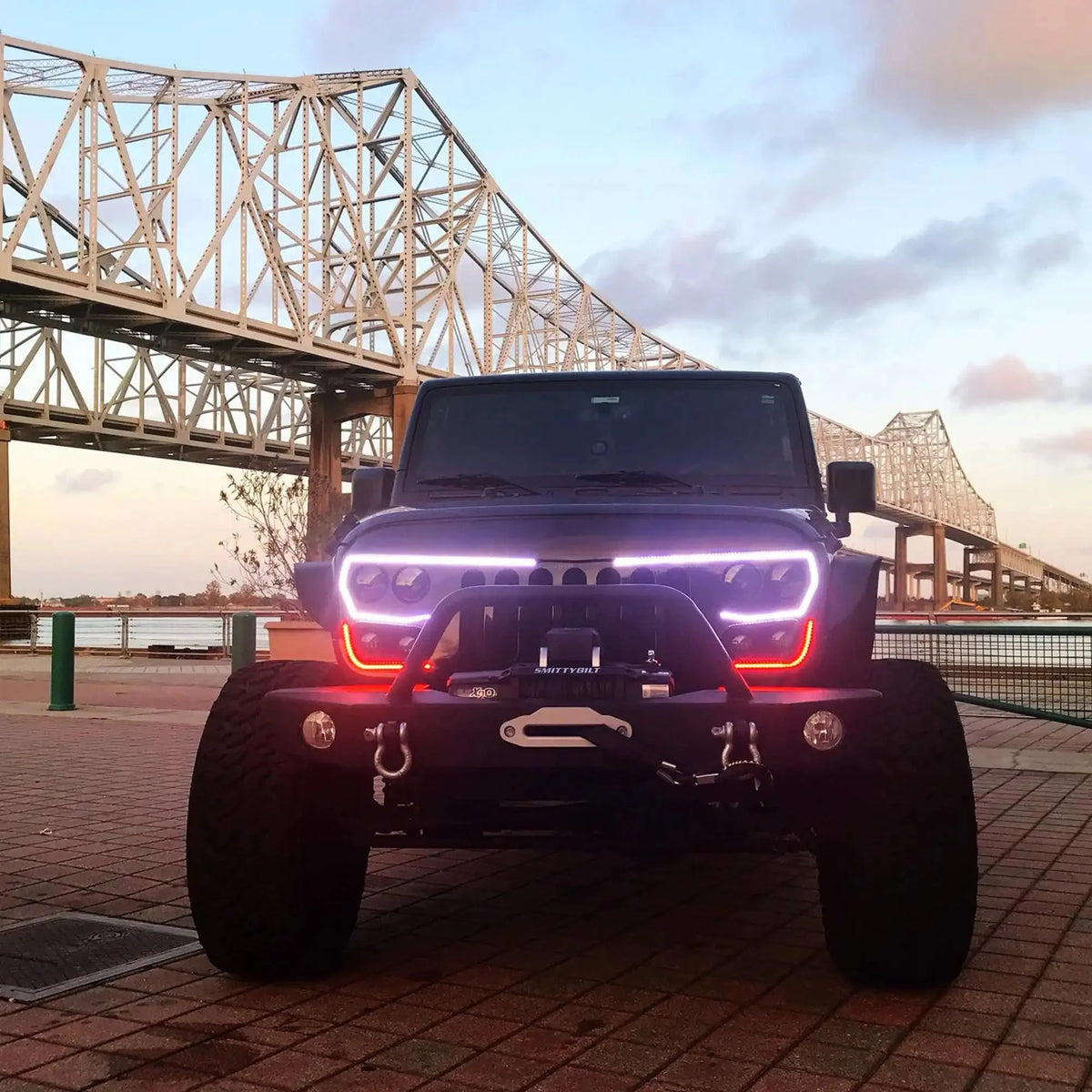

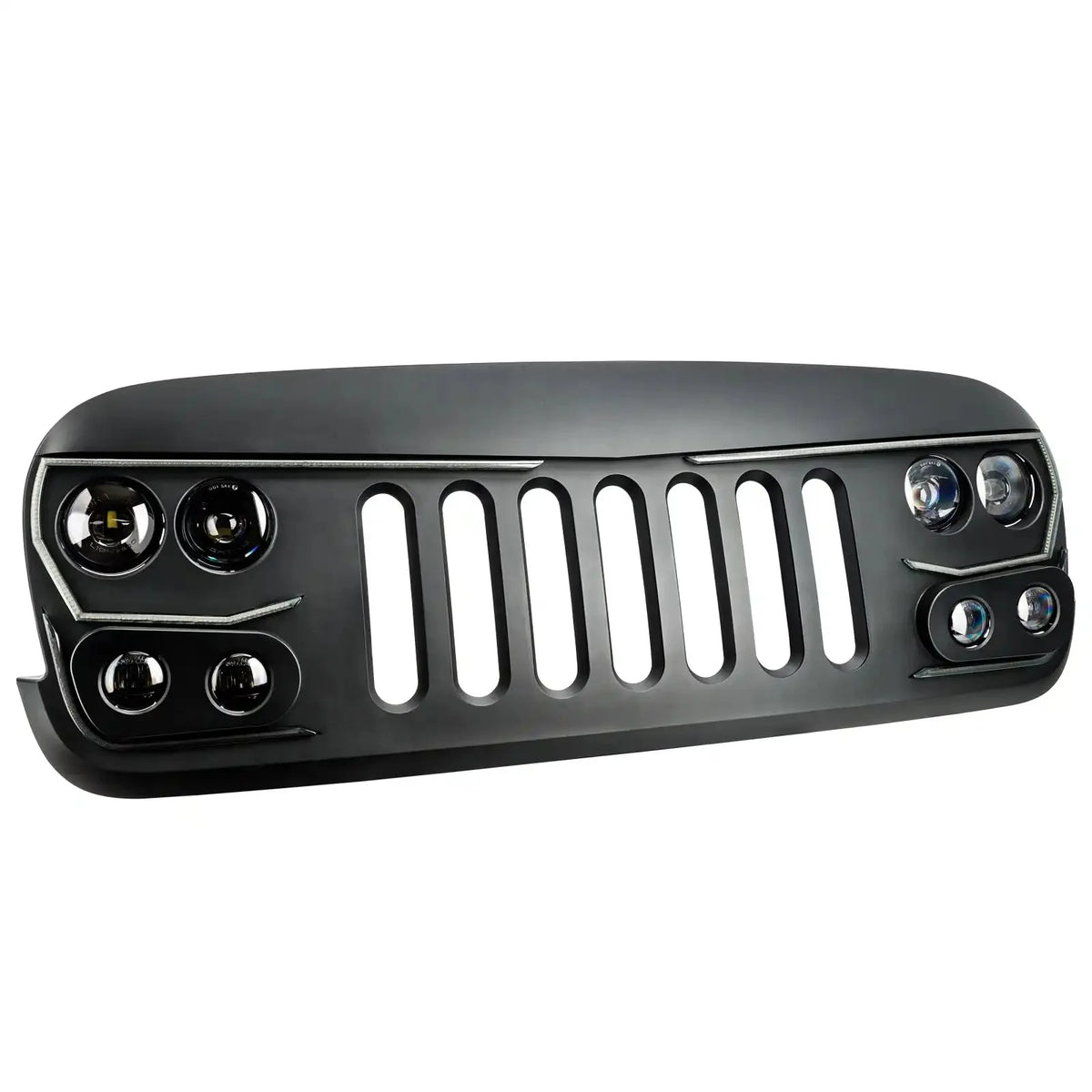

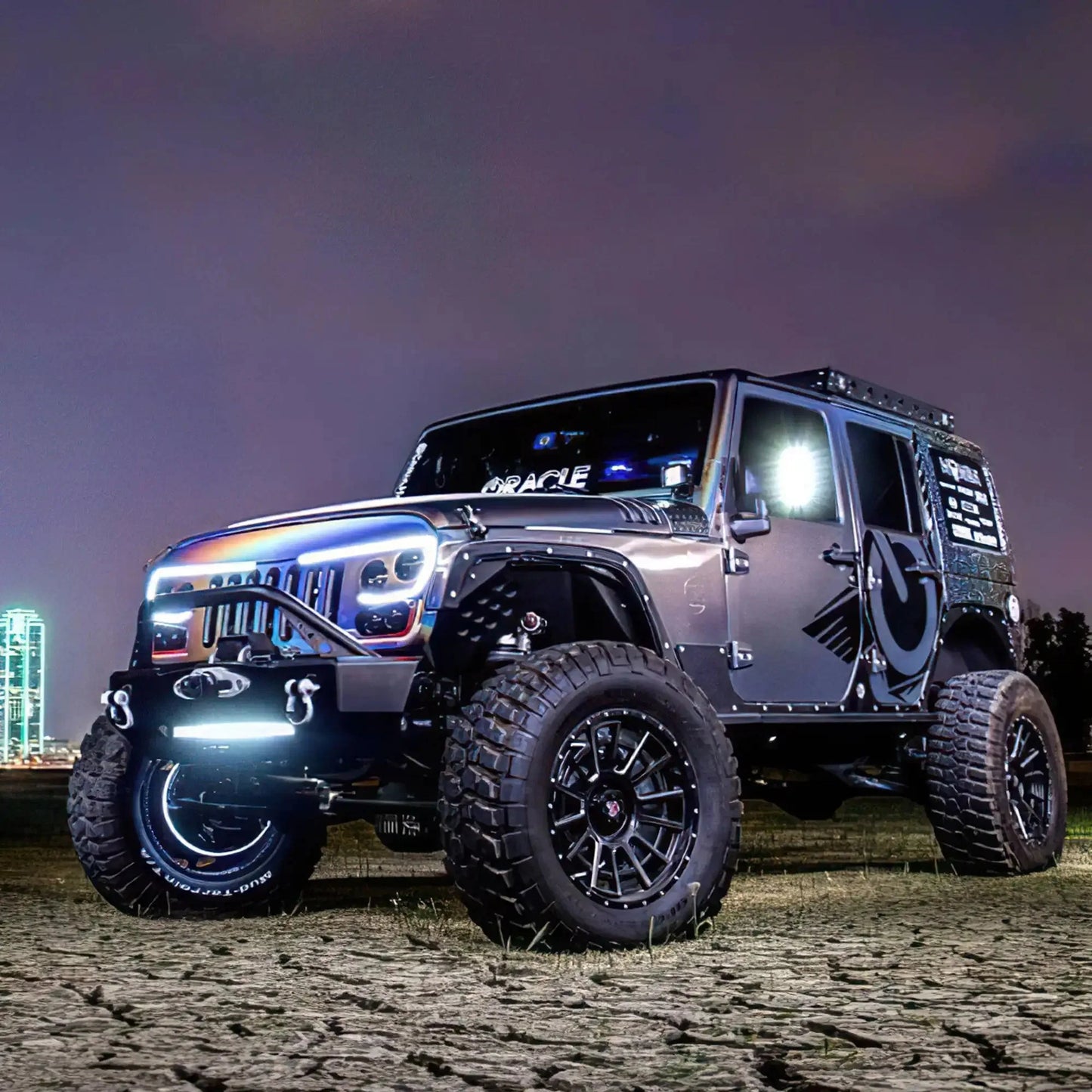

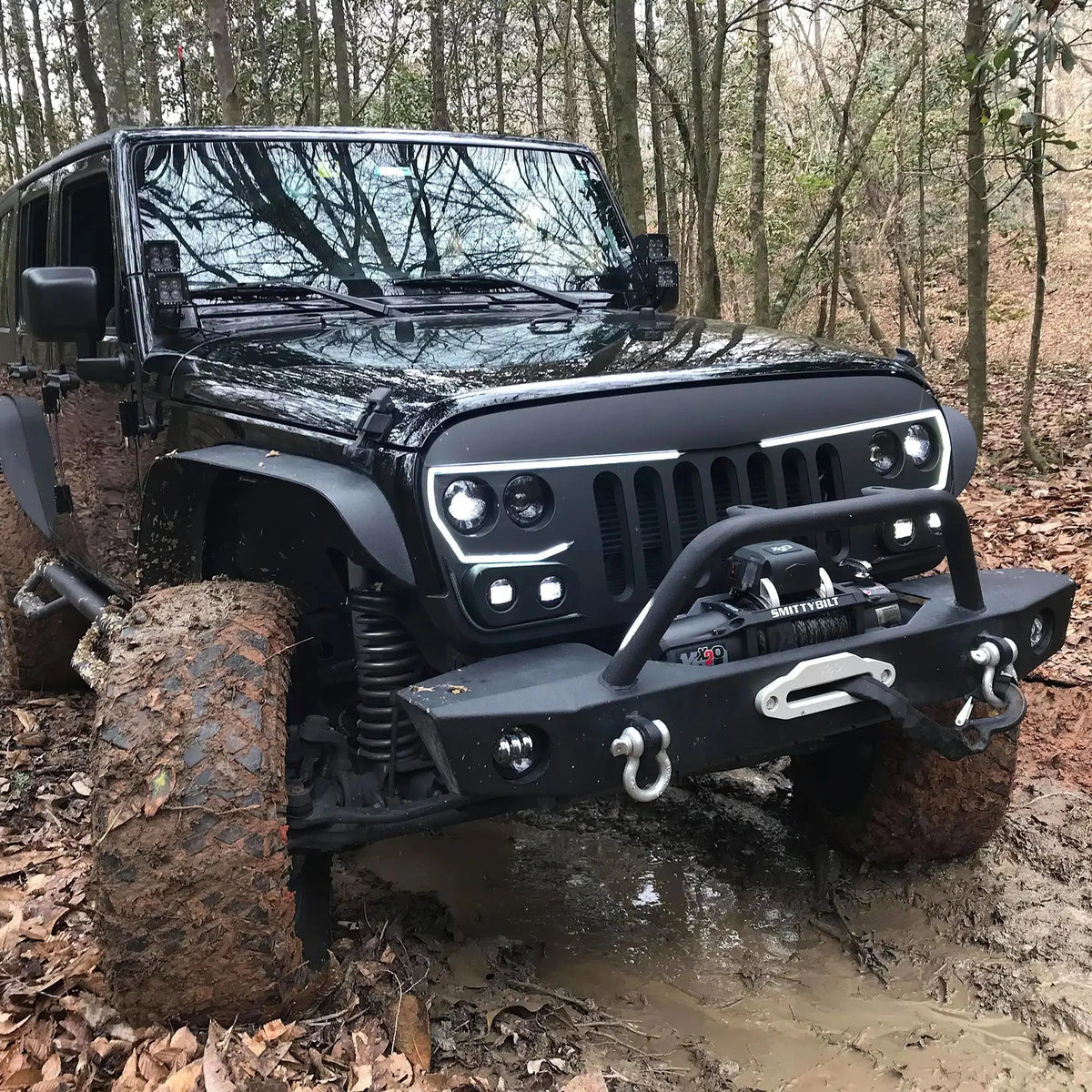

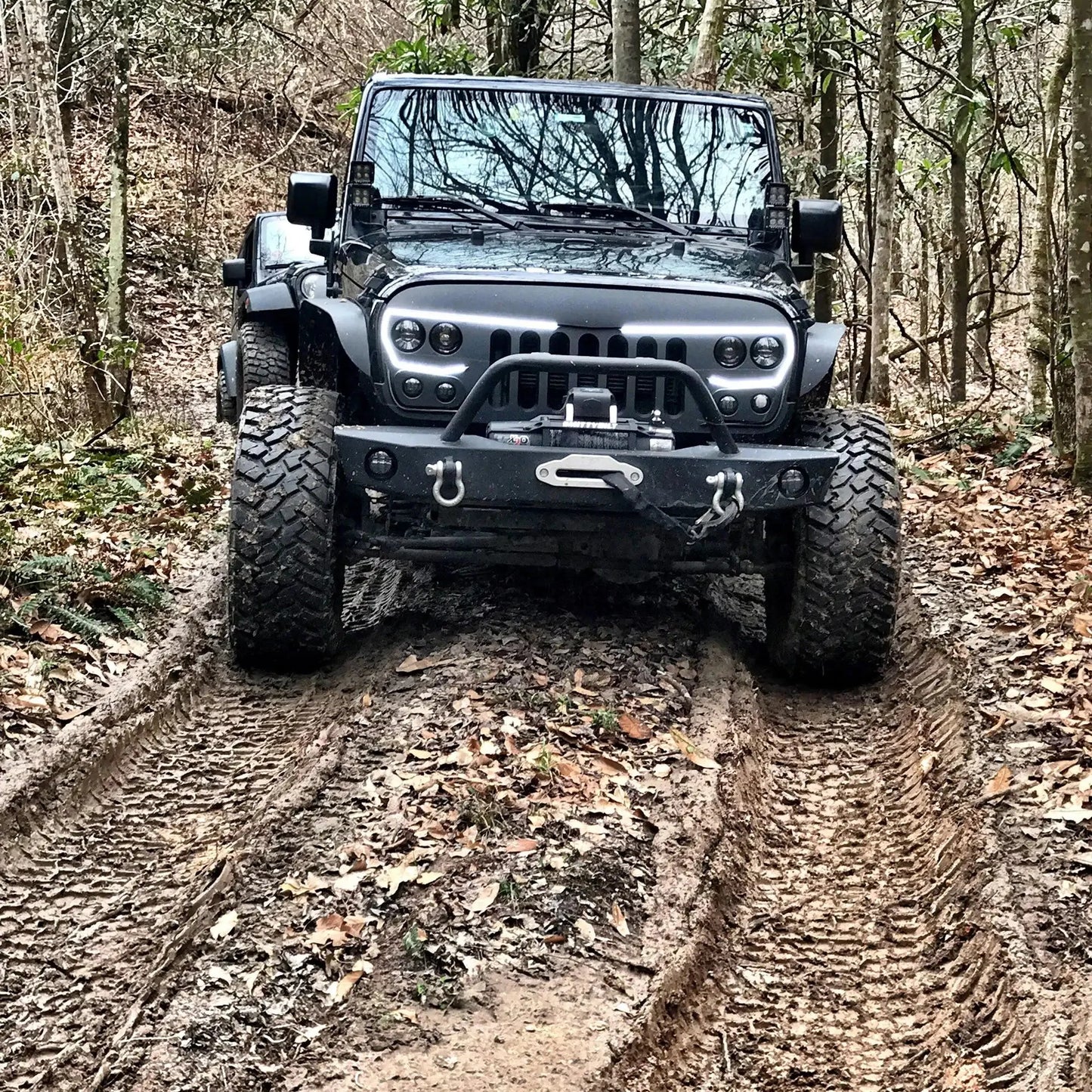

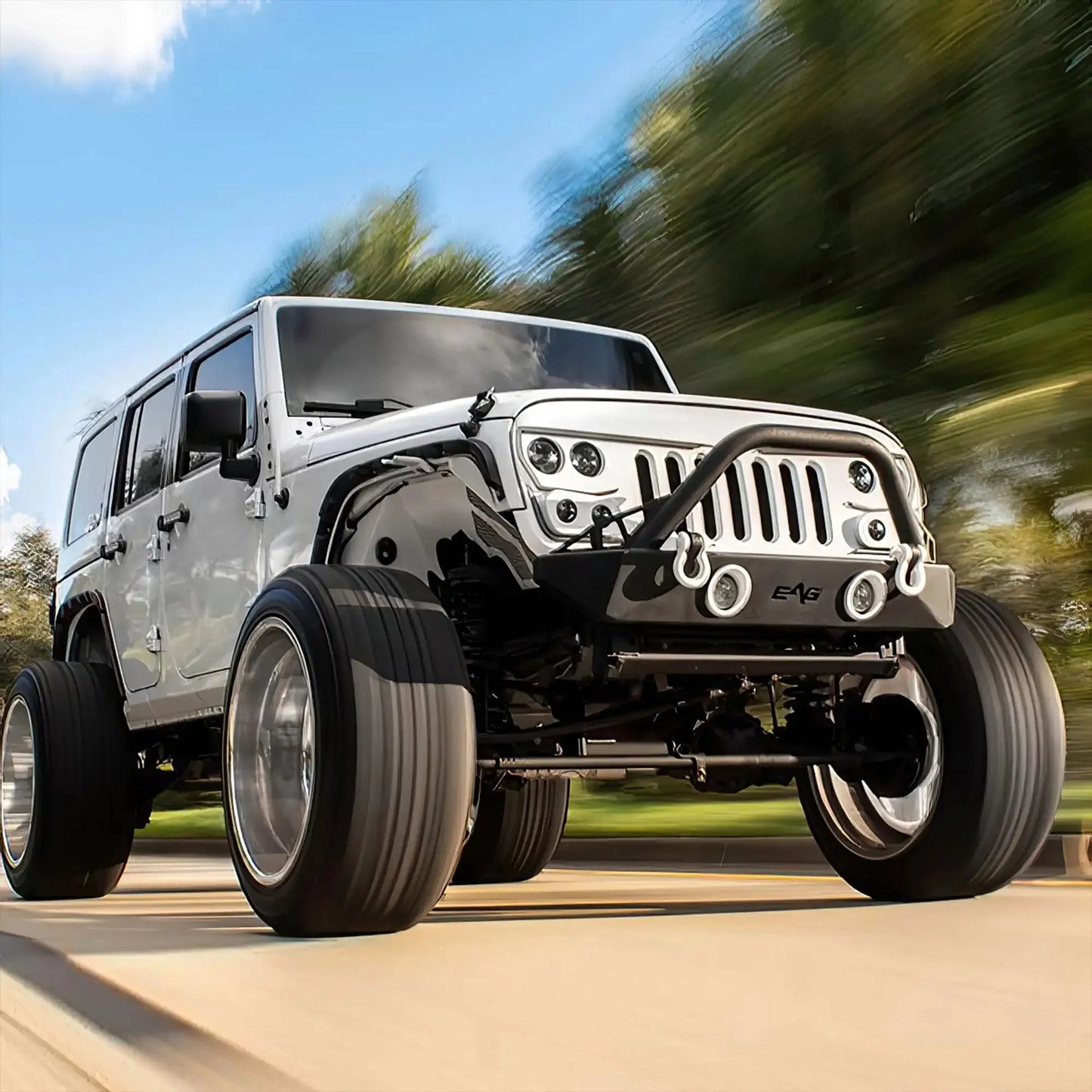

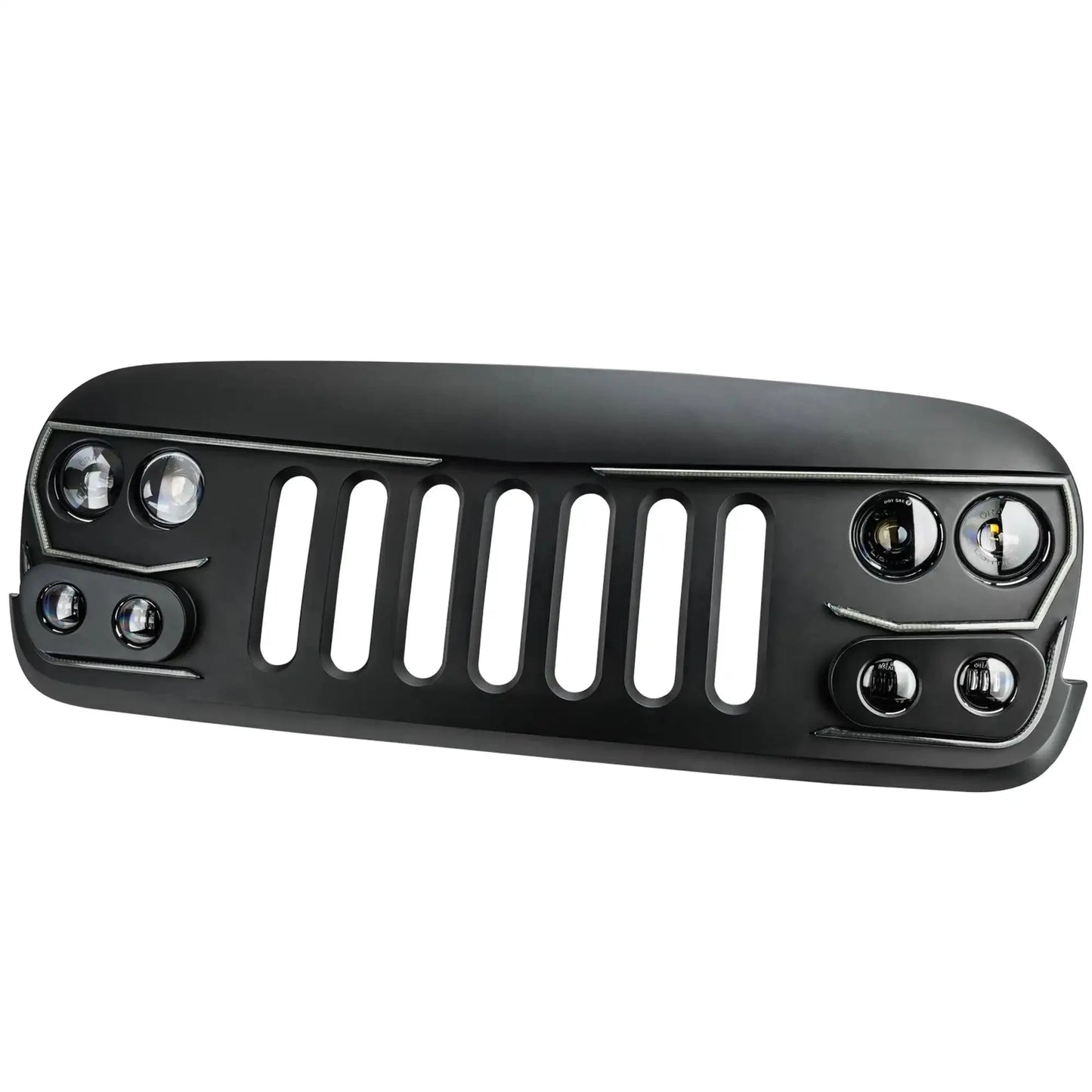

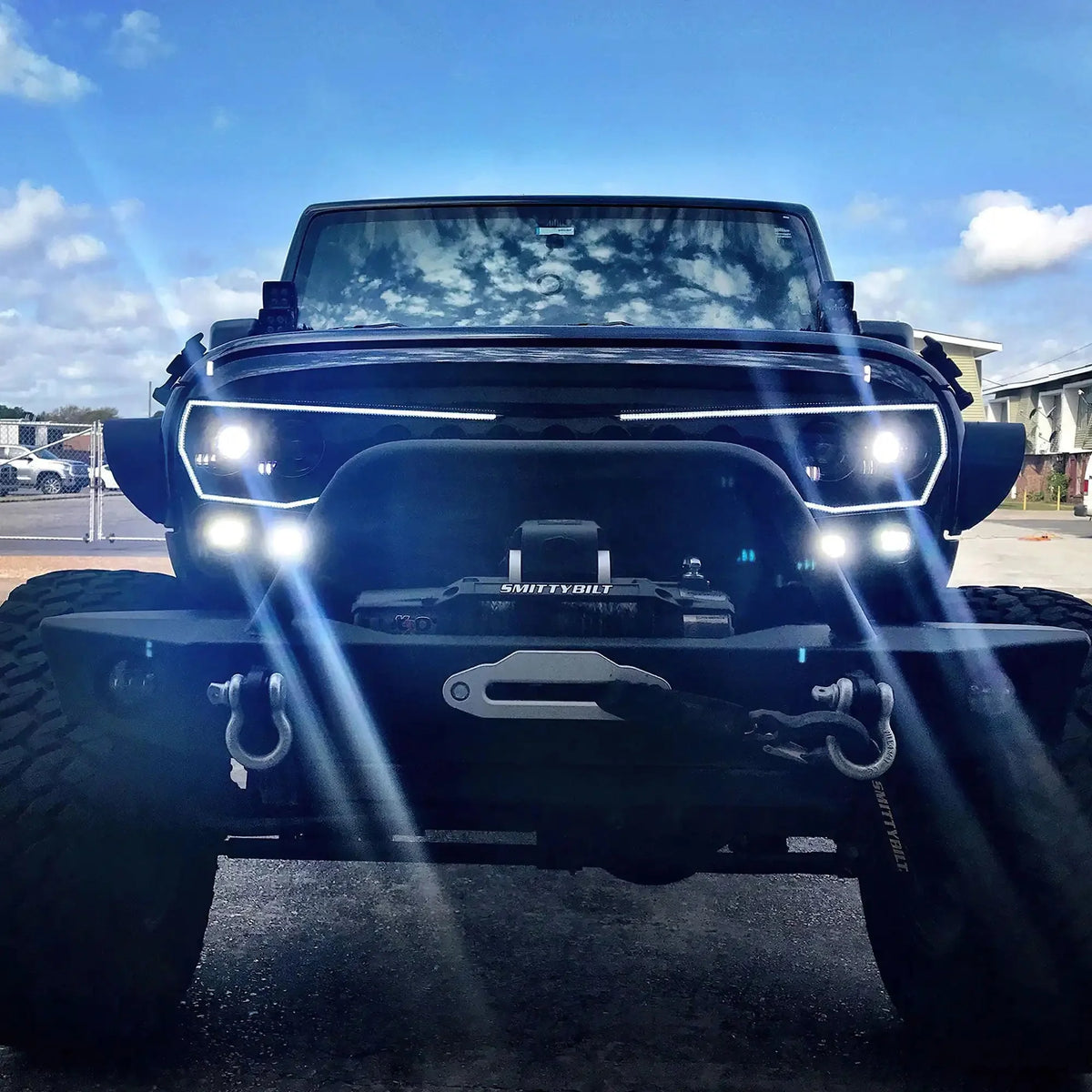

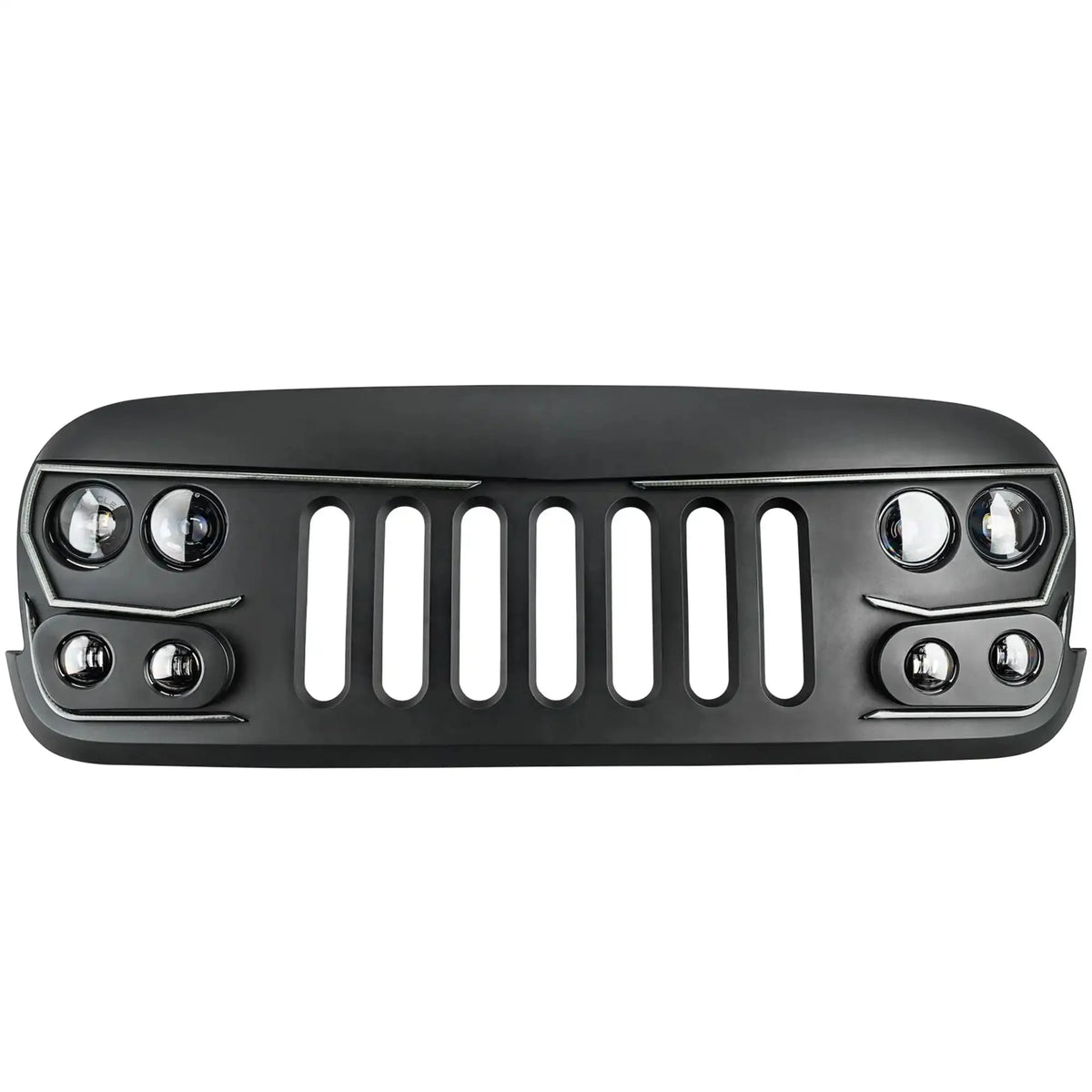

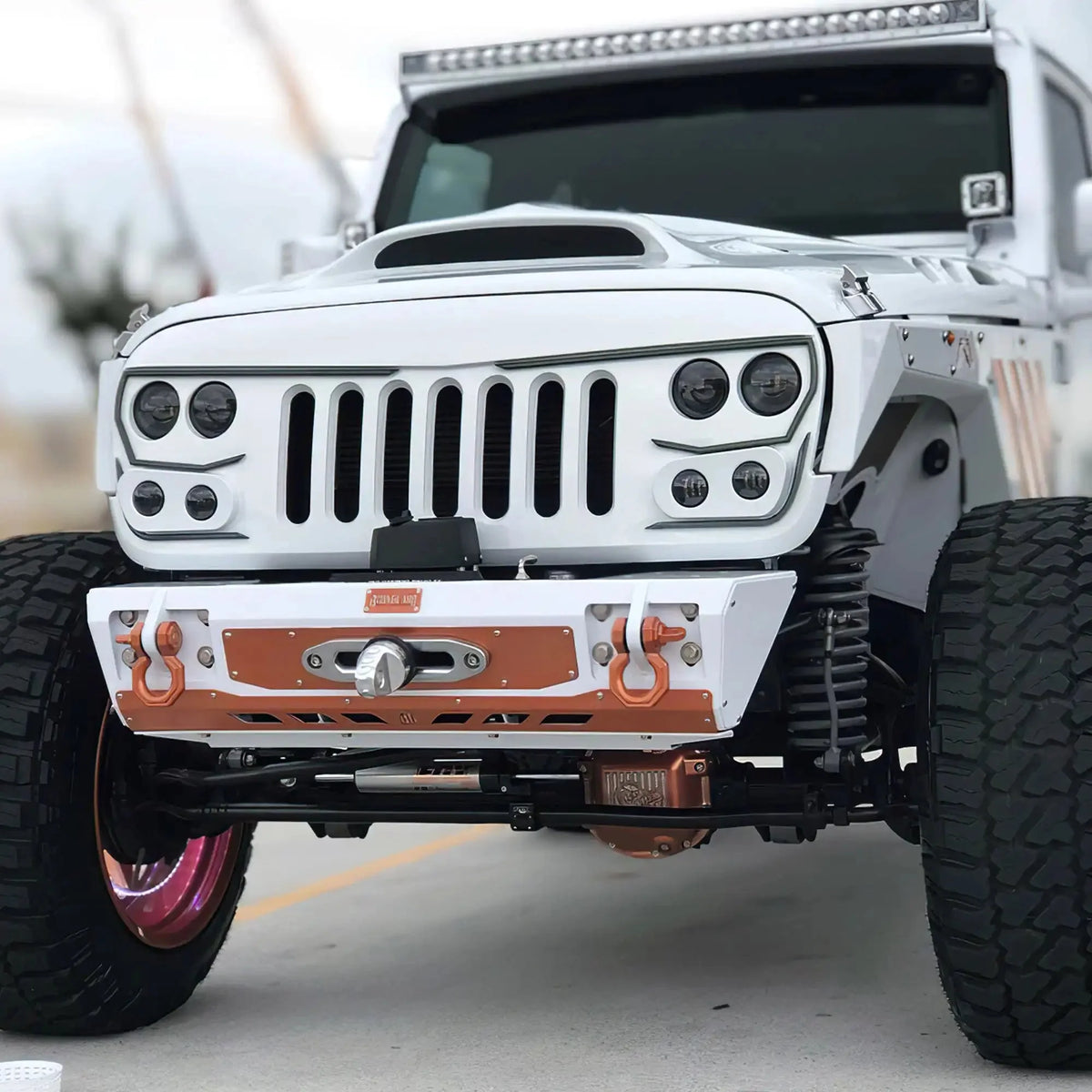

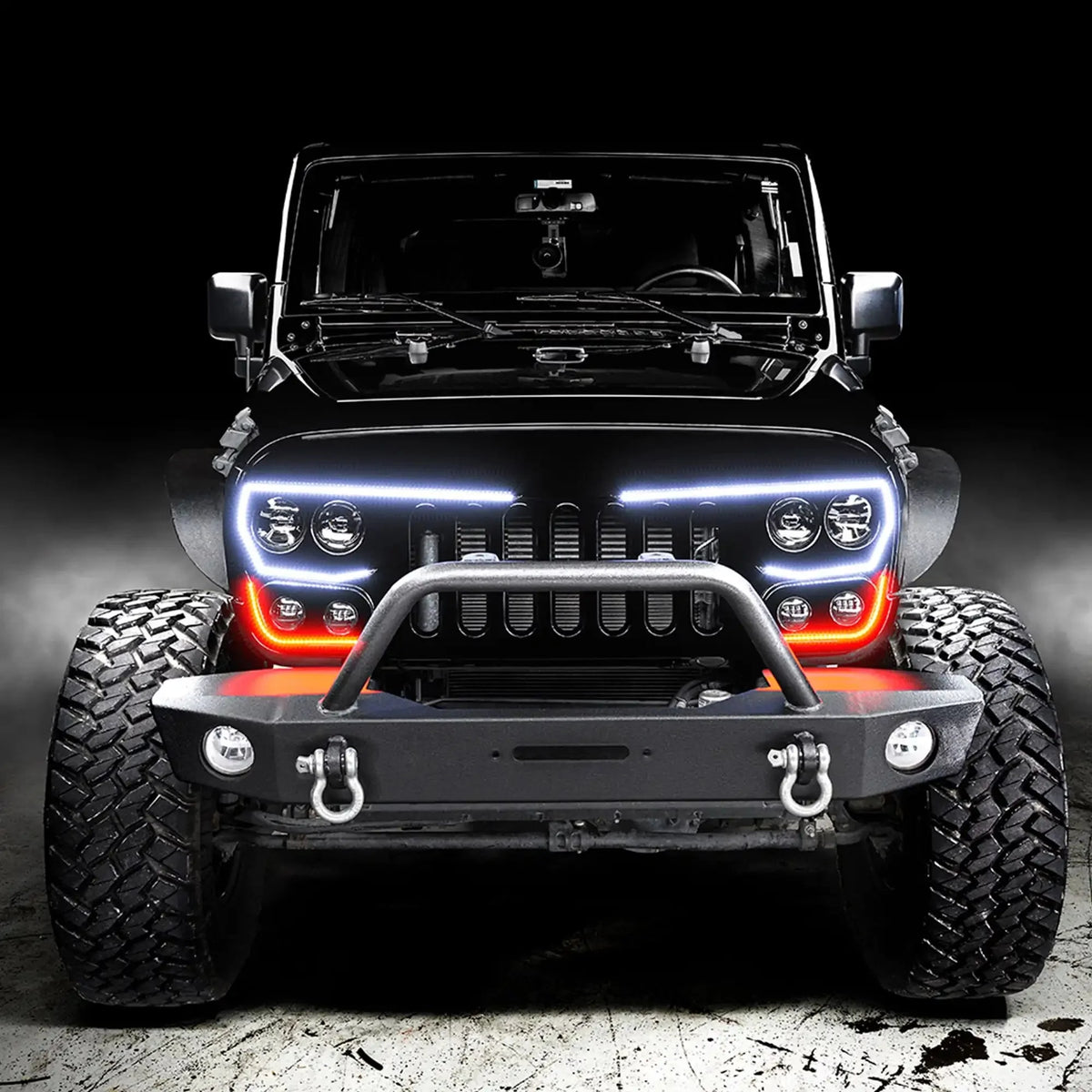

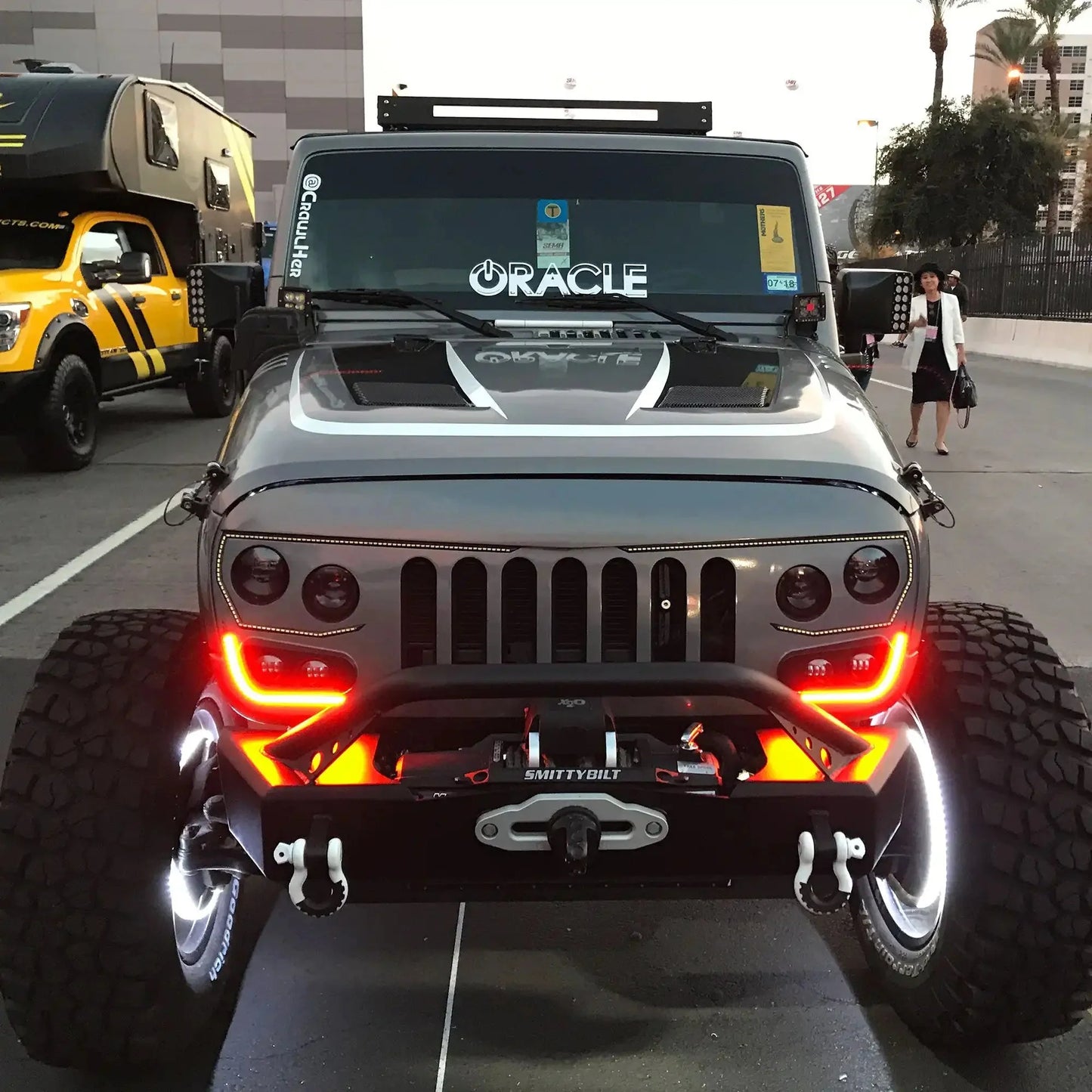

2007-2017 Jeep Wrangler JK VECTOR Pro Series II Full LED Grill - Integrated Headlights & DRL
Regular price
$1,304.50
Full replacement 2007-2017 JK grille with integrated low beam, high beam, and Dynamic LED DRL-refined for 2024 durability with IP68 sealed DRL modules and hardware mounting.
Fits 2007-2017 JK 5,600 lm Low (Combined) 7,200 lm High (Combined) Dynamic DRL Startup IP68 DRL Modules 2-Year Warranty
ORACLE Part #: 5817-PRO
Domestic Patent # D842175
International Patent # ZL201830136860.7
Domestic Patent # D842175
International Patent # ZL201830136860.7
Product Overview ▼

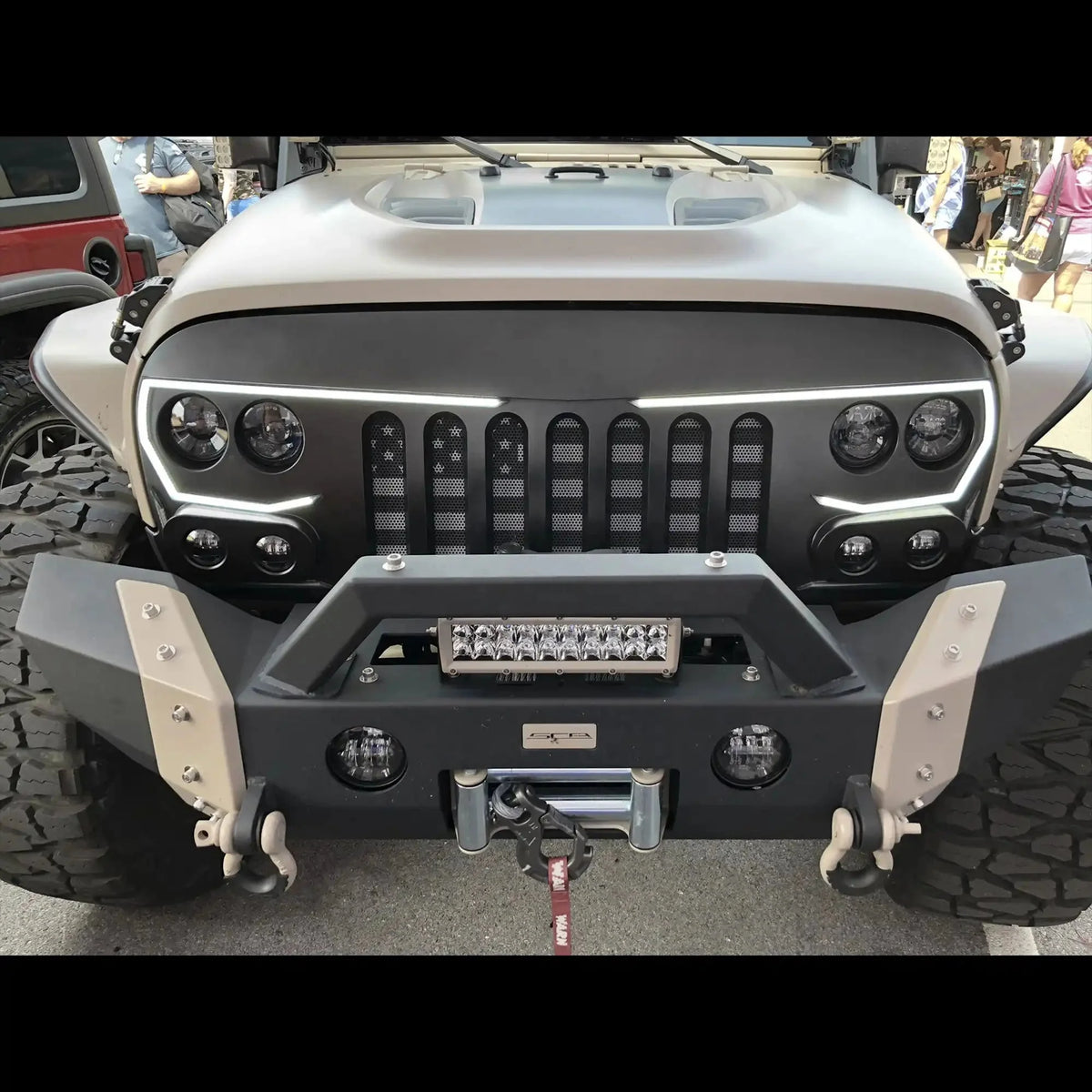

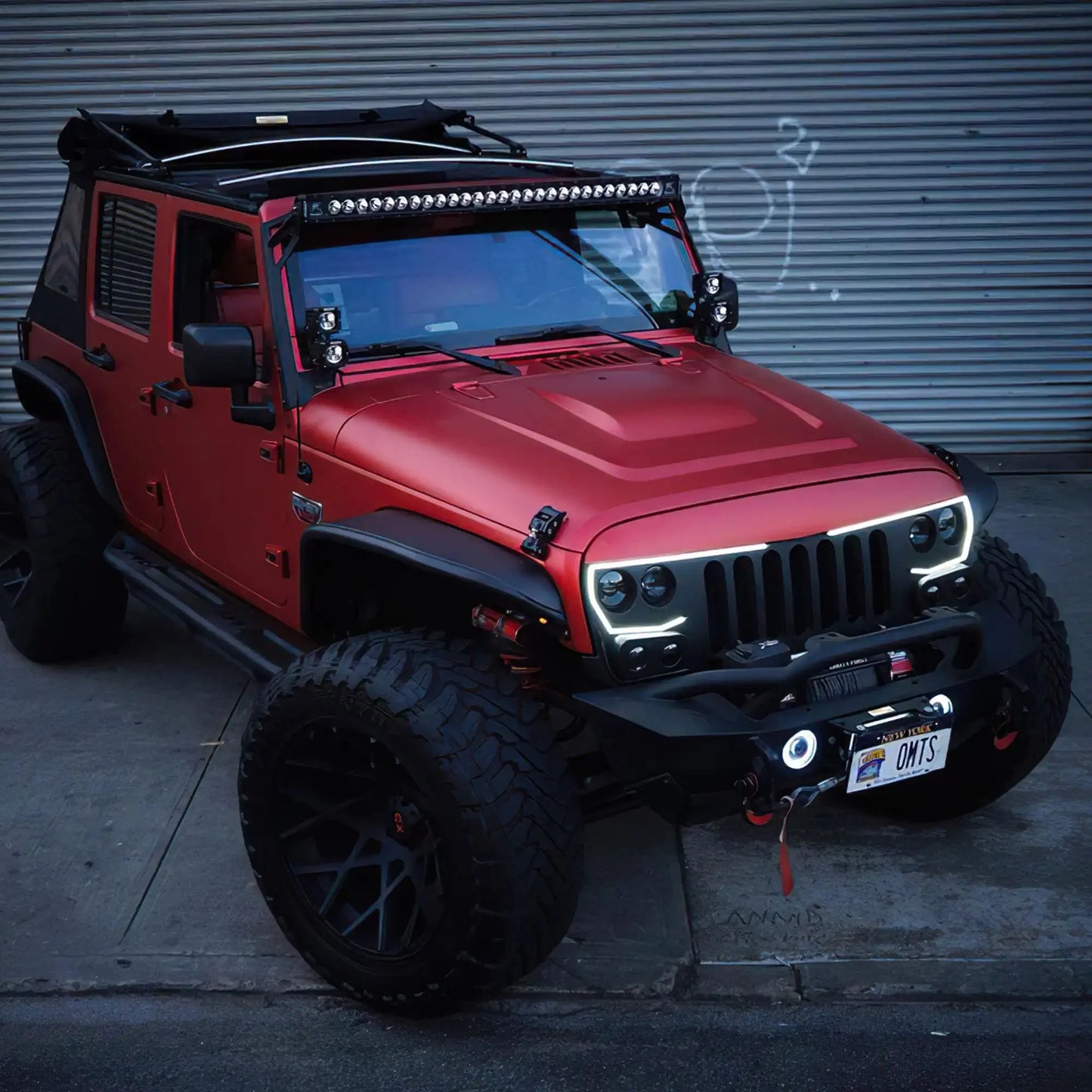

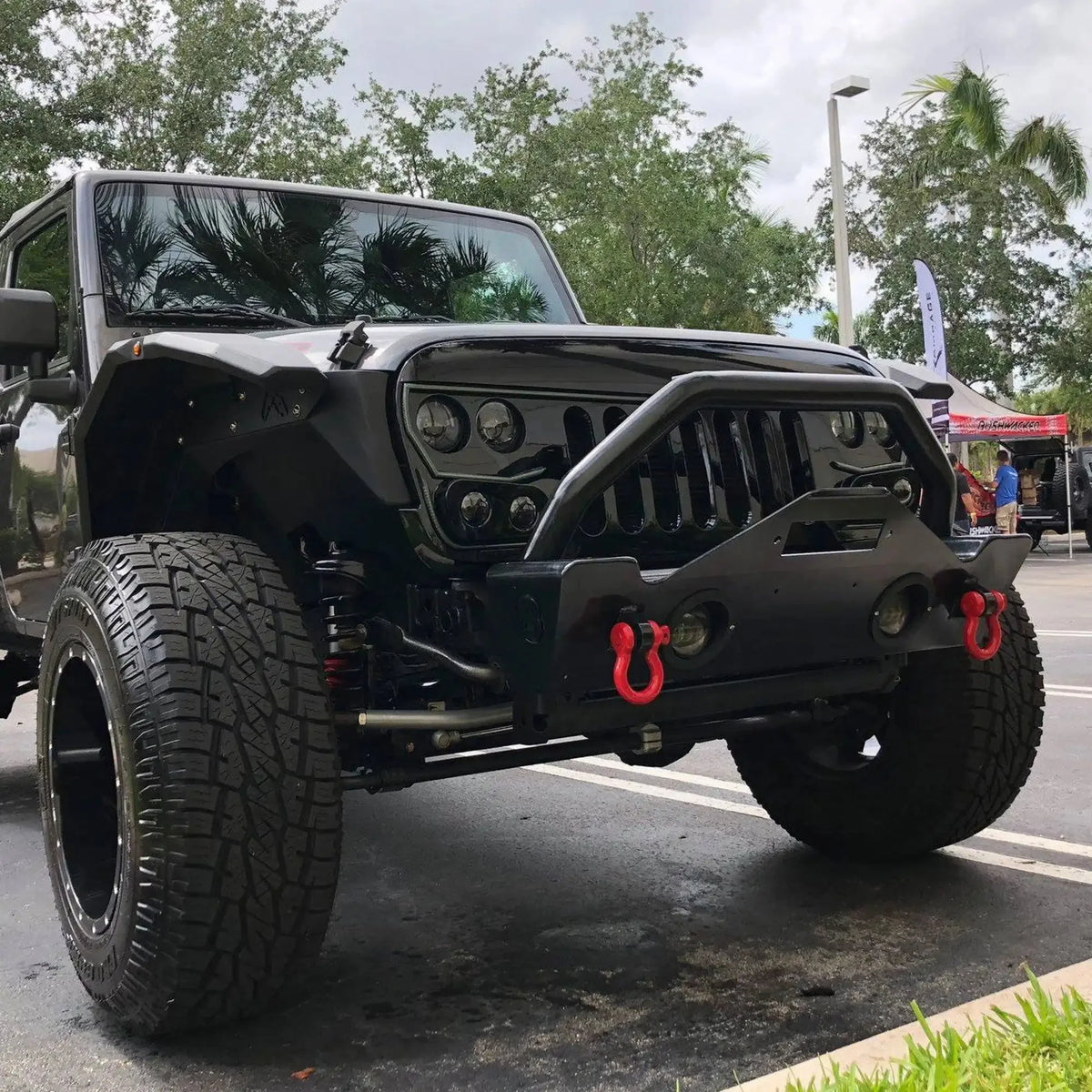

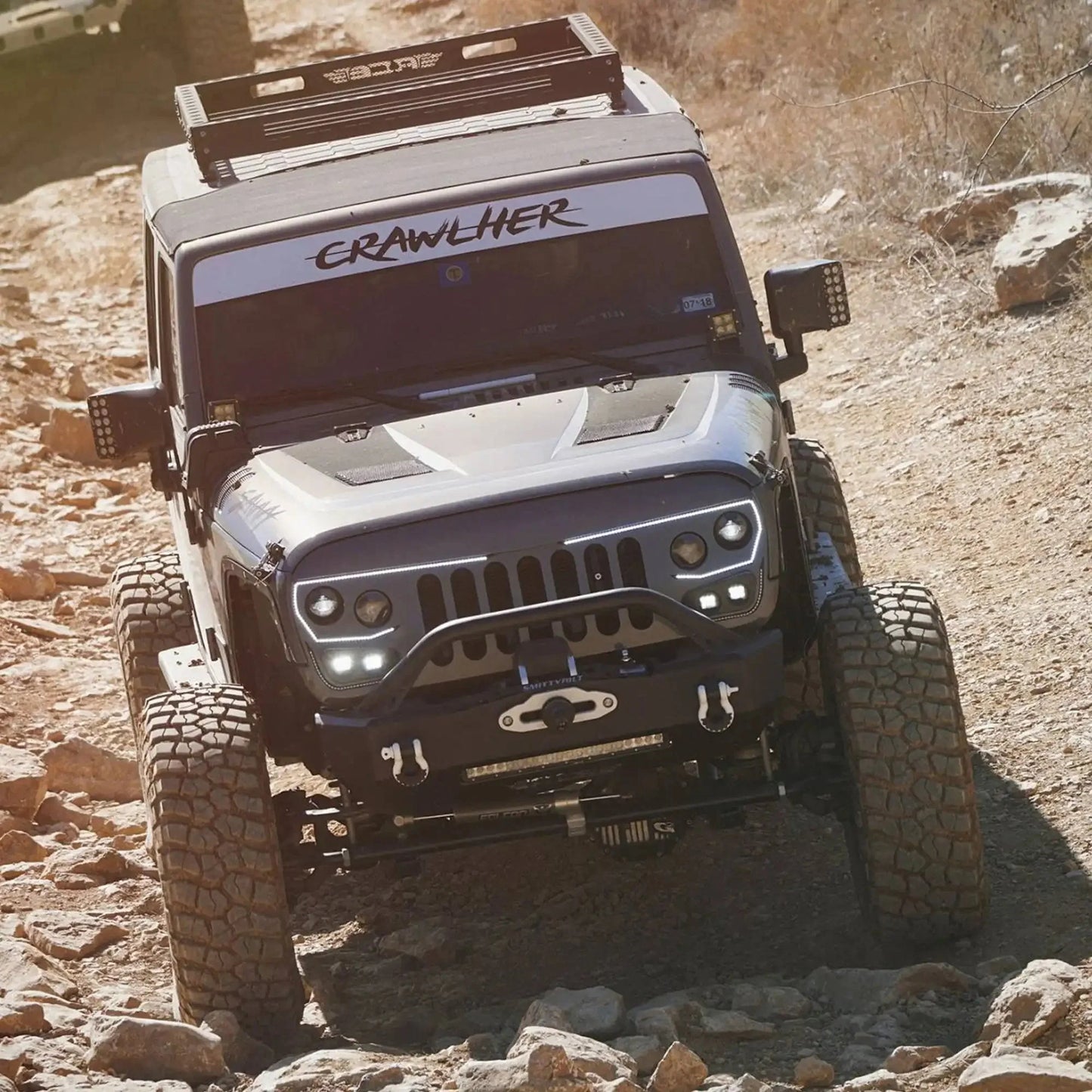

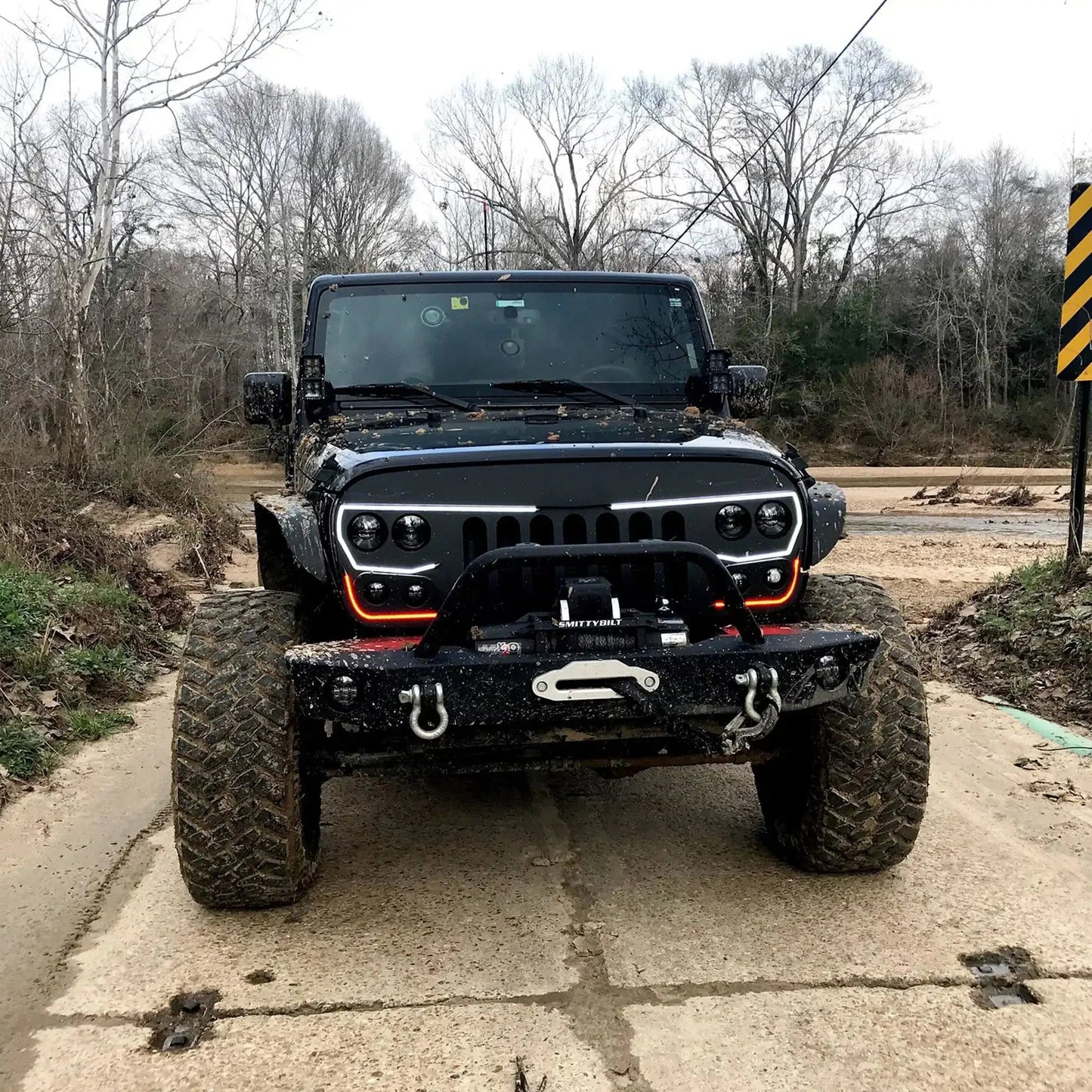

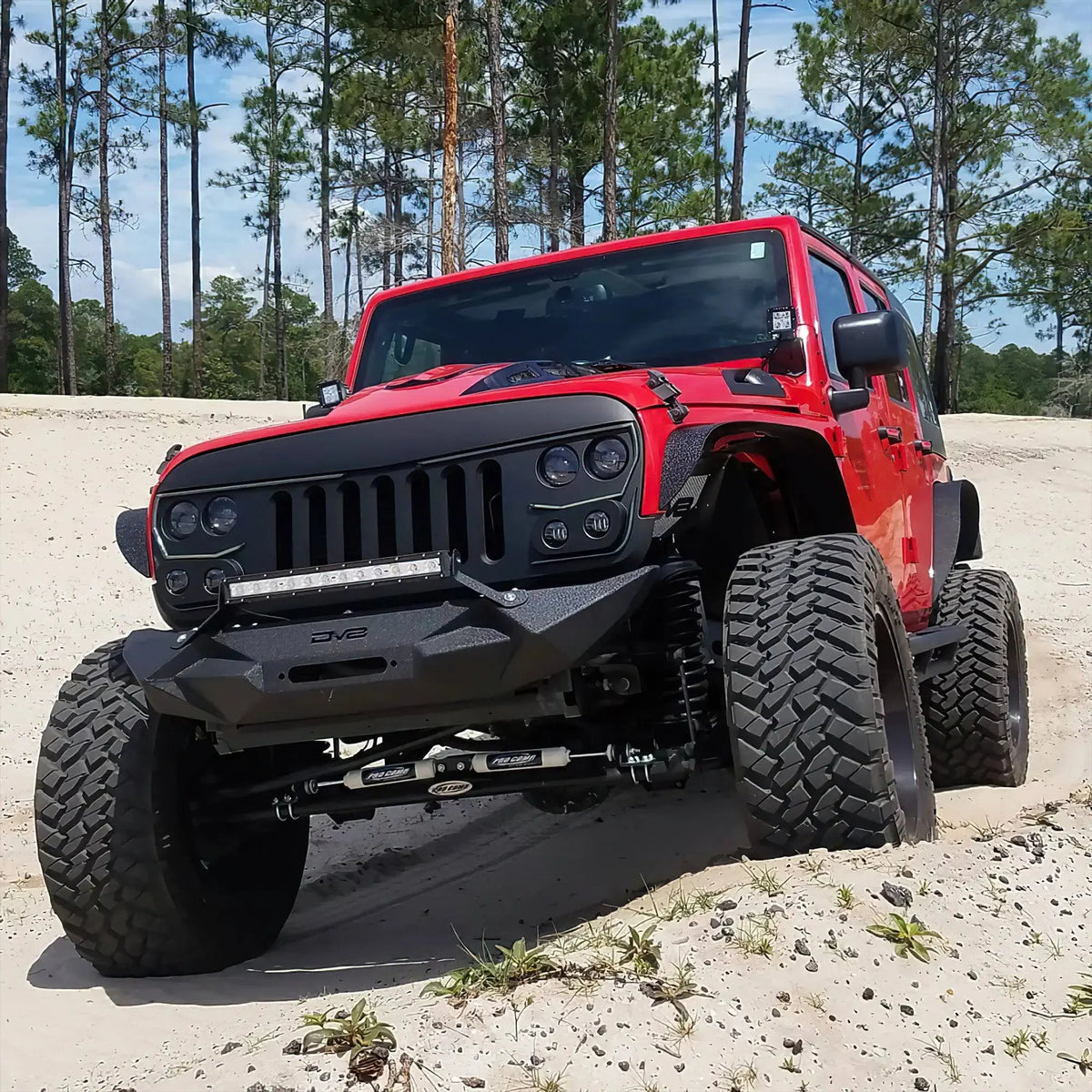

The ORACLE Lighting Vector™ PRO Series II Grill System for the Jeep Wrangler JK is updated for 2024 with major durability upgrades. VECTOR™ is the first full-featured replacement grille with integrated LED low beam, high beam, and Dynamic LED DRL.
More information: Vector Grill Update
Key Features ▼
- Full replacement JK grille with integrated LED lighting system
- Independently adjustable beam modules for proper aim (especially important for lifted Wranglers)
- Precision optics designed to reduce glare for oncoming traffic

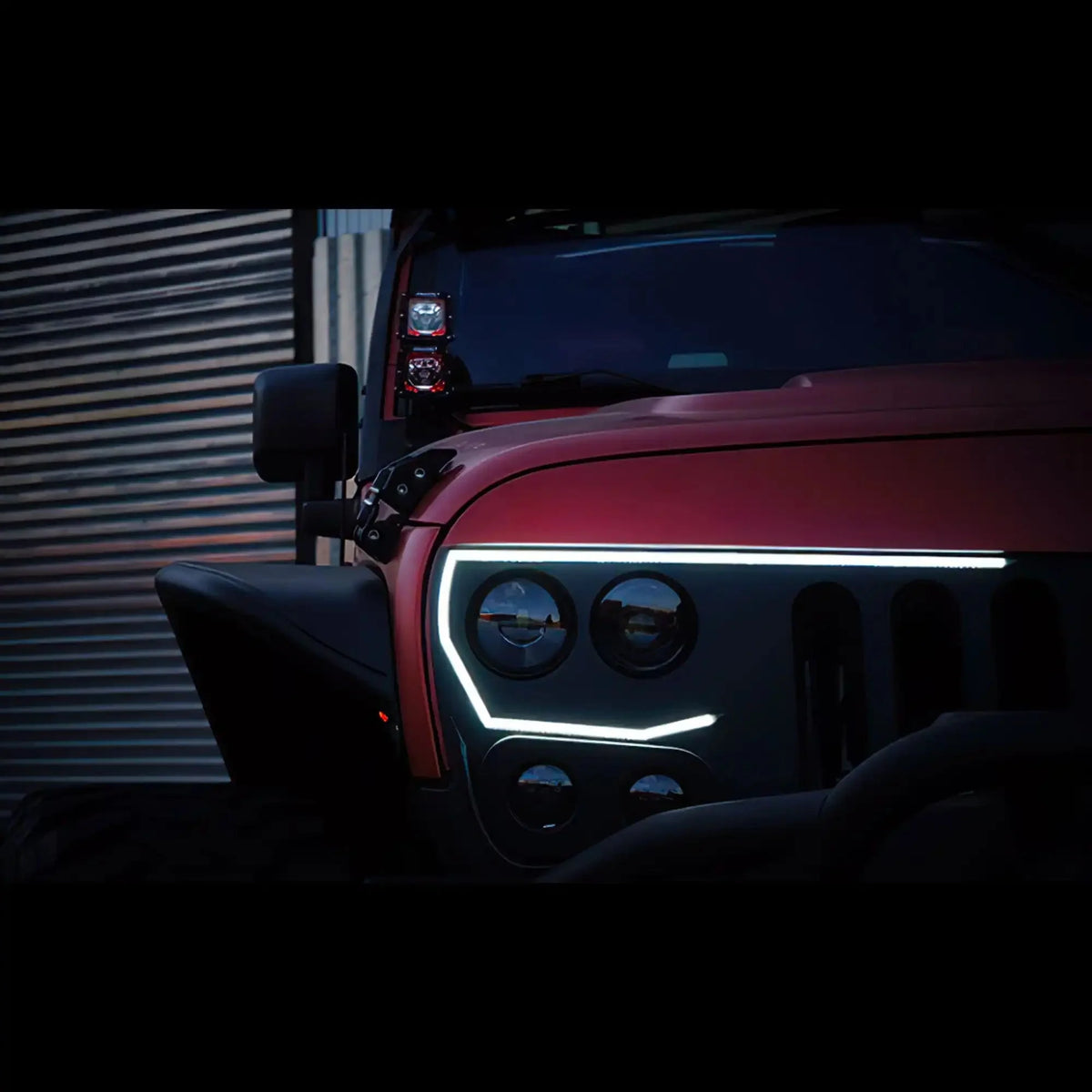

- Dynamic LED DRL startup sequence for modern OEM-plus styling
- 2024 PRO Series II upgrades: IP68 DRL sealing + hardware mounting
- CAD-developed for factory-quality fit & finish
Product Improvements
2024 Update: DRL modules are now robotically sealed to IP68 and mounted with hardware (not adhesive) for easier service and painting. Revised grille/DRL molds add clips and a designated seal area to help prevent separation and moisture intrusion seen in older models.
Performance & Technical Specifications ▼
At a Glance
- Fitment2007-2017 Jeep Wrangler JK
- ConstructionPolycarbonate
- DurabilityImpact-rated shell
- InstallationFactory mounts
- Warranty2 Years
Technical Specifications
Grille Specifications
- Fitment: 2007-2017 Jeep Wrangler JK
- Construction: Polycarbonate
- Durability: Impact Rated Shell
- Installation: Factory Mounts
- LED Components: Fully Equipped
- Warranty: 2 Years
Low Beam LED Emitter Specs
- Total Output: 4,000 Lumens
- LED Count / Type: 24 Phillips ZES™ 5W LEDs
- Adjustability: Horizontal & Vertical
- Optics: Advanced optic design
- Beam Design: Precision "no glare" output
Driving / High Beam LED Emitter Specs
- Total Output: 1,600 Lumens
- LED Count / Type: 6 Phillips ZES™ 5W LEDs
- Adjustability: Horizontal & Vertical
- Optics: Advanced optic design
- Beam Design: Precision "no glare" output
Dynamic DRL Specs
- LED Count: 200+ High Output LEDs
- Function: Daytime Running Light
- Effect: Dynamic startup sequence
- Ingress Protection: IP68 (robotically sealed modules)
Turn Signal Specs
- LED Type: Amber 5630 High Output Chips
- Function: LED Turn Signal Light
Vehicle Fitment ▼
Direct-Fit Application: 2007-2017 Jeep Wrangler JK
Installs at the factory grille mounting locations. Verify vehicle year and configuration before ordering.
What's Included ▼
- (1) ORACLE Lighting Vector Series Grill
- (4) Adjustable LED Low Beam Emitters
- (2) Adjustable LED Driving Beam Emitters
- (2) LED High Beam (Bright Beam) Emitters
- (2) Dynamic Daytime Running Lights
- (2) Amber LED Turn Signal Modules
- (2) Removable Mounting Brackets
- (2) Plug & Play Headlight Harnesses
- (4) Metal Grill Retailer Installation Clips
- (1) Installation Guide and DIY Video
- (8) Headlight Spacers
- (2) Screws
- (1) Weatherproof stripping
Installation Guide & Resources ▼
Estimated Installation Time: 1 hour
Experience Level: Advanced
Moderate mechanical or electrical work may be required.
Experience Level: Advanced
Moderate mechanical or electrical work may be required.
