2007-2013 Toyota Tundra H10 - ORACLE 4,000+ Lumen LED Light Bulb Conversion Kit (Fog Light)
Regular price
$193.00
These high-output H10 LED fog light bulbs create a 4,000+ lumen blanket of light to increase safety and nighttime visibility on your 2007-2013 Toyota Tundra. Philips Luxeon ZES chips draw less than half the power of the factory bulb, with Samsung-designed drivers and an adjustable heat sink for easy fitment.
4,000-6,000 Lumens 6000K Color Philips Luxeon ZES Chips CAN-Bus Compatible No Relay Harness Needed No Flickering Self-Regulated Cooling 2-Year Warranty
ORACLE Part #: 5234-001
Vehicle Listing: 2007-2013 Toyota Tundra H10 - ORACLE 4,000+ Lumen LED Light Bulb Conversion Kit (Fog Light)
Product Overview ▼
These high-output H10 LED fog light bulbs create a 4,000+ lumen blanket of light to increase safety and nighttime visibility. Philips Luxeon ZES chips deliver the increased lumen output while drawing less than half the power of a factory fog light bulb - and their smaller chip size provides excellent heat dissipation for reliable performance even in harsh environments.
The internal driver components were designed by Samsung for excellent performance in a compact package. The adjustable heat sink makes fitment issues a thing of the past - it's removable to reverse-install or mount outside the headlight back-cap for added adaptability.
CAN-Bus Note: Dodge, Chrysler, Jeep, or later-model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN-Bus decoder harnesses if flashing, strobing, or shutting down with engine ON occurs.
Key Features ▼
- 4,000-6,000 lumen output - minimum 4,000 lm, maximum 6,000 lm per set
- 6000K compliant color temperature - crisp, bright white output

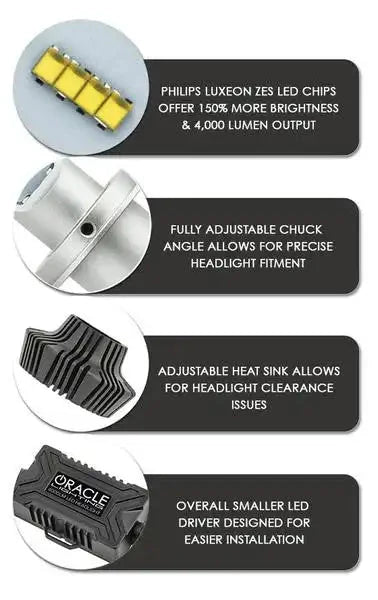

- Philips Luxeon ZES chips - high-output, low-profile chips with excellent heat dissipation
- Samsung-designed internal drivers - compact, high-performance driver electronics
- Adjustable/removable heat sink - reverse-install or external mount for universal fitment
- CAN-bus compatible - no error codes on most vehicles
- No relay harness needed - direct plug-and-play installation
- No flickering or flashing - stable output from the moment you turn the key
- Instant start-up - full brightness immediately, no warm-up time
- Non-glare engineering - designed to minimize glare for oncoming traffic
- Self-regulated cooling - fewer points of failure vs. fan-cooled designs
- Less amp/power draw - under half the power consumption of factory halogen bulbs
- Easy DIY installation - ~30 minutes, no special tools required
- 2-year warranty
Performance & Technical Specifications ▼
Bulb TypeH10
Minimum Output4,000+ Lumens
Maximum Output6,000 Lumens
Color Temperature6000K (Bright White)
LED ChipPhilips Luxeon ZES
DriverSamsung-Designed Internal Driver
CAN-BusCompatible (decoder may be needed on select vehicles)
Relay HarnessNot Required
CoolingSelf-Regulated (Adjustable/Removable Heat Sink)
Install Time~30 Minutes
Warranty2 Years
Vehicle Fitment ▼
Fits: 2007-2013 Toyota Tundra
Product Application2007-2013 Toyota Tundra H10 - ORACLE 4,000+ Lumen LED Light Bulb Conversion Kit (Fog Light)
Verify vehicle year, model, trim, and factory equipment before ordering.
What's Included ▼

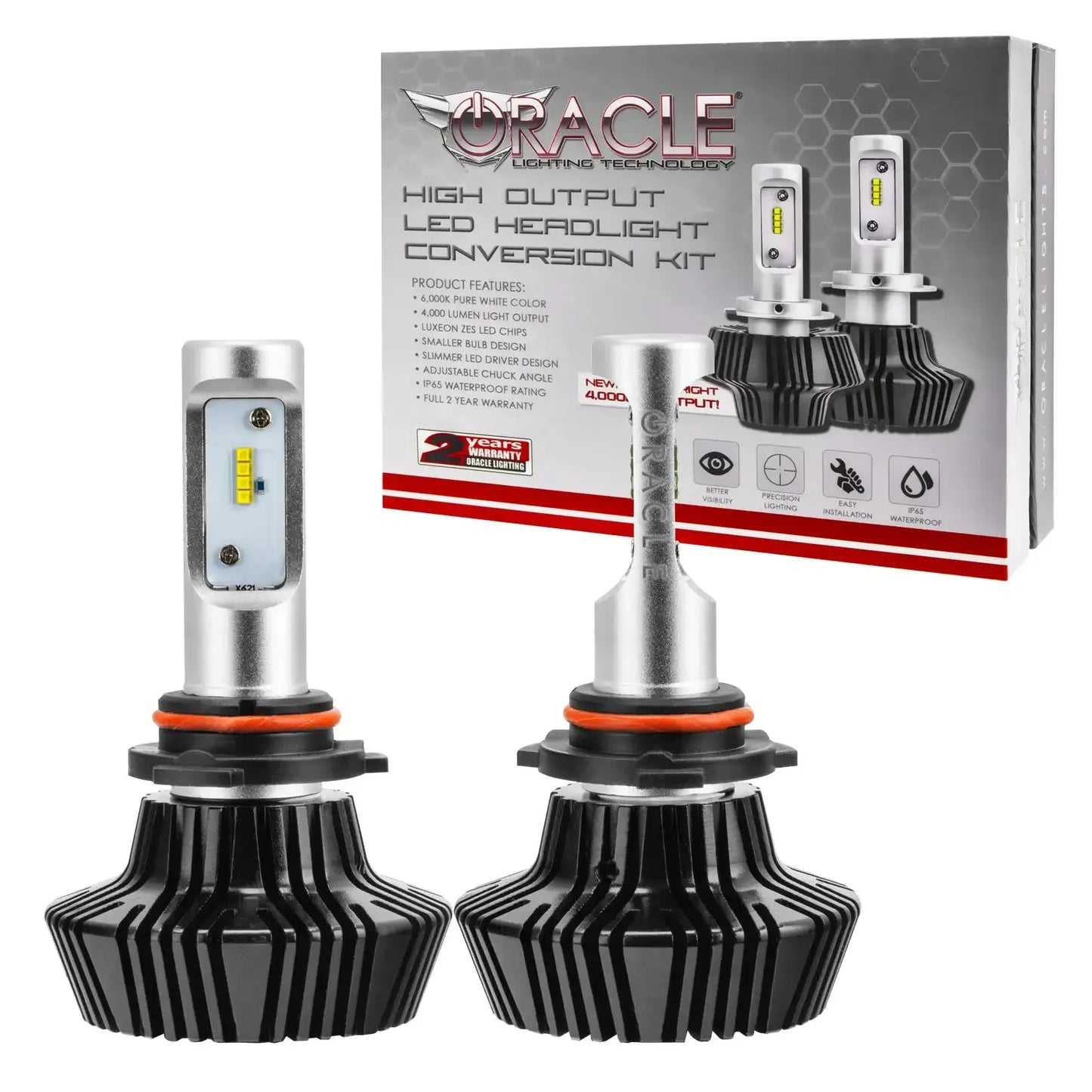

- (2) ORACLE H10 4,000+ Lumen LED Bulbs
- (2) H10 Connectors

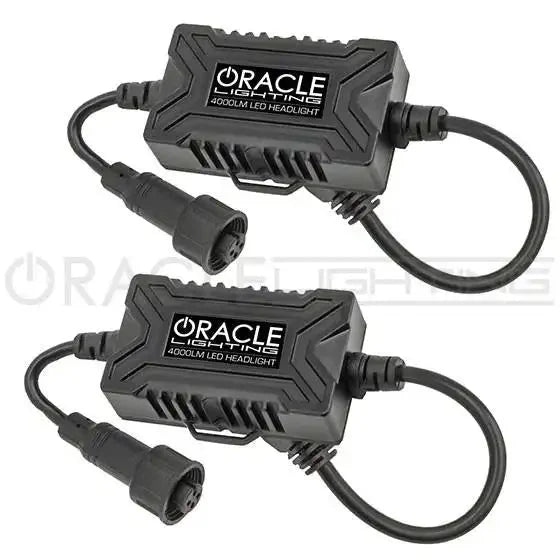

- (2) H10 Compact LED Drivers
Installation Guide & Resources ▼
Estimated Installation Time: 30 minutes
Experience Level: Intermediate
Basic mechanical or electrical familiarity is recommended.
Experience Level: Intermediate
Basic mechanical or electrical familiarity is recommended.
Product Badges
Part Numbers & Options ▼
5234-001H10 - 4,000+ Lumen LED Fog Light
